Description

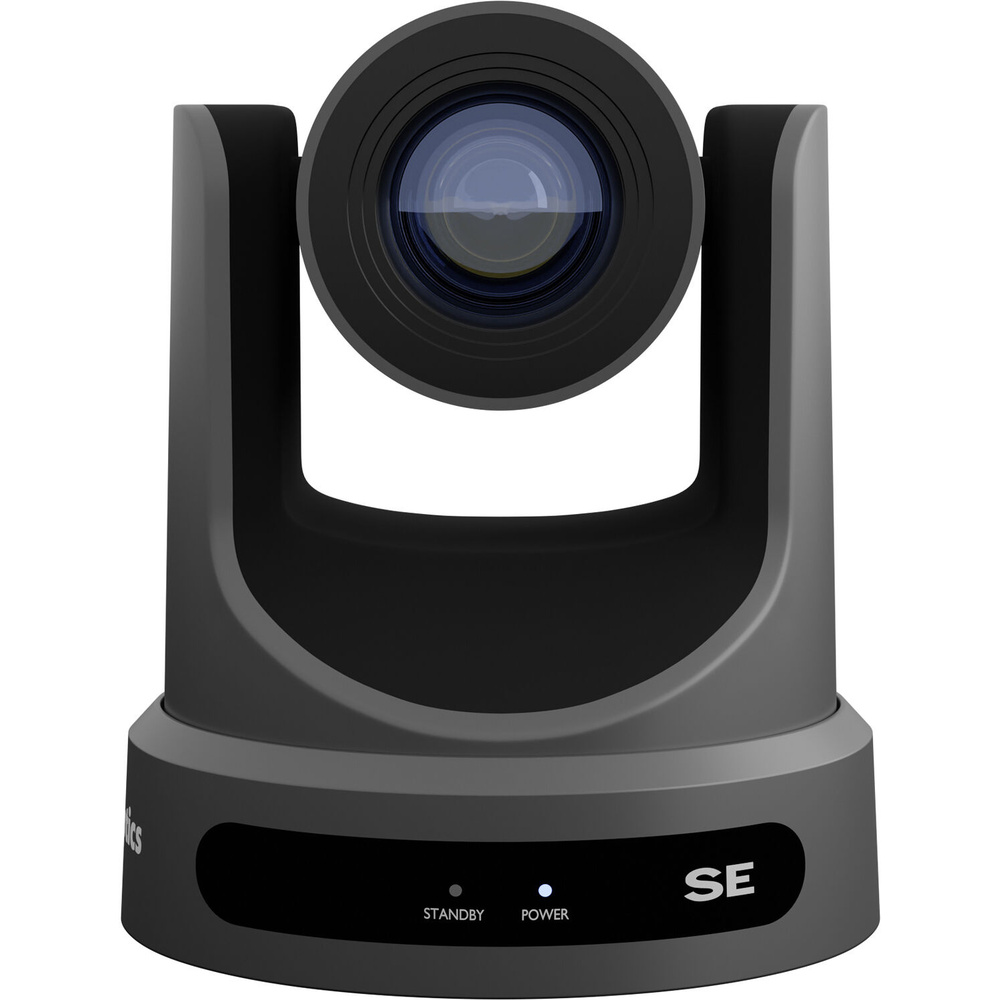

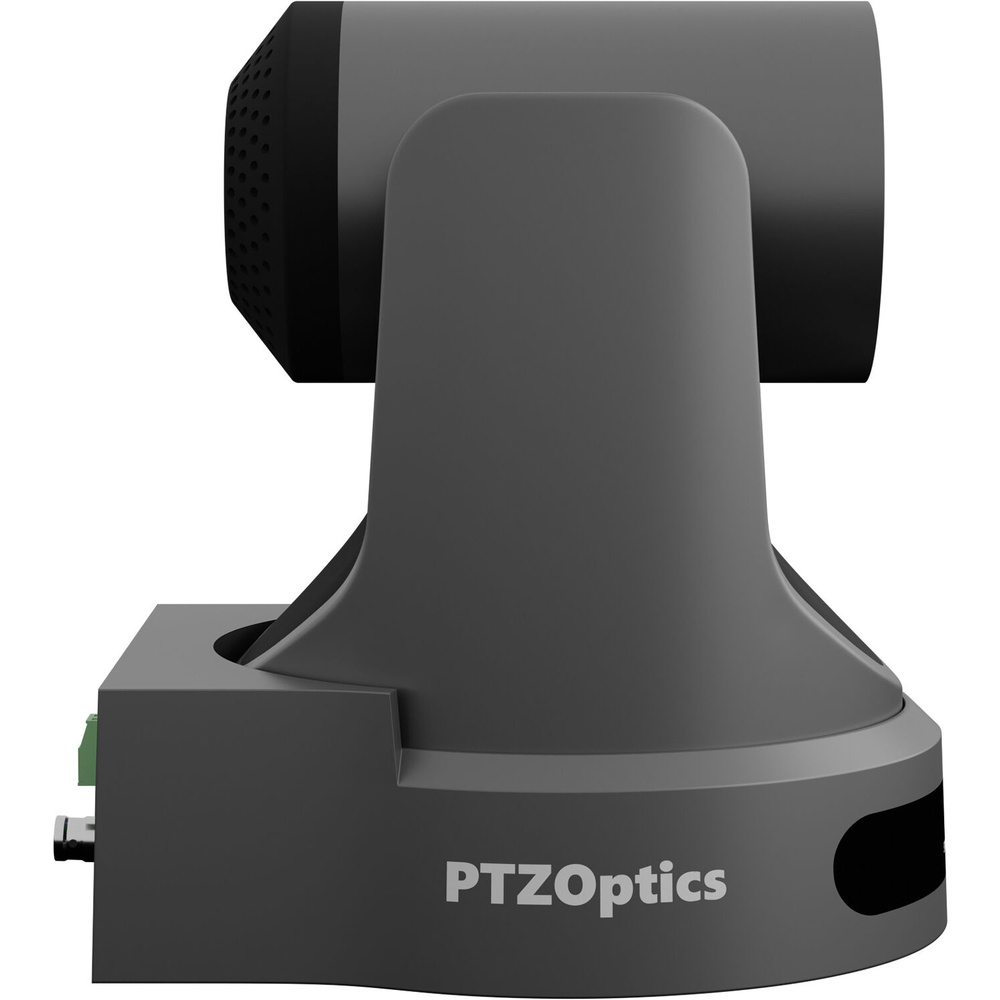

The PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Grey) sits in our PTZ Cameras range.
Highlights include capture up to 1080p60, auto-tracking, 20x optical Zoom, 16x Digital Zoom, HDMI, 3G-SDI, USB & IP Output, includes NDI|HX as standard and 255 presets, 3.5mm stereo Audio In/Out.
Key specifications: interface RJ45; weight 1.445 kg; resolution 1080P; material Aluminum, Plastic; video sensor 1/2.8’’, CMOS, Effective Pixel: 2.07M.
In the box: PTZOptics Move SOE SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (White), 12 VDC Power Adapter, IR Remote Control and limited 5-Year manufacturer warranty. Manufacturer model number Move SE PTZ Camera.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Image Sensor & Lens | |
|---|---|
| Video Sensor | 1/2.8’’, CMOS, Effective Pixel: 2.07M |
| Resolution and Frame Rate | 1080p-60/50/30/25/59.94/29.97, 1080i-60/50/59.94, 720p-60/50/59.94 |
| Digital Zoom | Off (1920x1080), 2X (960x540), 3X (640x360), 4X, (480x270), 8X (240x135), 16X (128x72) |
| Min. Lux | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| Lens | 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68 20x: f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8 30x: f = 4.42mm ~ 132.6mm, F1.8 ~ F2.8 |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR |
| Backlight Compensation | Supported |
| Digital Noise Reduction | 2D & 3D Digital Noise Reductions |
| Field of View | 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide) 20x: Horizontal: 3.4° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide) 30x: Horizontal: 2.3° (tele) ~ 60.7° (wide), Vertical: 1.28° (tele) ~ 34.1° (wide) |
| Pan/Tilt Movement | |
| Pan Movement | ±170° |
| Pan Speed | 1.7° ~ 100°/s |
| Tilt Movement | +90° to -30 |
| Tilt Speed | 1.7° ~ 69.9° |
| Image Flip, Mirror and Freeze | Supported |
| Presets | 255 Presets |
| Preset Accuracy | 0.1° |
| Power Options | |
| Power Supply | DC 12V |
| Input Power | 2A (Max) |
| Physical Specifications | |
| Material | Aluminum, Plastic |
| Colour | White and Gray |
| Dimensions (W x D x H) | 142mm W x 169mm D x 164” H (189mm H max height w/ tilt up)m |
| Weight | 1.445 kg |
| Working Environment | Indoor |
| Operating Temperature | -10°C to 40°C |
| Storage Temperature | -40°C to 60°C |
| Rear Board Connectors | |
| HD Video Output | 1x RJ45: 10/100 Adaptive Ethernet Port 424M standard 1x HDMI: version 1.3 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, along to SMPTE 424M standard 1x USB 3.0 Type C |
| Audio Interface | 1x 3.5mm Line level Input |
| Communication Interface | 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P |
| IR | 4x IR Addresses, Max distance 30ft / 9m |
| Power Jack | JEITA type (DC IN 12V) |
Product details
| Resolution | 1080P |
|---|---|
| Optical Zoom | 20x |
| PoE Capable | Yes |
| Interface | RJ45 |
In the box
- PTZOptics Move SOE SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (White)
- 12 VDC Power Adapter
- IR Remote Control
- Limited 5-Year Manufacturer Warranty
