Description

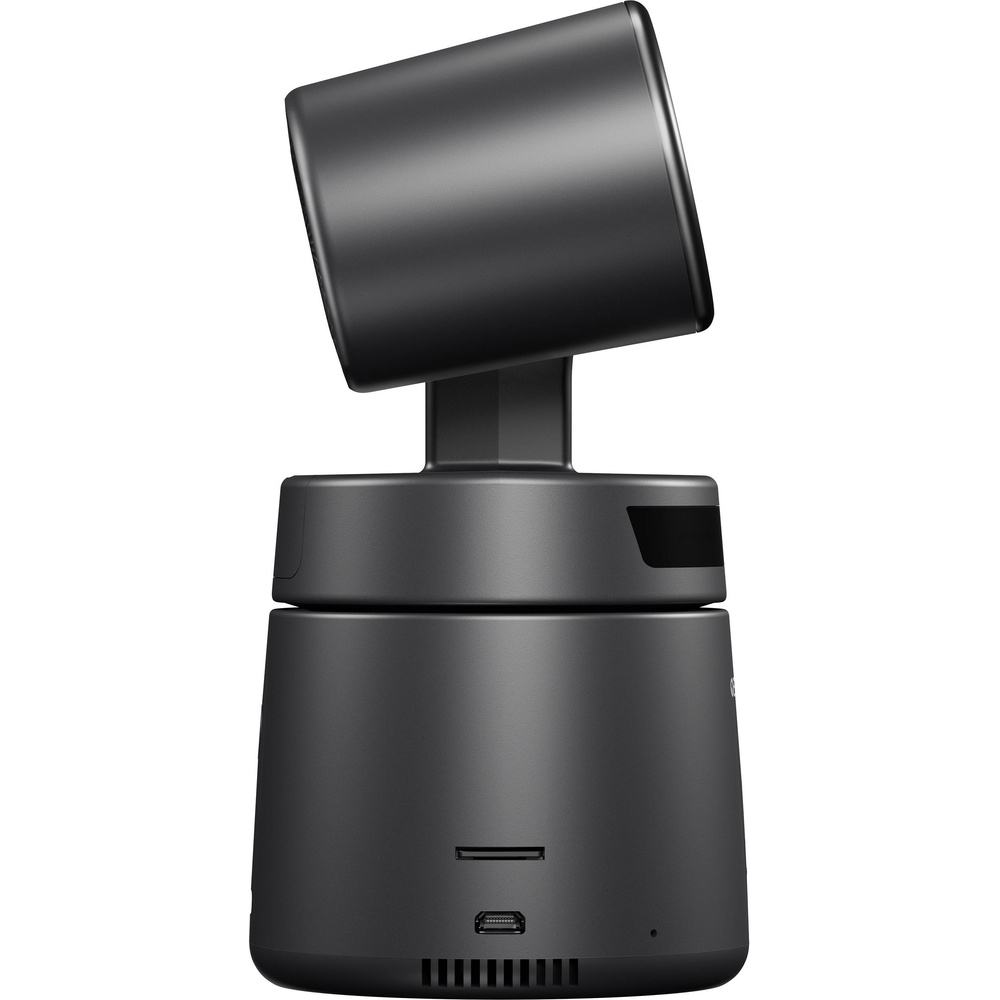

The OBSBOT Tail Air is a compact AI-powered PTZ streaming camera suited to solo creators, small studios and live production setups that need remote framing and simple streaming control. It handles camera work such as subject tracking, zooming and live output in a small unit that can fit into flexible rigs for recording, streaming or multi-camera use.
It uses a 1/1.8-inch CMOS sensor with 8.4 megapixels and an effective resolution of 3856 x 2176, along with a 23mm lens and f/1.8 aperture. Video output is available in UHD 4K and 1080p, with USB-C 3.0 / 3.1 / 3.2 Gen 1 and Micro-HDMI connections. It also supports H.245, H.265 and MJPEG streaming, has 4x digital zoom, PoE support, a tally light and a stereo built-in microphone, plus a 3.5 mm stereo input.
In use, it can be connected to a computer, switcher or networked production setup, and it also suits arrangements where power and data are carried over Ethernet. It pairs with USB-C or HDMI based workflows, and the box includes the camera, USB-C cable, USB-C to USB-A adapter, USB-C male to dual USB-C female splitter, storage case and NDI license.
Specifications
| Key Specs | |
|---|---|
| Built-In Microphone Type | Stereo |
| IP Streaming | H.245, H.265, MJPEG: UHD 4K, 1080p |
| Tally Light | Yes |
| Video Outputs | 1 x USB-C 3.0 / 3.1/3.2 Gen 1 1 x Micro-HDMI |
| Audio I/O | 1 x 1/8" / 3.5 mm Stereo Input |
| PoE Support | Yes |
| Power I/O | 1 x USB-C |
| Image Sensor | |
| Image Sensor | 1/1.8"-Type CMOS |
| Sensor Resolution | Effective: 8.4 Megapixel (3856 x 2176) |
| White Balance | 2000 to 10,000K |
| Camera | |
| Shutter Speed | 1/8000 to 1 Second |
| Precise Scan Rate Control | No |
| Max Digital Zoom | 4x |
| IR Cut Filter | No |
| Flip / Mirror Support | Image Flip |
| Lens | |
| Focal Length | 23mm |
| Maximum Aperture | f/1.8 |
| Minimum Focus Distance | Wide: 0.9" / 2.3 cm |
| Image Stabilisation | Optical Digital |
| Focus Control | Autofocus |
| Video Output | |
| Output Formats | HDMI, USB: 3840 x 2160p at 24, 25, 30 fps 1920 x 1080p at 24, 25, 30, 50, 60 fps |
| Embedded Audio | HDMI/NDI/USB/Wireless |
| IP Multi-Stream Support | Yes |
| Control | |
| Move Speed | 120°/sec |
| Movement Range | Pan: 300° (-150 to 150°) Tilt: 97° (-65 to 32°) |
| Supported Control Protocols | IP NDI |
| Interfaces | |
| Wi-Fi | Yes |
| Bluetooth | 5.0 |
| System Requirements | |
| OS Compatibility | Windows 10 or Later Windows 8 Windows 7 macOS 10.13 or Later *As of November, 2023: Cheque with manufacturer for the most up-to-date compatibility |
| Mobile App Compatible | Yes: Android & iOS App Name: OBSBOT Start *As of November, 2023: Cheque with manufacturer for the most up-to-date compatibility |
| Environmental | |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| General | |
| Security Lock Support | Yes |
| Physical | |
| Dimensions | 5.2 x 2.88 x 2.73" / 132.5 x 73.25 x 69.25 mm |
| Weight | 12.2 oz / 344.5 g |
In the box
- OBSBOT Tail Air AI-Powered PTZ Streaming Camera
- USB-C Cable
- USB-C to USB-A Adapter
- USB-C Male to Dual USB-C Female Splitter
- Storage Case
- NDI License
