Description

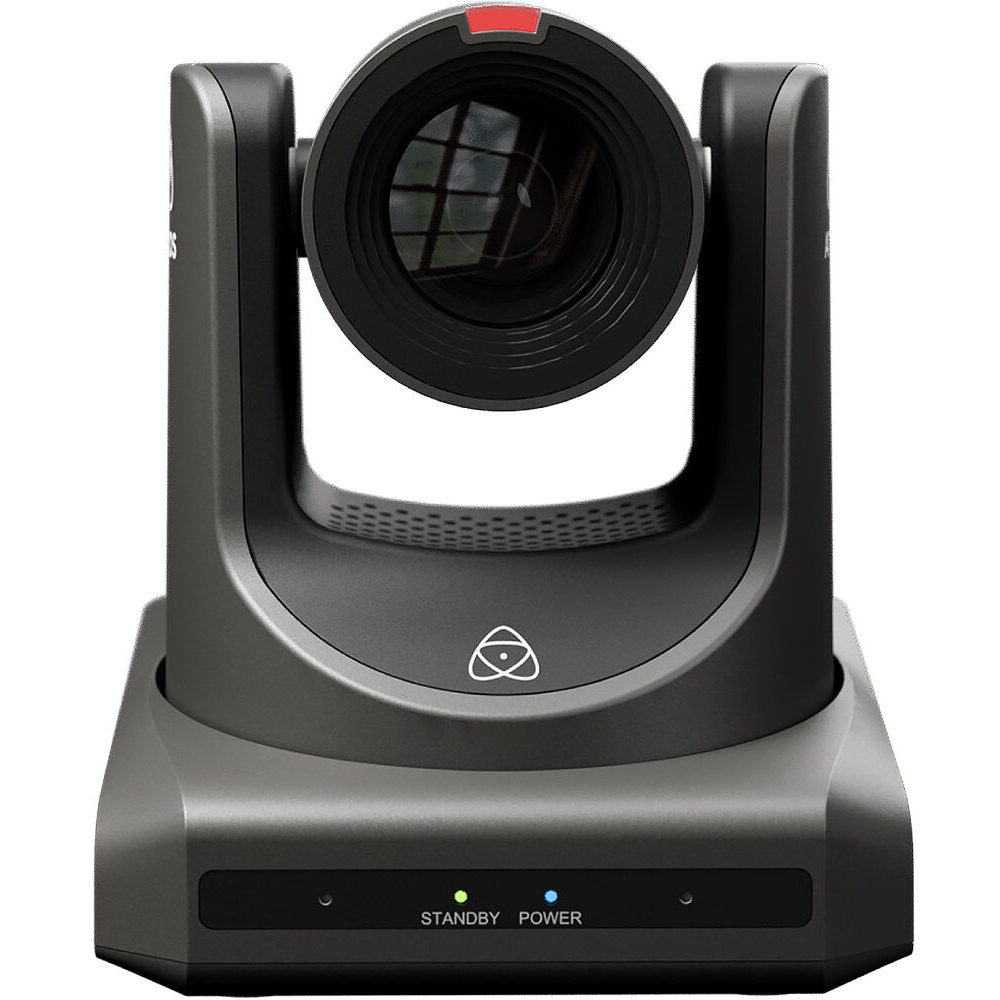

The Atomos A-Eye 4K-20X PTZ Camera with 20x Optical Zoom sits in our PTZ Cameras range.
Highlights include capture up to UHD 4K60 video, 1/1.8" UHD CMOS sensor, AI auto-tracking, 20x optical Zoom, 16x Digital Zoom, HDMI, 3G-SDI, USB-A 3.0 & IP Outputs and includes NDI|HX3 licence, USB recording.
Key specifications: sensor resolution Effective: 8.42 Megapixel |; image sensor 1/1.8"-Type CMOS |; IR cut filter No |; focus control Autofocus Manual Focus |; optical zoom ratio 20x |.
Manufacturer model number ATOMAE4K20.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Imaging | |
|---|---|
| Image Sensor | 1/1.8"-Type CMOS | |
| Sensor Resolution | Effective: 8.42 Megapixel | |
| IR Cut Filter | No | |
| Focus Control | Autofocus Manual Focus | |
| Lens | |
| Optical Zoom Ratio | 20x | |
| Max Digital Zoom | 16x | |
| Video Capture | |
| External Recording Modes | SDI/BNC / HDMI / RJ45 / USB UHD 4K (3840 x 2160) up to 60.00 fps | |
| Embedded Audio | HDMI/IP/NDI/SDI/USB | |
| Audio Recording | AAC Audio | |
| Broadcast Output | NTSC/PAL | |
| Control | |
| Pan/Tilt | Tilt: 120° (-30 to 90°) at 1.7 to 100°/s Pan: 340° (-170 to 170°) at 1.7 to 69.9°/s | |
| Tally Light | Yes | |
| Supported Control Protocols | IP NDI | HX3 RS-232 RS-485 VISCA |
| Interface | |
| Video I/O | 1x HDMI 1.4 Output 1x BNC (3G-SDI) Output 1x RJ45 (NDI) Output 1x USB-A 3.0 / 3.1/3.2 Gen 1 Output | |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Line Input 1x 1/8" / 3.5 mm TRS Stereo Line Output | |
| Other I/O | 1x Mini-DIN 8-Pin (RS-232) Control Input 1x Mini-DIN 8-Pin (RS-232) Control Output 1x Block 2-Pin (RS-485) Control Input/Output 1x USB-A (USB 3.0) | |
| Built-In Microphone | Stereo | |
| Built-In Speaker | No | |
| Power | |
| PoE Support | PoE+ 802.3at | |
| Power I/O | 1x DC (12VDC) Input | |
Product details
| Optical Zoom | 20x |
|---|
In the box
- Atomos A-Eye 4K-20X PTZ Camera with 20x Optical Zoom
