Description

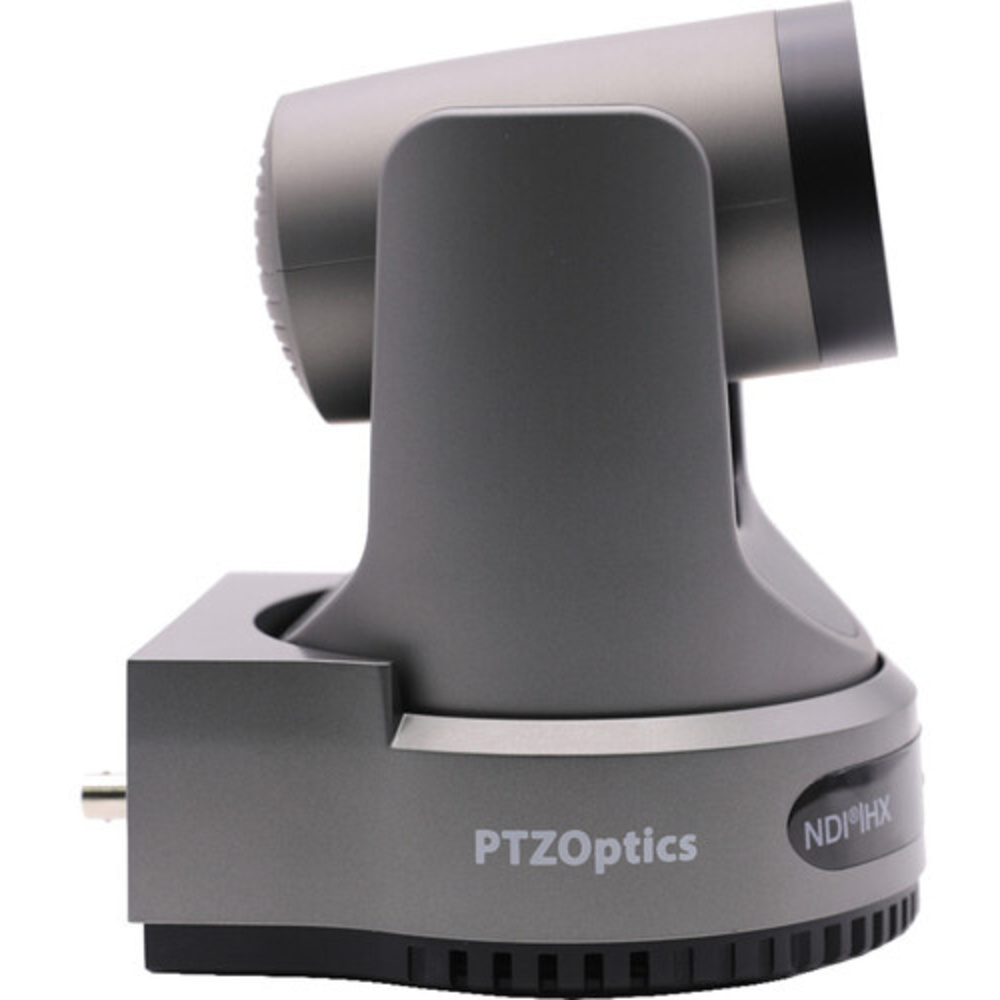

The PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Grey) sits in our PTZ Cameras range.
Highlights include 1/1.8" CMOS 8.42MP 4K Sensor, capture video resolutions up to UHD 4K60, 20x optical Zoom, 16x Digital Zoom, HDMI, 3G-SDI, USB, NDI|HX 3 & IP Output and 255 presets, 3.5mm stereo Audio In/Out.
Key specifications: focal length 6.2 to 125mm; maximum aperture f/1.58 to 3.95; sensor resolution Effective: 8.42 Megapixel (3840 x 2160) |; interface NDI|HX; weight 3.24 lb / 1.47 kg.
In the box: PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Grey), IR Remote Control, 12 VDC Power Adapter, USB-A to USB-A Cable, RS-232 Cable and AA Battery and 1 more items. Manufacturer model number PT20X-4K.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Key Specs | |
|---|---|
| Image Sensor | 1/1.8"-Type CMOS | |
| Sensor Resolution | Effective: 8.42 Megapixel (3840 x 2160) | |
| Shutter Type | Electronic Global Shutter | |
| Shutter Speed | 1/10000 to 1/30 Second | |
| Optical Zoom Ratio | 20x | |
| Max Digital Zoom | 16x | |
| External Recording Modes | SDI/BNC HD (1920 x 1080p) at 25/29.97/50/59.94/60.00 fps HD (1920 x 1080i) at 50/59.94/60.00 fps HD (1280 x 720) at 59.94/60.00 fps HDMI / RJ45 / USB UHD 4K (3840 x 2160) at 25/29.97/50/59.94/60.00 fps HD (1920 x 1080p) at 25/29.97/50/59.94/60.00 fps HD (1920 x 1080i) at 50/59.94/60.00 fps HD (1280 x 720) at 59.94/60.00 fps | |
| IP Streaming | H.264, H.265, MJPEG, NDI | HX, RTMP, RTSP, SRT 640 x 360 to 3840 x 2160 to 320 x 240 to 720 x 480 to |
| Imaging | |
| Image Sensor | 1/1.8"-Type CMOS |
| Sensor Resolution | Effective: 8.42 Megapixel (3840 x 2160) |
| IR Cut Filter | No |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
| Exposure Control | |
| Shutter Type | Electronic Global Shutter |
| Shutter Speed | 1/10000 to 1/30 Second |
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| Lens | |
| Focal Length | 6.2 to 125mm |
| Optical Zoom Ratio | 20x |
| Max Digital Zoom | 16x |
| Field of View | Horizontal: 60.7 to 3.5° Vertical: 34.1 to 1.89° |
| Maximum Aperture | f/1.58 to 3.95 |
| Video Capture | |
| Broadcast Output | NTSC/PAL | |
| IP Multi-Stream Support | Simultaneous H.264, H.265, MJPEG, RTMP, RTSP: 2160p, 1080p, 720p, 480p, 360p | |
| Control | |
| Presets | 255 |
| Move Speed | Pan: 1.7 to 100°/sec Tilt: 1.7 to 69.9°/sec |
| Movement Range | Tilt: 120° (-30 to 90°) |
| Tally Light | Yes |
| Supported Control Protocols | IP IR NDI Pelco-D Pelco-P RS-232 RS-485 VISCA |
| Interface | |
| Video I/O | 1 x HDMI 2.0 Output 1 x BNC (3G-SDI) Output 1 x RJ45 (NDI) Output 1 x USB-A 2.0 Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input 1 x 1/8" / 3.5 mm TRS Stereo Line Output |
| Other I/O | 1 x D-Sub 8-Pin (RS-232) Control Input 1 x D-Sub 8-Pin (RS-232) Control Output 1 x Block 2-Pin (RS-485) Control Input/Output |
| Built-In Speaker | No |
| Power | |
| PoE Support | PoE+ 802.3at |
| Power I/O | 1 x DC (12VDC) Input |
| Power Consumption | Device: 12 VDC at 2 A (12 W) |
| Environmental | |
| Operating Temperature | 22 to 72°F / -10 to 40°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| General | |
| Material of Construction | Aluminium, Plastic |
| Dimensions (W x H x D) | 6.6 x 6.5 x 5.6" / 168.4 x 164.5 x 141.5 mm |
| Weight | 3.24 lb / 1.47 kg |
Product details
| Resolution | 4K |
|---|---|
| Optical Zoom | 20x |
| PoE Capable | Yes |
| Interface | NDI|HX |
In the box
- PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 20x Optical Zoom (Grey)
- IR Remote Control
- 12 VDC Power Adapter
- USB-A to USB-A Cable
- RS-232 Cable
- AA Battery
- Limited 5-Year Manufacturer Warranty
