Description

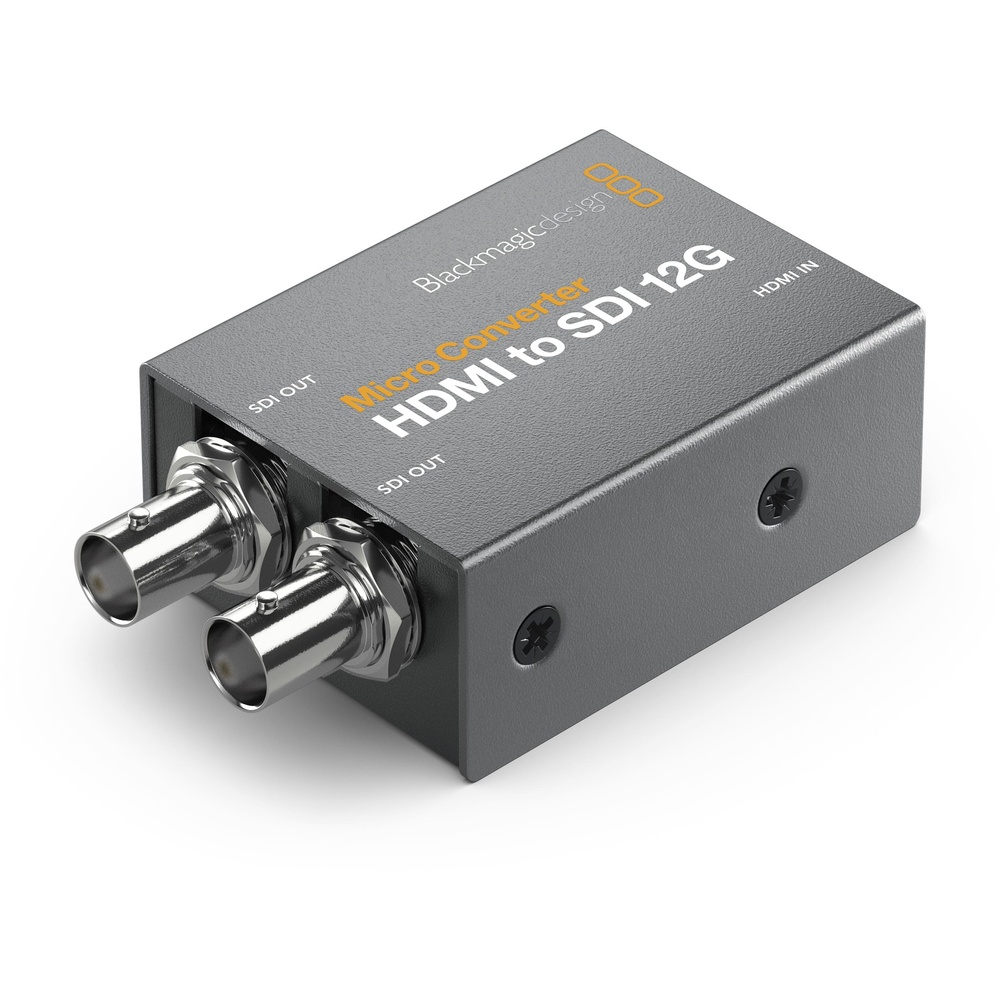

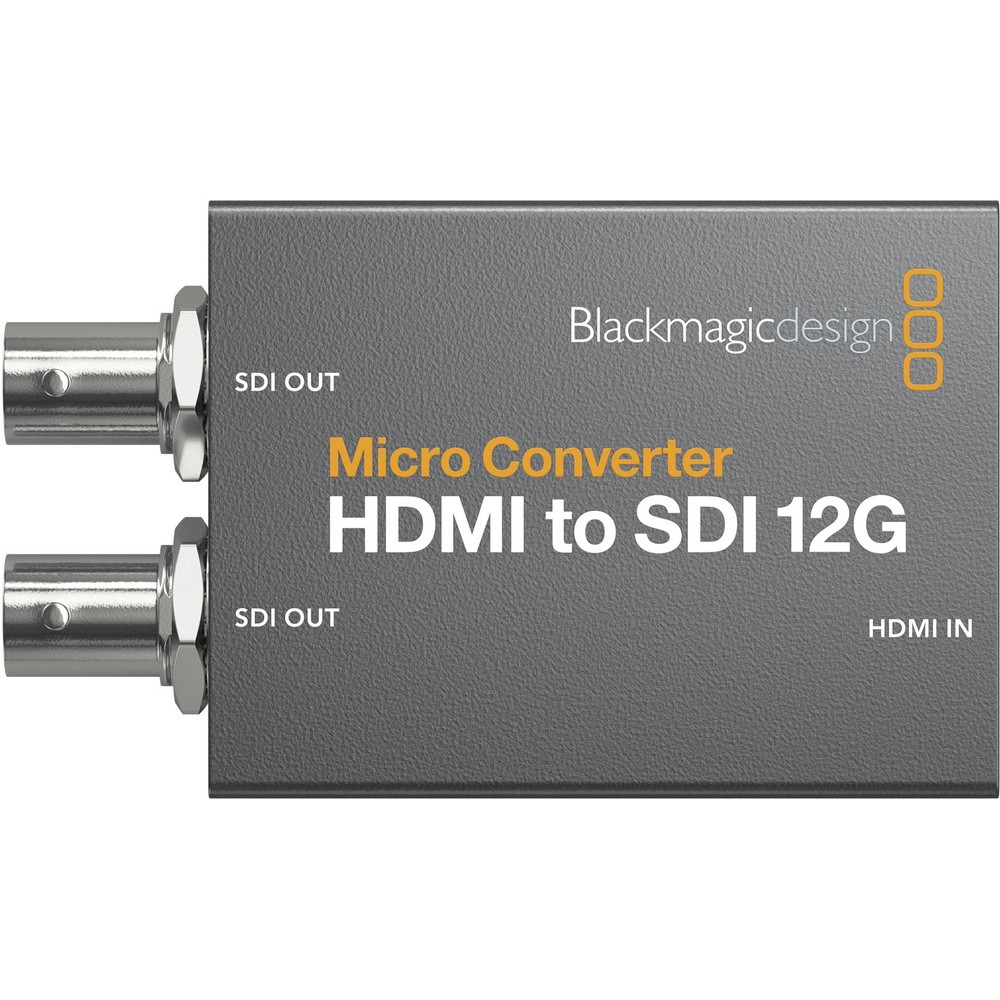

Blackmagic Micro Converter HDMI to SDI 12G with Power Supply: a signal converter.
Highlights include 1 x HDMI input, 2 x 12G-SDI outputs, selectable SD/HD level A/B SDI ports, supports up to DCI 4K60 resolution I/O, SDI re-clocking, HDMI copy protection and automatic input signal detection.
Key specifications: weight 5.29 oz / 150 g; dimensions 3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm; video inputs 1x HDMI (2.0) Female; video outputs 2x BNC (12G-SDI) Female; other I/O 1x USB-C Control, Service Input.
In the box: Blackmagic Design micro convertor HDMI to SDI 12G with Power supply and 5V Power Supply. Manufacturer model number CONVCMIC/HS12G/WPSU.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Inputs / Outputs | |
|---|---|
| Video Inputs | 1x HDMI (2.0) Female |
| Audio Inputs | No |
| Video Outputs | 2x BNC (12G-SDI) Female |
| Audio Outputs | No |
| Other I/O | 1x USB-C Control, Service Input |
| Expansion Slots | No |
| Format Support | |
| Input Video Format | HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
| Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
| Embedded Audio | HDMI/SDI |
| Standards | |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084 |
| HDCP Support | Yes, Version 2.2 |
| HDR Support | Not Specified by Manufacturer |
| Hardware | |
| OS Compatibility | macOS 10.15.15 or Later macOS 11.1 or Later Windows 10 |
| Power | |
| Power I/O | 1x USB-C (4.4 to 5.2 VDC ) Input |
| Power Consumption | Device: 4 W |
| Environmental | |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% () |
| General | |
| Dimensions | 3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm |
| Weight | 5.29 oz / 150 g |
In the box
- Blackmagic Design Micro Convertor HDMI to SDI 12G with Power Supply
- 5V Power Supply
