Description
The HDfury 8K Arcana 2 eARC Adapter is a signal converter for people who need to manage video and audio between HDMI devices and an eARC sound system. It suits home theatre and installation setups where you want HDMI switching, scaling, and audio extraction in one compact unit.
It supports HDMI 2.0b at 18Gbps and handles HDR, HDR10+, HLG, Dolby Vision, LLDV, eARC, ALLM and IMAX. Maximum video formats include 4K60 4:4:4 8-bit, 4K60 4:2:2 12-bit, 4K120 4:2:0 8-bit and 8K30 4:2:0 8-bit. It can downscale UHD 2160p and 4K or DCI to FHD 1080p and 2K or DCI, and it supports audio up to Atmos over TrueHD from HDMI to an eARC sound system.

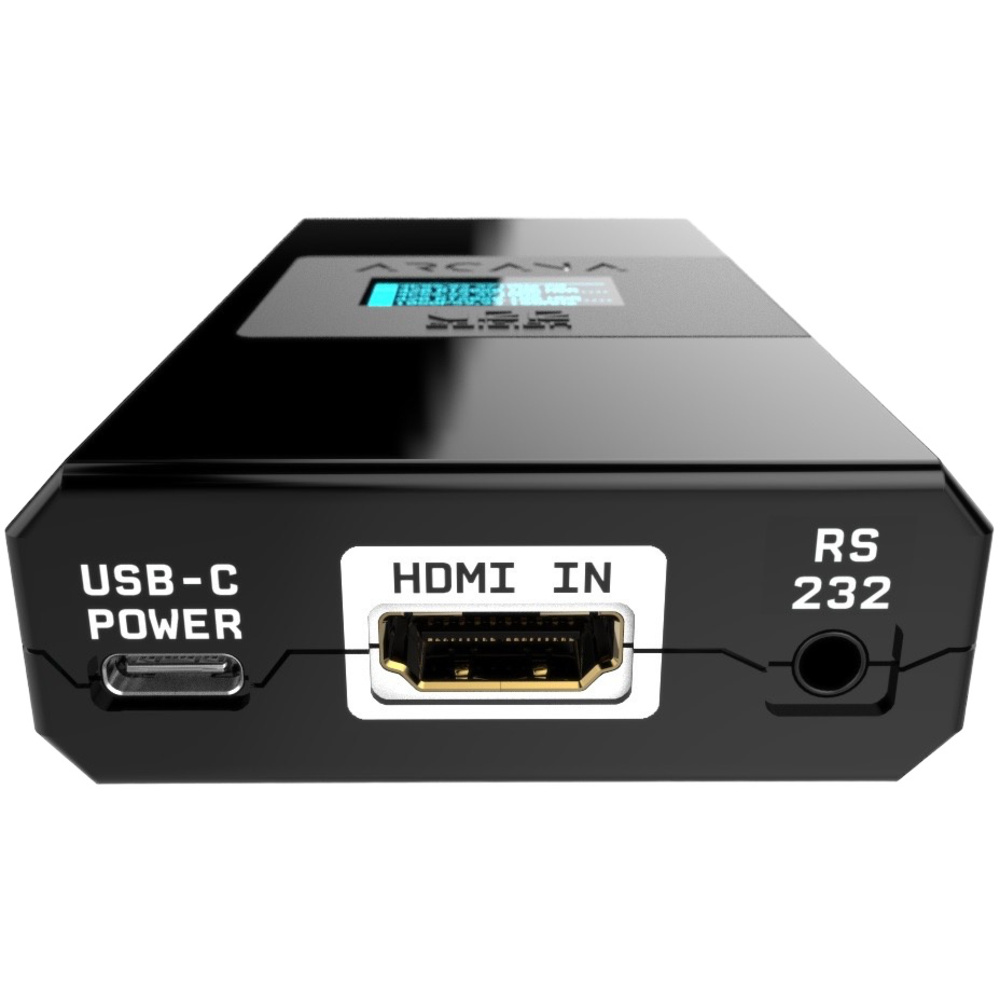

In use, it sits between a source, display and sound system to handle resolution conversion, EDID and HDCP management, and full audio passthrough. It has 1 HDMI input, 1 HDMI output, 1 HDMI eARC output, 1 RS232 port, 1 USB-A update port and 1 USB-C power input. The box includes the HDfury Arcana 2 eARC Adapter.
Specifications
| HDMI revision | HDMI 2.0b (Level A) 600Mcsc - 18Gbps |
|---|---|
| Arcana Support | 600MHz/18Gbps HDR, HDR10+, HLG, DV & LLDV, eARC, ALLM, IMAX |
| Max Resolution | 4K60 4:4:4 8b, 4K60 4:2:2 12b, 4K120 4:2:0 8b or 8K30 4:2:0 8b |
| TOTAL I/O | 1 HDMI In, 1 HDMI Out, 1 HDMI eARC Out, 1 RS232, 1 USB-A (update), 1 USB-C (power) |
| Pass & Downscale port | UHD 2160p & 4K/DCI to FHD 1080p & 2K/DCI |
| Full Audio eARC port | Full Audio up to Atmos over TrueHD from HDMI source at input to eARC sound system such as SONOS Arc & Beam 2 |
| Signal Conversion | Resolution, Chroma Subsampling, Color Space, Color Depth, HDCP |
| HDCP Conversion | Any HDCP to any HDCP with CST1 support |
| Operating Modes | 18Gbps Scaler & Splitter with CEC, eARC, ARC and EDID management |
| Special Modes | DV/LLDV to HDR10 display, Boost HDR nits value, Translate HLG>HDR, HDMI Doctor |
| EDID Modes | TV only, TV video + SONOS audio, SONOS only, optional LLDV datablock for all modes |
| Control Modes | OLED and rotary switch with click and push buttons, RS232 |
| On Screen Display | ON/OFF/timer with choice of text color |
| OLED | 1″ Diagonal, 128×64, 2 colors |
| Arcana Size | 10 x 6 x 2.2cm |
| Arcana Weight | 120g |
| Input Lag | <1ms (nanoseconds count) |
| Other info | 3D Support, CEC Pass Through, DSD, eARC (HDMI2.1) |
In the box
- HDfury Arcana 2 eARC Adapter
