Description

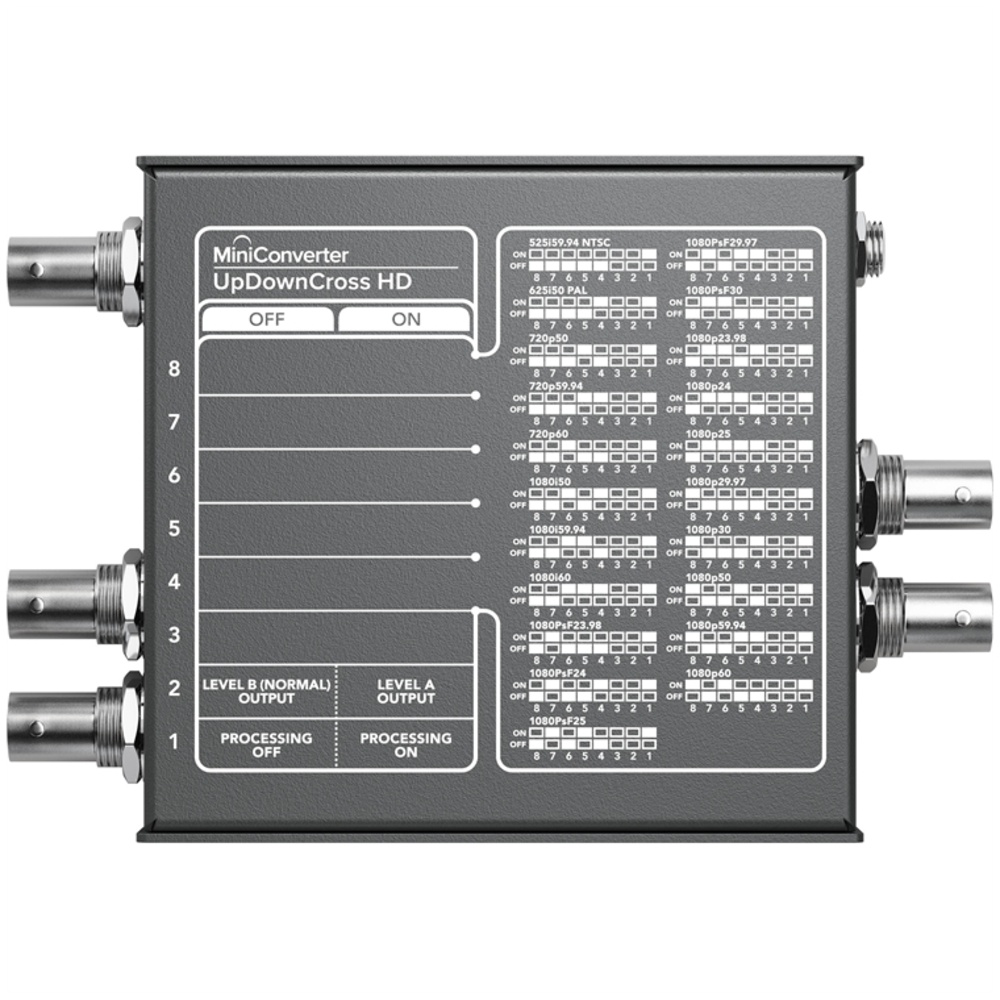

The Blackmagic Design Mini Converter UpDownCross HD is a compact signal converter for video production setups that need to match different SDI and HDMI formats. It suits users working with SD, HD and 3G-SDI gear who need up, down or cross conversion between common broadcast formats without changing the rest of the chain.
It has 1 x SD, HD or 3G-SDI input, 1 x HDMI type A input, 1 x external reference input, 1 x loop out and 2 x SDI outputs, plus an HDMI type A output with monitor EDID support. It supports SDI rates of 270Mb, 1.5G and 3G, auto detects SD, HD or 3G-SDI inputs, and provides USB updates and configuration.
In practice, it sits between cameras, switchers, monitors and projectors to convert signals and keep a system working across different video standards. It supports black burst and Tri-Sync reference for SD and HD, and the box includes the Mini Converter UpDownCross HD and a 12V universal power supply with international socket adapters.
Specifications
| Connections | |
|---|---|
| SDI Video Inputs | 1 x SD, HD or 3G-SDI Video Input and 1 x External Reference Input |
| HDMI Video Input | 1 x HDMI type A connector |
| SDI Video Outputs | 1 x loop out and 2 x outputs |
| HDMI Video Output | HDMI type A out. Output supports EDID of the monitor |
| SDI Rates | 270Mb, 1.5G, 3G |
| Reference Input | Black burst and Tri-Sync for SD & HD |
| Multi Rate Support | Auto detection of HD or standard definition SDI inputs |
| Updates and Configuration | USB |
| Reclocking | Yes |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24 1080i50, 1080i59.94, 1080i60 |
| HDMI Input Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656 and ITU-R BT.601 |
| SDI Video Rates | SDI video connections are switchable between standard definition and high definition |
| SDI Video Sampling | 4:2:2 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically detects SD, HD or 3G‑SDI |
| Format Conversion | |
| Video Conversion | Convert any SD and HD input to "720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60" |
| Computer Scaling | Scale DVI resolutions 640x480, 800x600, 1024x768 to 525i59.94, 625i50,720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| Operating Systems | |
| Mac | macOS 10.12 Sierra macOS High Sierra 10.13 or later |
| Windows | Windows 8.1 Windows 10 |
| Power Requirements | |
| Power Supply | +12V universal power supply included with international socket adapters for all countries |
| Power Consumption | 5W |
| Operational Voltage Range | 6 to 36 Vdc |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
In the box
- Blackmagic Design Mini Converter UpDownCross HD
- 12V universal power supply with international socket adapters
