Description

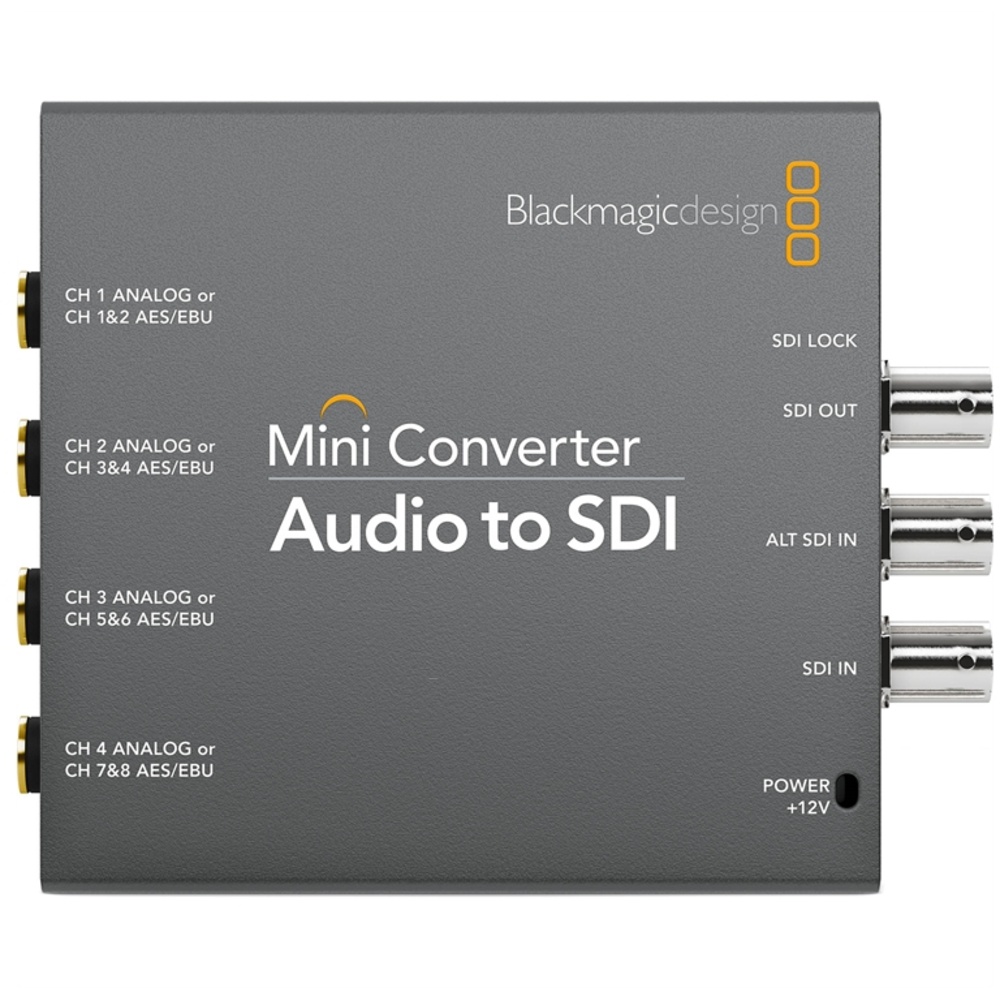

The Blackmagic Design Mini Converter Audio to SDI 2 is a signal converter.
Highlights include embed Audio into up to 1080p SDI signals, four 1/4" Audio input jacks, supports 4 channels of analogue Audio, supports 8 channels of AES/EBU Audio and redundant SDI backup input.
Key specifications: weight 215 g; dimensions 11.5 x 9.2 x 2.3 cm; SDI output 1 x SDI on BNC (switchable between 3G/HD/SD); SDI auto switching Auto-detection of 3G/2K/HD/SD SDI SDI; updates and configuration Via USB 2.0 high speed (480 Mbps).
In the box: Blackmagic Design mini converter Audio to SDI 2, 12V Universal Power Supply, set of international socket adapters (for all countries) and limited 3-Year warranty. Manufacturer model number CONVMCAUDS.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| SDI Input | 1 x SDI on BNC (switchable between 3G/HD/SD) 1 x 3G/HD/SD SDI redundant input (automatically switches over if main SDI input is lost) |
|---|---|
| Audio Input | 4 x 1/4" jacks support 4 channels of balanced analogue audio or 8 channels of balanced AES/EBU digital audio |
| SDI Output | 1 x SDI on BNC (switchable between 3G/HD/SD) |
| SDI Auto Switching | Auto-detection of 3G/2K/HD/SD SDI SDI |
| Updates and Configuration | Via USB 2.0 high speed (480 Mbps) |
| Reclocking | Yes |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M‐B, SMPTE 425M, ITU‐R BT.656, ITU-R BT.601 |
| SDI Video Rates | SDI video connections are switchable between HD and SD |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit |
| SDI Colour Precision | 4:2:2, 4:4:4 |
| SDI Colour Space | YUV, RGB |
| SDI Auto Switching | Automatically selects between 3G/HD/SD |
| SDI Format Support | 1080p/i at 60/59.94/50 1080p at 30/29.97/25/24/23.98 1080PsF30/29.97/25/24/23.98 720p60/59.94/50 525i59.94 NTSC 625i50 PAL |
| 2K Format Support | 2K DCI 25p/24p/23.98p 2K DCI 25PsF/24PsF/23.98PsF |
| Software Control | Mac OS X and Windows software upgrade via USB |
| Internal Software Upgrade | Via included updater application |
| Operating System | Mac OS X 10.11 El Capitan, macOS Sierra or later Windows 8.1 or Windows 10 |
| Settings Control | Mini Switches or USB software |
| Power Supply | +12 V universal power supply included with international socket adapters for all countries. Cable tie point. |
| Power Consumption | 8.4 W |
| Operational Voltage Range | 12 VDC |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 45°C |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | 11.5 x 9.2 x 2.3 cm |
| Weight | 215 g |
In the box
- Blackmagic Design Mini Converter Audio to SDI 2
- 12V Universal Power Supply
- Set of International Socket Adapters (for All Countries)
- Limited 3-Year Warranty
