Description

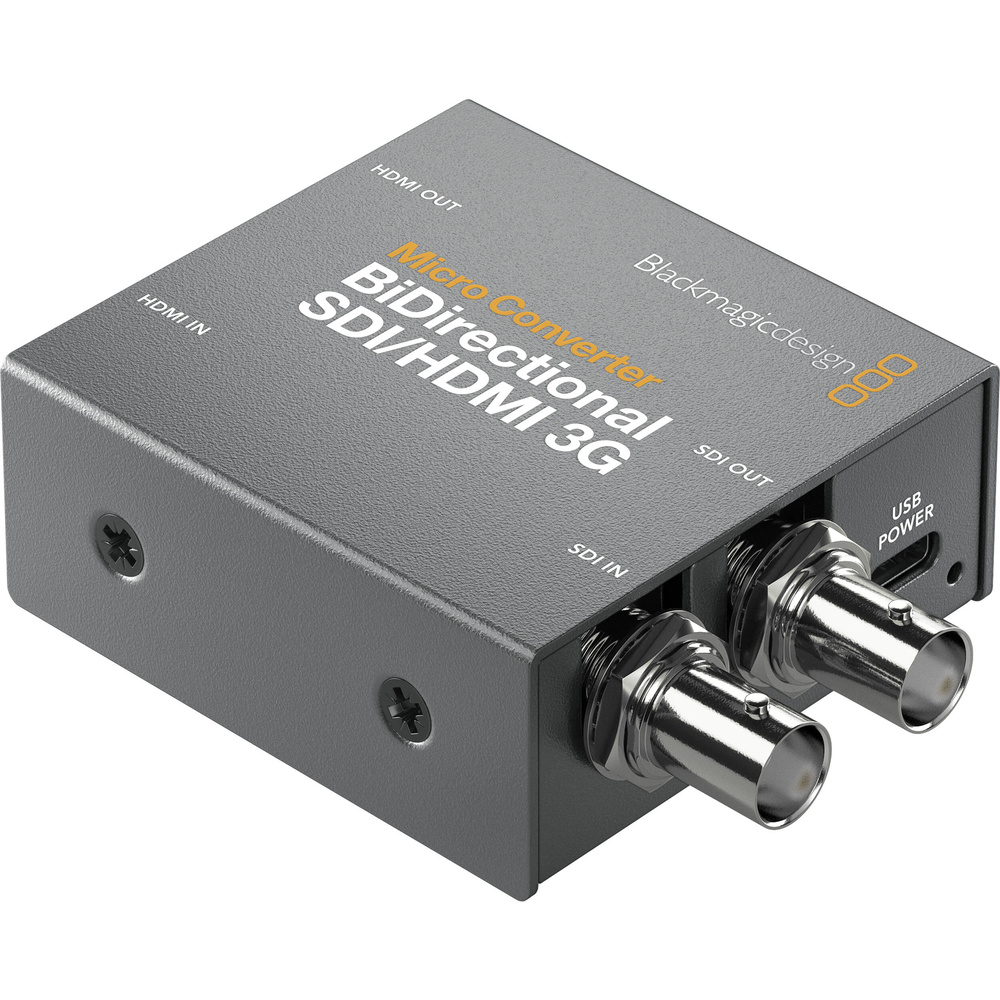

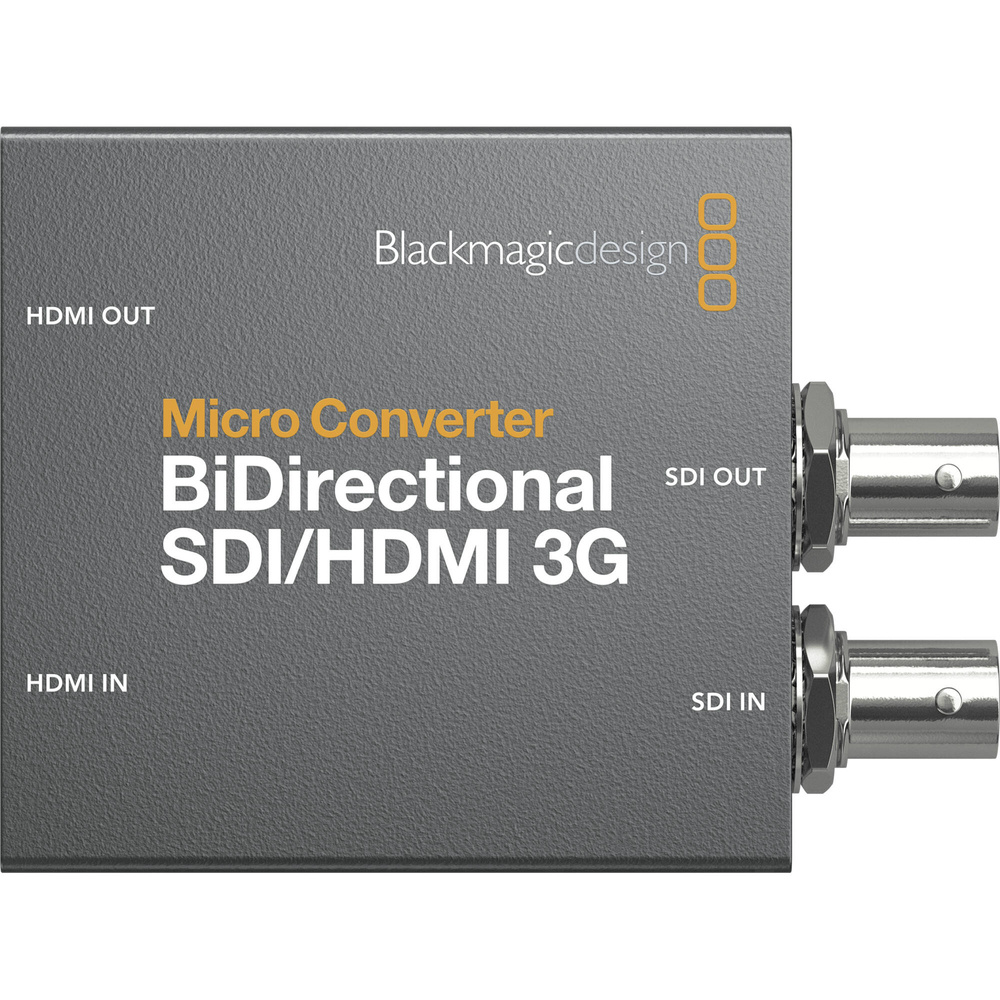

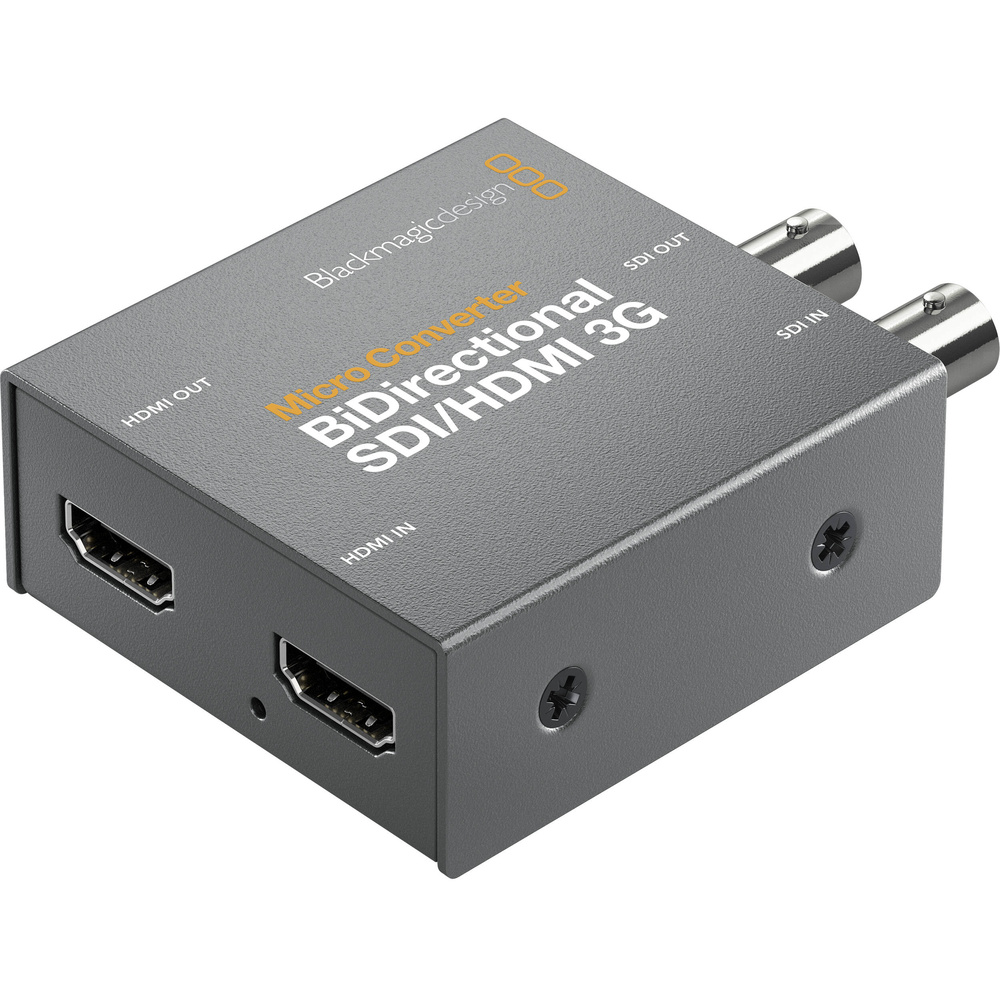

The Blackmagic Micro Converter Bidirectional SDI/HDMI 3G is a compact signal converter for moving video between SDI and HDMI systems. It suits camera rigs, monitors and live production setups where one unit needs to handle both directions and keep signals compatible across different gear.
It provides one 3G-SDI BNC input and output plus one HDMI 2.0 input and output, with embedded audio carried over both formats. It supports simultaneous SDI to HDMI and HDMI to SDI conversion, automatic input detection, SDI re-clocking, HDMI timecode, camera control via SDI switchers and up to DCI 2K60 video. Power is via USB-C and it uses 2.5 W.
In practice, it can sit between a camera, switcher, recorder or monitor to link SDI and HDMI equipment in the same setup. It works with macOS 10.15, macOS 11.1 or later, and Windows 10 64-bit. The box includes the Blackmagic Design Micro Convertor Bidirectional SDI/HDMI 3G.
Specifications
| Inputs / Outputs | |
|---|---|
| Video Inputs | 1x BNC (3G-SDI) 1x HDMI (2.0) |
| Audio Inputs | No |
| Video Outputs | 1x BNC (3G-SDI) 1x HDMI (2.0) |
| Audio Outputs | No |
| Other I/O | 1x USB-C Input |
| Expansion Slots | No |
| Format Support | |
| Input Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 480i / 525 lines at 59.94 fps 576i / 625 lines at 50 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 480i / 525 lines at 29.97 fps 576i / 625 lines at 25 fps |
| Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 480i / 525 lines at 29.97 fps 576i / 625 lines at 25 fps |
| Embedded Audio | HDMI/SDI |
| Standards | |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M-A/425M-B |
| HDR Support | No |
| Hardware | |
| Tally Light | No |
| Wireless | No |
| OS Compatibility | macOS 10.15 macOS 11.1 or Later Windows 10 (64-Bit Only) |
| Power | |
| Power I/O | 1x USB-C (4.4 to 5.2 VDC ) Input |
| Power Consumption | 2.5 W |
| Environmental | |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% |
| General | |
| Dimensions | 3.13 x 1.8 x 0.98" / 79.5 x 45.7 x 24.89 mm |
| Weight | 5.9 oz / 167 g |
In the box
- Blackmagic Design Micro Convertor Bidirectional SDI/HDMI 3G
