Description

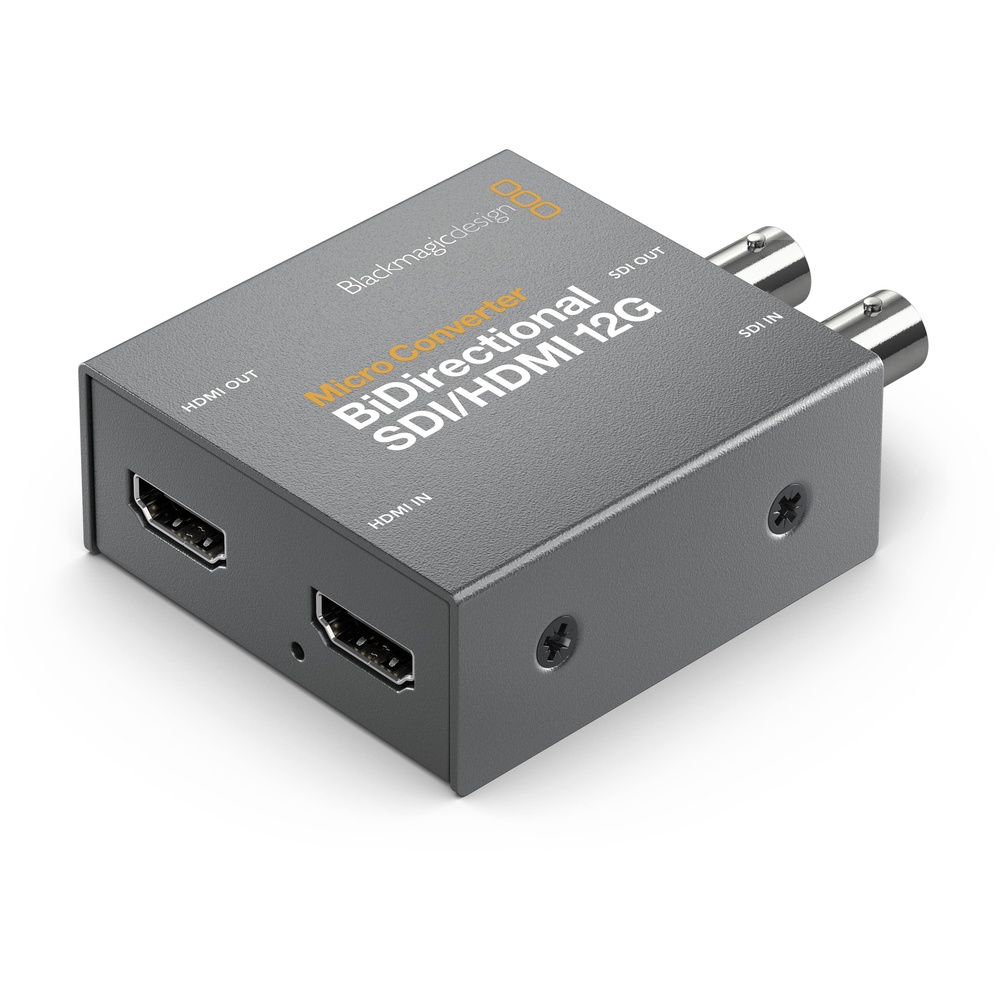

Blackmagic Micro Converter BiDirectional SDI/HDMI 12G: a signal converter.
Highlights include simultaneous SDI to HDMI & HDMI to SDI, 1 x SD/HD/12G-SDI & 1x HDMI Input/Output, supports up to DCI/UHD 4K60 video, Blackmagic Camera control, tally support and SDI Re-Clocking/HDMI timecode.
Key specifications: weight 6.13 oz / 174 g; dimensions 3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm; video inputs 1x BNC (12G-SDI) Female 1x HDMI (2.0) Female; other I/O 1x USB-C Firmware Input (Shared Power); embedded audio HDMI/SDI.
Manufacturer model number CONVBDC/SDI/HDMI12G.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Inputs / Outputs | |
|---|---|
| Video Inputs | 1x BNC (12G-SDI) Female 1x HDMI (2.0) Female |
| Audio Inputs | No |
| Video Outputs | 1x BNC (12G-SDI) Female 1x HDMI (2.0) Female |
| Audio Outputs | No |
| Other I/O | 1x USB-C Firmware Input (Shared Power) |
| Expansion Slots | No |
| Format Support | |
| Input Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 480i / 525 lines at 50 fps 576i / 625 lines at 59.94 fps |
| Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 480i / 525 lines at 29.97 fps 576i / 625 lines at 25 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
| Embedded Audio | HDMI/SDI |
| Standards | |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M-A/425M-B |
| HDCP Support | Yes, Version 2.2 |
| HDR Support | Not Specified by Manufacturer |
| HDMI CEC | Yes |
| Hardware | |
| Tally Light | Yes |
| Wireless | No |
| OS Compatibility | macOS 10.15.15 or Later Windows 11.1 or Later |
| Power | |
| Power I/O | 1x USB-C (4.4 to 5.2 VDC ) Input |
| Power Consumption | Device: 5 W |
| Environmental | |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% |
| General | |
| Dimensions | 3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm |
| Weight | 6.13 oz / 174 g |
In the box
- Blackmagic Micro Convertor BiDirectional SDI/HDMI 12G
