Description
Blackmagic Design Teranex Mini - 12G-SDI to Quad SDI Converter: a signal converter.
Highlights include connect lastest 12G-SDI equipment, can be rack mounted and multi rate 12G-SDI technology.
Key specifications: SDI video input 1 x 12G-SDI SD/HD/2K/4K auto switching.; SDI video output 4 x 3G-SDI outputs; multi rate support Automatic switching between SD/HD/2K and 4K; updates and configuration USB or Ethernet; SD format support 525/29.97 NTSC, 625/25 PAL.
In the box: teranex mini - 12G-SDI to quad SDI, software SD card and 3 year Limited Manufacturer's Warranty. Manufacturer model number CONVNTRM/DB/SDIQD.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications

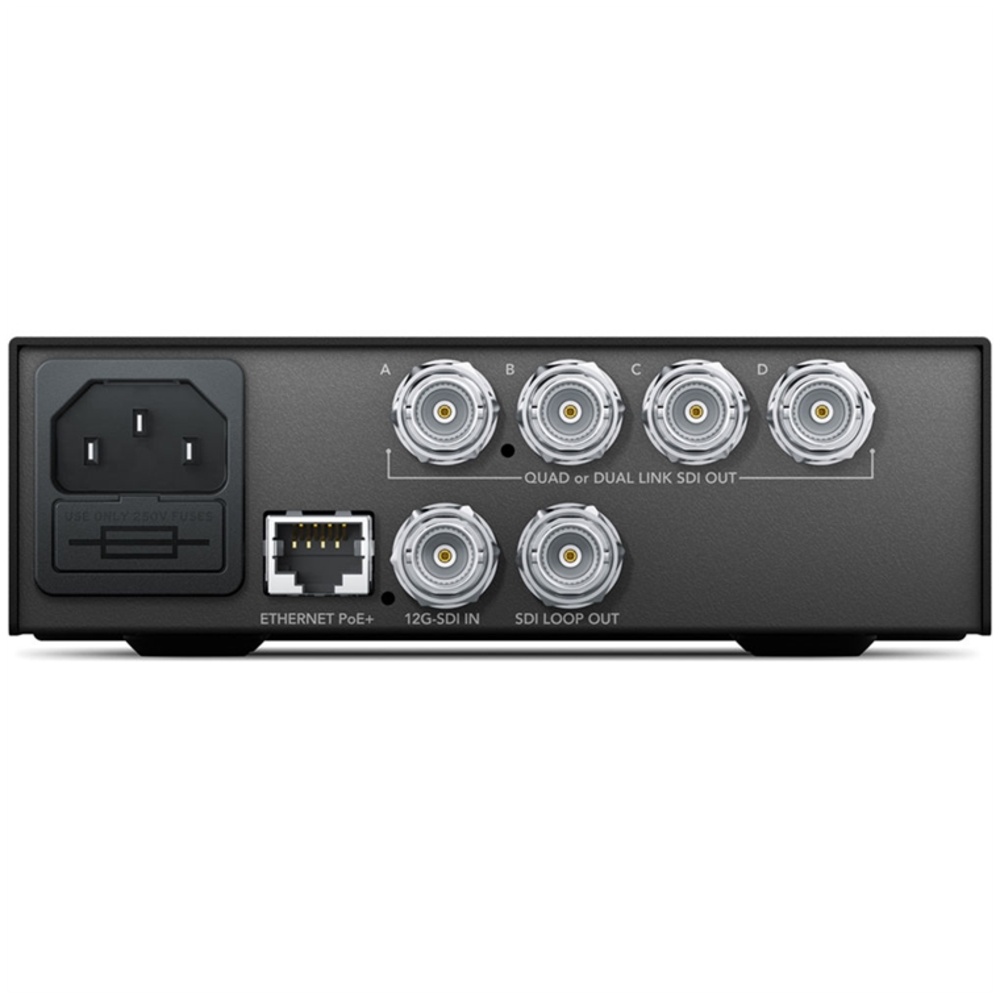

| Connections | |
|---|---|
| SDI Video Input: | 1 x 12G-SDI SD/HD/2K/4K auto switching. |
| SDI Video Output: | 4 x 3G-SDI outputs |
| Multi Rate Support: | Automatic switching between SD/HD/2K and 4K |
| Updates and Configuration: | USB or Ethernet |
| Re-Clocking: | Yes |
| Standards | |
| SD Format Support: | 525/29.97 NTSC, 625/25 PAL |
| HD Format Support: | 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60. |
| 2K Format Support: | 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25. |
| Ultra HD Format Support: | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60 |
| 4K Format Support: | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30. |
| SDI Compliance: | SMPTE 259M, 292M, 296M, 372M, 425M, ST-2081 & ST-2082 |
| SDI Video Rates: | SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI. |
| SDI Video Sampling: | 4:2:2 and 4:4:4 |
| SDI Audio Sampling: | Television standard sample rate of 48 kHz and 24-bit. |
| SDI Color Space: | YUV & RGB |
| Software | |
| Software Control: | Mac OS X and Windows software upgrade via USB and Ethernet. |
| Internal Software Upgrade: | Via included updater application. |
| Settings Control | |
| Basic Settings Control | Mini Switches, USB and Ethernet via free software utility. |
| Optional Front Panel Control | Front mounted Smart Panel with LCD, rotary knob and six settings buttons. |
| Power Requirements | |
| Power Supply: | 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input. |
| Power Over Ethernet: | Can be powered via 48V DC using PoE+ (power over ethernet). |
| Power Consumption: | 16 Watts |
| Operational Voltage Range: | 90 - 240V AC |
| Environmental Specifications | |
| Operating Temperature: | 0°to 40°C |
| Storage Temperature: | -20°to 60°C |
| Relative Humidity: | 0% to 90% non-condensing |
In the box
- Teranex Mini - 12G-SDI to Quad SDI
- Software SD Card
- 3 year Limited Manufacturer's Warranty
