Description

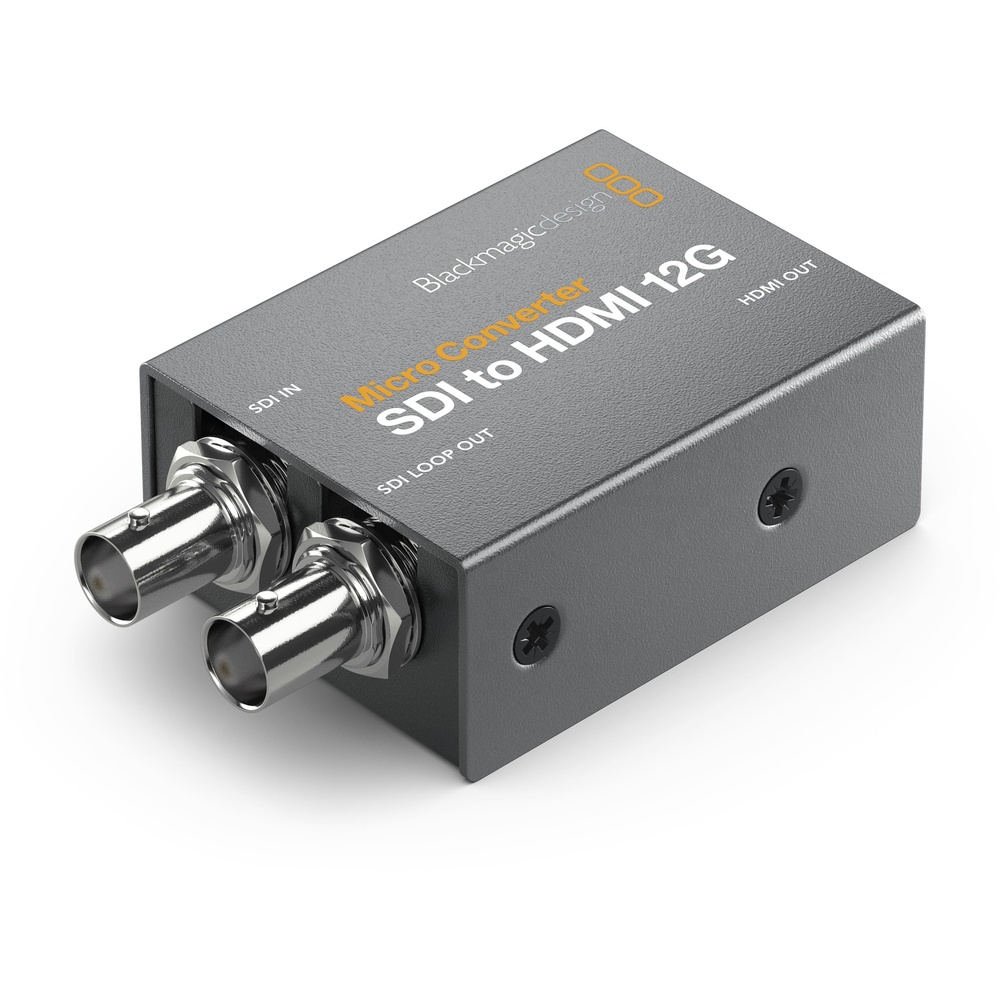

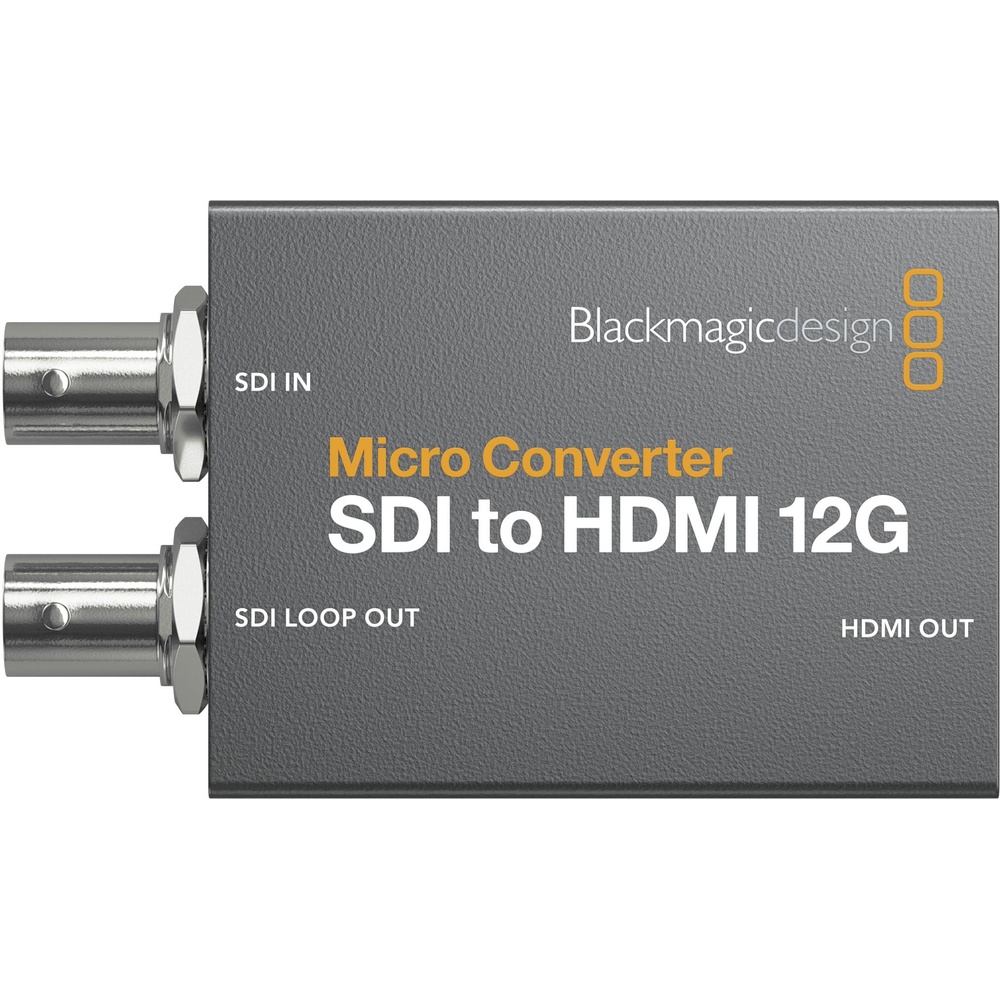

Blackmagic Micro Converter SDI to HDMI 12G is a compact signal converter for turning 12G-SDI video into HDMI for monitors, TVs or projectors. It suits camera rigs, edit stations and production setups that need SDI input with HDMI display output in a small unit.
It takes one 12G-SDI input and provides one HDMI 2.0 output plus a 12G-SDI loop output. It supports embedded audio, HDCP 2.2, automatic input signal detection and selectable SD or HD level A/B SDI ports. It works with video standards up to DCI 4K60 and uses USB-C for control, firmware and power.
In use, it is a simple bridge between SDI sources and HDMI displays, with a loop output available when the signal needs to continue to another device. It is compatible with macOS 10.15.15 or later, macOS 11.1 or later, and Windows 10. The box includes the Blackmagic Micro Converter SDI to HDMI 12G.
Specifications
| Inputs / Outputs | |
|---|---|
| Video Inputs | 1x BNC (12G-SDI) Female |
| Audio Inputs | No |
| Video Outputs | 1x HDMI (2.0) Female 1x BNC (12G-SDI) Female (Loop Output) |
| Audio Outputs | No |
| Other I/O | 1x USB-C Control, Firmware Input |
| Expansion Slots | No |
| Format Support | |
| Input Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
| Output Video Format | HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
| Embedded Audio | HDMI/SDI |
| Standards | |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084 |
| HDCP Support | Yes, Version 2.2 |
| HDR Support | Not Specified by Manufacturer |
| Hardware | |
| OS Compatibility | macOS 10.15.15 or Later macOS 11.1 or Later Windows 10 |
| Power | |
| Power I/O | 1x USB-C (4.4 to 5.2 VDC ) Input |
| Power Consumption | Device: 4 W |
| Environmental | |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% () |
| General | |
| Dimensions | 3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm |
| Weight | 5.29 oz / 150 g |
In the box
- Blackmagic Micro Convertor SDI to HDMI 12G
