Description

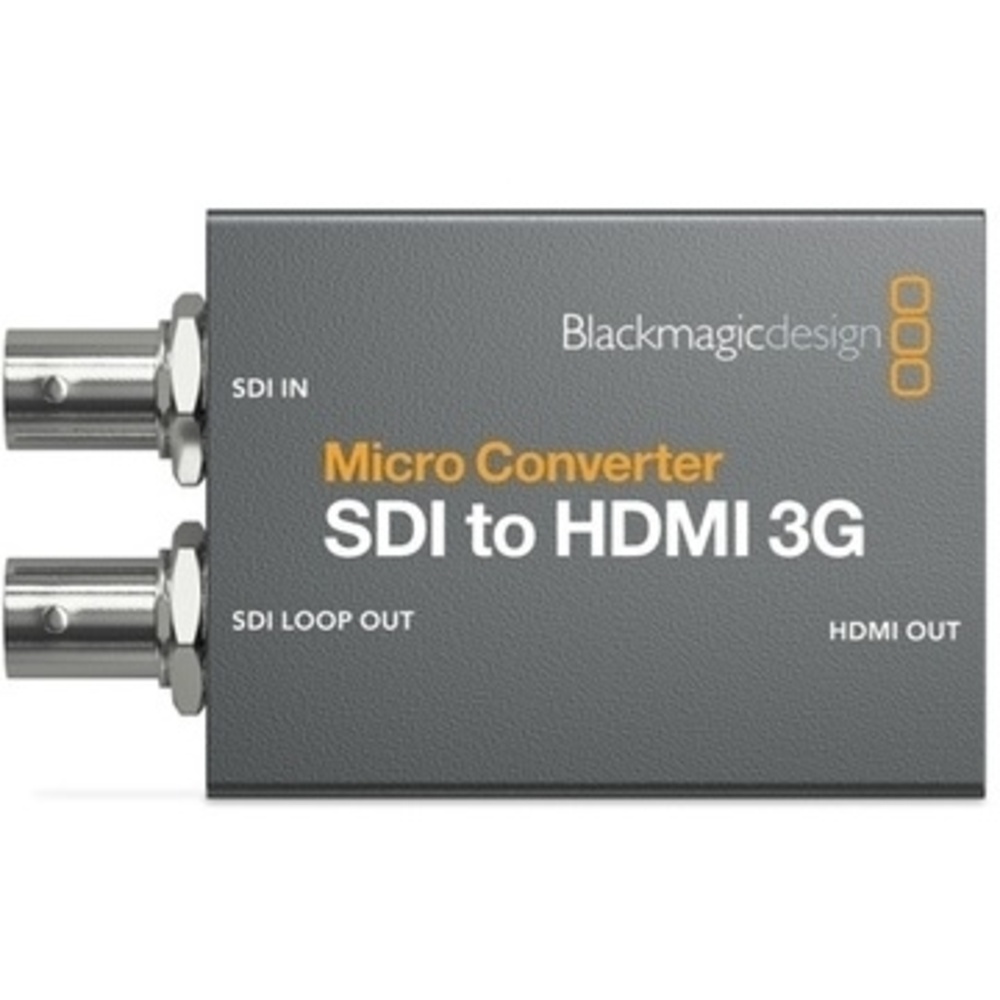

Blackmagic Design Micro Converter SDI to HDMI 3G is a compact signal converter for sending SDI video to an HDMI display or recorder. It suits camera operators, live production setups and anyone needing to monitor SDI sources on an HDMI screen. It also provides a loop output for feeding the SDI signal onward.
It accepts 1 x 3G-SDI input and outputs 1 x HDMI Type A signal, with 1 x SDI loop output for passing the signal through. It supports embedded audio over HDMI and SDI, HDCP 2.2, and SMPTE 259M, 292M, 296M, 424M, 425M-A and 425M-B standards. Power is via USB-C, with a 2.5 W draw.
In practice, it connects an SDI source such as a camera, switcher or deck to an HDMI monitor, projector or television. It works with macOS 10.14.15 or later and Windows 10. The box includes the Blackmagic Micro Converter SDI to HDMI 3G.
Specifications
| Inputs / Outputs | |
|---|---|
| Video Inputs | 1x BNC (3G-SDI) |
| Audio Inputs | No |
| Video Outputs | 1x BNC (3G-SDI) (Loop Output) 1x HDMI |
| Audio Outputs | No |
| Other I/O | 1x USB-C Input |
| Expansion Slots | No |
| Format Support | |
| Input Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 59.94 fps 576i / 625 lines 50 fps |
| Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
| Embedded Audio | HDMI/SDI |
| Standards | |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M-A/425M-B |
| HDCP Support | Yes, Version 2.2 |
| Hardware | |
| Tally Light | Yes |
| Wireless | No |
| OS Compatibility | macOS 10.14.15 or Later Windows 10 |
| Power | |
| Power I/O | 1x USB-C (4.4 to 5.2 VDC ) Input |
| Power Consumption | 2.5 W |
| Environmental | |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% |
| General | |
| Dimensions | 3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm |
| Weight | 5.29 oz / 150 g |
In the box
- Blackmagic Micro Convertor SDI to HDMI 3G
