Description

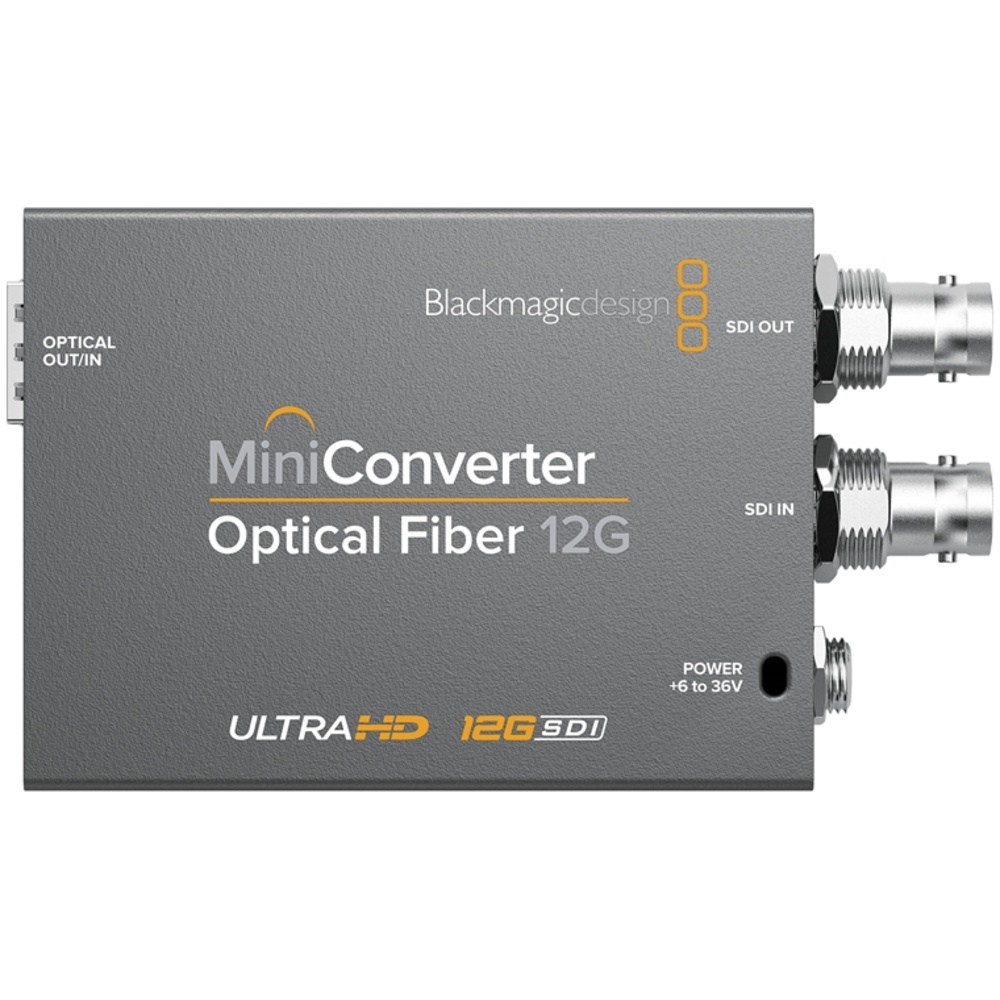

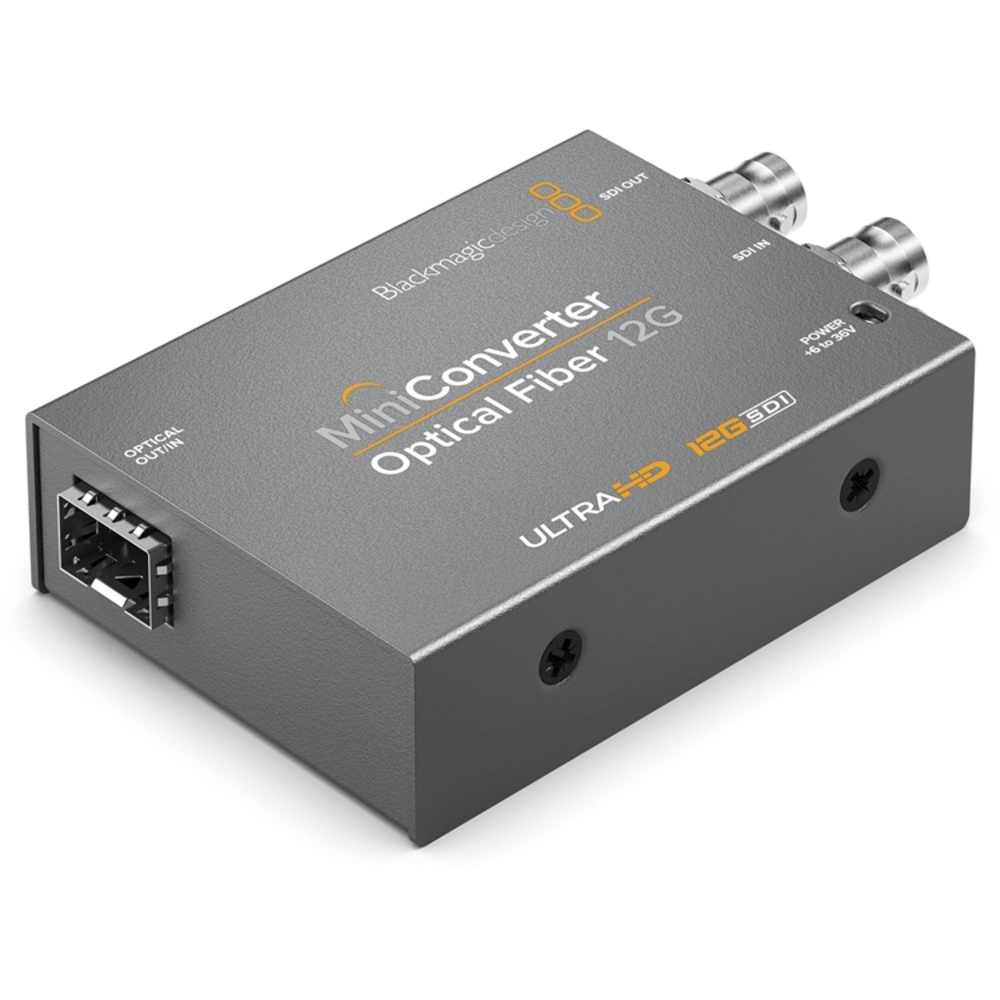

The Blackmagic Design Mini Converter Optical Fibre 12G SDI is a signal converter.
Highlights include SDI to optical fibre conversion, bi-directional capability, 12G-SDI Technology and auto detection of SD, HD or 12G-SDI.
Key specifications: optical fiber video inputs 1 x 10 bit SD/HD/12G- SDI switchable; optical fiber audio inputs 16 channel embedded; multi rate support Auto detection of SD, HD or 12G-SDI; SD video standards 525i59.94 NTSC, 625i50 PAL; ultra HD video standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
In the box: Blackmagic Design mini converter optical fibre 12G and universal power supply with international socket adapters. Manufacturer model number CONVMOF.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Connections | |
|---|---|
| SDI Video Inputs | 1 x SD, HD and 12G-SDI Video and 1 x Optical Fiber Input |
| SDI Video Outputs | Automatically matches the SD, HD and 12G-SDI video input on the Optical Fiber |
| Optical Fiber Video Inputs | 1 x 10 bit SD/HD/12G- SDI switchable |
| Optical Fiber Video Outputs | Automatically matches the SD, HD and 12G-SDI video input |
| Optical Fiber Audio Inputs | 16 channel embedded |
| Optical Fiber Audio Outputs | 16 channel embedded |
| Multi Rate Support | Auto detection of SD, HD or 12G-SDI |
| Reclocking | Yes |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 425M, SMPTE 424M-B, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI |
| SDI Video Rates | SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K. |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit |
| SDI Color Precision | 4:2:2 and 4:4:4 |
| SDI Color Space | YUV and RGB |
| SDI Auto Switching | Automatically detects SD, HD or 12G-SDI |
| ASI Support | Yes |
| Operating Systems | |
| Mac | macOS 10.12 Sierra macOS High Sierra 10.13 or later |
| Windows | Windows 8.1 Windows 10 |
| Power Requirements | |
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point |
| Power Consumption | 2 Watts |
| Operational Voltage Range | 6 - 36V DC |
| Environmental Specifications | |
| Operating temperature | 0° to 40° C (32° to 104° F) |
| Storage temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
In the box
- Blackmagic Design Mini Converter Optical Fibre 12G
- Universal power supply with international socket adapters
