Description

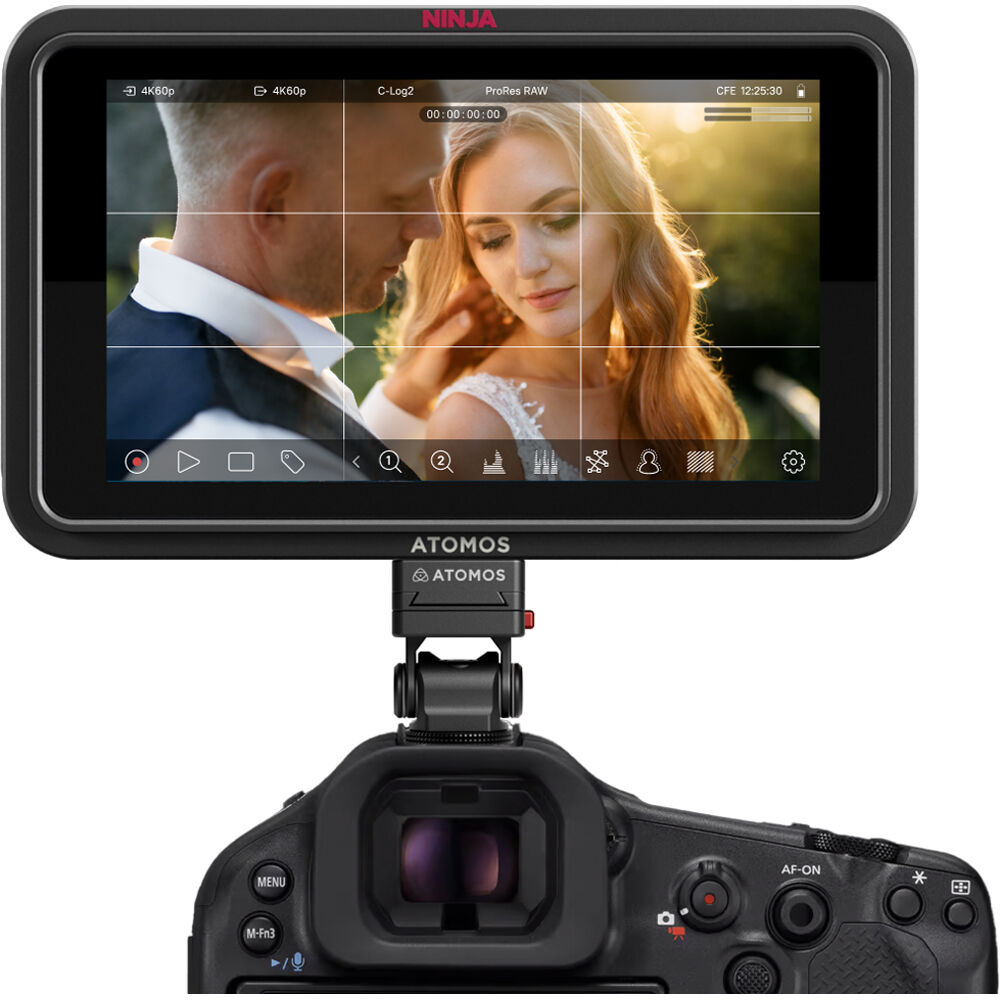

The Atomos Ninja TX GO 5.2" HDMI Wi-Fi-Enabled Camera Monitor/Recorder sits in our Monitors range.
Highlights include 1920 x 1080 IPS Touchscreen, 4K60 I/O, all codecs + NDI licence preloaded, locking HDMI 2.0 Input/Output, records to CFexpress type B slot, USB-C and 1500 cd/m² Brightness.
Key specifications: battery 1x L-Series Mount on Fixed Plate; weight 14.1 oz / 400.00 g; dimensions 5.9 x 3.6 x 1.4" / 151 x 92 x 36 mm; screen size 5.2"; material of construction Aluminium, Plastic.
An external recorder captures higher-quality codecs than many cameras record internally. In the box: Atomos Ninja TX GO 5.2" HDMI wi-fi-enabled Camera Monitor/Recorder, USB-C Locking Cable Adapter, HDMI Locking Cable Adapter, antenna tip set (Black, white, yellow, green, red), 2 x Wi-Fi Antenna and 2 x Antenna Cap and 1 more items.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Panel Type | IPS-Type LCD |
| Display Size | 5.2" / 13.2 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | Yes |
| Maximum Brightness | 1500 nits / cd/m 2 |
| Colour Support | 1.07 Billion Colours (8-Bit+FRC) |
| HDR Support | Yes: Hybrid Log Gamma |
| Colour Gamut | 100% Rec. 709 |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Blue Only, False Colour, Focus Peaking, Image Flip, OSD Flip, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Inputs/Outputs | |
| Antenna I/O | 2x RP-SMA |

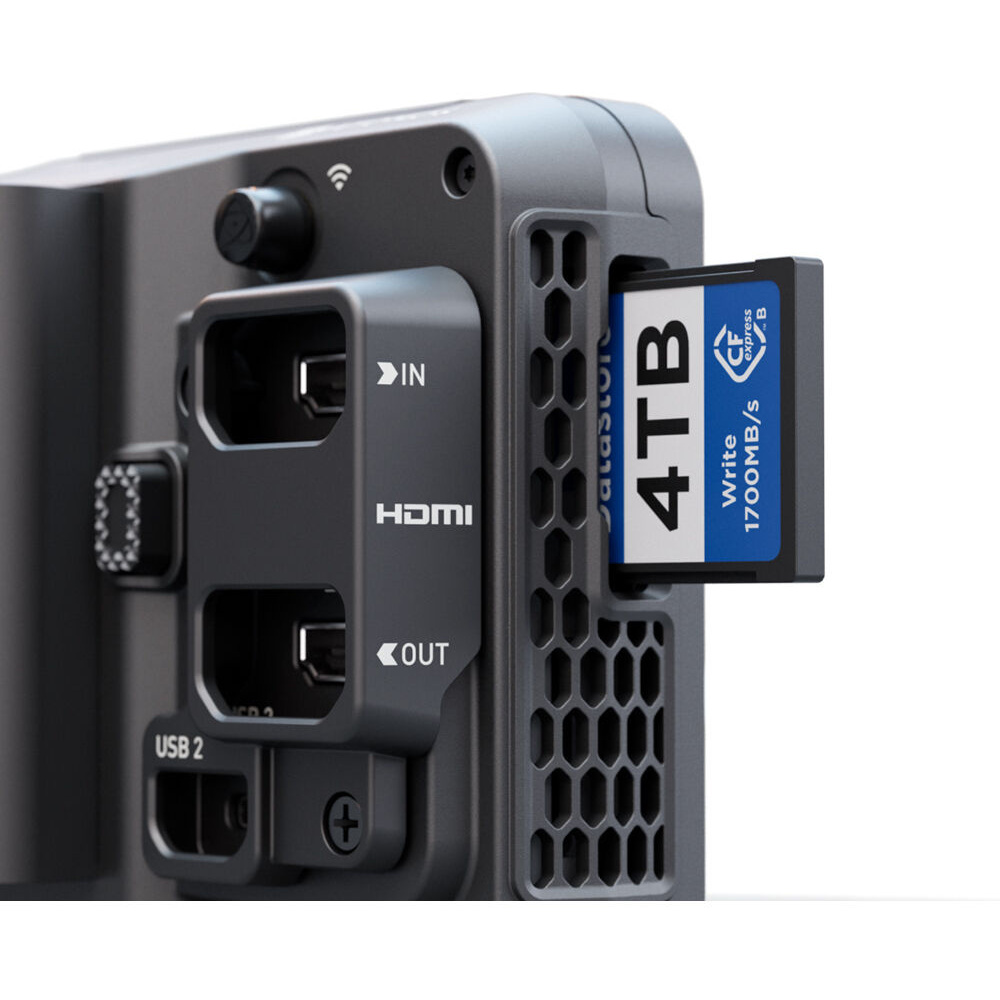

| Video I/O | 1x HDMI 2.0 Input 1x HDMI 2.0 Output |
| Embedded Audio | HDMI/IP/NDI/USB |
| Audio I/O | 1x 1/8" / 3.5 mm Input 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x USB-C (16.8 VDC) Input |
| Other I/O | 2x USB-C Input/Output [Shared with Firmware/LUT Upload/Record/Power] 1x 2.5 mm (LANC) Input |
| Media/Memory Card Slot | Single Slot: CFexpress Type B [Record/LUT/Firmware] |
| Wireless | |
| Wi-Fi | Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz) |
| Bluetooth | No |
| Mobile App Compatible | Yes: iOS Only App Name: AtomRemote |
| Format Support | |
| Video Format | HDMI (8/10/16-Bit 4:2:2) 6K Raw: 60 3.5K Raw: 60 DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Audio Format | 24-Bit |
| Wireless Video Compression | Compressed |
| Timecode Support | Yes |
| Recording | |
| Pulldown Conversion | 2:2, 3:2 |
| Camera Trigger | HDMI |
| Pre-Roll Record | Full HD: 8 Seconds 4K: 2 Seconds |
| Encoding Formats | x DNxHD 36, 145, 220x DNxHR HQ, HQX, LB, SQ ProRes 422, 422 HQ, LT, Raw, Raw HQ H.265 420, 422, HQ, LQ, MQ |
| Maximum Audio Tracks | 8 |
| Metadata Tagging | Yes |
| Reference Input | No |
| Power | |
| Input Power | 6.2 to 16.8 VDC |
| Battery | 1x L-Series Mount on Fixed Plate |
| Power Consumption | 30 W |
| Mounting | |
| Tripod/Accessory Mounting | 1x ARRI Anti-Twist 1/4"-20 2x 3/8"-16 Female |
| General | |
| Environmental Resistance | No |
| Operating Conditions | Up to 104°F / 40.0°C |
| Material of Construction | Aluminium, Plastic |
| Dimensions | 5.9 x 3.6 x 1.4" / 151 x 92 x 36 mm |
| Weight | 14.1 oz / 400.00 g |
Product details
| Screen Size | 5.2" |
|---|---|
| Screen Resolution | 1920 x 1080 |
In the box
- Atomos Ninja TX GO 5.2" HDMI Wi-Fi-Enabled Camera Monitor/Recorder
- USB-C Locking Cable Adapter
- HDMI Locking Cable Adapter
- Antenna Tip Set (Black, White, Yellow, Green, Red)
- 2 x Wi-Fi Antenna
- 2 x Antenna Cap
- USB-C PD Locking Cable (17.7")
