Description

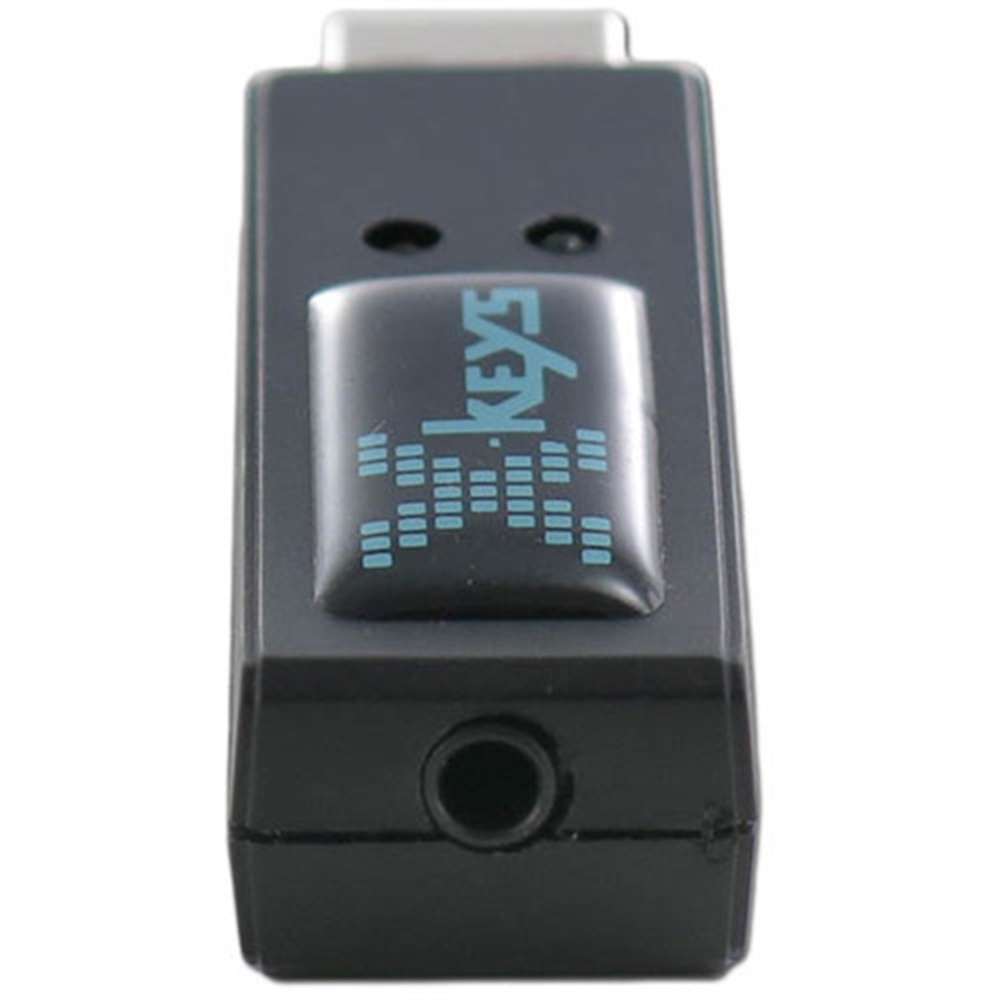

The X-keys USB 3-Switch Interface for KVM Switches sits in our Footswitch & Remotes range. Designed for KVM Switches.
Highlights include designed to work with KVM switches, easy to program and duplicate and no software required for operation.
Key specifications: connector USB 2.0 Type A plug; weight 23 g; dimensions 71 x 19 x 13 mm; emulation modes HID keyboard; wiring distance Up to 300 m from switch to port.
Manufacturer model number XK-1446-UKVM3-SO.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Operating System | Any OS supporting USB HID keyboard: Windows, Mac, Linux, Android |
|---|---|
| Programming Software | MacroWorks 3.1 Software Requirement: Windows 10, 8, 7, or Vista (32 or 64 bit) or Windows XP (32 bit only) Microsoft .NETT Framework 3.5.1 |
| Emulation Modes | HID keyboard |
| Port | 1 x 3.5 mm TRRS accepts 3.5 mm mono, stereo, or TRRS plug (may be split to accept up to three switches) |
| Connector | USB 2.0 Type A plug |
| Wiring Distance | Up to 300 m from switch to port |
| Power Source | USB port Nominal Voltage: 5 VDC |
| Power Consumption | 21 mA @ 5 VDC |
| Temperature Range | -20 to 60°C |
| Memory Capacity | Approximately 1000 keystrokes or commands |
| Memory Type | EEPROM, non-volatile memory (X-keys retains memory for over 200 years) |
| Environmental Rating | IP40, typical indoor office environment |
| Certifications | FCC class B, COE, RoHS, WEEE compliant |
| Dimensions | 71 x 19 x 13 mm |
| Weight | 23 g |
