Description

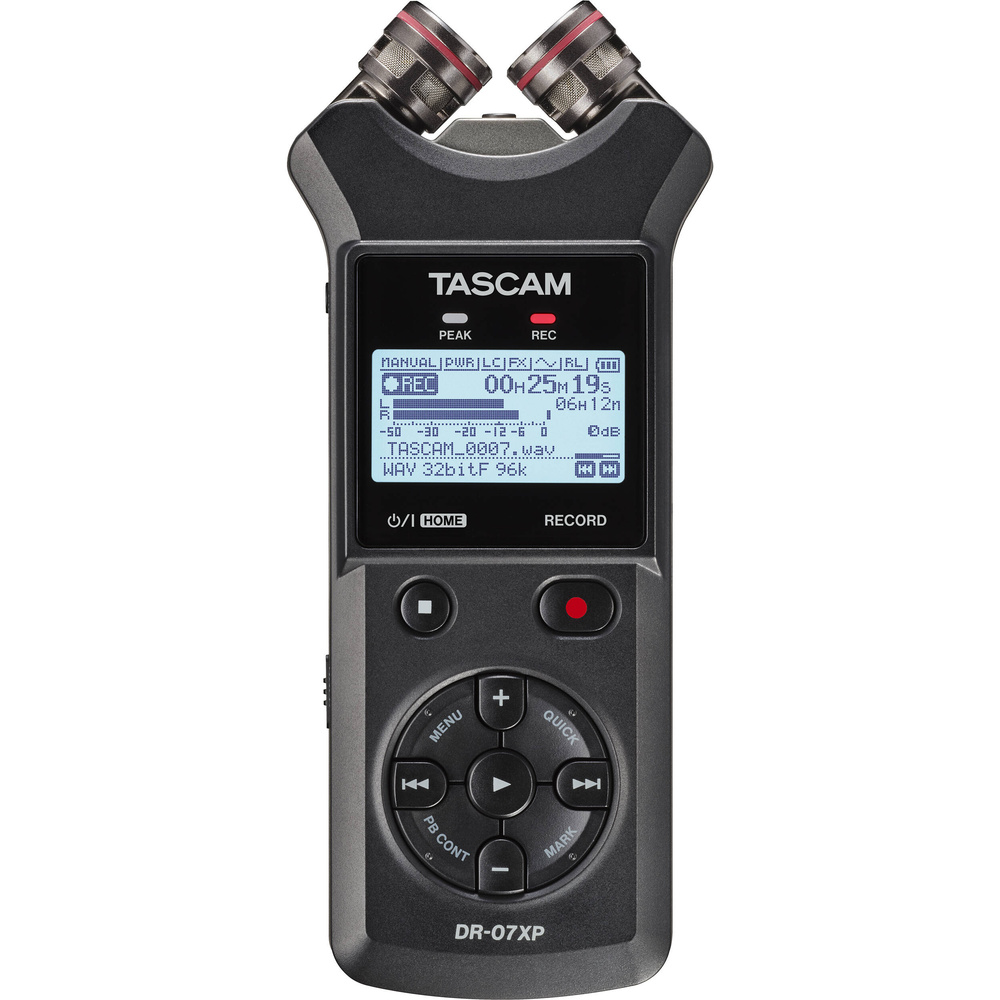

TASCAM DR-07XP 2-Channel 32-Bit Float Portable Audio Recorder: a portable digital recorder.
Highlights include speech, effects, and music recording, adjustable A/B or X/Y onboard mics, 3.5mm Mic/Line input with plug-in Power, built-in tuner, AEQ, and reverb and records in 32-Bit float up to 96 kHz.
Key specifications: mounting options 1/4"-20 Female; dimensions 2.4 x 5.6 x 1.1" / 60.5 x 142.3 x 27 mm; form factor Handheld Recorder; number of tracks WAV: 2; number of input channels 2 (2 x Mono, 1 x Stereo).
An external recorder captures higher-quality codecs than many cameras record internally.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Portable Recorder | |
|---|---|
| Form Factor | Handheld Recorder |
| Number of Tracks | WAV: 2 |
| Number of Input Channels | 2 (2 x Mono, 1 x Stereo) |
| Maximum Sampling Rate | 96 kHz / 32-Bit Float |
| Microphone | Built-In Cardioid Condenser Stereo Pair, A/B, X/Y Configuration |
| Number of Microphone Inputs | 1 |
| Built-In Speaker | Yes: 0.3 W Mono |
| Display | Monochrome LCD (Backlit) |
| Memory Card Support | microSD microSDHC microSDXC (Up to 512 GB) |
| Internal Storage | No |
| Special Features | Overdubbing, Voice Activation |
| Recording | |
| Audio File Formats | BWF, MP3, WAV |
| Sample Rates | WAV: 44.1 / 48 / 96 kHz |
| Bit Depth | 16 / 24 / 32-Bit |
| Bit Rates | 32 to 320 kb/s (Record) 32 to 320 kb/s + VBR (Playback) |
| Signal Processing & FX | Auto Gain, AEQ, Limiter, Low-Cut Filter, Reverb |
| Timecode Support | No |
| Recording Time | WAV 44.1 kHz/16-Bit: 789 Hrs (Stereo) WAV 48 kHz/16-Bit: 526 Hrs (Stereo) WAV 96 kHz/16-Bit: 362 Hrs (Stereo) WAV 44.1 kHz/24-Bit: 526 Hrs (Stereo) WAV 48 kHz/24-Bit: 724 Hrs (Stereo) WAV 96 kHz/24-Bit: 241 Hrs (Stereo) WAV 44.1 kHz/32-Bit: 394 Hrs WAV 48 kHz/32-Bit: 362 Hrs WAV 96 kHz/32-Bit: 181 Hrs |
| Included Software | No |
| Connectivity | |
| Analogue I/O | 1x 1/8" / 3.5 mm TRS Female Unbalanced Line/Mic Input 1x 1/8" / 3.5 mm TRS Female Unbalanced Headphone/Line Output |
| Digital I/O | No |
| Phantom Power | No |
| Plug-In Power | Yes |
| System Connection | 1x USB-C (1.1, 2.0) |
| Audio Interface Capability | Stereo Only |
| Wireless | No |
| Mobile App Compatible | No |
| Performance | |
| Frequency Response | 20 Hz to 20 kHz +1/-3 dB (at 44.1 kHz, JEITA) 20 Hz to 22 kHz +1/-3 dB (at 48 kHz, JEITA) 20 Hz to 40 kHz +1/-3 dB (at 96 kHz, JEITA) |
| Max Input Level | Mic/Line Inputs: -4 dBV |
| Max Output Level | Line Outputs: +2 dBV |
| Headphone Output Power | 20 mW per Channel into 32 Ohms |
| Impedance | Mic/Line Inputs: ≥18 Kilohms (Plug-In Power Off) ≥2 Kilohms (Plug-In Power On) |
| THD+N | ≤0.01% |
| Microphone Max SPL | 125 dB SPL |
| Power | |
| Power Options | Battery, USB Bus Power, AC/DC Power Adapter |
| Battery Type | 2x AA (Not Included) |
| Approximate Battery Life | WAV 44.1 kHz/16-Bit: 17.5 Hours (Alkaline, 2 Channels, Recording) WAV 96 kHz/24-Bit: 15.5 Hours (Alkaline, 2 Channels, Recording) |
| AC/DC Power Adapter | 5 VDC at 0.5 A (Not Included) |
| Input Power | 5 VDC |
| Physical | |
| Included Accessories | No |
| Mounting Options | 1/4"-20 Female |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Dimensions | 2.4 x 5.6 x 1.1" / 60.5 x 142.3 x 27 mm |
| Weight | 4.4 oz / 126 g (without Batteries) 6.1 oz / 174 g (with Batteries) |
In the box
- TASCAM DR-07XP 2-Channel 32-Bit Float Portable Audio Recorder
