Description

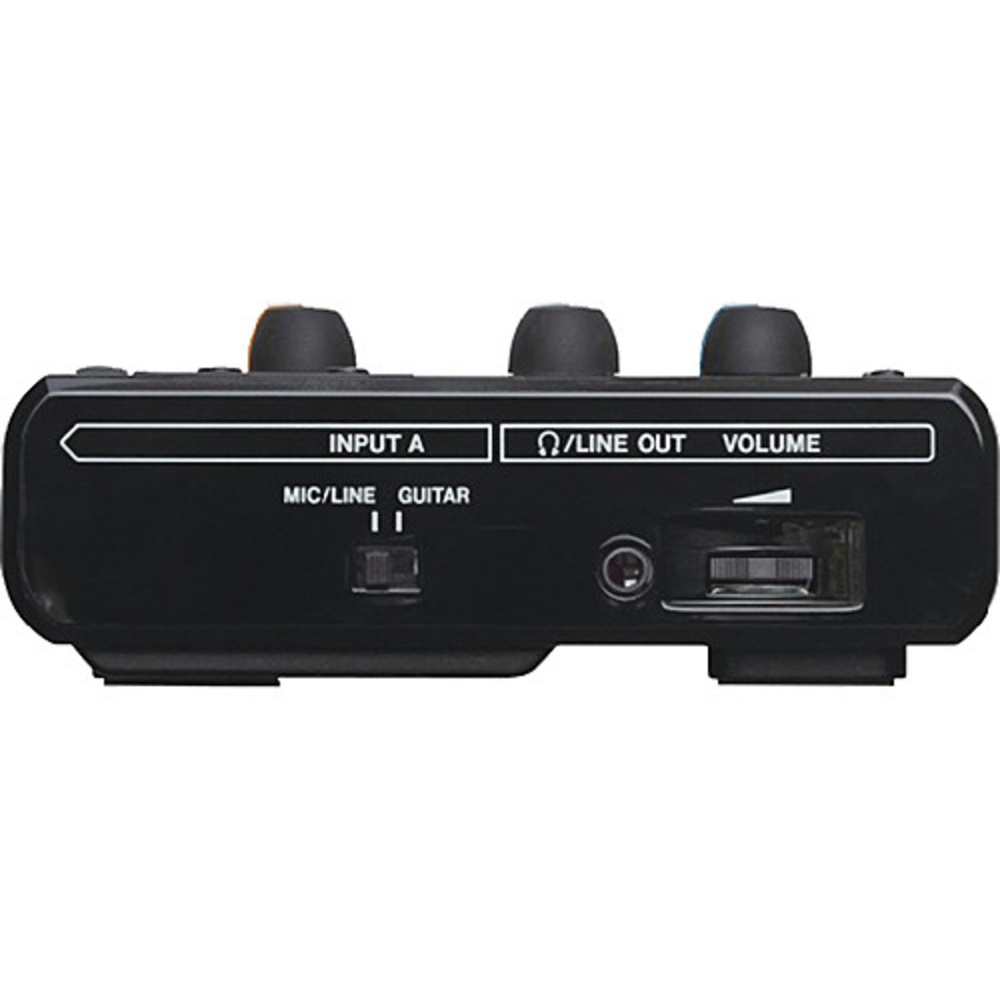

Tascam DP-006 Digital Pocketstudio: a portable digital recorder.
Highlights include dual omnidirectional Microphones, records WAV files at 16-Bit/44.1 kHz, two unbalanced 1/4" TS inputs, mini USB 2.0 output and integrated metronome and tuner.
Key specifications: frequency response 20 Hz to 20 kHz +1/-3 dB; connector 2 x 1/4" TS unbalanced; weight 360 g; dimensions (W x H x D) 155 x 41.5 x 107 mm; recording media SD/SDHC card (up to 32GB).
An external recorder captures higher-quality codecs than many cameras record internally. In the box: Tascam DP-006 Digital pocketstudio, 2GB SD Card, 4 x AA Battery and 31.5" (80cm) USB Cable.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Recording Specifications | |
|---|---|
| Recording Media | SD/SDHC card (up to 32GB) |
| File System | TASCAM original (MTR partition) FAT32 (FAT partition) |
| Line Input | |
| Connector | 2 x 1/4" TS unbalanced |
| Input Impedances | Switchable: ≥ 10kΩ mic/line 1MΩ guitar |
| Nominal Input Level | -10 dBV |
| Maximum Input Level | +6 dBV |
| Headroom | 16 dB |
| Built-In Microphone Specifications | |
| Type | 2 x omni-directional condenser microphone |
| Line Output | |
| Connector | 1/8" (3.5 mm) stereo mini |
| Nominal Output Level | -16 dBV |
| Maximum Output Level | 0 dBV |
| Headphone Output | |
| Maximum Output Level | 15 mW per side (THD+N less than 0.1%, 32Ω loaded) |
| Audio Performance | |
| Frequency Response | 20 Hz to 20 kHz +1/-3 dB |
| Distortion | < 0.05% |
| Signal-to-Noise Ratio | > 81 dB |
| USB Connectivity | |
| USB Connector | 1 x USB Mini-B 4-pin |
| Format | USB 2.0 high speed mass storage class |
| Operating System Requirements | Windows XP / Vista / 7 Mac OS X 10.2 or later |
| General Specifications | |
| Power Requirements | 4 x AA batteries (alkaline or NiMH) TASCAM PS-P520 AC adapter (sold separately) |
| Battery Life (approx.) | 8 hrs alkaline, 9 hrs NiMH (using line input/recording) 8.5 hrs alkaline, 9.5 NiMH (using headphone/playback) |
| Power Consumption | 1W maximum |
| Operating Temperature Range | 5 to 35°C |
| Dimensions (W x H x D) | 155 x 41.5 x 107 mm |
| Weight | 360 g |
In the box
- Tascam DP-006 Digital Pocketstudio
- 2GB SD Card
- 4 x AA Battery
- 31.5" (80cm) USB Cable
