Description
The Sony UWP-D26 Dual Combo ENG Wireless Microphone Kit is a wireless system.
Highlights include for DIY Videographer/Vlogger, journalist, omnidirectional lav mic, bodypack transmitter with auto gain, plug-on transmitter with 48V phantom and true-diversity Camera-Mount receiver.
Key specifications: polar pattern Omnidirectional; frequency range 40 Hz to 20 kHz; frequency response 23 Hz to 18 kHz; length 0.77" / 19.5 mm; weight 6.2 oz / 175.8 g (with Batteries).

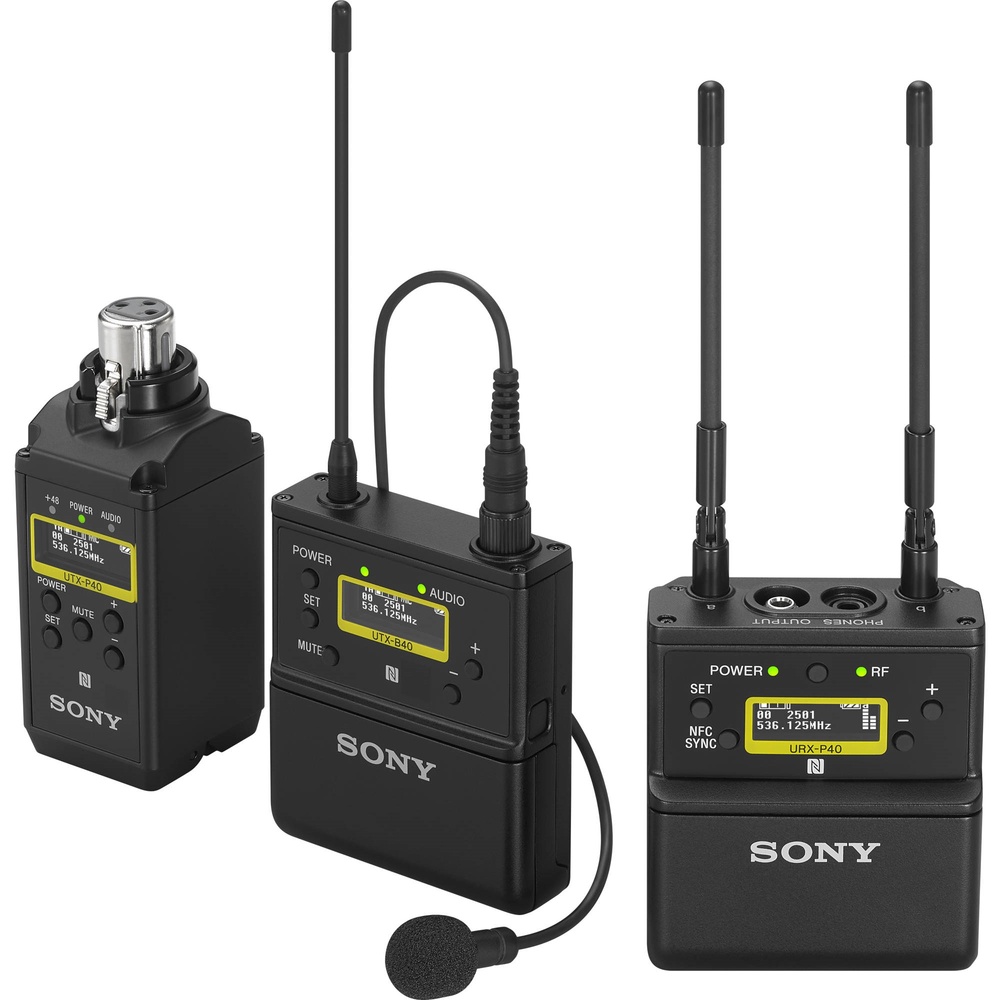

The transmitter clips to the talent and the receiver sits on the camera or phone, so no cable is in shot. In the box: Sony UWP-D26 Camera-Mount wireless combo microphone system, Sony URX-P40 Camera-Mount wireless receiver, Sony UTX-B40 wireless bodypack transmitter with omni lavalier mic, Sony UTX-P40 wireless plug-on transmitter, mic clip and windscreen and 5 more items. Manufacturer model number UWPD26CE42.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| System | |
|---|---|
| Wireless Transmission | Analogue UHF |
| Number of RF Channels | 2772 |
| Included Transmitters | 1 x Bodypack 1 x Plug-On |
| Diversity | True Diversity |
| RF Frequency Band | CE42: 638.025 MHz to 694.000 MHz |
| RF Bandwidth | 72 MHz |
| Frequency Step Size | 25 kHz |
| Max Operating Range | 330' / 100.6 m (Typical) |
| Max Systems per Setup | 16 |
| Latency | 0.35 ms |
| Modulation | FM |
| Pilot Tone | 32 / 32.382 / 32.768 kHz |
| Receiver | |
| Form Factor | Camera-Mount |
| Mounting Options | Shoe-Mount (with Included Hardware) |
| Antenna | 2 x 1/4 Wave External, Fixed (Top-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable) 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output |
| Gain Range | -12 to +12 dB (3 dB Steps) |
| Audio Output Level | -60 dBV |
| Frequency Response | 23 Hz to 18 kHz |
| USB/Lightning Connectivity | 1 x USB Type-C (Bus Power) |
| Power Requirements | Battery, Bus Power (USB) |
| Battery Type | 2 x AA (Not Included) |
| Approx. Battery Life | 6 Hours (Alkaline) |
| Display & Indicators | 1 x OLED (AF Level, Battery Status, Channel, Frequency, Menu Navigation, Mute, Peak, RF Level) |
| Housing | Metal |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 131°F / -20 to 55°C |
| Dimensions | 2.7 x 3.2 x 0.9" / 68 x 82 x 23.8 mm (without Antennas) |
| Weight | 6.2 oz / 175.8 g (with Batteries) |
| Transmitter 1 | |
| Form Factor | Bodypack |
| RF Output Power | 5 / 30 mW |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) |
| Muting | Mute Switch |
| Audio Input Level | +60 dBV (Mic Level) +4 dBu (Line Level) |
| Gain Range | 0 to 21 dB (3 dB Steps) |
| Sync Method | NFC |
| Antenna | 1 x 1/4 Wave External, Fixed |
| Approx. Battery Life | 8 Hours (Alkaline) |
| USB/Lightning Connectivity | 1 x USB Type-C (Bus Power, Charging) |
| Display & Indicators | 1 x OLED (Audio Level, Battery Status, Peak, RF Output Power) |
| Dimensions | 2.5 x 3.2 x 0.8" / 63 x 82 x 20 mm (without Antennas) |
| Weight | 5.3 oz / 149 g (without Batteries) |
| Microphone | |
| Form Factor | Lavalier |
| Sound Field | Mono |
| Capsule | Electret Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Range | 40 Hz to 20 kHz |
| Sensitivity | -43 dB at 1 kHz |
| Output Connectors | 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable) |
| Cable Length | 3.9' / 1.19 m |
| Length | 0.77" / 19.5 mm |
| Diameter | 0.27" / 6.8 mm |
| Weight | 0.57 oz / 16.2 g |
| Transmitter 2 | |
| Form Factor | Plug-On |
| RF Output Power | 5 / 40 mW |
| Audio I/O | 1 x XLR 3-Pin Female Input (Lockable) |
| Phantom Power | +48 V |
| Muting | Off/On Switch |
| Audio Input Level | -60 dBV |
| Gain Range | 0 to +48 dB (3 dB Steps) |
| Antenna | 1 x Internal |
| Dimensions | 1.5 x 3.9 x 1.5" / 38 x 98 x 38 mm |
| Weight | 4.9 oz / 139 g (without Batteries) |
In the box
- Sony UWP-D26 Camera-Mount Wireless Combo Microphone System
- Sony URX-P40 Camera-Mount Wireless Receiver
- Sony UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic

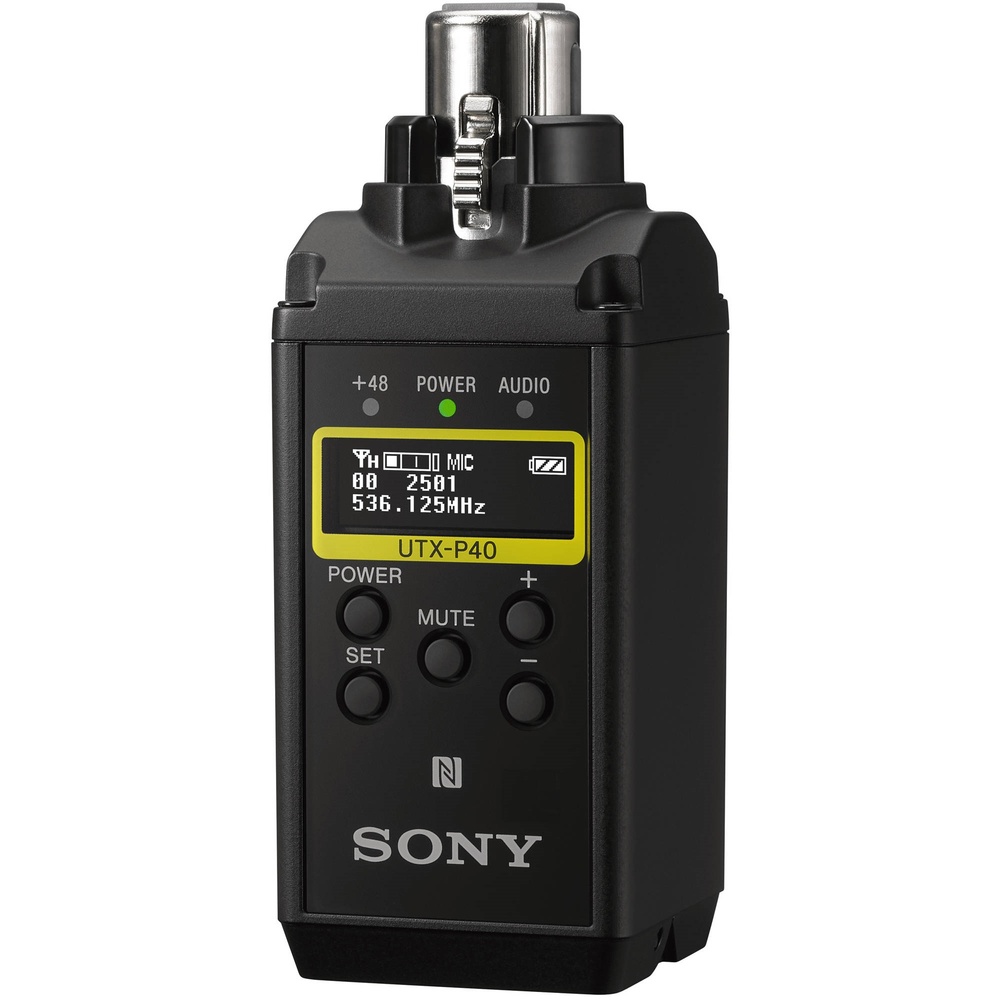

- Sony UTX-P40 Wireless Plug-On Transmitter
- Mic Clip
- Windscreen
- Belt Clips
- Sony SMAD-P4 Shoemount Adapter for URX-P40 Receiver
- Soft Case for Plug-On
- 3.5mm to 3.5mm Output Cable
- 3.5mm to XLR-M Output Cable
