Description

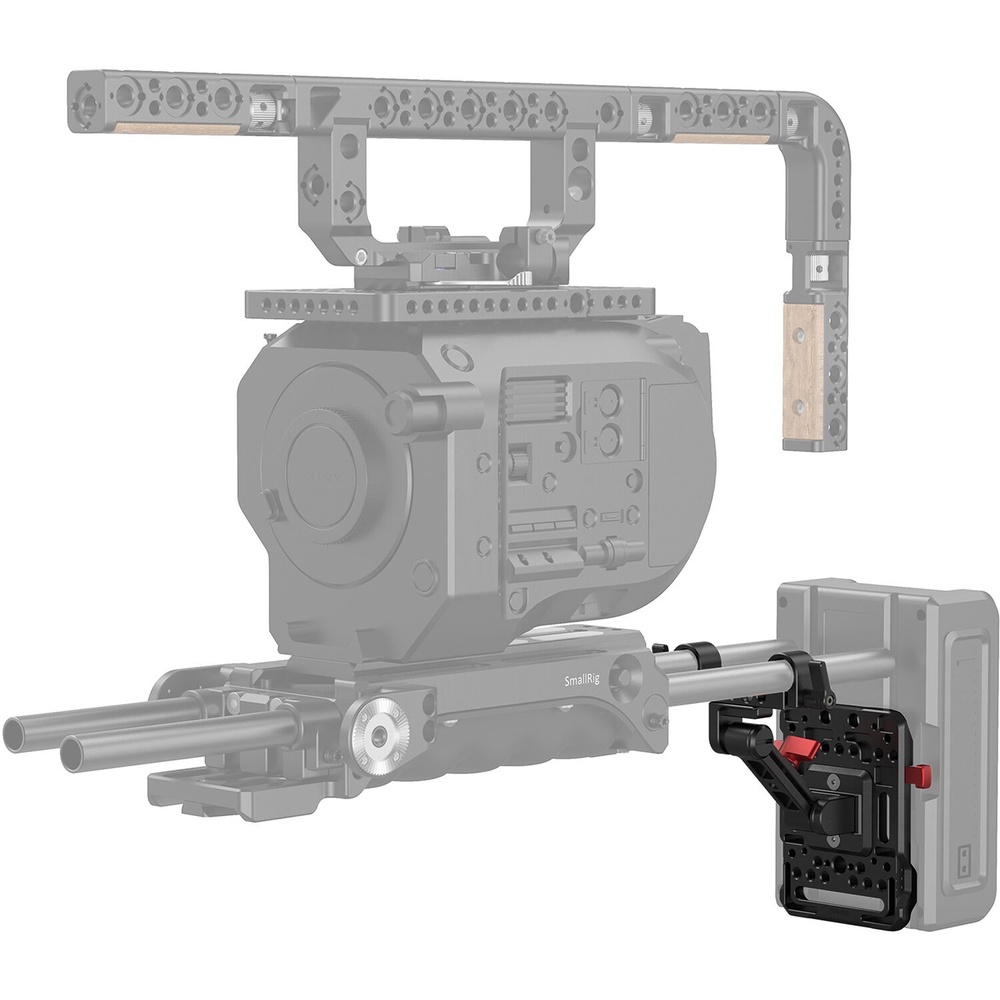

The SmallRig V-Lock Battery Plate with 15mm Rod Clamp and Adjustable Arm is a battery mounting solution for video rigs that need V-mount power on 15 mm rods. It suits users building a compact camera setup with external power, especially when the battery needs to sit in a set position on the rig.
It uses a standard V-lock rear mount for one battery and mounts to a 15 mm LWS rod system with the included rod bracket and adjustable extension arm. The plate is made from aluminium and measures 90.5 x 72 x 13.8 mm. It weighs 140 g. Mounting points include 1/4-20 female, M3 female, M4 female and multiple 1/4-20 threads, with a quick release locking mount and ARRI-style thread support.
In use, it pairs with a V-mount battery and a camera rig that has 15 mm rods. It is suitable for rigs that need battery placement with some adjustment for balance and access. The box includes the battery plate, a SmallRig 942 Super Lightweight 15 mm LWS Rod Bracket v3, and an adjustable extension arm.
Specifications
| Camera Power Method | Connector |
|---|---|
| Plate Rear Mount | V-Lock |
| Number of Battery Bays | 1 |
| Accessory Mounting | 1/4"-20 Female, M3 Female, M4 Female |
| Material of Construction | Aluminium |
| Dimensions | 3.6 x 2.8 x 0.5" / 90.5 x 72 x 13.8 mm |
| Weight | 4.9 oz / 140 g |
| Material of Construction | Aluminium Alloy |
| Rod System | 15 mm LWS |
| Mounting Threads | Multiple: 1/4"-20 |
| Dimensions | 2.4" / 60 mm, Rod Centre to Centre |
| Weight | Not Specified by Manufacturer |
In the box
- SmallRig V-Lock Battery Plate
- SmallRig 942 Super Lightweight 15mm LWS Rod Bracket v3
- Adjustable Extension Arm
