Description

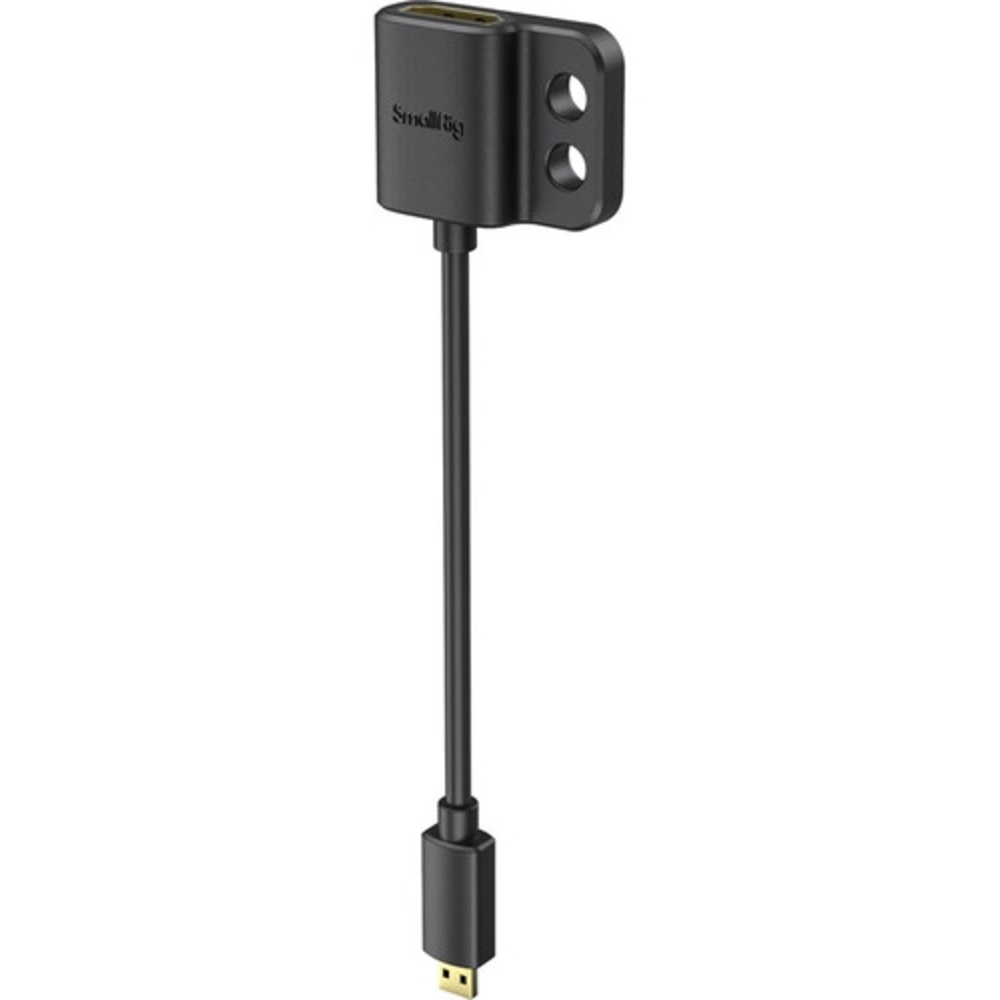

The SmallRig Ultra-Slim Female HDMI Type A to Male Micro-HDMI Type D Adapter Cable is a compact rig cable for cameras with Micro HDMI ports. It suits users who want to connect a full-size HDMI cable to a camera while keeping the connection secured to a cage or L-bracket. The cable helps reduce strain on the camera port during filming.
It measures 14 cm in length and supports video up to 4K60. The female end has two 1/4-20 threads with 9 mm centre-to-centre spacing, which lets it mount to compatible rig parts. The cable is made from PVC and weighs 31 g, with overall dimensions of 141.1 x 33.2 x 11.8 mm.

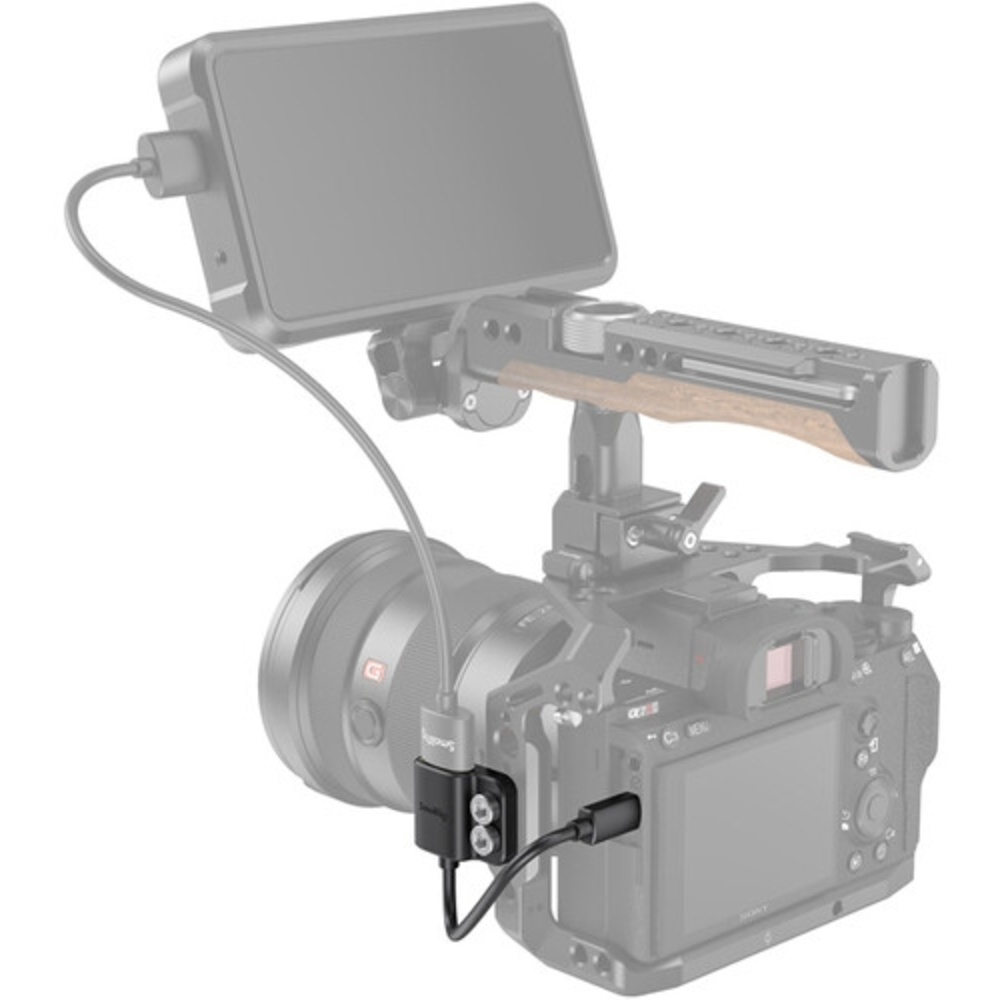

In practice, it is used between a camera and a larger HDMI lead when the camera has a Micro HDMI input. It pairs with cages or L-brackets that have matching 1/4-20 threaded holes. The box includes the adapter cable, a 1/4-20 screw and an Allen wrench.
Specifications
| Material of Construction | PVC |
|---|---|
| Connector 1 | Female HDMI Type A |
| Connector 2 | Male Micro-HDMI Type D |
| Mounting | 2 x 1/4"-20 Threads Thread Spacing, Centre-to-Centre: 0.35" / 9 mm |
| Dimensions | 5.6 x 1.3 x 0.5" / 141.1 x 33.2 x 11.8 mm |
| Weight | 1.1 oz / 31 g |
Product details
| Cable Connector | HDMI Female |
|---|

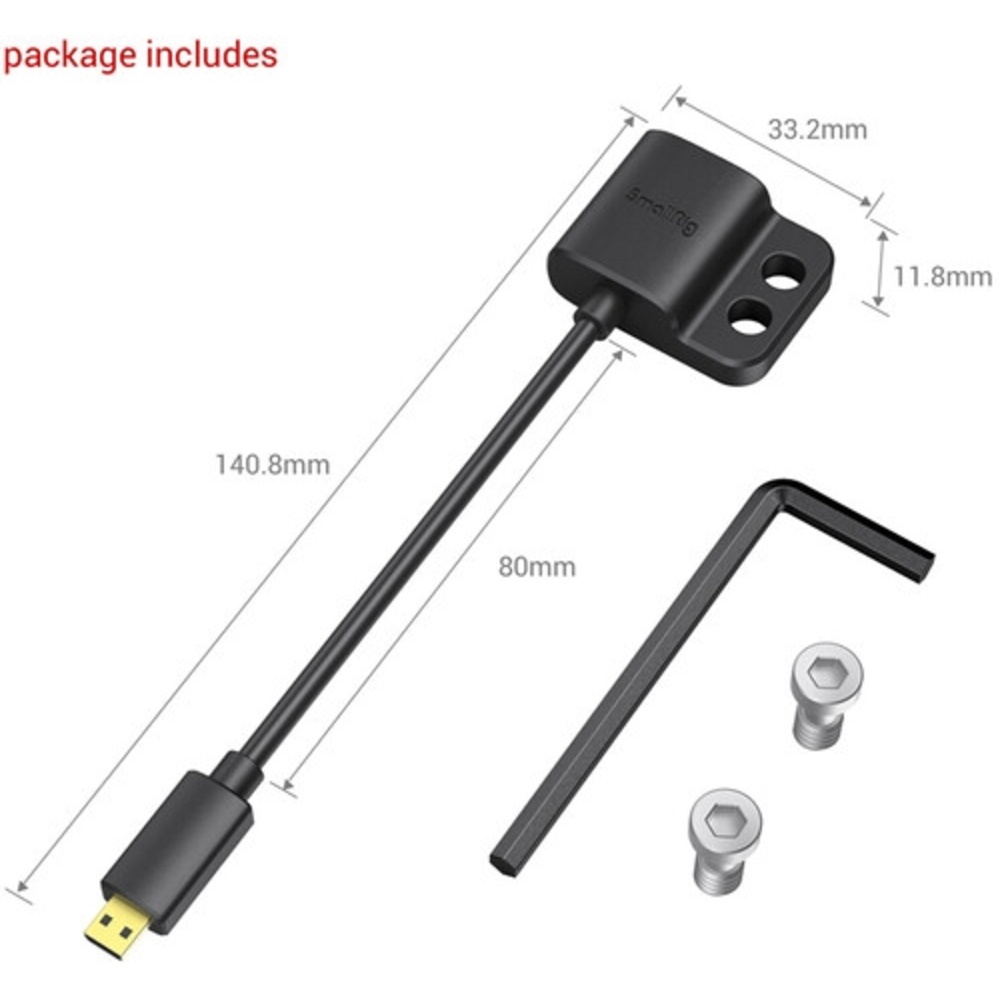

In the box
- SmallRig Ultra-Slim Female HDMI Type A to Male Micro-HDMI Type D Adapter Cable
- 1/4"-20 Screw
- Allen Wrench
