Description
The SmallRig 4292 VB99 Pro Mini V Mount Battery is a compact V-mount power source for cameras and production rigs that need portable battery power and multiple output options. It suits filmmakers, camera operators and content creators who want a battery that can run on-camera gear, monitors and accessories from one unit. The aluminium alloy and fireproof PC body keeps the design compact and practical for rig use.

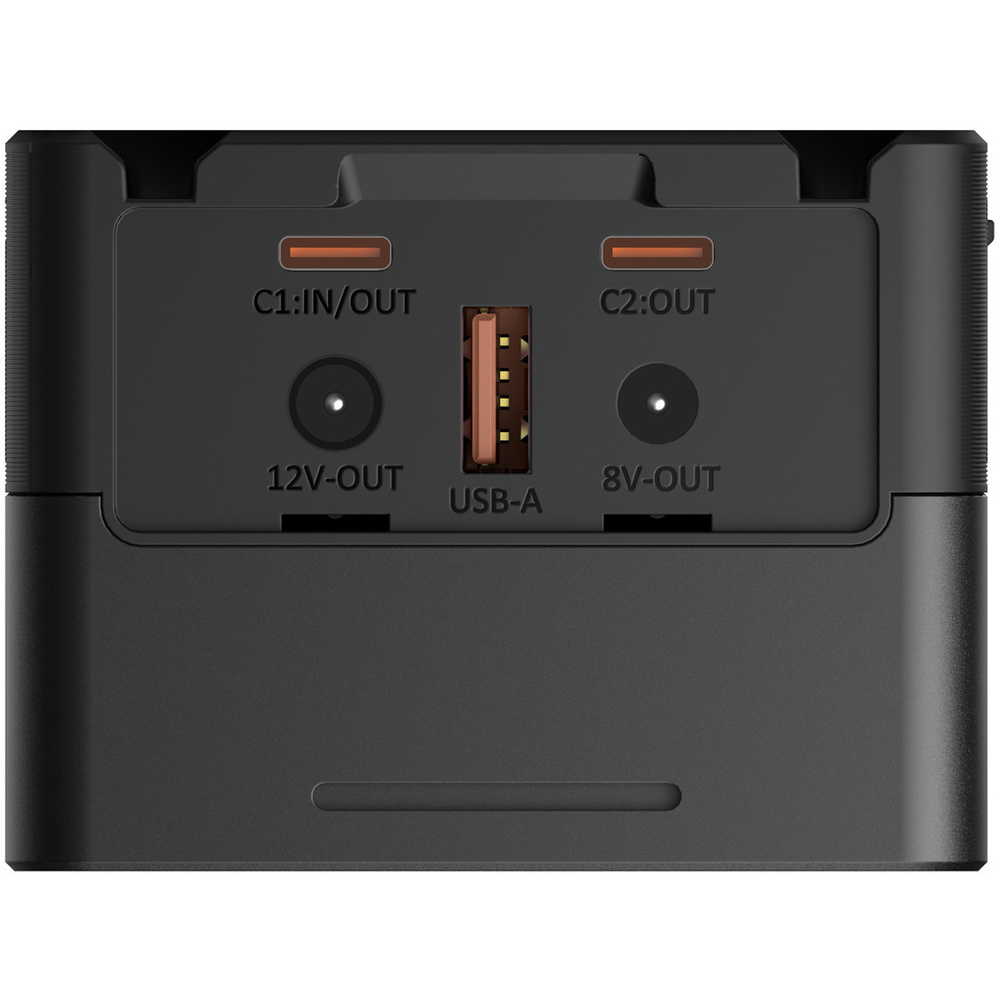

It has a 14.54V 6.8Ah 98.872Wh capacity and a 100W rated power output. Power options include BP and D-tap input up to 8A, BP and D-tap output up to 14.8V / 14A, USB-C1 input and output up to 100W, USB-C2 output up to 100W, USB-A output with QC2.0 and QC3.0 support, plus 8V-OUT and 12V-OUT ports. It also includes a TFT colour screen and a BMS intelligent chip.

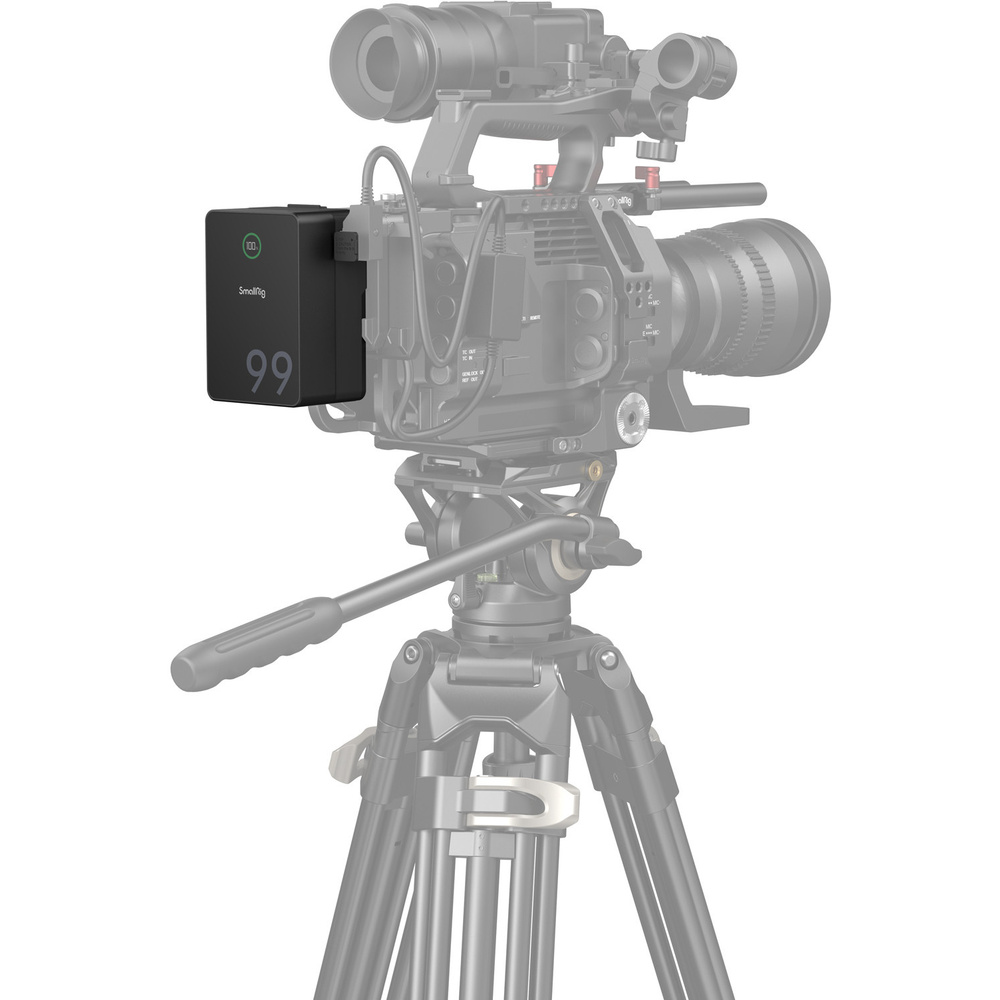

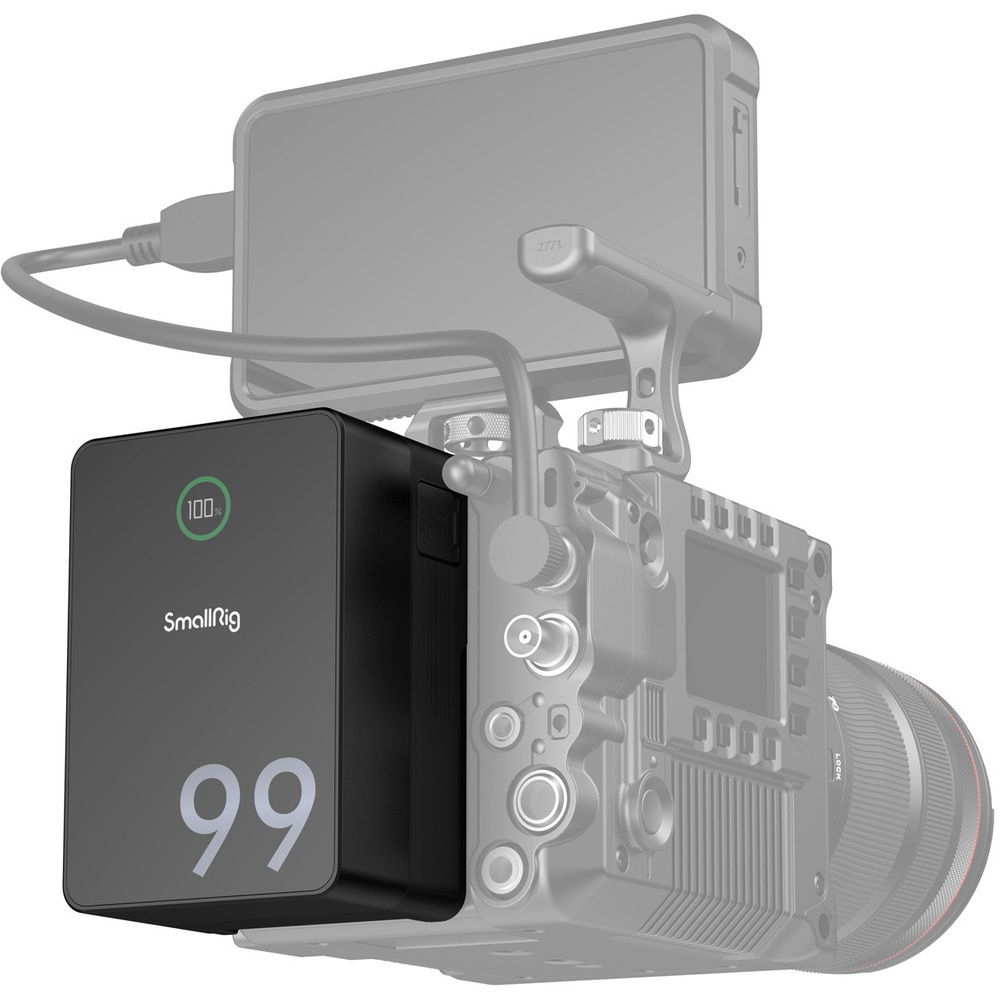

In practice, it can be used with compatible cameras, monitors, LED lights, follow focus units, image transmitters, phones, tablets and laptops that match its output types and power requirements. It measures 107.2 x 73.2 x 55.2mm and weighs 660 ± 10g including the charging cable. The box includes the VB99 Pro mini V Mount Battery, a 240W USB-C charging cable and a user manual.
Specifications
| Product Dimensions | 107.2 × 73.2 × 55.2mm |
|---|---|
| Package Dimensions | 146 × 113 × 74mm |
| Product Weight (including charging cable) | 660 ± 10g |
| Package Weight | 847 ± 10g |
| Material(s) | Aluminum Alloy, Fireproof PC |
| Capacity | 14.54V 6.8Ah 98.872Wh |
| Rated Power | 100W |
| BP / D-tap Input | 8A (Max.) |
| BP / D-Tap Output | 14.8V / 14A (Max.) |
| USB-A Output QC2.0 / QC3.0 | 5V / 3A, 9V / 3A, 12V / 2.5A（Max.） |
| USB-C1 Input / Output | 100W (Max.) |
| PD3.0 / QC2.0 / QC3.0 / PPS | 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A (Max.) |
| USB-C2 Output | 100W (Max.) |
| 8V-OUT | 8V / 3A (Max.) |
| 12V-OUT | 12V / 3A (Max.) |
| Cut-off Voltage | 11V |
| Optional Charging Method | BP charger、16.8V D-TAP charger、USB-C charger, such as GaN charger with PD fast charging tech (up to 100W) |
Product details
| Batteries / Chargers | Batteries Only |
|---|---|
| Wattage | 3500 mAh |
| Battery | Lithium-Ion |
| Battery Mount / Series | V-Mount |
In the box
- VB99 Pro mini V Mount Battery x 1
- 240W USB-C Charging Cable x 1
- User Manual x 1
