Description

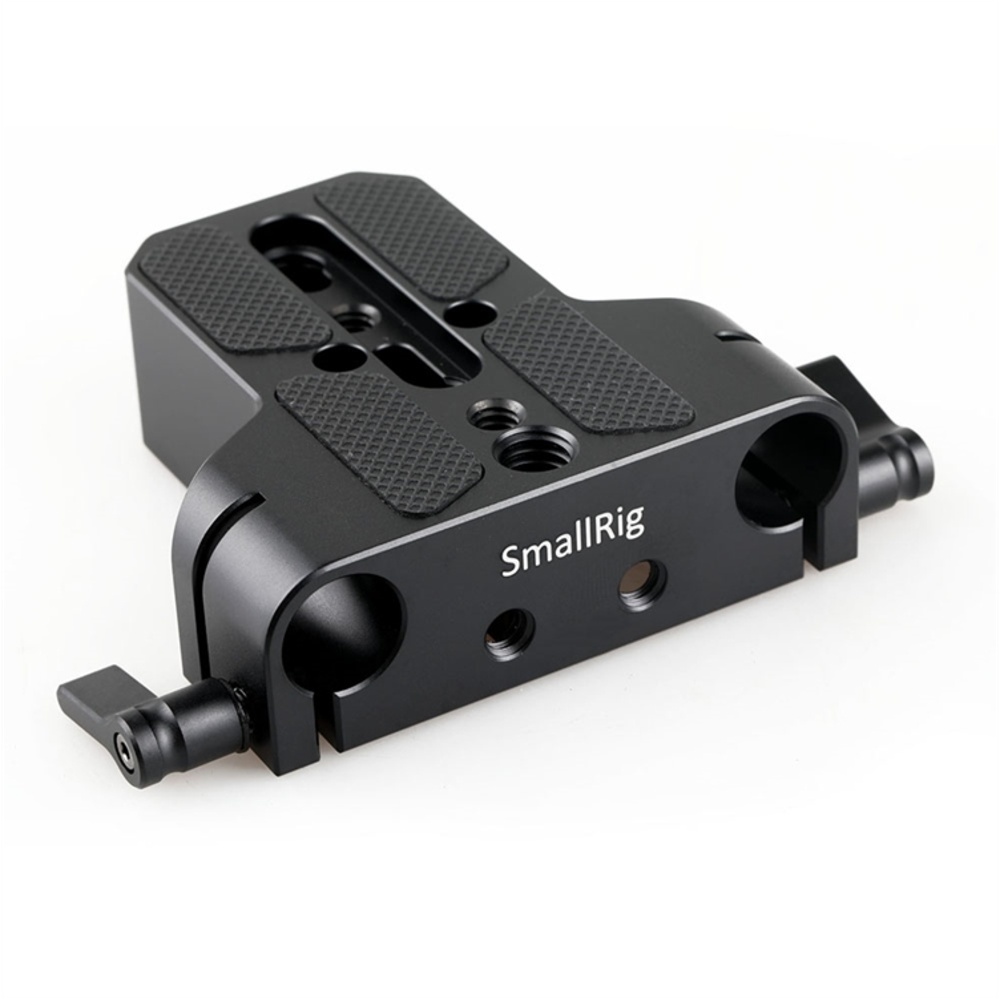

The SmallRig 1674 Multipurpose U-Base Universal Baseplate with Dual 15mm Rod Clamp is a low-profile baseplate for camera rigs and tripods. It suits users who want to add 15 mm rod support to a camera setup for accessories such as a follow focus, matte box, or lens support. Its compact aluminium alloy build keeps the unit light while providing a simple mounting point for rig work.
It mounts to a camera with either a 3/8-16 or 1/4-20 screw and supports 15 mm rods with 60 mm spacing. The baseplate also has 1/4-20 and 3/8-16 threads on the bottom for rig and tripod mounting. It weighs 0.17 kg and comes with 1/4 inch and 3/8 inch fixing screws, two 1/4-20 screws, and a hex spanner.
In practice, it works with universal camera rigs, tripods, and 15 mm rod accessories. It can be used on a camera directly or as part of a larger rig setup where rod-mounted accessories need to sit in line with the camera. The box includes 1 x baseplate, 1 x 1/4 inch fixing screw, 1 x 3/8 inch fixing screw, 2 x 1/4-20 screw, and 1 x hex spanner.
Specifications
| Manufacturer model number | 1674 |
|---|---|
| Weight | 0.17 kg |
| Material | Aluminium alloy |
| Camera mounting screw | 3/8"-16 or 1/4"-20 |
| Rod diameter | 15 mm |
| Rod spacing | 60 mm |

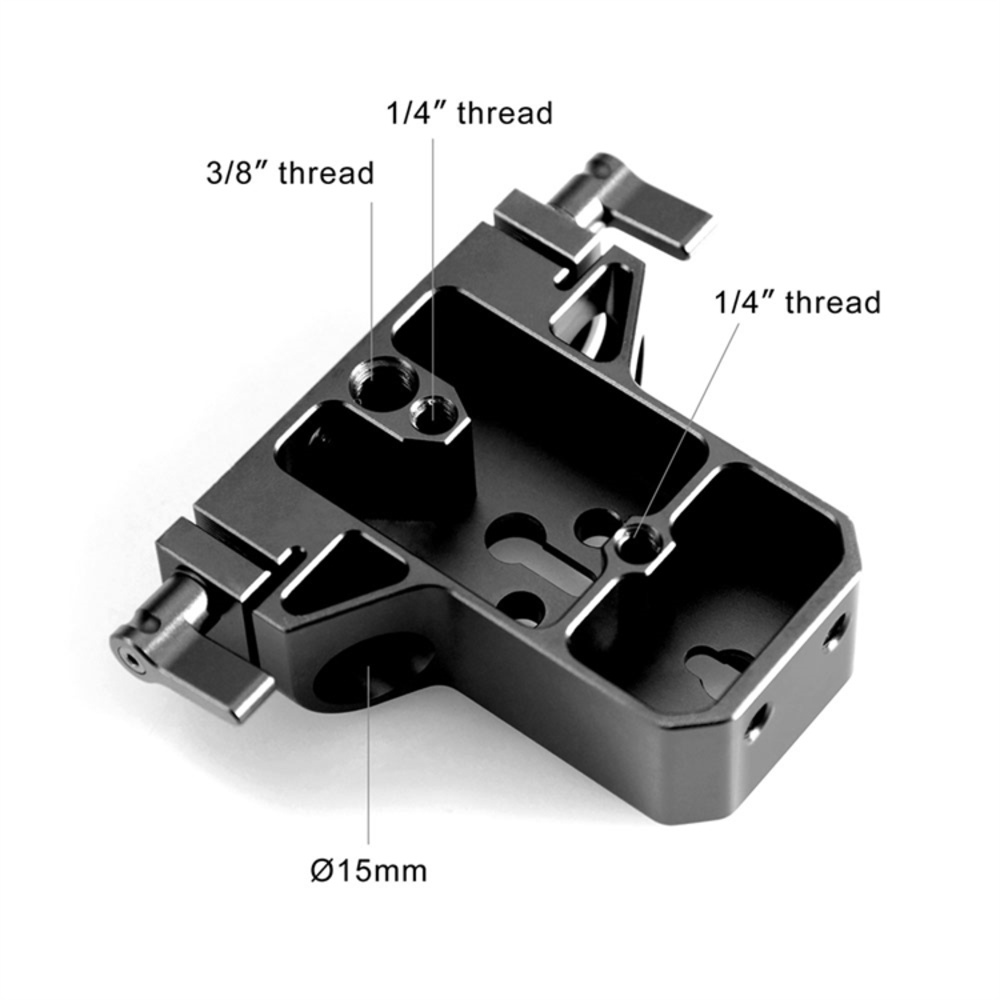

| Bottom threads | 1/4"-20 and 3/8"-16 |
| Included screws | 1/4'' fixing screw and 3/8'' fixing screw |
| Included screws | 2 x 1/4''-20 screw |
| Included accessory | Hex spanner |
Product details
| Compatible With | Universal camera rigs and tripods; 15mm rod accessories |
|---|

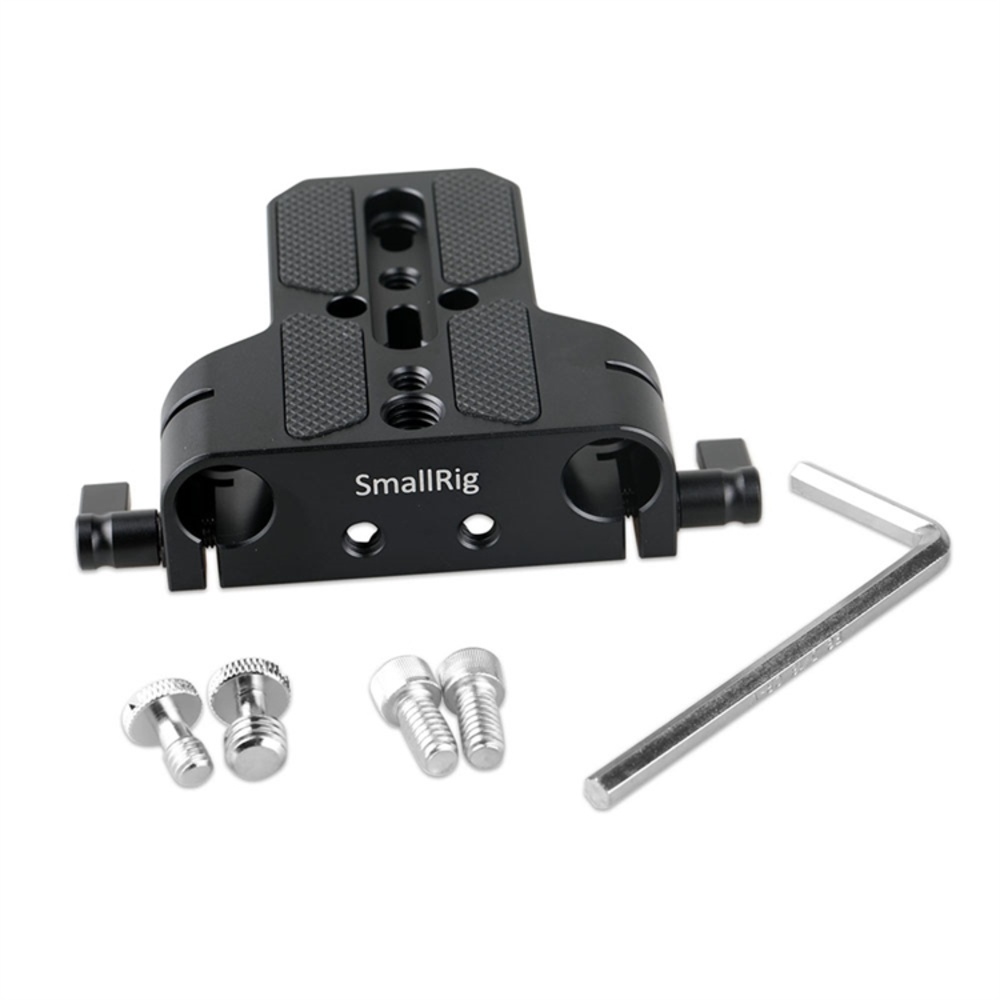

In the box
- 1 x baseplate
- 1 x 1/4'' fixing screw
- 1 x 3/8'' fixing screw
- 2 x 1/4''-20 screw
- 1 x hex spanner
