Description

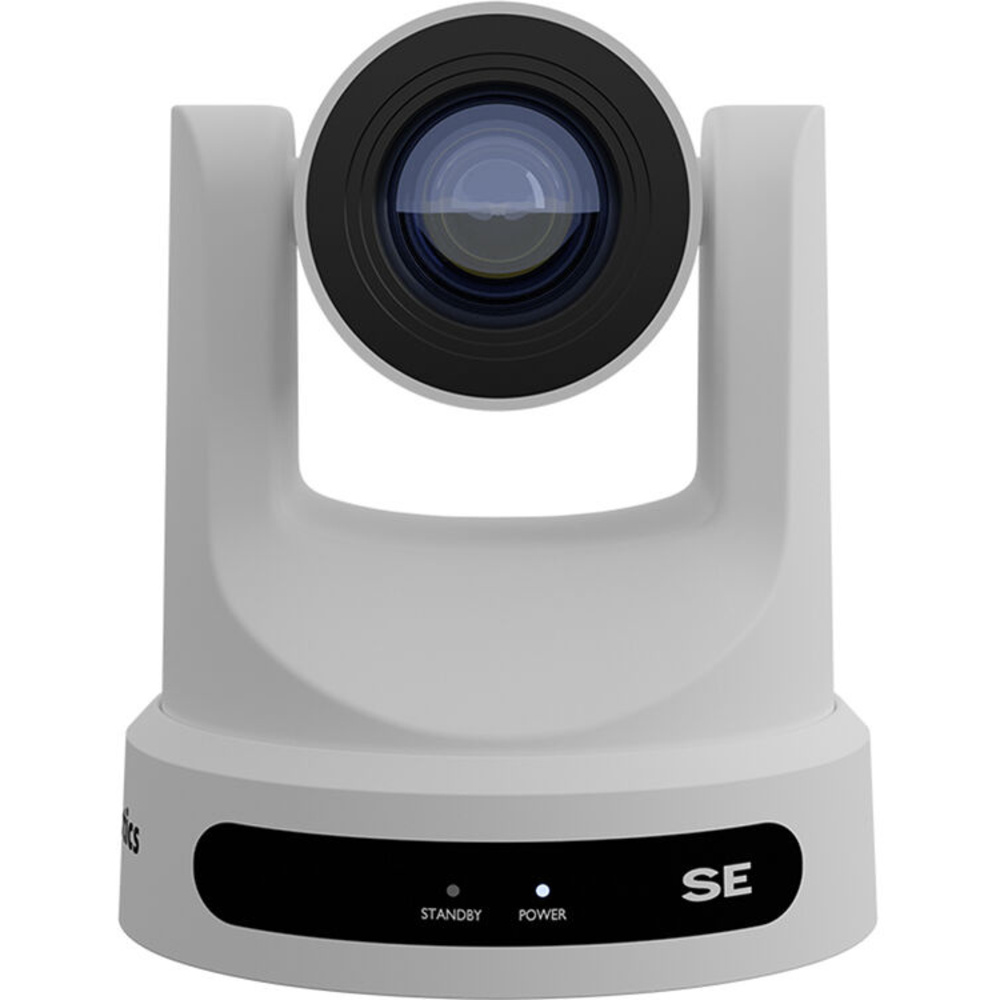

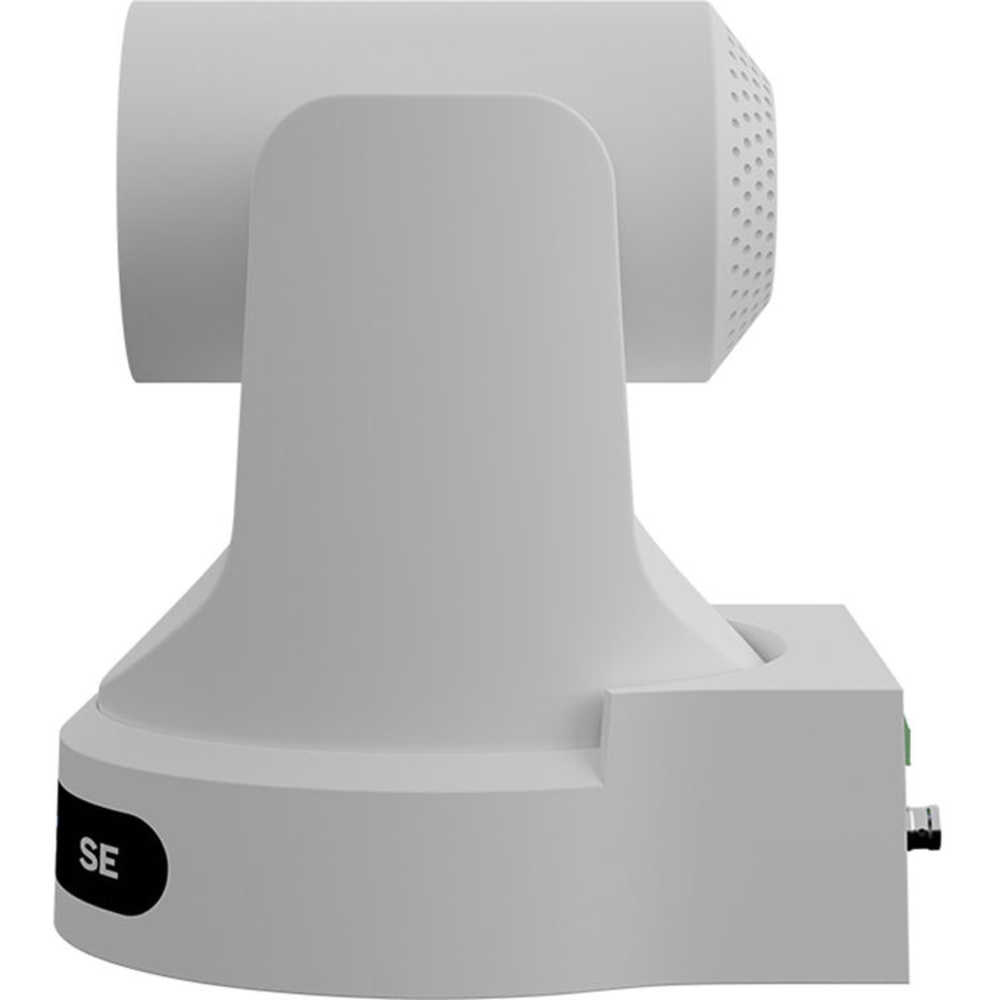

The PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom (White) sits in our PTZ Cameras range.
Highlights include capture up to 1080p60, auto-tracking, 30x optical Zoom, 16x Digital Zoom, HDMI, 3G-SDI, USB & IP Output, includes NDI|HX as standard and 255 presets, 3.5mm stereo Audio In/Out.
Key specifications: interface RJ45; weight 1.445 kg; resolution 1080P; material Aluminum, Plastic; video sensor 1/2.8’’, CMOS, Effective Pixel: 2.07M.
In the box: PTZOptics Move SOE SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom (White), 12 VDC Power Adapter and IR Remote Control. Manufacturer model number Move SE PTZ Camera.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Image Sensor & Lens | |
|---|---|
| Video Sensor | 1/2.8’’, CMOS, Effective Pixel: 2.07M |
| Resolution and Frame Rate | 1080p-60/50/30/25/59.94/29.97, 1080i-60/50/59.94, 720p-60/50/59.94 |
| Digital Zoom | Off (1920x1080), 2X (960x540), 3X (640x360), 4X, (480x270), 8X (240x135), 16X (128x72) |
| Min. Lux | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| Lens | 12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68 20x: f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8 30x: f = 4.42mm ~ 132.6mm, F1.8 ~ F2.8 |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR |
| Backlight Compensation | Supported |
| Digital Noise Reduction | 2D & 3D Digital Noise Reductions |
| Field of View | 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide) 20x: Horizontal: 3.4° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide) 30x: Horizontal: 2.3° (tele) ~ 60.7° (wide), Vertical: 1.28° (tele) ~ 34.1° (wide) |
| Pan/Tilt Movement | |
| Pan Movement | ±170° |
| Pan Speed | 1.7° ~ 100°/s |
| Tilt Movement | +90° to -30 |
| Tilt Speed | 1.7° ~ 69.9° |
| Image Flip, Mirror and Freeze | Supported |
| Presets | 255 Presets |
| Preset Accuracy | 0.1° |
| Power Options | |
| Power Supply | DC 12V |
| Input Power | 2A (Max) |
| Physical Specifications | |
| Material | Aluminum, Plastic |
| Colour | White and Gray |
| Dimensions (W x D x H) | 142mm W x 169mm D x 164” H (189mm H max height w/ tilt up)m |
| Weight | 1.445 kg |
| Working Environment | Indoor |
| Operating Temperature | -10°C to 40°C |
| Storage Temperature | -40°C to 60°C |
| Rear Board Connectors | |
| HD Video Output | 1x RJ45: 10/100 Adaptive Ethernet Port 424M standard 1x HDMI: version 1.3 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, along to SMPTE 424M standard 1x USB 3.0 Type C |
| Audio Interface | 1x 3.5mm Line level Input |
| Communication Interface | 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P |
| IR | 4x IR Addresses, Max distance 30ft / 9m |
| Power Jack | JEITA type (DC IN 12V) |
Product details
| Resolution | 1080P |
|---|---|
| Optical Zoom | 30x |
| PoE Capable | Yes |
| Interface | RJ45 |
In the box
- PTZOptics Move SOE SDI/HDMI/USB/IP PTZ Camera with 30x Optical Zoom (White)
- 12 VDC Power Adapter
- IR Remote Control
