Description

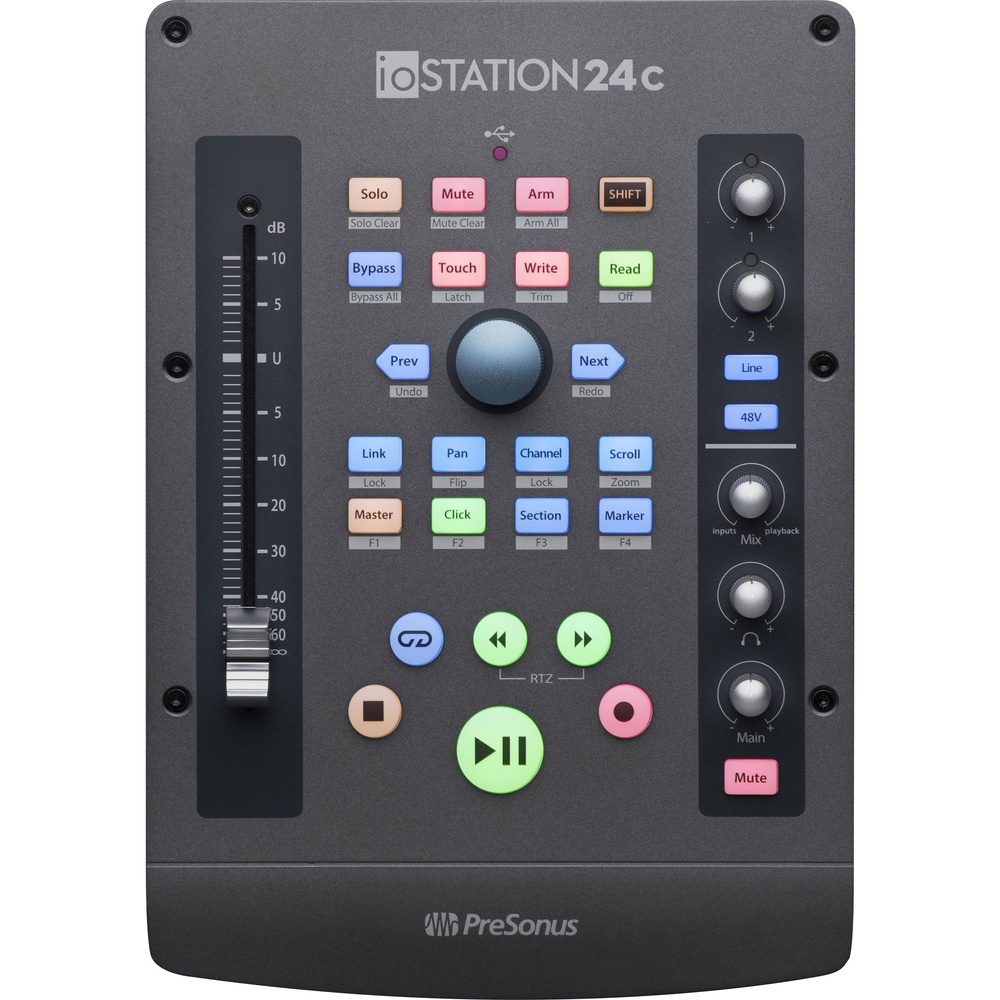

The PreSonus ioStation 24c 2x2 USB-C Audio Interface and Production Controller sits in our Audio Input & Output range.
Highlights include 2x2 I/O Digital Audio interface, 100mm motorised fader, comprehensive session navigation, low-latency recording and 24-Bit / 192 kHz.
Key specifications: weight 2.2 lb / 1.0 kg; dimensions 9.6 x 6.76 x 2.4" / 243.84 x 171.7 x 60.96 mm; channels of I/O Analogue: 2 Inputs / 2 Outputs at 192 kHz; max sample Rate/Resolution 192 kHz / 24-Bit; host connection 1 x <USB Type-C.
An audio interface powers XLR microphones and converts their signal for recording on a computer. In the box: PreSonus ioStation 24c 2x2 USB-C Audio interface and production controller and Power supply.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Interface | |
|---|---|
| Channels of I/O | Analogue: 2 Inputs / 2 Outputs at 192 kHz |
| Max Sample Rate/Resolution | 192 kHz / 24-Bit |
| Display and Indicators | 6 x Multi-Segment LED Metre (Input Level, Output Level) |
| Connectivity | |
| Host Connection | 1 x <USB Type-C |
| Analogue I/O | 2 x Combo XLR-1/4" Mic/Line/Hi-Z Input 2 x 1/4" TRS Balanced Line Output 1 x 1/4" TRS Headphone Output |
| Digital I/O | None |
| MIDI I/O | None |
| Performance | |
| Frequency Response | Headphone Outputs: 20 Hz to 20 kHz ±0.2 dB (at 48 kHz) Hi-Z Inputs: 20 Hz to 20 kHz ±0.2 dB (at 48 kHz, Min Gain) Line Inputs: 20 Hz to 20 kHz ±0.15 dB (at 48 kHz, Min Gain) 20 Hz to 40 kHz ±0.1 dB (at 96 kHz, Unity Gain) Line Outputs: 20 Hz to 20 kHz ±0.2 dB (at 48 kHz, Unity Gain) Mic Inputs: 20 Hz to 20 kHz ±0.15 dB (at 48 kHz, Min Gain) |
| Gain Range | Hi-Z Inputs: 80 dB Mic Inputs: 80 dB Line Inputs: 40 dB |
| Max Input Level | Hi-Z Inputs: +15 dBu (Min Gain, Unbalanced) Line Inputs: +22 dBu (Balanced, Min Gain) Mic Inputs: +16 dBu (Balanced, Min Gain) |
| Max Output Level | Monitor/Line Outputs: +18 dBu (Balanced) |
| Headphone Output Power | 150 mW per Channel into 56 Ohms |
| Dynamic Range | A/D Convertors: 114 dB D/A Convertors: 114 dB Outputs: 109 dBA Hi-Z Inputs: 110 dBA Line Inputs: 113.9 dBA Mic Inputs: 107 dBA |
| Impedance | Headphone Outputs: 32 to 300 Ohms Hi-Z Inputs: 1 Megohm Line Inputs: 10 Kilohms Mic Inputs: 1.6 Kilohms |
| THD+N | Mic Inputs: 0.007% Line Inputs: 0.007% Hi-Z Inputs: 0.012% Monitor Outputs: 0.005% Headphone Outputs: 0.002% |
| EIN | Mic Inputs: -128 dBu (A-Weighted) |
| Digital Audio | |
| Sample Rates | 44.1, 48, 88.2, 96, 176.4, and 192 kHz |
| Bit Depth | 24-Bit |
| Compatibility | |
| OS Compatibility | macOS 10.11 or Later Windows 7 Windows 8.1 Windows 10 |
| Processor Requirement | 2 GHz Intel |
| RAM Requirements | 4 GB (8 GB Recommended) |
| Storage Requirements | 32 GB |
| Minimum Display Resolution | 1366 x 768 |
| Power | |
| Power Requirements | AC/DC Power Adapter (Included) |
| AC/DC Power Adapter | 12 VDC at 300 mA, Centre-Positive (Included) |
| Physical | |
| Anti-Theft Features | None |
| Dimensions | 9.6 x 6.76 x 2.4" / 243.84 x 171.7 x 60.96 mm |
| Weight | 2.2 lb / 1.0 kg |
In the box
- PreSonus ioStation 24c 2x2 USB-C Audio Interface and Production Controller
- Power Supply
