Description

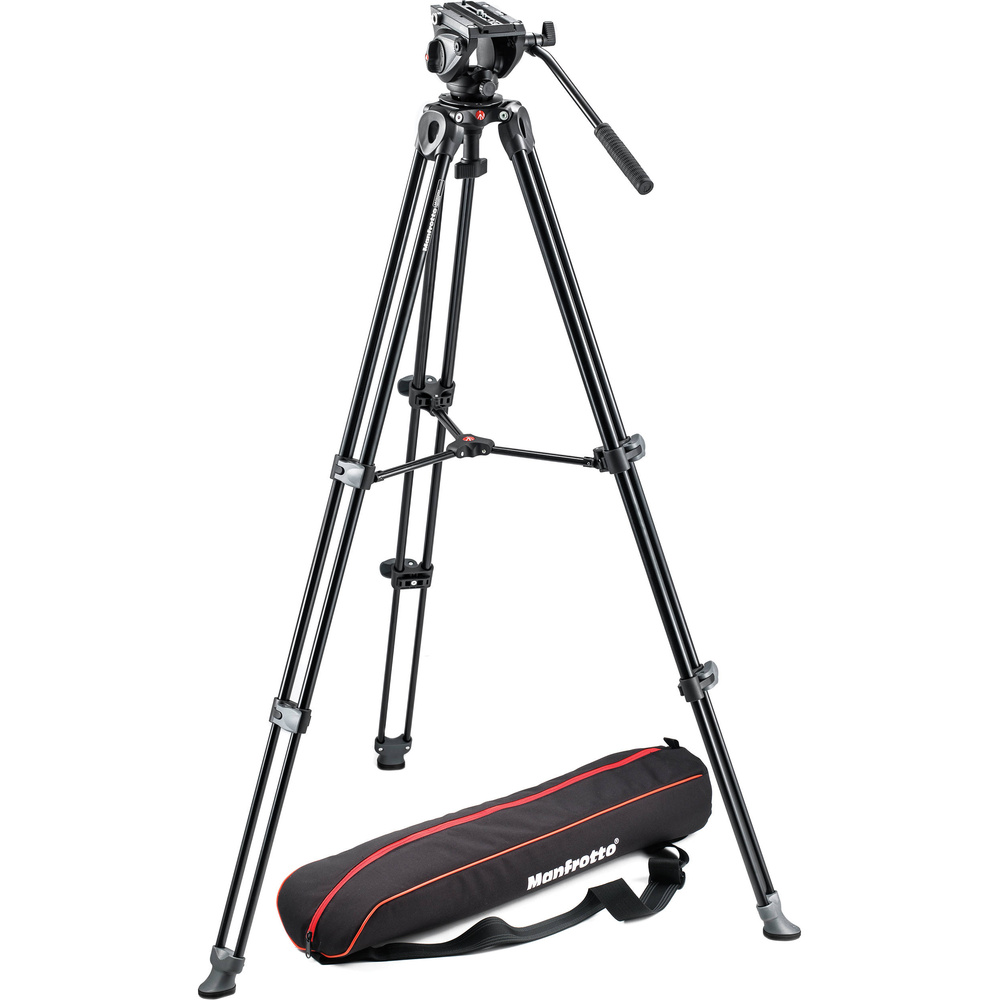

Manfrotto MVK500AM Tripod Kit with Bag: a video tripod system.
Highlights include supports 5 kg, wide platform for camcorders & HDSLRs, 60mm half Ball for levelling, spring-loaded counterbalance and side lock quick release system.
Key specifications: load capacity 5 kg; maximum height 143.5 cm; minimum height 56.9 cm; weight 1.1 kg; material Aluminium alloy.
Check the load rating against the weight of your camera, lens and accessories. In the box: 500PLONG Video Camera Plate, 1/4"-20 Camera Tie-Down Screw, 3/8"-16 Camera Tie-Down Screw, 500HLV Pan Bar Handle for Select Video Heads, 75 to 60mm Head Fitting Adapter and elastic leg safety.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Fluid Head | |
|---|---|
| Load Capacity | 5 kg |
| Material | Aluminium alloy |
| Head Attachment Fitting | 60 mm half ball |
| Counter Balance System | Spring-loaded |
| Counter Balance Range | Pre-set to 2.4 kg |
| Quick Release/Wedge Plate | Yes - 500PLONG |
| Tilt Drag | Fluid cartridge with fixed drag |
| Tilt Range | -70°/+90° |
| Tilt Lock | Yes |
| Spring Loaded Counter Balance | Yes |
| Pan Drag | Fixed |
| Pan Range | 360° |
| Pan Lock | Yes |
| Pan Bar | 1 - included |
| Levelling Bubble/Illuminated | Yes/No |
| Temperature Range | -20 to 60°C |
| Height | 12.6 cm |
| Weight | 1.1 kg |
| Tripod Legs | |
| Head Attachment Fitting | 75 mm bowl Note: The included 60 to 75 mm adapter is required to use the head on the tripod |
| Material of Construction | Aluminium |
| Stages | 2 |
| Leg Lock Type | Flip |
| Independent Leg Spread | No |
| Feet | Rubber |
| Spiked / Retractable Feet | No |
| Load Capacity | 15 kg |
| Minimum Height | 56.9 cm |
| Maximum Height | 143.5 cm |
| Closed Length | 61.5 cm |
| Weight | 1.9 kg |
| Fluid Head & Tripod | |
| Minimum Height | 67.6 cm |
| Maximum Height | 153.9 cm |
| Closed Length | 72.1 cm |
| Weight | 3.1 kg |
Product details
| Bowl Size | 75 mm |
|---|---|
| Closed Length | 72 cm |
| Load Capacity | 5.0 kg |
| Material | Aluminium |
| Weight | 3.10 kg |
In the box
- 500PLONG Video Camera Plate
- 1/4"-20 Camera Tie-Down Screw
- 3/8"-16 Camera Tie-Down Screw
- 500HLV Pan Bar Handle for Select Video Heads
- 75 to 60mm Head Fitting Adapter
- Elastic Leg Safety
