Description

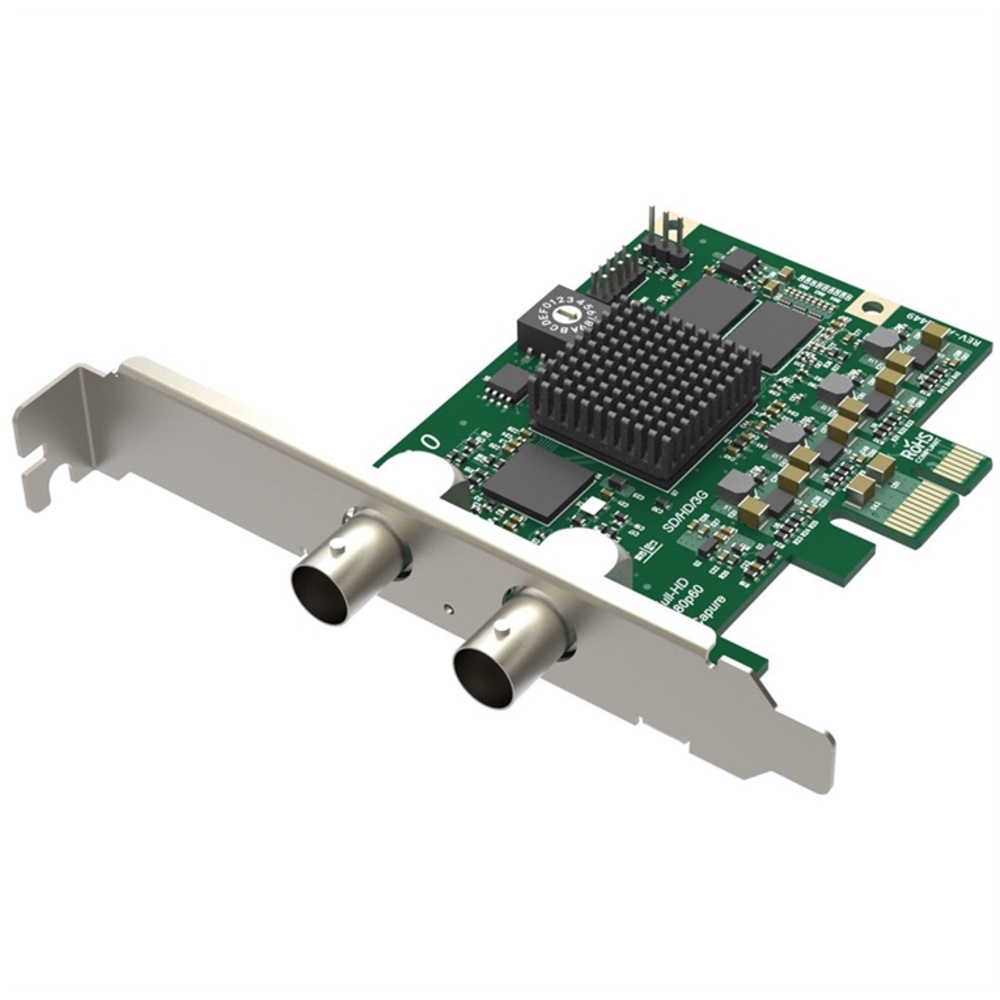

The Magewell Pro Capture SDI Card (1-Channel) sits in our Video Capture & Playback range.
Highlights include supports 10/12-bit colour depth, supports up to 8 audio channels at 48KHz, video cropping and scaling, aspect ratio conversion and partial notification mode in SDK.
Key specifications: input interface 1 x BNC (SD/HD/3G SDI); output interface PCIe Gen2 x1 BNC (SDI loopback); operating temperature 0 to 40°C; storage temperature -20 to 70°C; relative humidity 5 to 90% non-condensing.
In the box: Magewell Pro capture SDI card (1-Channel) and low profile bracket.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Input Interface | 1 x BNC (SD/HD/3G SDI) |
|---|---|
| Output Interface | PCIe Gen2 x1 BNC (SDI loopback) |
| Supported OS | Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64) Linux (based on V4L2, supports x86, x64 & arm architecture) Mac OS X |
| Supported APIs | Windows: DirectShow, DirectKS, Wave API/DirectSound/WASAPI Linux: V4L2, ALSA |
| Supported Software | VLC, VirtualDub, OBS, xSplit, vMix, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder, Any other DirectShow/V4L2 encoding/streaming software |
| Video Output Format | Image resolutions up to 2048×2048 pixels Output frame rates up to 120 fps (actual output frame rate can be limited by PCIe bandwidth, and at higher image resolutions; above 1280×1024) 4:2:0 8-bit output formats; NV12, I420, YV12 4:2:2 8-bit output formats; YUY2, YUYV, UYVY 4:4:4 8-bit output formats; V308, IYU2, V408, BGR24, BGR32 4:4:4 10-bit output formats: V410, Y410 More output formats are supported via Pro Capture SDK for DirectKS |
| Video Output SG-DMA | 400 MB/s per channel DMA bandwidth in a PCIe 2.0 system 200 MB/s per channel DMA bandwidth in a PCIe 1.0 system |
| LED Indicator | Per Channel: idle, input signal locked, memory failed, or FPGA configuration failed |
| Power Consumption | Maximum Current at 12 V: 0.6 A Maximum Current at 3.3 V: 2.4 A Maximum Power Consumption: 14.3 W |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5 to 90% non-condensing |
| Form Factor | Low profile PCIe x1 add-on card 87.7 x 68.9 mm without PCI bracket |
In the box
- Magewell Pro Capture SDI Card (1-Channel)
- Low Profile Bracket
