Description

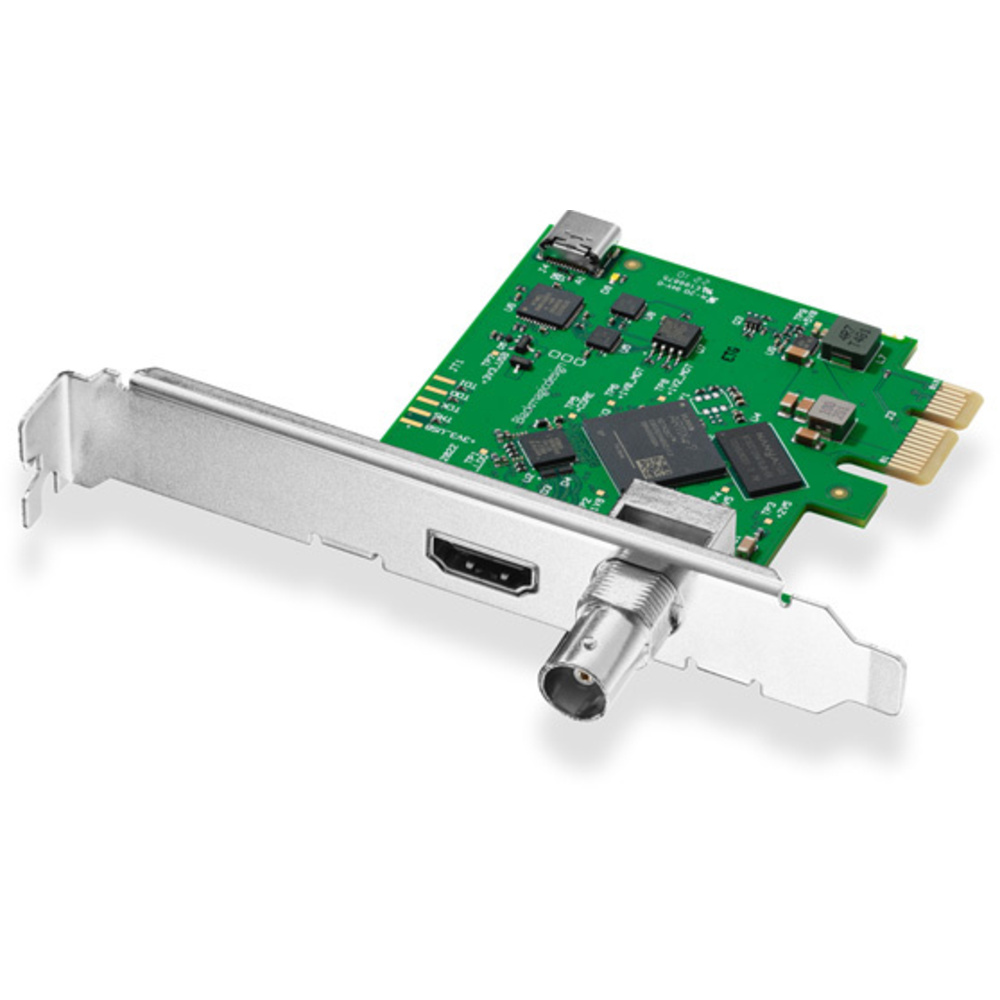

The Blackmagic Design DeckLink Mini Recorder HD sits in our Video Capture & Playback range.
Highlights include low profile 1 lane gen 2 PCI express card, includes PCIe shields for both regular and low profile slots, built in 3G-SDI and HDMI connections and supports all common SD/HD video formats up to 1080p60.
Key specifications: SDI video input 1 x 10-bit SD/HD switchable; SDI rates 270Mb, 1.5G, 3G; SDI audio input 16 channels embedded in SD/HD; HDMI video input 1 x HDMI 2.0 type A connector; HDMI audio input 8 channels embedded in SD/HD.
An external recorder captures higher-quality codecs than many cameras record internally. In the box: Blackmagic Design DeckLink mini recorder HD and low profile slot bracket. Manufacturer model number BDLKMINIREC3G.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Connections | |
|---|---|
| SDI Video Input | 1 x 10-bit SD/HD switchable |
| SDI Rates | 270Mb, 1.5G, 3G |
| SDI Audio Input | 16 channels embedded in SD/HD |
| HDMI Video Input | 1 x HDMI 2.0 type A connector |
| HDMI Audio Input | 8 channels embedded in SD/HD |
| Computer Interface | PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots. |
| Supported Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4. |
| Software | |
| Software Included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
| Internal Software Upgrade | Firmware built into software driver. Loaded at system start or via updater software. |
| Physical Installation | PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements. |
| Software Applications | Wirecast vMix OBS |
| Other Supported Applications | Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC]Marker, Zoom. |
| SDI Video Standards | |
| SDI Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
| SDI Compliance | SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning. |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit. |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Colour Precision | 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. |
| SDI Colour Space | REC 601, REC 709 and REC 2020 |
| Multiple Rate Support | SDI video connection is switchable between SD and HD. |
| HDMI Video Standards | |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| HDMI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| HDMI Video Sampling | 4:2:2 and 4:4:4 |
| HDMI Colour Precision | 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards. |
| HDMI Configuration | HDMI 2.0 supports Deep Colour. |
| HDMI Colour Space | REC 601, REC 709 and REC 2020 |
| Multiple Rate Support | HDMI video connection is switchable between SD and HD. |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Hardware Frame Buffer | v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB). |
| Processing | |
| Colourspace Conversion | Hardware based real time. |
| Operating Systems | Mac 11.1 Big Sur, Mac 12.0 Monterey or later. Windows 10 64-bit, Windows 11. Linux |
| Power Requirements | |
| Power Consumption | 3 Watts |
| Environmental Specifications | |
| Operating Temperature | 5° to 40° C |
| Storage Temperature | -20° to 45° C |
| Relative Humidity | 0% to 90% non-condensing |
In the box
- Blackmagic Design DeckLink Mini Recorder HD
- Low profile slot bracket
