Description

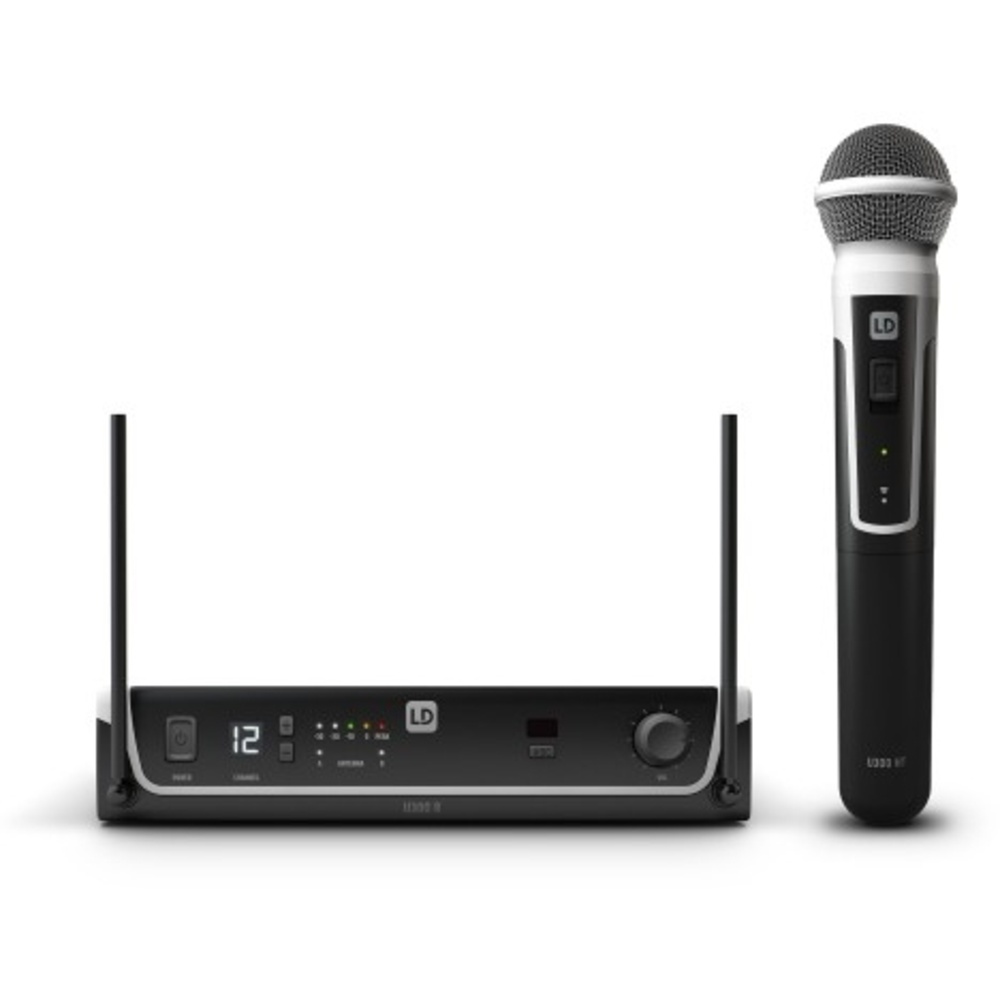

The LD Systems U306 HHD Wireless Microphone System With Dynamic Handheld Microphone is a dynamic microphone.
Highlights include diversity UHF wireless system with FM technology, 12 selectable channels, 100m transmission range in ideal conditions, simultaneous operation of up to 6 systems and ASC infrared transmitter and receiver syncing.
Key specifications: frequency response 25 - 16,000 Hz; weight 0,94 kg; channels 12; product type Wireless Microphone Systems; type Set.
The transmitter clips to the talent, the receiver sits on the camera or phone, and audio arrives with no cable in shot. In the box: LDU306R - LD Systems U306 HHD Receiver and LDU306MD - LD Systems U306 HHD Dynamic handheld microphone. Manufacturer model number LDU306HHDUS.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Product type | Wireless Microphone Systems |
|---|---|
| Type | Set |
| Transmission frequency range | 655 - 679 MHz |
| Weight | 0,94 kg |
| Receiver | |
| Product type | Wireless Microphone System Accessories |
| Type | Receivers |
| Modulation Type | FM |
| Channels | 12 |
| Groups | 1 |
| Antenna inputs | 2 x fixed |
| Frequency response | 25 - 16,000 Hz |
| Noise reduction | Squelch |
| Transmission optimization | Pilot tone |
| Total Harmonic Distortion (THD) | < 0.3 % |
| Signal-to-noise ratio | 104 dB |
| Audio output, balanced | XLR |
| Controls | Volume |
| Audio output, unbalanced | 6.3 mm jack, switchable unbalanced output level |
| Indicators | LC display |
| Operating voltage | 12 V DC - 18 V DC (500 mA), external power supply |
| Max. output level | +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu |
| Weight | 0,7 kg |
| Microphone | |
| Type | Microphones |
| Microphone type | Dynamic |
| Directivity | Cardioid |
| Frequency response | 55 - 16000 Hz |
| Rated HF output power | 10 mW |
| Controls | Power On/Off |
| Indicators | Power LED (Power ON: green) |
| Operating voltage | 2 x AA battery |
| Operating time | >10 h |
In the box

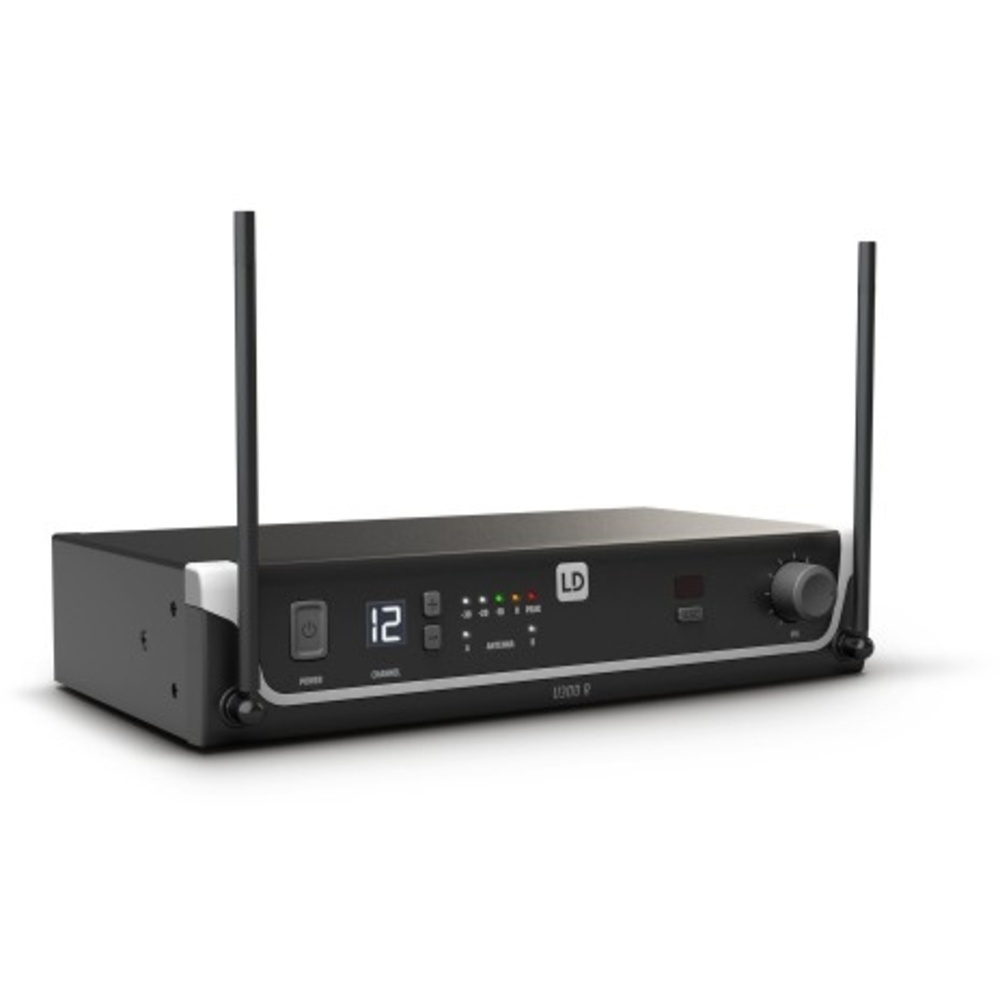

- LDU306R - LD Systems U306 HHD Receiver

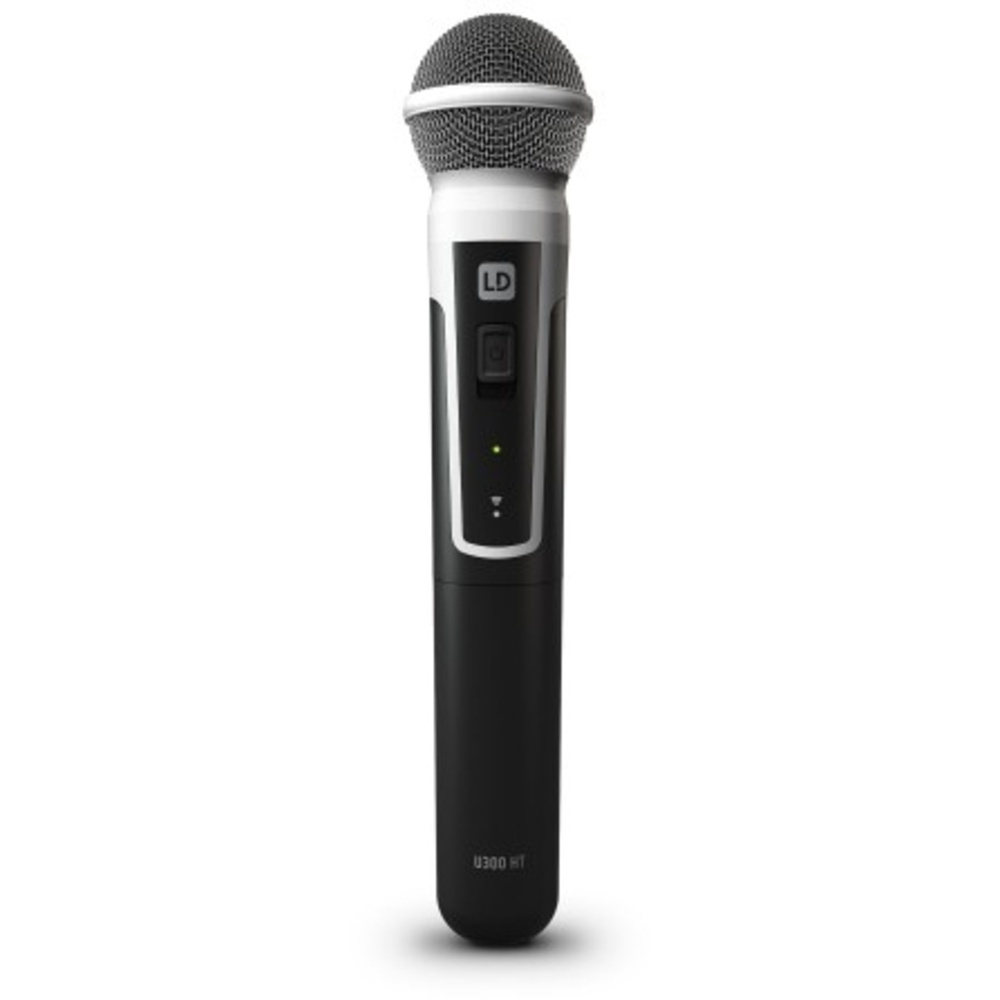

- LDU306MD - LD Systems U306 HHD Dynamic handheld microphone
