Description

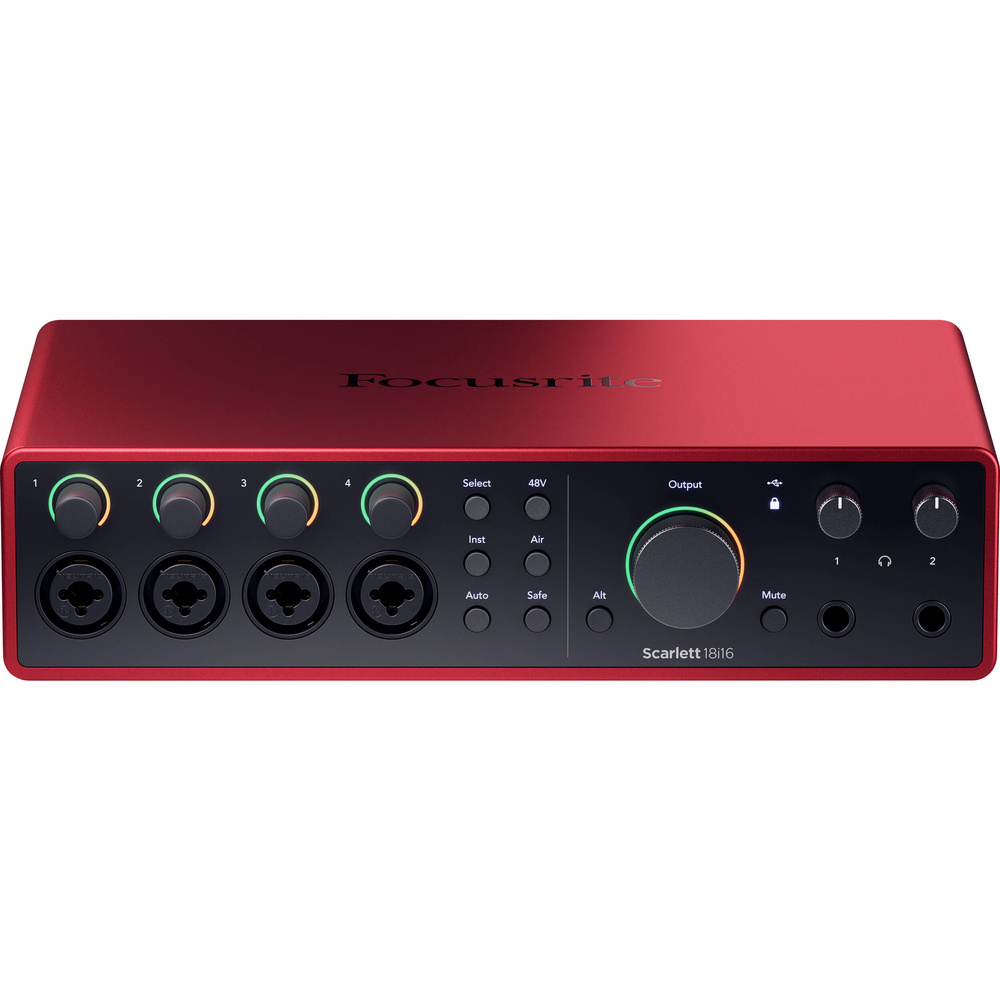

The Focusrite Scarlett 18i16 18x16 USB Audio Interface (4th Generation) sits in our Audio Input & Output range.
Highlights include 18 inputs and 16 outputs, 4th gen pre-amps, auto gain and clip safe modes, Re-engineered air mode and low latency monitoring.
Key specifications: weight 3.2 lb / 1.5 kg; dimensions 9.43 x 6.66 x 2.38" / 23.95 x 16.92 x 6.05 cm; channels of I/O 18 Inputs / 16 Outputs; maximum sampling rate 192 kHz / 24-Bit; number of microphone inputs 2.
An audio interface powers XLR microphones and converts their signal for recording on a computer. Manufacturer model number FOCMOSC0036.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Key Specs | |
|---|---|
| Channels of I/O | 18 Inputs / 16 Outputs |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Inputs | 2 |
| Analogue Audio I/O | 2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel) 6x 1/4" TRS Line Input 4x 1/4" TRS Line Output 2x 1/4" TRS Headphone Output |
| Digital Audio I/O | 1x TOSLINK Optical ADAT Input 1x TOSLINK Optical ADAT Output 1x RCA Coaxial S/PDIF Input 1x RCA Coaxial S/PDIF Output |
| Host Connection | 1x USB-C (Class-Compliant) |
| OS Compatibility | macOS Windows iPadOS Chrome OS |
| Power Requirements | AC/DC Power Adapter (Included), USB Bus Power |
| Built-In DSP | No |
| Input Level Adjustment | 2x Knob |
| Signal Processing | |
| Pad | No |
| Gain/Trim Range | Mic Inputs: 69 dB |
| High-Pass Filter | No |
| Solo/Mute | No |
| Connectivity | |
| Phantom Power | 48 V, Selectable On/Off |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | 1x USB-C (Power Input) |
| Sync I/O | No |
| Network I/O | No |
| MIDI I/O | 1x DIN 5-Pin Input 1x DIN 5-Pin Output |
| Expansion Slots | No |
| Wireless | No |
| Performance | |
| Dynamic Range | 120 dB |
| Digital Audio | |
| Sample Rates | Up to 192 kHz |
| Sample Rate Conversion | No |
| Bit Depths | 24-Bit |
| Audio Storage & Playback | |
| Media/Memory Card Slot | No |
| Compatibility | |
| Mobile Device Compatibility | iPad (with USB-C) |
| Power | |
| AC/DC Power Adapter | 5 VDC at 3 A |
| Power Consumption | 15 W |
| Physical | |
| Dimensions | 9.43 x 6.66 x 2.38" / 23.95 x 16.92 x 6.05 cm |
| Weight | 3.2 lb / 1.5 kg |
In the box
- Focusrite Scarlett 18i16 18x16 USB Audio Interface (4th Generation)
Reviews
There are no reviews yet.
