Description

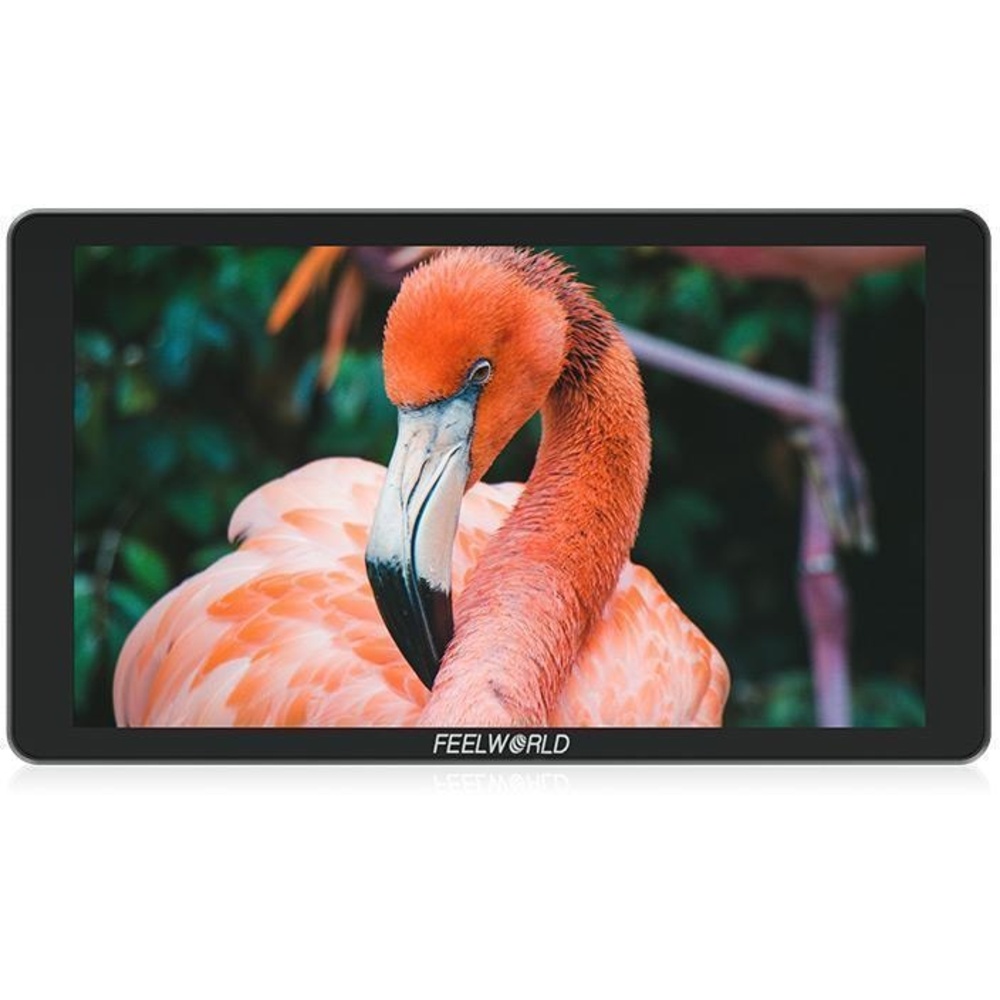

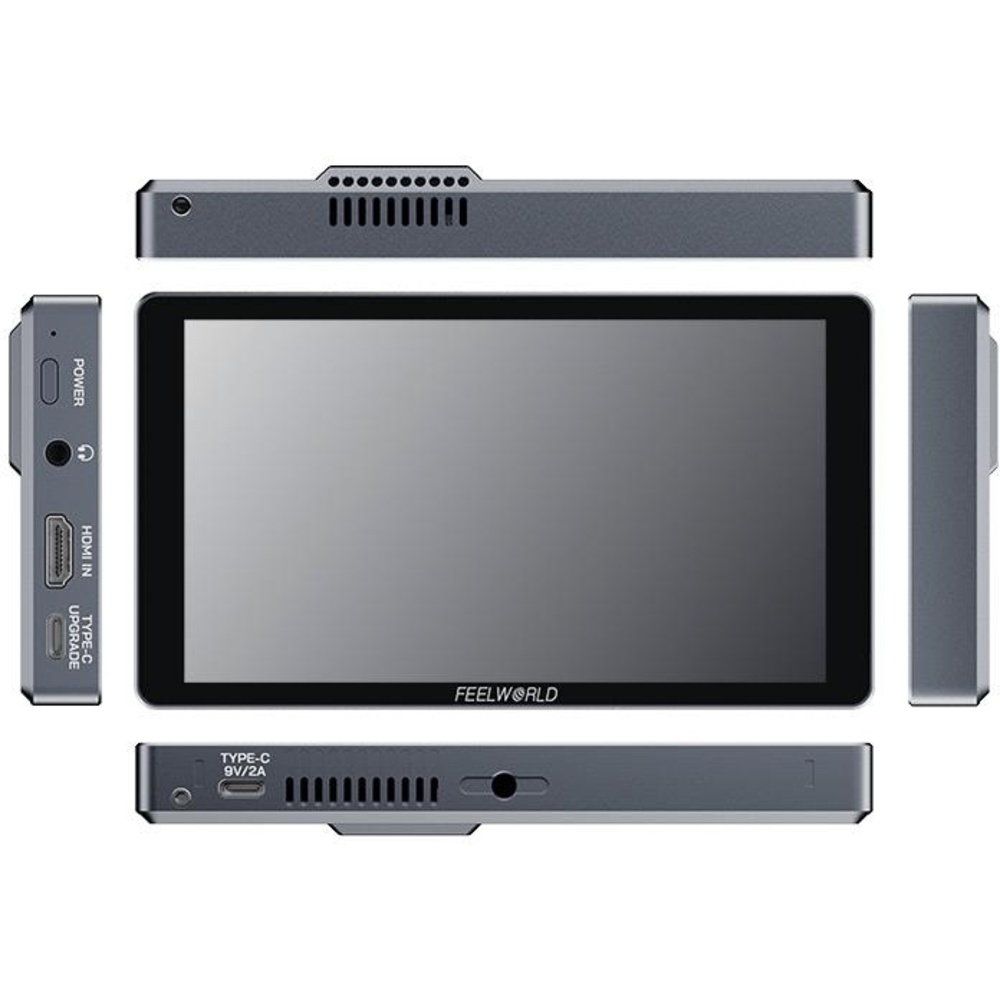

The FeelWorld P6XL 6" DSLR Camera Field Monitor sits in our Monitors range.
Highlights include 6" IPS screen, 1920x1080 resolution, 1200cd/m² brightness, daylight viewable, built-in 22.2Wh/7.4V rechargeable battery, 4K HDMI input, 3.5mm headphone output and sensitive touch screen control.
Key specifications: connection HDMI; battery capacity 3000 mAh / 22.2 Wh; brightness 1200 cd/m²; screen size 6" / 15.2 cm IPS; resolution 1920 x 1080 pixels.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Key Specs | |
|---|---|
| Model | P6XL |
| Screen Size | 6" / 15.2 cm IPS |
| Resolution | 1920 x 1080 pixels |
| Pixel Pitch | 0.069 (H) × 0.069 (V) mm |
| Aspect Ratio | 16:9 |
| Brightness | 1200 cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80°/80° (L/R), 80°/80° (U/D) |
| Signal Input | |
| HDMI | 1 x HDMI 1.4 |
| Other Interfaces | |
| USB | USB-C (Firmware update/LUT file import) |
| Audio | |
| Audio | 3.5mm Stereo Headphone |
| Battery | |
| Battery Capacity | 3000 mAh / 22.2 Wh |
| Voltage | 7.4 V |
| Running Time | About 2 hours (at 100% brightness/5-speed fan) |
| Charging Time | About 2 hours |
| Power Input | |
| USB Type-C | 9V/2A (compatible with PD2.0/3.0, Samsung AFC, HUAWEI FCP, QC2.0/3.0 fast charging protocols) |
| Note | The voltage of the charger must be 9V |
| HDMI Input Supported Formats | |
| SD | 480i/576i/480p/576p |
| HD | 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/23.98) |
| 4K UHD | 3840 x 2160p (30/29.97/25/24/23.98) |
| General | |
| Power Consumption | Charging + Working: ≤21 W, Charging Alone: ≤14 W, Fully Charged Working Alone: ≤9 W |
| Working Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
| Installation | 1/4"-20 Thread Socket (Bottom) |
| Unit Dimensions | 154 x 87 x 17 mm |
| Unit Weight | 332 g |
| Color Box Dimensions | 186 x 214 x 80 mm |
Product details
| Screen Size | 6" |
|---|---|
| Connection | HDMI |
| Screen Resolution | 1920 x 1080 |
In the box
- FeelWorld P6XL 6" DSLR Camera Field Monitor
