Description

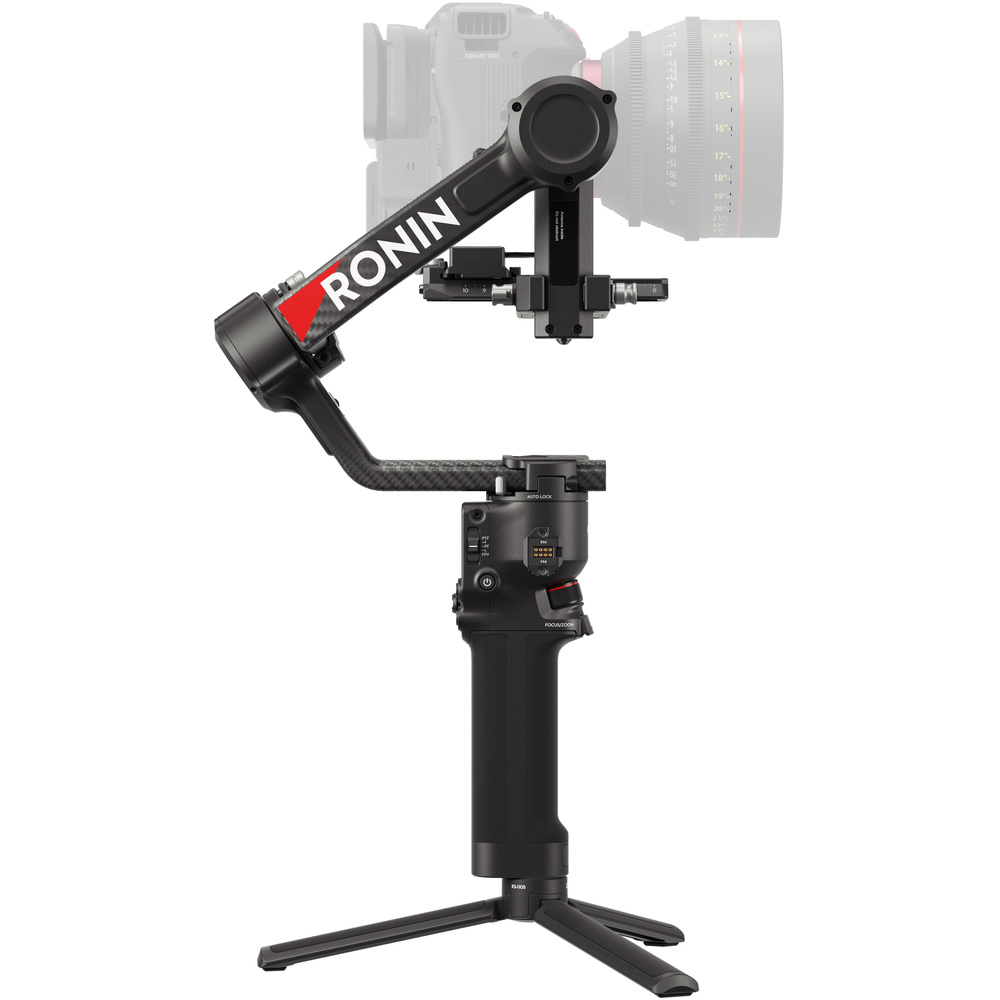

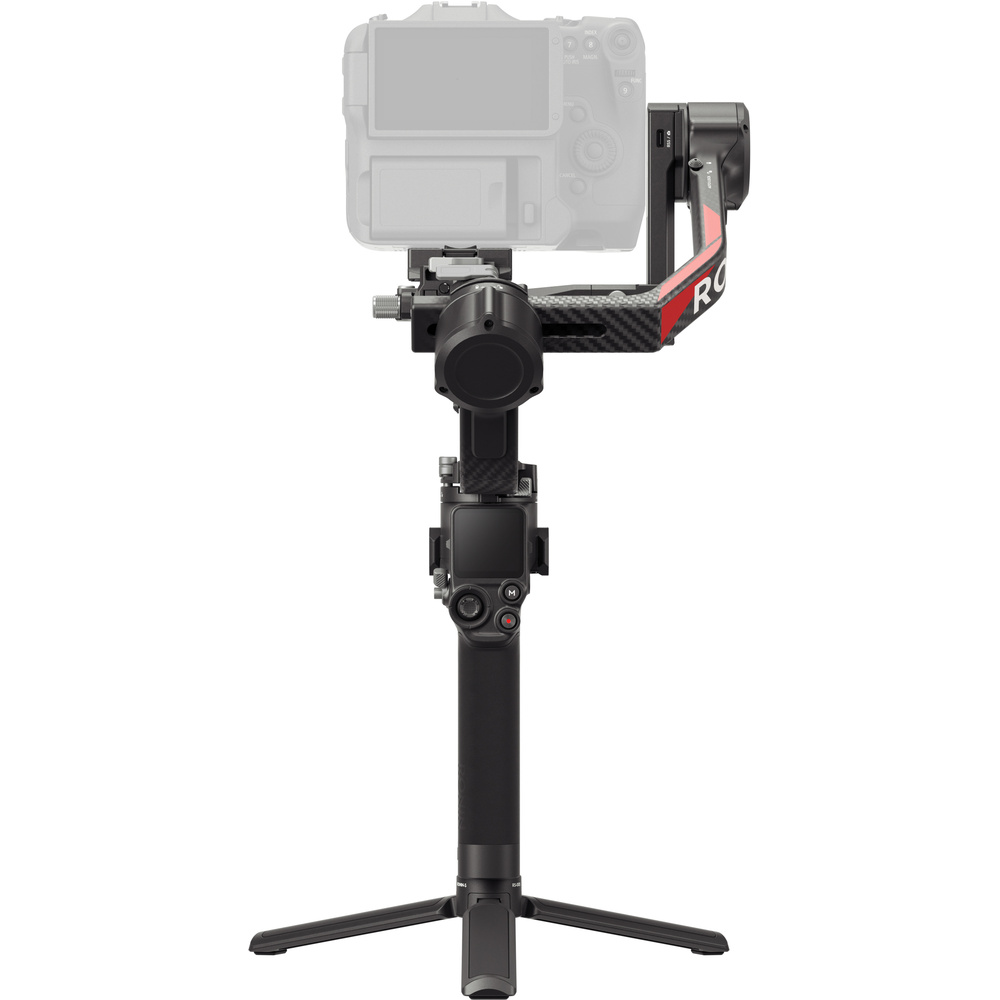

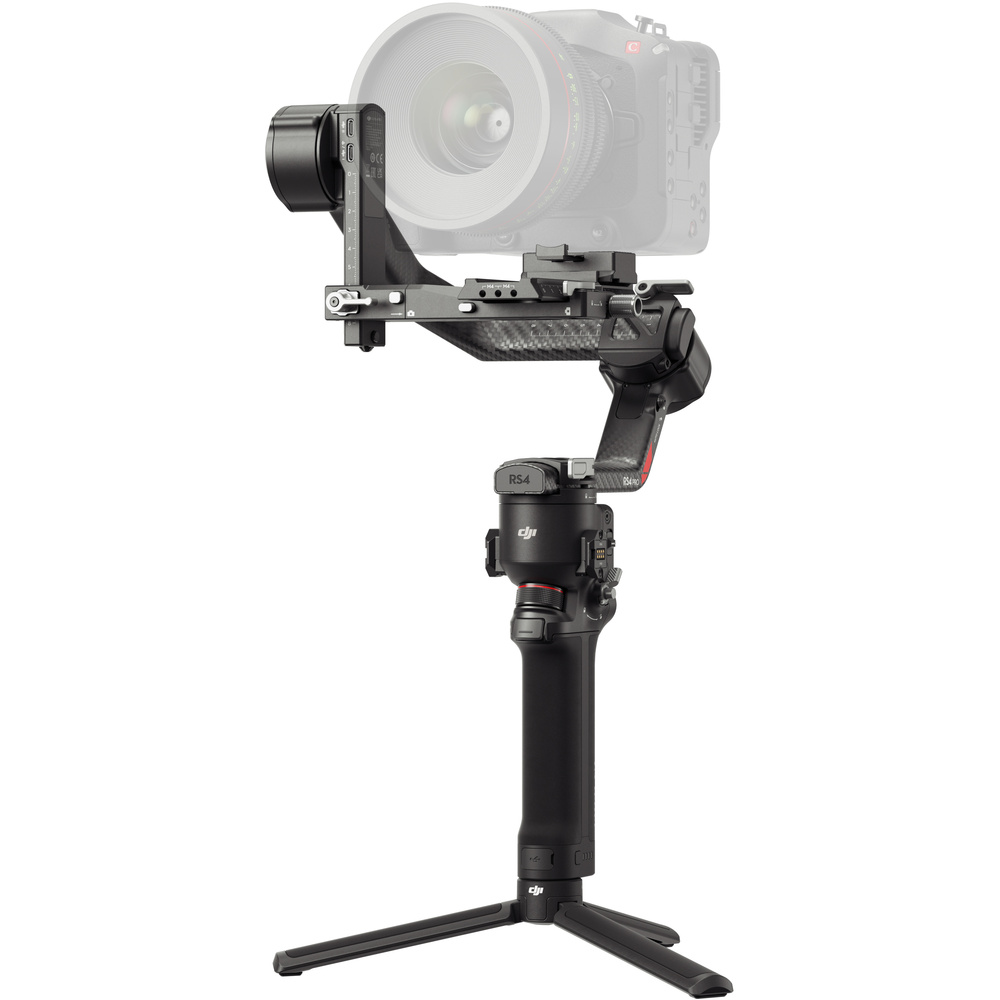

The DJI RS 4 Pro is a handheld gimbal stabiliser for filmmakers who need steady movement with larger camera builds. It suits users who want precise camera control, vertical shooting, and support for heavier rigs without changing to a different support system. It is designed for run and gun work, interviews, and short productions where movement needs to stay smooth.
It supports a tested payload of 4.5 kg and offers maximum controlled rotation speeds of 360°/s on the pan, tilt, and roll axes. The gimbal has a pan axis with 360° continuous rotation, a roll axis from -95° to +240°, and a tilt axis from -112° to +214°. It uses Bluetooth 5.1, USB-C charging, and operates in temperatures from -20° to 45° C.
In use, it pairs with a compatible camera setup and is controlled through the Ronin app on iOS 11.0 or above and Android 8.0 or above. The package includes the gimbal, BG30 battery grip, Arca-Swiss and Manfrotto quick-release plate, metal extended grip or tripod, briefcase handle, lens-fastening support, multi-camera control cable, USB-C charging cable, DJI logo sticker, and screw kit.
Specifications
| Peripheral | |
|---|---|
| Accessory Port | Ronin Series Accessories (RSA)/NATO Ports 1/4"-20 Mounting Hole Cold Shoe Video Transmission/LiDAR Range Finder Port (USB-C) RSS Camera Control Port (USB-C) Focus Motor Port (USB-C) |
| Battery | Model: BG30-1950mAh-15.4V Type: LiPo 4S Capacity: 1950 mAh Energy: 30 Wh Max Runtime: 13 hours (Measured with the gimbal balanced in a level and stationary state. When the gimbal is in motion, the operating time will be reduced.) Charging Time: Approx. 1.5 hours (Measured with a charger supporting 24W fast charging. It is recommended to use chargers supporting QC 2.0 or PD protocols.) Suggested Charging Temperature: 5° to 40° C (41° to 104° F) |
| Connections | Bluetooth 5.1 Charging Port (USB-C) |
| Ronin App Requirements | iOS 11.0 or above Android 8.0 or above |
| Languages Supported by the Touchscreen | English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai |
| Working Performance | |
| Tested Payload | 4.5 kg (10 lbs) |
| Maximum Controlled Rotation Speed | Pan: 360°/s Tilt: 360°/s Roll: 360°/s |
| Mechanical Range | Pan Axis: 360° continuous rotation Roll Axis: -95° to +240° Tilt Axis: -112° to +214° |
| Mechanical & Electrical Properties | |
| Operating Frequency | 2.400-2.4835 GHz |
| Bluetooth Transmitter Power | < 8 dBm |
| Operating Temperature | -20° to 45° C (-4° to 113° F) |
| Weight | Gimbal: Approx. 1242 g (2.74 lbs) Grip: Approx. 265 g (0.58 lbs) |
| Extended Grip/Tripod (Metal) | Approx. 226 g (0.49 lbs) |
| Upper and Lower Quick-Release Plates | Approx. 110 g (0.24 lbs) |
| Dimensions | Folded: 271×283×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod) Unfolded: 416×223×202 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod) |
| DJI Ronin Image Transmitter | |
| Connections | Power/Communication Port (USB-C) HDMI Port (Mini HDMI) RSS Camera Control Port (USB-C) |
| Expansion Port | Cold Shoe |
| Operating Frequency | 2.400-2.4835 GHz 5.725-5.850 GHz |
| Weight | 126 g (0.27 lbs) |
| Dimensions | 82×63×24 mm (L×W×H) |
| Transmitter Power (EIRP) | 2.400-2.4835 GHz: < 25 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: < 25 dBm (FCC/SRRC) < 14 dBm (CE) |
| Battery | Capacity: 2970 mAh Compatible Charger: 5 V/2 A Charging Time: Approx. 2.5 hours Operating Time: Approx. 3.5 hours |
| Transmission Range | 200 m (SRRC/FCC) 100 m (CE) Measured in an unobstructed environment free of interference. |
| Latency | 60 ms |
| Operating Current/Voltage | 900 mA/3.7 V |
| Operating Temperature | 0° to 45° C (32° to 113° F) |
Product details
| Series/Compatibility | Ronin |
|---|---|
| Battery | Lithium-Ion Included |
In the box
- DJI RS 4 Pro Gimbal Stabiliser
- BG30 Battery Grip
- Quick-Release Plate (Arca-Swiss/Manfrotto)
- Extended Grip/Tripod (Metal)
- Briefcase Handle
- Lens-Fastening Support (Extended)
- Multi-Camera Control Cable (USB-C, 30 cm)
- USB-C Charging Cable (40 cm)
- DJI Logo Sticker
- Screw Kit
- Carrying Case
