Description

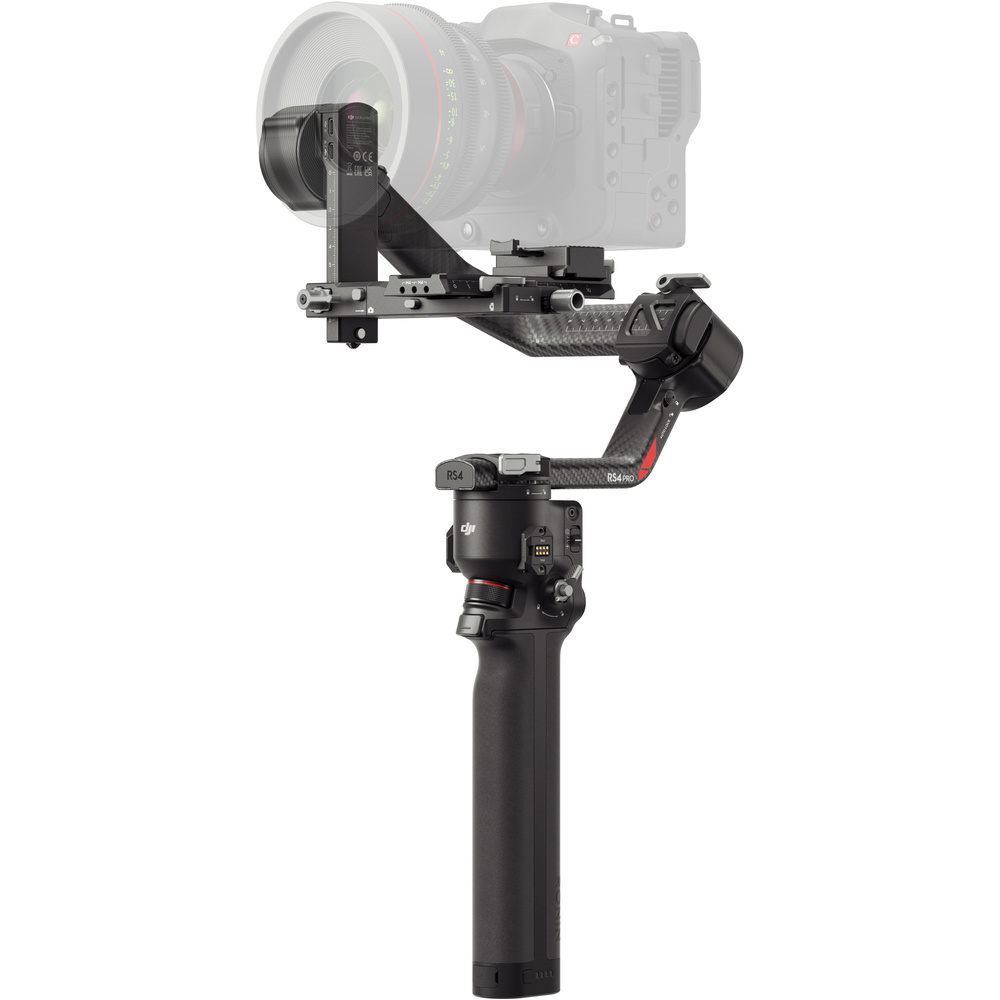

The DJI RS 4 Pro Gimbal Stabiliser Combo is a camera stabiliser for video shooters who need steady handheld movement and flexible camera control. It suits users working with mirrorless or cinema setups that fit within the 4.5 kg tested payload. The gimbal is built for smooth pan, tilt and roll movement, with a form that can also support native vertical shooting.
It supports Bluetooth 5.1 and USB-C charging, and works with the Ronin app on iOS 11.0 or later and Android 8.0 or later. The maximum controlled rotation speed is 360°/s on pan, tilt and roll. Mechanical range covers 360° continuous pan rotation, -95° to +240° on roll, and -112° to +214° on tilt. Weight is about 1242 g for the gimbal and 265 g for the grip.
In use, it pairs with supported cameras and lenses, plus phones through the Ronin app for control functions. The combo includes the gimbal, BG30 battery grip, Arca-Swiss and Manfrotto quick-release plate, metal extended grip or tripod, briefcase handle, extended lens-fastening support, USB-C control cable, USB-C charging cable, screw kit and carrying case. It also has a cold shoe expansion port.
Specifications
| Peripheral | |
|---|---|
| Accessory Port | Ronin Series Accessories (RSA)/NATO Ports 1/4"-20 Mounting Hole Cold Shoe Video Transmission/LiDAR Range Finder Port (USB-C) RSS Camera Control Port (USB-C) Focus Motor Port (USB-C) |
| Battery | Model: BG30-1950mAh-15.4V Type: LiPo 4S Capacity: 1950 mAh Energy: 30 Wh Max Runtime: 13 hours (Measured with the gimbal balanced in a level and stationary state. When the gimbal is in motion, the operating time will be reduced.) Charging Time: Approx. 1.5 hours (Measured with a charger supporting 24W fast charging. It is recommended to use chargers supporting QC 2.0 or PD protocols.) Suggested Charging Temperature: 5° to 40° C (41° to 104° F) |
| Connections | Bluetooth 5.1 Charging Port (USB-C) |
| Ronin App Requirements | iOS 11.0 or above Android 8.0 or above |
| Languages Supported by the Touchscreen | English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai |
| Working Performance | |
| Tested Payload | 4.5 kg (10 lbs) |
| Maximum Controlled Rotation Speed | Pan: 360°/s Tilt: 360°/s Roll: 360°/s |
| Mechanical Range | Pan Axis: 360° continuous rotation Roll Axis: -95° to +240° Tilt Axis: -112° to +214° |
| Mechanical & Electrical Properties | |
| Operating Frequency | 2.400-2.4835 GHz |
| Bluetooth Transmitter Power | < 8 dBm |
| Operating Temperature | -20° to 45° C (-4° to 113° F) |
| Weight | Gimbal: Approx. 1242 g (2.74 lbs) Grip: Approx. 265 g (0.58 lbs) |
| Extended Grip/Tripod (Metal) | Approx. 226 g (0.49 lbs) |
| Upper and Lower Quick-Release Plates | Approx. 110 g (0.24 lbs) |
| Dimensions | Folded: 271×283×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod) Unfolded: 416×223×202 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod) |
| DJI Ronin Image Transmitter | |
| Connections | Power/Communication Port (USB-C) HDMI Port (Mini HDMI) RSS Camera Control Port (USB-C) |
| Expansion Port | Cold Shoe |
| Operating Frequency | 2.400-2.4835 GHz 5.725-5.850 GHz |
| Weight | 126 g (0.27 lbs) |
| Dimensions | 82×63×24 mm (L×W×H) |
| Transmitter Power (EIRP) | 2.400-2.4835 GHz: < 25 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: < 25 dBm (FCC/SRRC) < 14 dBm (CE) |
| Battery | Capacity: 2970 mAh Compatible Charger: 5 V/2 A Charging Time: Approx. 2.5 hours Operating Time: Approx. 3.5 hours |
| Transmission Range | 200 m (SRRC/FCC) 100 m (CE) Measured in an unobstructed environment free of interference. |
| Latency | 60 ms |
| Operating Current/Voltage | 900 mA/3.7 V |
| Operating Temperature | 0° to 45° C (32° to 113° F) |
Product details
| Series/Compatibility | Ronin |
|---|
In the box
- DJI RS 4 Pro Gimbal Stabiliser
- BG30 Battery Grip
- Quick-Release Plate (Arca-Swiss/Manfrotto)
- Extended Grip/Tripod (Metal)
- Briefcase Handle
- Lens-Fastening Support (Extended)
- Multi-Camera Control Cable (USB-C, 30 cm)
- USB-C Charging Cable (40 cm)
- Screw Kit
- Carrying Case
- USB-C Power Cable (20 cm)
- Mini-HDMI to Mini-HDMI Cable (20 cm)
- Mini-HDMI to HDMI Cable (20 cm)
- Mini-HDMI to Micro-HDMI Cable (20 cm)
- Ronin Image Transmitter
- Focus Pro Motor
- DJI Logo Sticker
- FIZ Sticker
- Focus Pro Motor Rod Mount Kit
- Focus Gear Strip
- Lower Quick-Release Plate (Extended)
- Phone Holder
