Description

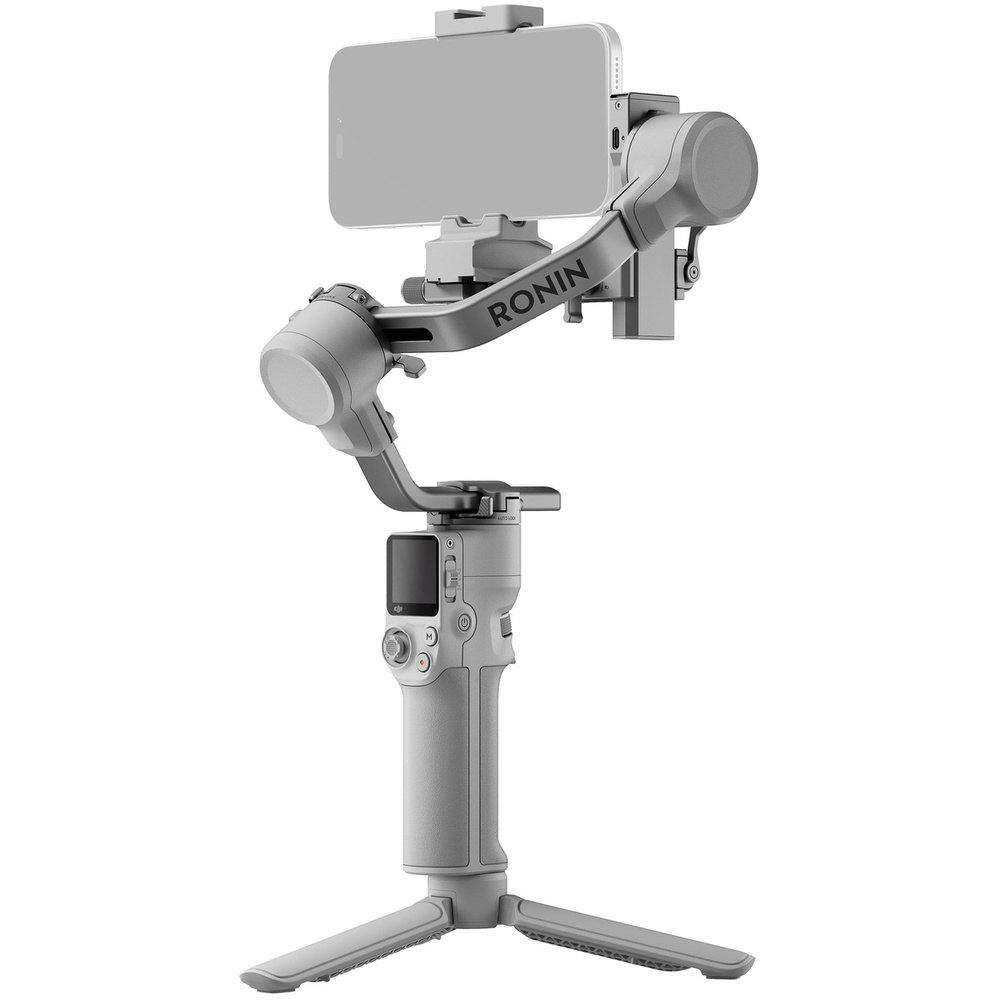

The DJI RS 4 Mini Combo Gimbal Stabiliser sits in our Gimbal Stabilisers range.
Highlights include 2nd-Gen automated axis locks, responsive follow mode, faster vertical switch, teflon™ enhanced balancing and intelligent tracking and composition.
Key specifications: connections Bluetooth 5.1 USB-C Charging Port; ronin app requirements iOS 14.0 or above Android 9.0 or above; tested payload 0.4-2 kg (0.88-4.4 lbs); maximum controlled rotation speed Pan: 360°/s Tilt: 360°/s Roll: 360°/s; axis locks Auto.
A motorised gimbal levels and smooths hand-held movement across three axes. In the box: DJI RS 4 Mini Gimbal Stabiliser, quick-release plate, RS 4 Mini Tripod, L-Shaped Multi-Camera Control Cable (USB-C, 30 cm), USB-C Charging Cable (40 cm) and screw kit and 2 more items.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Accessory Port | NATO Port 1/4"-20 Mounting Hole RSS Camera Control Port (USB-C) Pogo Pin (compatible with the DJI RS Intelligent Tracking Module) |
|---|---|
| Battery | Model: BHX724-3100-7.2 Type: LiPo 2S Capacity: 3100 mAh Energy: 22.32 Wh Max Runtime: 13 hours (stationary)Charging Specification: 9 V/2.5 A Charging Time: Approx. 1 hour and 50 minutes Suggested Charging Temperature: 5° to 40° C (41° to 104° F) |
| Connections | Bluetooth 5.1 USB-C Charging Port |
| Ronin App Requirements | iOS 14.0 or above Android 9.0 or above |
| Languages Supported by the Touchscreen | English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai |
| Tested Payload | 0.4-2 kg (0.88-4.4 lbs) |
| Maximum Controlled Rotation Speed | Pan: 360°/s Tilt: 360°/s Roll: 360°/s |
| Mechanical Range | Pan Axis: 360° continuous rotation Roll Axis: -95° to +235° Tilt Axis: -110° to +210° |

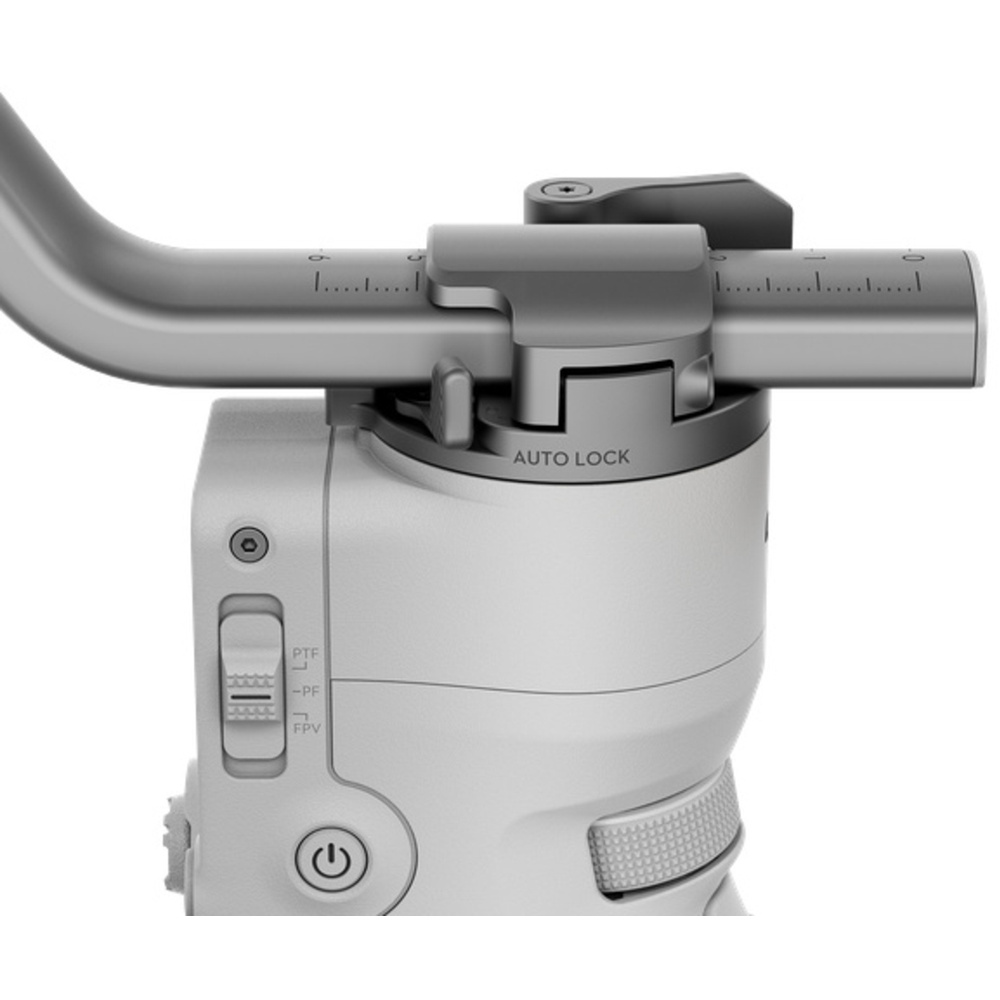

| Axis Locks | Auto |
| Vertical Shooting | Supported |
| Operating Frequency | 2.4000-2.4835 GHz |
| Bluetooth Transmitter Power | < 4 dBm |
| Operating Temperature | -10° to 45° C (14° to 113° F) |
| Weight | Gimbal: Approx. 890 g (1.96 lbs) (including the Quick-Release Plate and excluding the tripod) Extended Grip/Tripod: Approx. 140 g (0.3 lbs) |
| Dimensions | Folded: 236×64×316 mm (L×W×H, excluding the tripod and the Quick-Release Plate) Unfolded: 175×182×338 mm (L×W×H, excluding camera, tripod, and the Quick-Release Plate) |

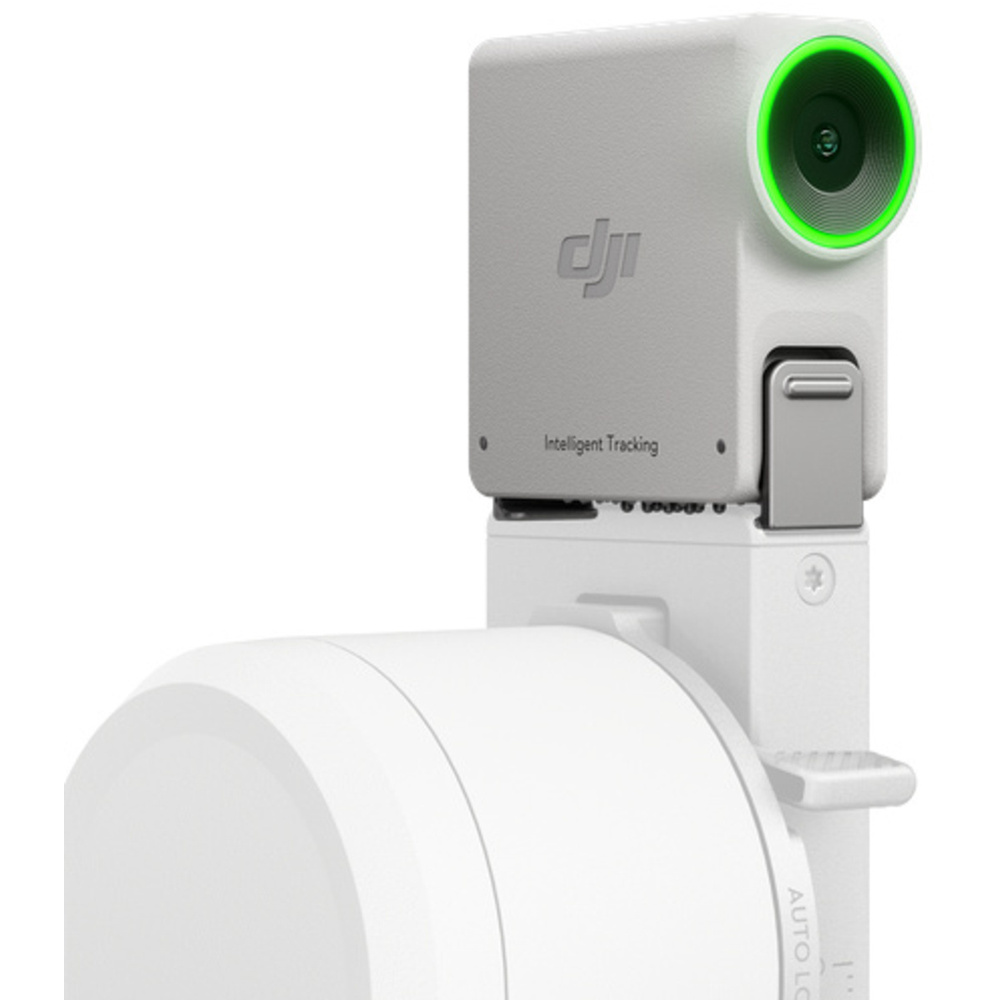

| DJI RS Intelligent Tracking Module | Weight: 19 g Dimensions: 33.5×17.5×38.5 mm (L×W×H) Tracking Distance: 0.5-10 m Operating Environment: Illuminance > 20 lux Trigger Modes: Gimbal trigger, gesture Gesture Functions: Start/stop of tracking, start/stop of recording, framing adjustment Power Consumption: < 1 W Operation Temperature: -10 to 45° C（14° to 113° F） Mounting Method: Magnetic attachment |
| DJI RS 4 Mini Phone Holder | Weight: 92.5 g Dimensions: 50×48×95.15 mm (L×W×H) |
Product details
| Series/Compatibility | Ronin |
|---|
In the box
- DJI RS 4 Mini Gimbal Stabiliser
- Quick-Release Plate
- RS 4 Mini Tripod
- L-Shaped Multi-Camera Control Cable (USB-C, 30 cm)
- USB-C Charging Cable (40 cm)
- Screw Kit
- RS Intelligent Tracking Module
- RS 4 Mini Briefcase Handle
