Description

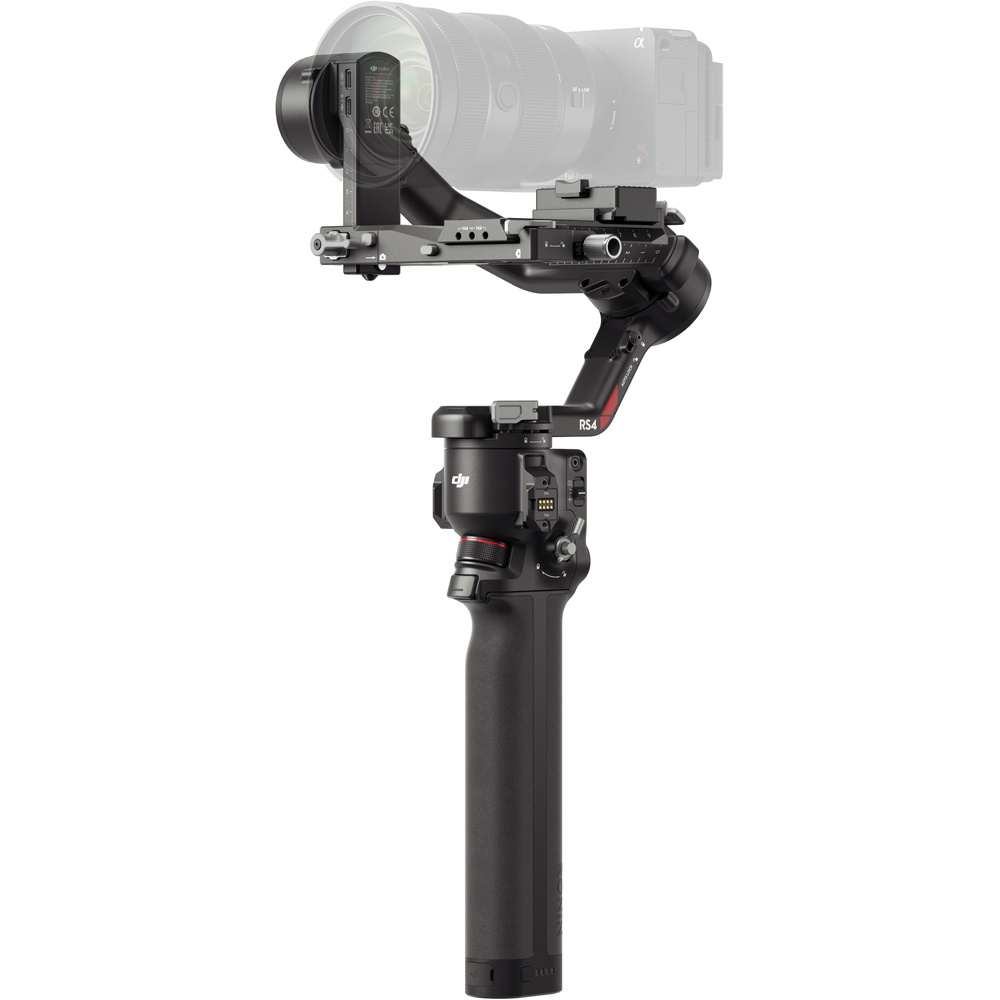

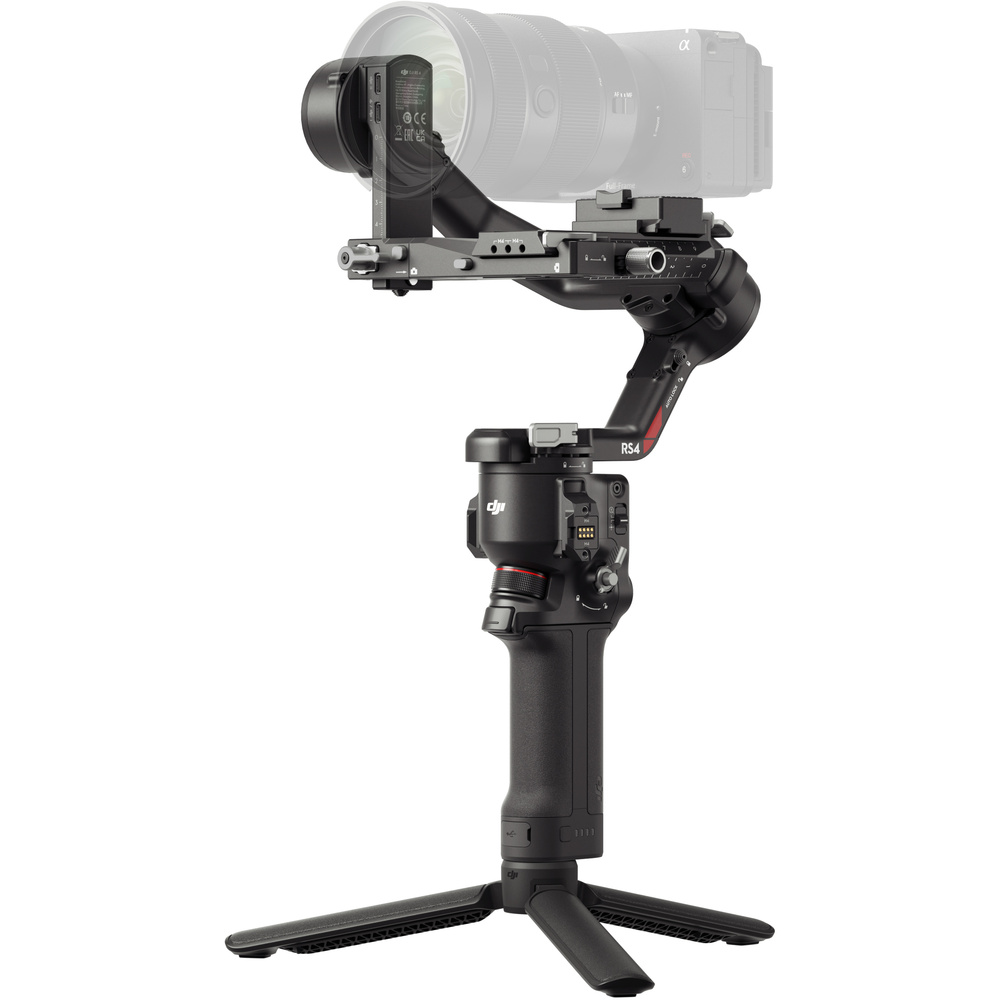

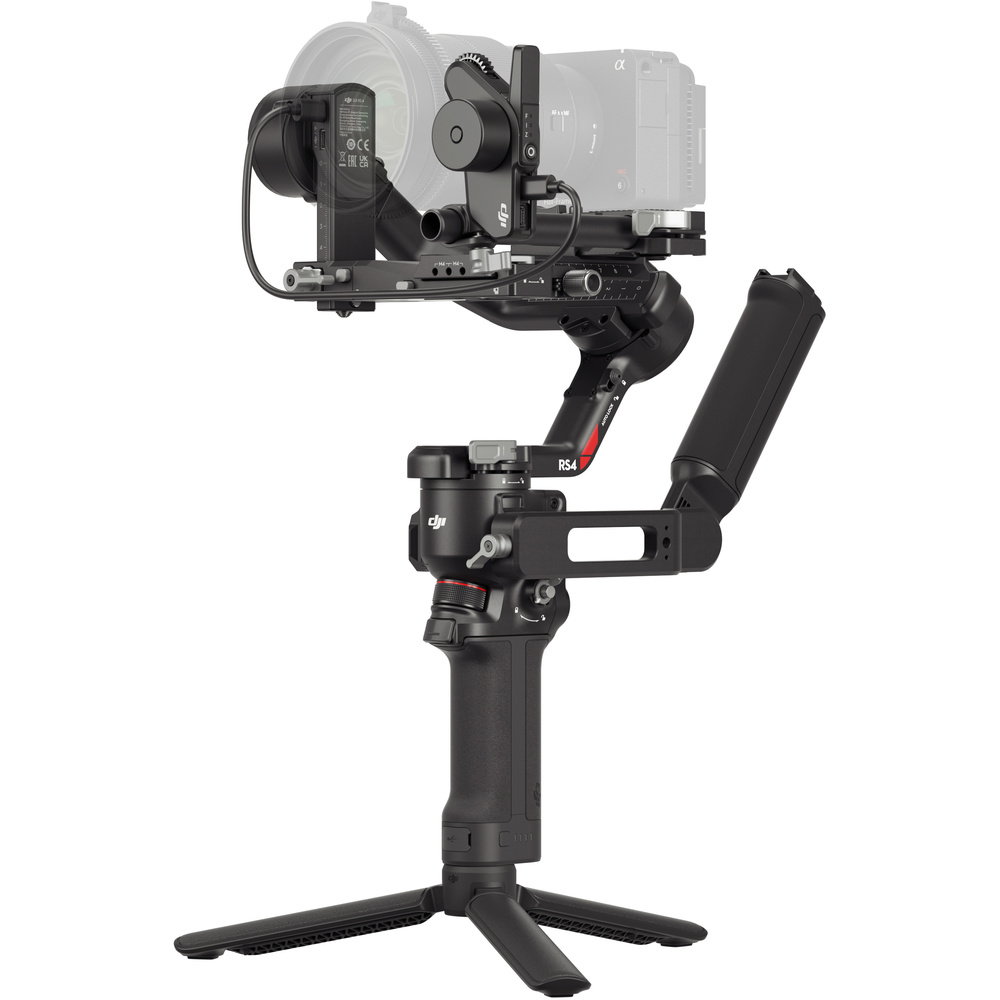

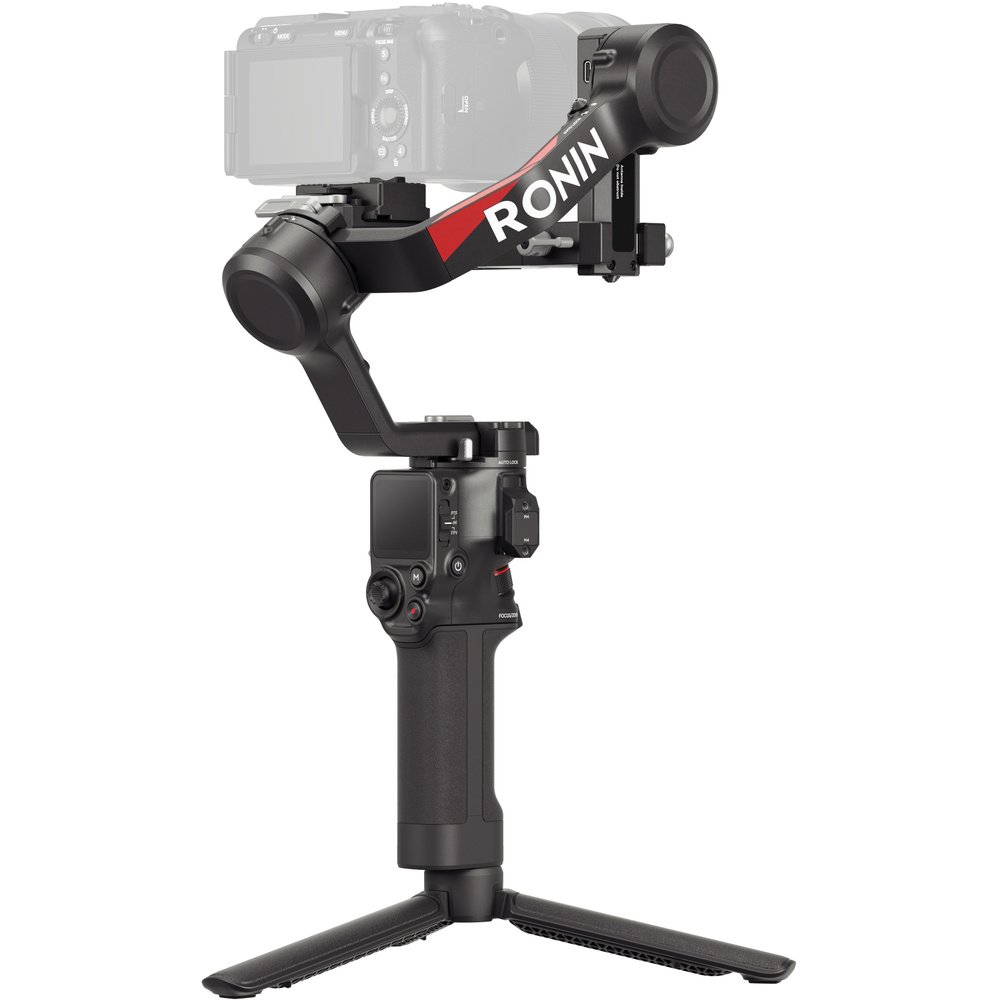

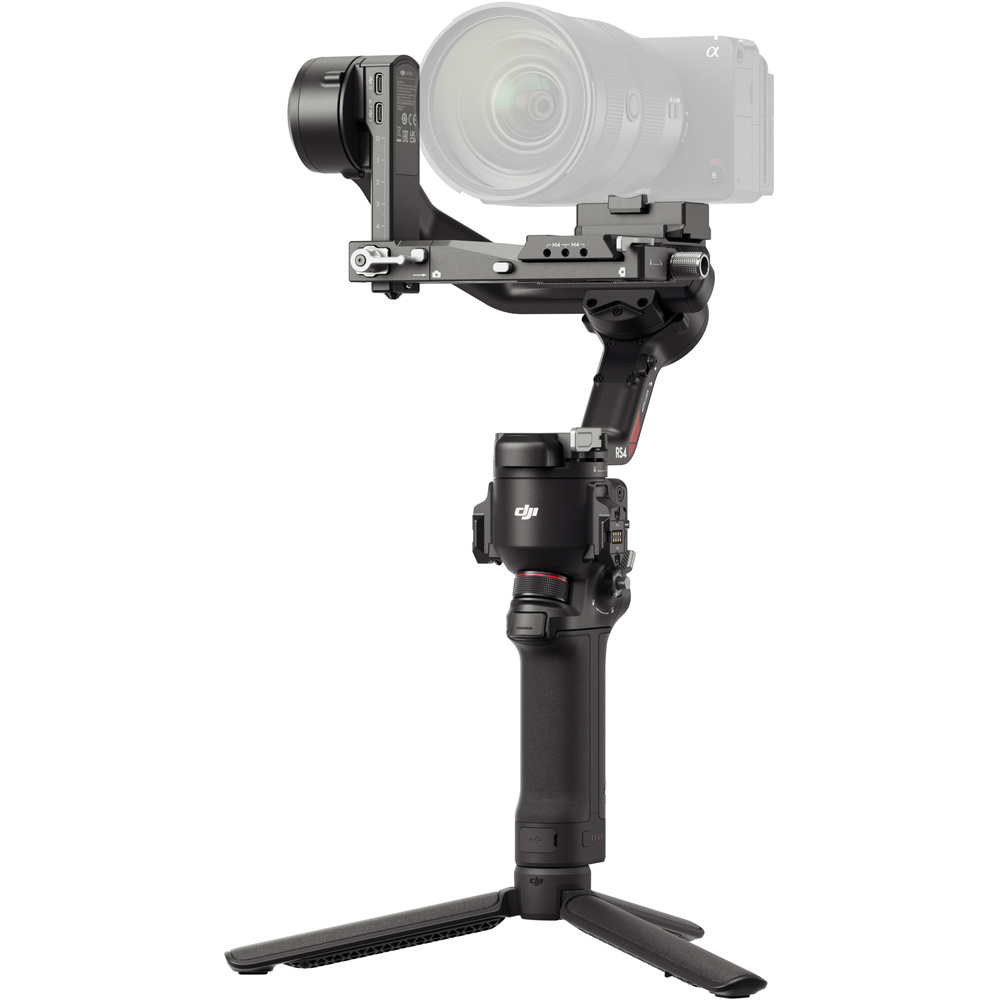

The DJI RS 4 is a single-handed gimbal stabiliser for mirrorless camera setups that need controlled movement and steady handheld shooting. It suits shooters who want a compact rig for run and gun work, vertical content, and general camera stabilisation. It supports a tested payload of 3 kg, so it is aimed at lighter camera and lens combinations rather than heavier cinema builds.
Key features include 2nd-gen native vertical shooting, Teflon-coated axis arms, an extended tilt axis and a high-capacity battery grip. It uses Bluetooth 5.1 and has a USB-C charging port, with the Ronin app requiring iOS 11.0 or above or Android 8.0 or above. The battery charges in about 2.5 hours and runs for about 3.5 hours under the stated conditions.
In use, the RS 4 pairs with compatible Ronin camera setups and connects through the included multi-camera control cable and USB-C charging cable. The box includes the BG21 battery grip, a quick-release plate with Arca-Swiss and Manfrotto support, an extended grip/tripod, lens-fastening support, a DJI logo sticker and a screw kit. It also has a cold shoe expansion port for accessories.
Specifications
| Peripheral | |
|---|---|
| Accessory Port | Ronin Series Accessories (RSA)/NATO Ports 1/4"-20 Mounting Hole Cold Shoe Video Transmission Port (USB-C) RSS Camera Control Port (USB-C) Focus Motor Port (USB-C) |
| Battery | Model: BHX711-3000-7.2V Type: LiPo 2S Capacity: 3000 mAh Energy: 21 Wh Max Runtime: 12 hours (Measured with the gimbal balanced in a level and stationary state. When the gimbal is in motion, the operating time will be reduced.) Charging Time: Approx. 2.5 hours (Measured with a charger supporting 18W fast charging. It is recommended to use chargers supporting PD protocol.) Suggested Charging Temperature: 5° to 40° C (41° to 104° F) |
| Connections | Bluetooth 5.1 Charging Port (USB-C) |
| Ronin App Requirements | iOS 11.0 or above Android 8.0 or above |
| Languages Supported by the Touchscreen | English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai |
| Working Performance | |
| Tested Payload | 3 kg (6.6 lbs) |
| Maximum Controlled Rotation Speed | Pan: 360°/s Tilt: 360°/s Roll: 360°/s" Mechanical Range "Pan Axis: 360° continuous rotation Roll Axis: -95° to +240° Tilt Axis: -112° to +214° |
| Mechanical & Electrical Properties | |
| Operating Frequency | 2.400-2.4835 GHz |
| Bluetooth Transmitter Power | < 8 dBm |
| Operating Temperature | -20° to 45° C (-4° to 113° F) |
| Weight | Gimbal: Approx. 1066 g (2.35 lbs) Grip: Approx. 203 g (0.45 lbs) Extended Grip/Tripod (Plastic): Approx. 183 g (0.4 lbs) Upper and Lower Quick-Release Plates: Approx. 98 g (0.22 lbs) |
| Dimensions | Folded: 245×255×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod) Unfolded: 370×191×189 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod) |
| DJI Ronin Image Transmitter | |
| Connections | Power/Communication Port (USB-C) HDMI Port (Mini HDMI) RSS Camera Control Port (USB-C)" |
| Expansion Port | Cold Shoe |
| Operating Frequency | 2.400-2.4835 GHz 5.725-5.850 GHz |
| Weight | 126 g (0.27 lbs) |
| Dimensions | 82×63×24 mm (L×W×H) |
| Transmitter Power (EIRP) | 2.400-2.4835 GHz: < 25 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: < 25 dBm (FCC/SRRC) < 14 dBm (CE) |
| Battery | Capacity: 2970 mAh Compatible Charger: 5 V/2 A Charging Time: Approx. 2.5 hours Operating Time: Approx. 3.5 hours |
| Transmission Range | 200 m (SRRC/FCC) 100 m (CE) Measured in an unobstructed environment free of interference. " |
| Latency | 60 ms |
| Operating Current/Voltage | 900 mA/3.7 V |
| Operating Temperature | 0° to 45° C (32° to 113° F) |
Product details
| Series/Compatibility | Ronin |
|---|
In the box
- DJI RS 4 Gimbal Stabiliser
- BG21 Battery Grip
- Quick-Release Plate (Arca-Swiss/Manfrotto)
- Extended Grip/Tripod (Plastic)
- Lens-Fastening Support
- Multi-Camera Control Cable (USB-C, 30 cm)
- USB-C Charging Cable (40 cm)
- DJI Logo Sticker
- Screw Kit
