Description

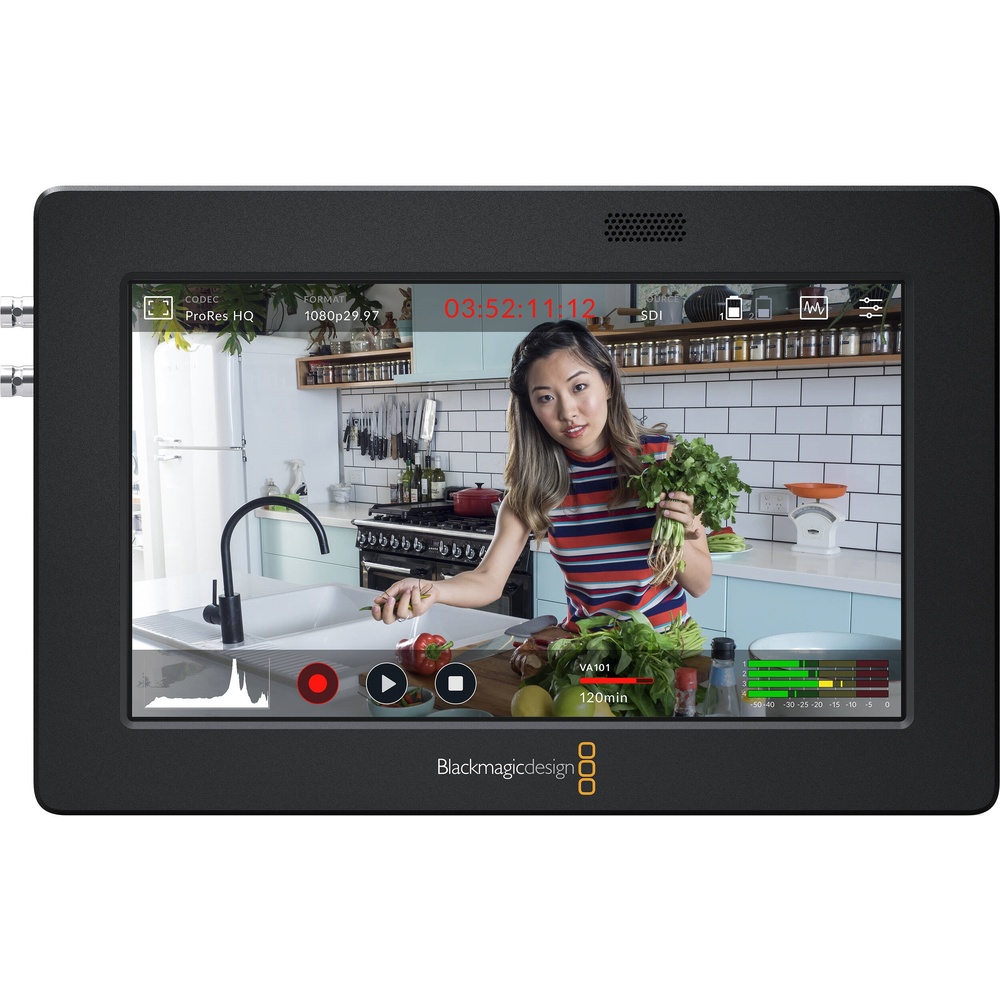

The Blackmagic Video Assist 3G 5 inch Portable Monitor is a 5 inch touchscreen monitor and recorder for camera setups that need a compact display and in-camera recording. It suits users working with SDI or HDMI cameras who want a clearer view of framing, focus and exposure while recording to SD cards. The 1920 x 1080 screen and 135 degree viewing angle suit on-camera, rigged or assistant-operated use.

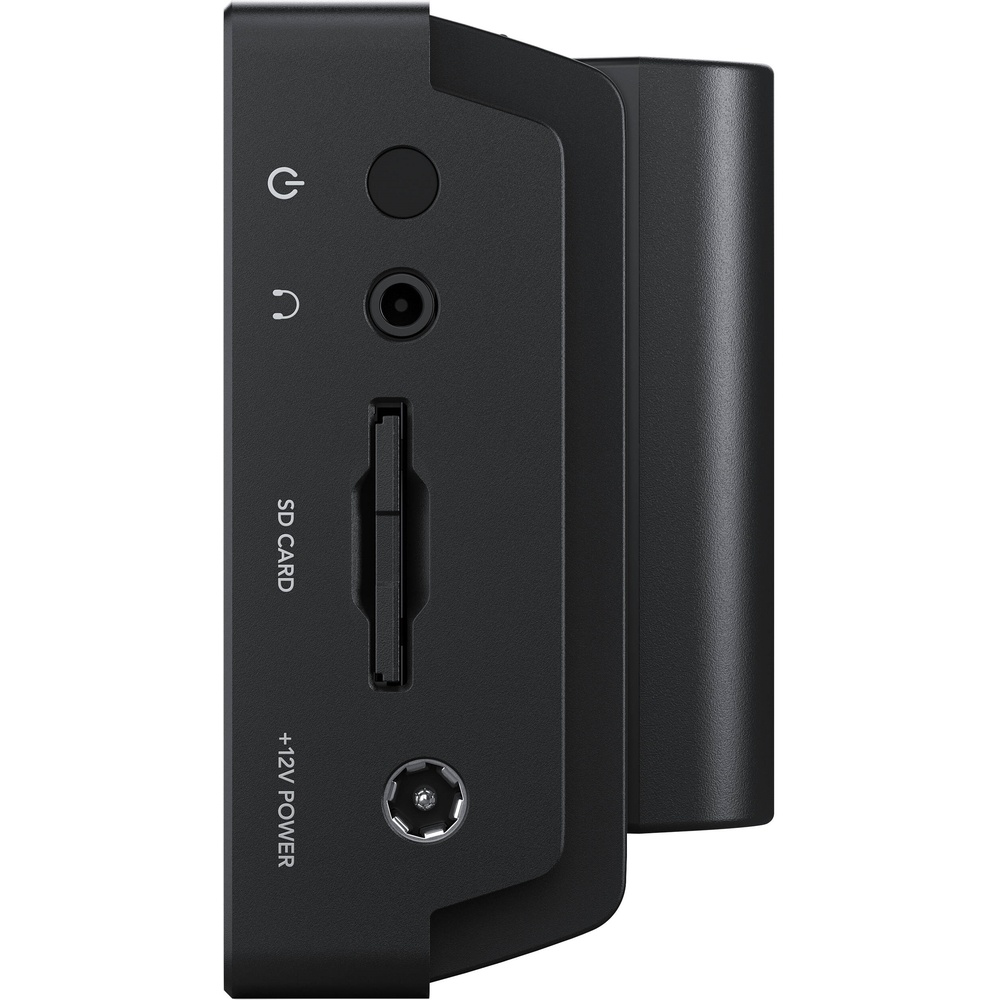

It records up to 1080p60 and supports 10-bit 4:2:2 Apple ProRes 422 HQ, 422, LT and Proxy, plus Avid DNxHD formats. Connections include one Micro BNC SDI input and output, one HDMI Type A input and output, embedded audio over SDI and HDMI, and a 3.5 mm stereo analogue audio output. Recording media is UHS-1 SDHC and SDXC cards.
In practice, it can sit between a camera and monitor or be used as a field recorder and viewing screen on set. It works with SDI or HDMI camera outputs and is supplied with the monitor and a 12V universal power supply with international socket adapters. Use is limited to compatible video and recording workflows rather than standalone playback.
Specifications
| Display | |
|---|---|
| Type | LCD touchscreen |
| Size | 12.7 cm |
| Resolution | 1920 x 1080 |
| Viewing Angle | 135° |
| Connections | |
| SDI Video Input | 1 x Micro BNC |
| SDI Video Output | 1 x Micro BNC |
| HDMI Video Input | 1 x HDMI Type A |
| HDMI Video Output | 1 x HDMI Type A |
| SDI Audio Input | 16 channels embedded via SDI |
| SDI Audio Output | 16 channels embedded via SDI |
| HDMI Audio Input | 8 channels embedded |
| HDMI Audio Output | 8 channels embedded |
| Audio Output | 1 x 3.5 mm stereo analogue audio output jack |
| USB Interface | 1 x USB 2.0 (Mini-B connector) |
| Recording | |
| Recording Media | UHS-1 SDHC/SDXC cards |
| Codecs Supported | Apple ProRes 422 HQ, 422, LT, Proxy Avid DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF |
| Supported Video Formats | SDI: 1920 x 1080p 23.98/24/25/29.97/30/50/59.94/60 1920 x 1080PsF 23.98/24 1920 x 1080i 50/59.94/60 1280 x 720p 50/59.94/60 625/50i PAL 525/59.94i NTSC HDMI: 1920 x 1080p 23.98/24/25/29.97/30/50/59.94/60 1920 x 1080i 50/59.94/60 1280 x 720p 50/59.94/60 480p60 576p50 625/25 PAL 525/29.97 NTSC |
| Recording Time | With 128GB SD card: Apple ProRes 422 HQ: 1.61 hours ProRes 422: 2.43 hours ProRes LT: 3.47 hours ProRes Proxy: 7.9 hours |
| SDI Video Sampling | 4:2:2 YUV |
| SDI Audio Sampling | 48 kHz, 24-bit |
| SDI Colour Precision | 10-bit |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M |
| SDI Metadata Support | HD RP188 and closed captioning |
| SDI Colour Space | REC 601, REC 709 |
| HDMI Colour Precision | 10-bit |
| HDCP Compatible | No |
| General | |
| OS Compatibility | Mac OS X 10.9 Mavericks Mac OS X 10.10 Yosemite or later Windows 7 Windows 8 |
| Power Requirements | 12 VDC - DC Input can operate on a voltage tolerance between 10.8 volts to 17 volts. |

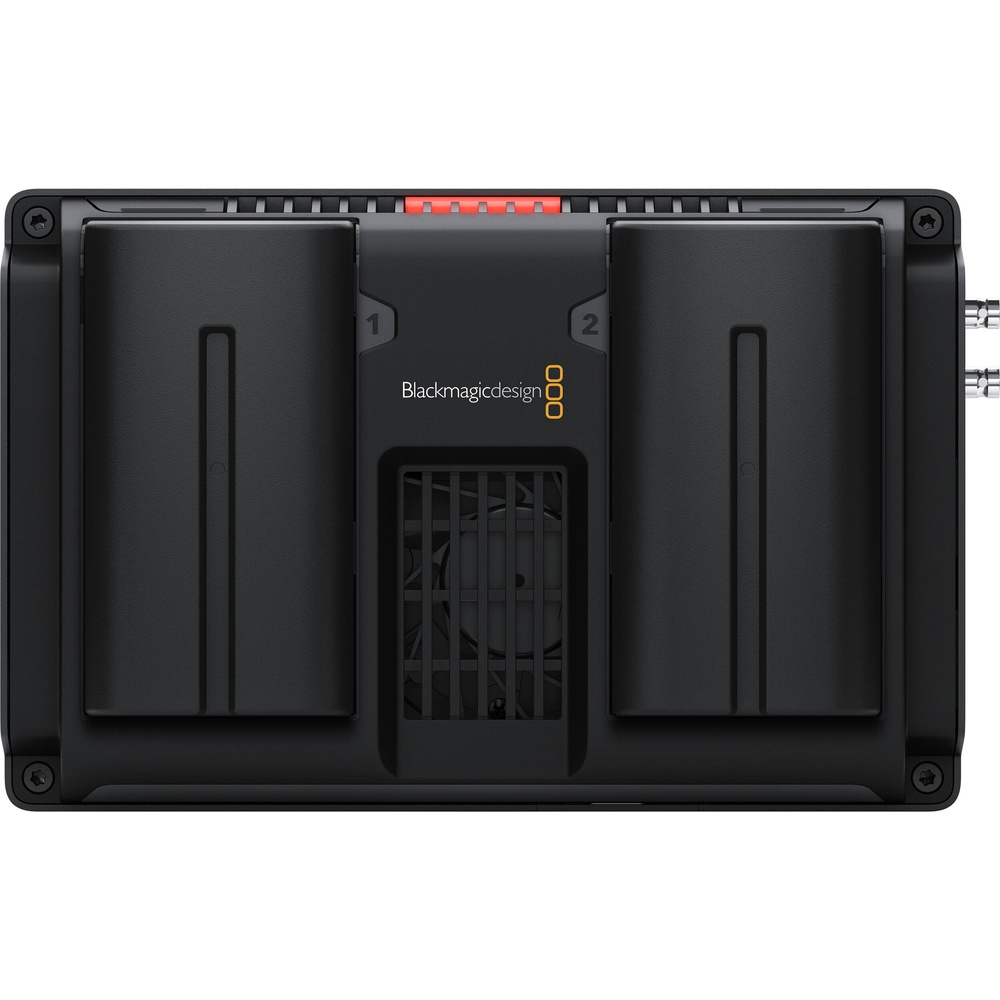

| Batteries | 2 x L-Series batteries |
| AC Adapter | 110 to 240 VAC |
| Operating Temperature | 5 to 40°C |
| Storage Temperature | -21 to 45°C |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | 14.30 x 3.05 x 8.99 cm |
| Weight | 362.02 g |
Product details
| Screen Size | 5" |
|---|---|
| Screen Resolution | 1920 x 1080 |
In the box
- Blackmagic Design Video Assist
- 12V Universal Power Supply with International Socket Adapters
