Description

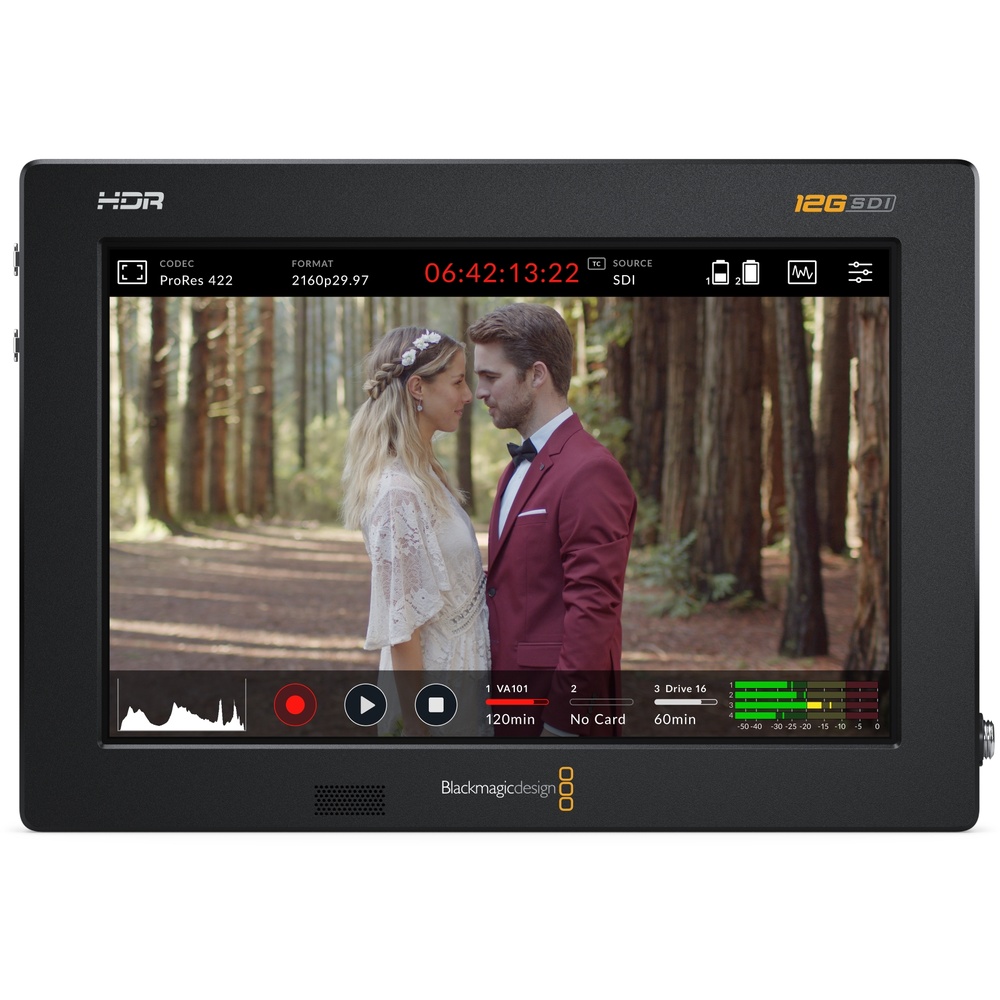

The Blackmagic Design Video Assist 7" 12G-SDI/HDMI HDR Recording Monitor is a video recorder.
Highlights include 7" 1920 x 1200 Touchscreen LCD, record up to DCI or UHD 4K HDR video, HDMI and 12G-SDI video inputs & outputs, 10-Bit, 4:2:2 ProRes & DNxHD encoding and Blackmagic raw with select cameras.
Key specifications: connection HDMI; battery type 2 x L-Series; weight 29.1 oz / 824.99 g; dimensions 7.6 x 5.14 x 1.45" / 19.3 x 13.06 x 3.68 cm; screen size 7".
An external recorder captures higher-quality codecs than many cameras record internally. Manufacturer model number HYPERD/AVIDA12/7HDR.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Key Specs | |
|---|---|
| Display Size | 7.0" / 17.8 cm |
| Resolution | 1920 x 1200 |
| Touchscreen | Yes |
| HDR Compatibility | HDR10, Hybrid Log Gamma |
| Video I/O | 1 x HDMI 2.0a Input 1 x BNC (12G-SDI) Input 1 x HDMI 2.0a Output 1 x BNC (12G-SDI) Output |
| Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-II) |
| Display | |
| Panel Type | TFT LCD |
| Aspect Ratio | 16:10 |
| Maximum Brightness | 2500 nits / cd/m 2 |
| Bit Depth / Colour Support | 10-Bit (1.07 Billion Colours) |
| Pixels Per Inch (ppi) | 323 ppi |
| Colour Gamut | 100% Rec. 709 100% Rec. 2020 |
| Real-Time LUT Monitoring | SDR, HDR |
| Image Controls | Histogram, Picture-in-Picture, RGB Parade, Vectorscope, Waveform |
| Inputs / Outputs | |
| HDCP Support | No |
| Embedded Audio | HDMI: 8-Channel SDI: 16-Channel |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output 2 x Mini-XLR Mic/Line Input |
| Built-In Speaker | 1 |
| Power I/O | 1 x Barrel (12 VDC) Input |
| Other I/O | 1 x USB-C 1 x 2.5 mm (LANC) |
| Wi-Fi | None |
| Bluetooth | None |
| Mobile App Compatible | No *As of June, 2023: Cheque with manufacturer for the most up-to-date compatibility |
| Format Support | |
| Video Format | SDI (10-Bit 4:2:2 RGB) DCI 4K: 25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 25/24/23.98 DCI 2K PsF: 25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 HDMI (10-Bit) DCI 4K: 25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 |
| Gamma Curve | HDR-HLG, Rec709, Rec2020 |
| Timecode Support | Yes |
| Recording | |
| Pre-Roll Record | None |
| Encoding Formats | Up to 4096 x 2160 Blackmagic Raw ProRes 422, 422 HQ, LT, Proxy 10-Bit 4:2:2 at up to 60 fps DNxHD HQX, LB, LB MXF, SQ, SQ MXF 10-Bit 4:2:2 at up to 60 fps |
| Maximum Audio Tracks | 16 |
| Phantom Power | +48 V |
| Power | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 12 VDC |
| Built-In Battery | None |

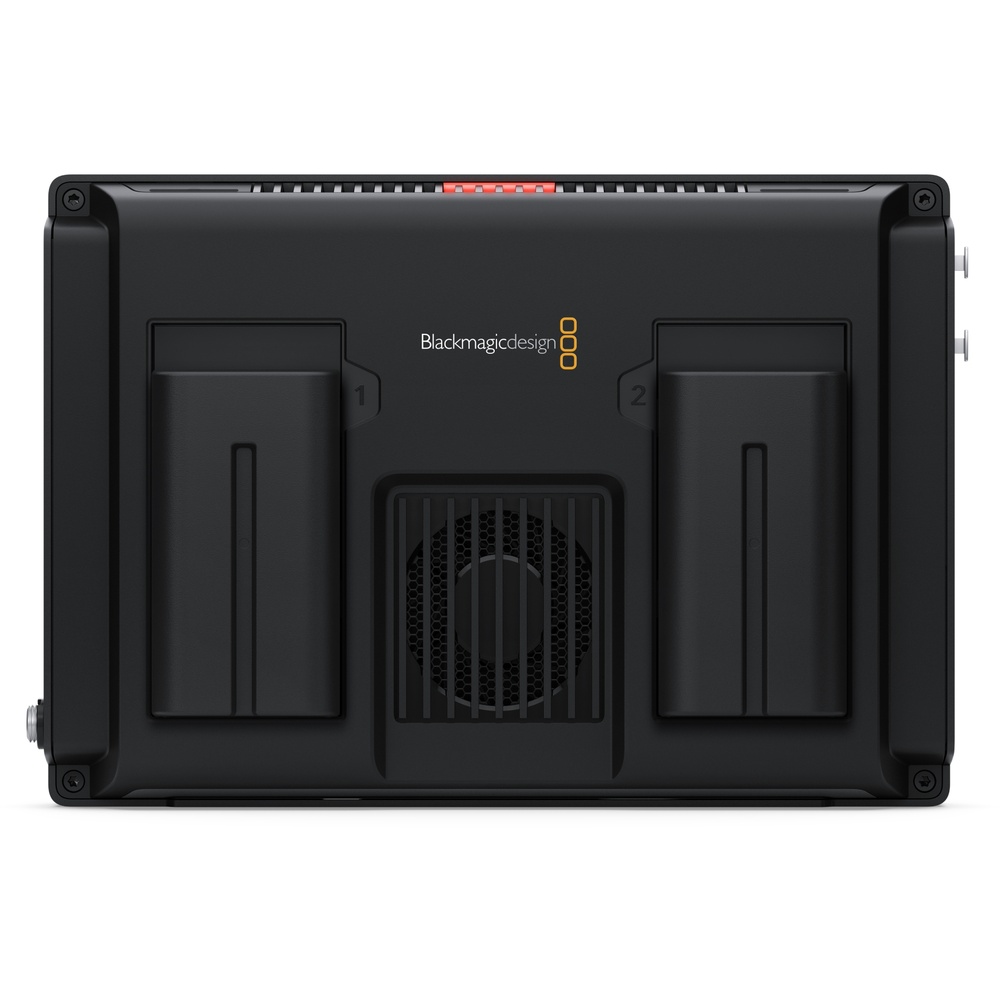

| Battery Type | 2 x L-Series |
| Power Consumption | 36 W |
| Environmental | |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Operating Humidity | 0 to 90% |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| General | |
| Dimensions | 7.6 x 5.14 x 1.45" / 19.3 x 13.06 x 3.68 cm |
| Weight | 29.1 oz / 824.99 g |
Product details
| Screen Resolution | 1920 x 1200 |
|---|---|
| Screen Size | 7" |
| Connection | HDMI |
In the box
- Blackmagic Video Assist 12G HDR (7")
