Description

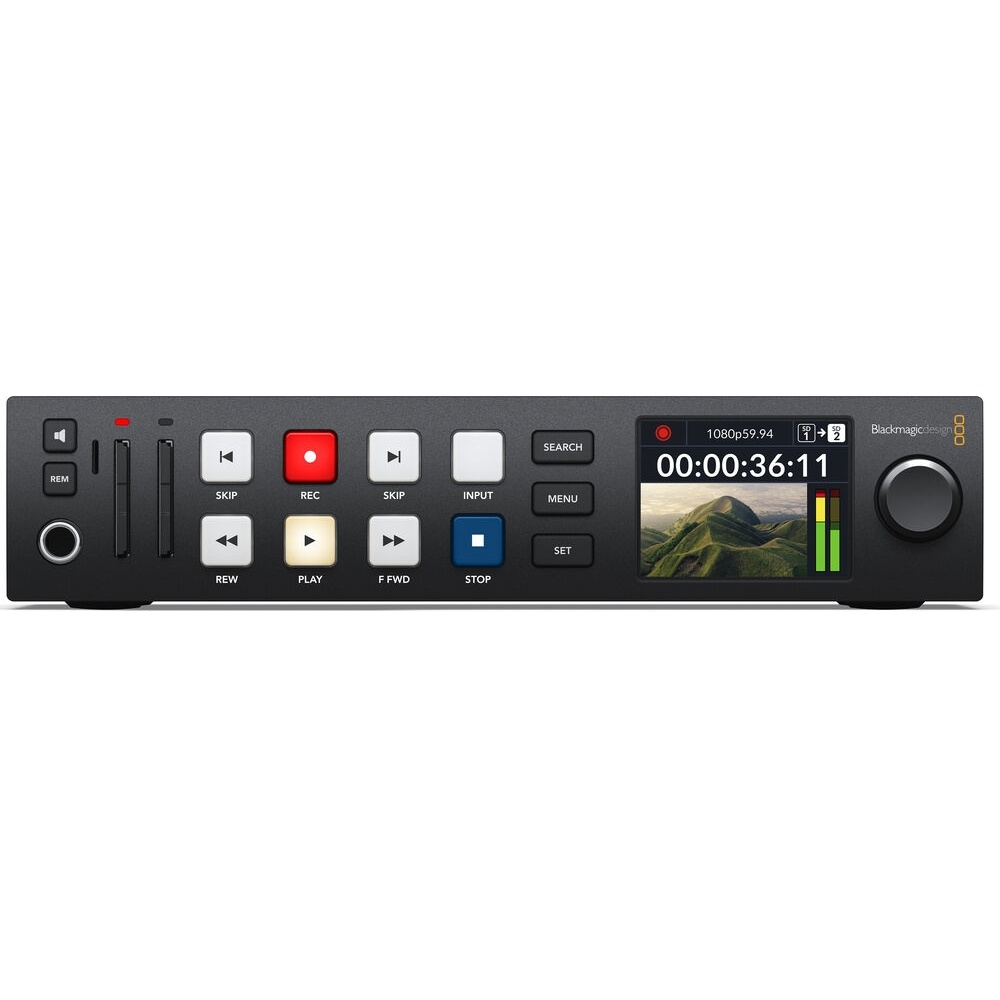

The Blackmagic Design HyperDeck Studio HD Plus is a video recorder.
Highlights include records up to 4K DCI at 30 fps, plays back up to 3840 x 2160 at 30 fps, 1 x 6G-SDI input, 1 x HDMI 2.0 input and 1 x HDMI 2.0 and 2 x 6G-SDI Outputs.
Key specifications: weight 1.8 lb / 0.82 kg; dimensions 8.27 x 6.96 x 1.74" / 21.01 x 17.68 x 4.42 cm; video input 1 x BNC, 6G-SDI 1 x HDMI 2.0 Type A; timecode In: 1 x BNC Out: 1 x BNC; audio input None (Embedded Audio Only, 16 Channels).
An external recorder captures higher-quality codecs than many cameras record internally. In the box: Blackmagic Design HyperDeck studio HD plus and software CD. Manufacturer model number HYPERD/ST/DCHP.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Connectivity | |
|---|---|
| Video Input | 1 x BNC, 6G-SDI 1 x HDMI 2.0 Type A |
| Video Output | 1 x BNC, 6G-SDI Loop-Out 2 x BNC, 6G-SDI 1 x HDMI Type A, 2.0 1 x USB Type-C (Webcam or External Recording of SD, HD, 2K DCI) 1 x BNC, 3G-SDI (Monitor Out) |
| Timecode | In: 1 x BNC Out: 1 x BNC |
| Reference | Tri-Sync or Black Burst Input Connector: 1 x BNC Output Connector: 1 x BNC |
| Audio Input | None (Embedded Audio Only, 16 Channels) |
| Audio Output | Headphone: 1 x 1/4" Phone |
| Device Control | 2 x RS-422 Deck Control Port on DB9 Female |
| Ethernet | 1 x RJ45 for Remote Operation |
| Media Interface | 2 x SD Slots Media Type: UHS I and UHS II Format: ExFAT or HFS+ |
| Standards | |
| Supported Resolutions | 4K 4096 x 2160p: 30/29.97/25/24/23.98 3840 x 2160p: 30/29.97/25/24/23.98 2K 2048 x 1080p: 0/29.97/25/24/23.98 HD 1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i: 60/59.94/50 1280 x 720p: 60/59.94/50 SD NTSC PAL |
| SDI Compliance | SMPTE 259M//292M/296M/372M/424M/425M Level A and B SMPTE 2084 SMPTE 2108‑1 |
| SDI Metadata Support | HD RP188 and Closed Captioning CEA‑708 HDR Metadata Supported on SDI |
| Video Sampling | 4:2:2 YUV |
| Color Depth | 10-Bit |
| Color Space | Rec. 601 Rec. 709 Rec. 2020 33-Point 3D LUTS Can Be Applied to SDI Monitor Out |
| HDR Support | Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 |
| Multi Rate Support | Autodetection of SD, HD, and 6G-SDI |
| Audio Sampling | Television Standard 48 kHz, 24-Bit |
| Supported Codecs | ProRes HQ QuickTime 422 QuickTime LT QuickTime Proxy QuickTime for Formats up to 1080p60 DNxHD 220x 220x MXF 145 145 MXF 45 45 MXF for 720p and 1080p HD Formats up to 60 fps H.264 SDI 4:2:2 10-Bit High 4:2:0 8-Bit Medium 4:2:0 8-Bit Low 4:2:0 8-Bit for Progressive Formats up to 1080p60 |
| System Requirements | |
| Operating System | macOS: 10.15 (Catalina), 11.5 (Big Sur) or Later Windows: 10 64-Bit |
| General | |
| Rack Height | 1 RU |
| Power Supply | AC 100 to 240 VAC, 50/60 Hz DC 12 VDC; 1 x 4-Pin XLR Consumption 100 W Max |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Relative Humidity | 0 to 90% Non-Condensing |
| Dimensions | 8.27 x 6.96 x 1.74" / 21.01 x 17.68 x 4.42 cm |
| Weight | 1.8 lb / 0.82 kg |
In the box
- Blackmagic Design HyperDeck Studio HD Plus
- Software CD
