Description

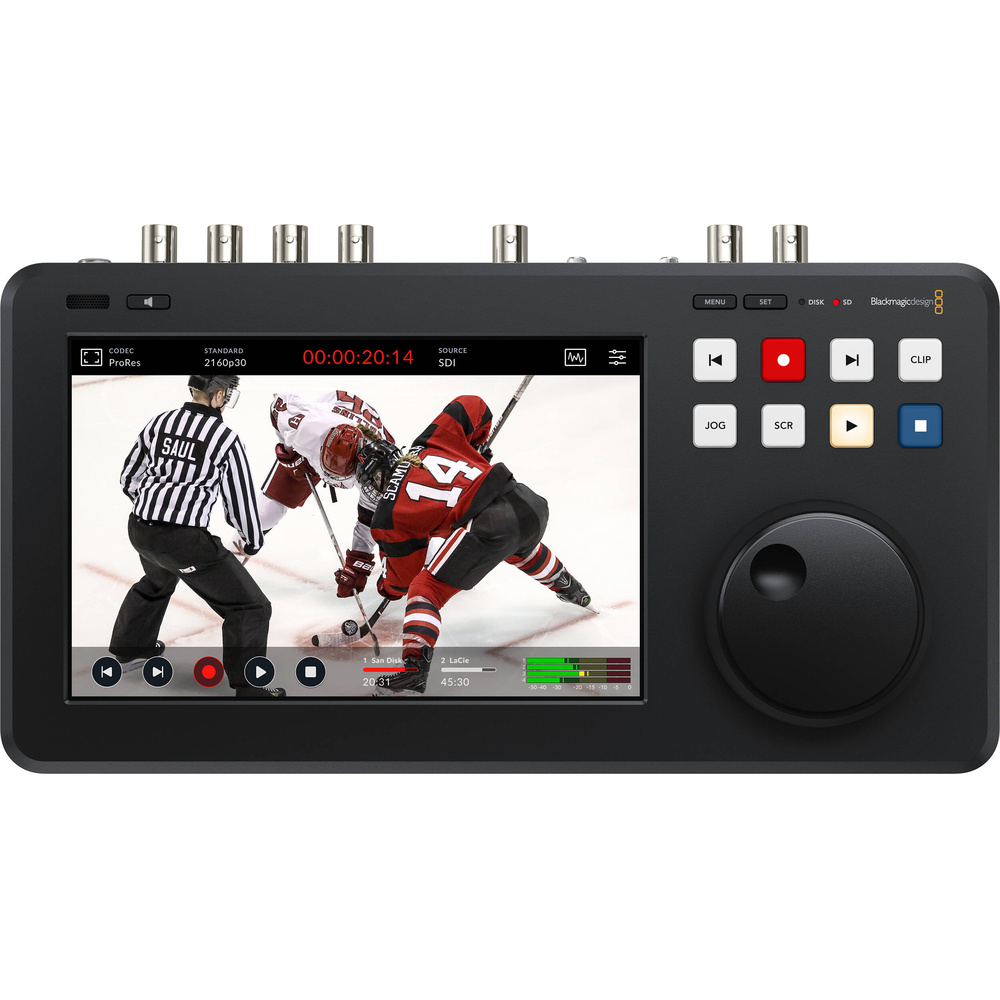

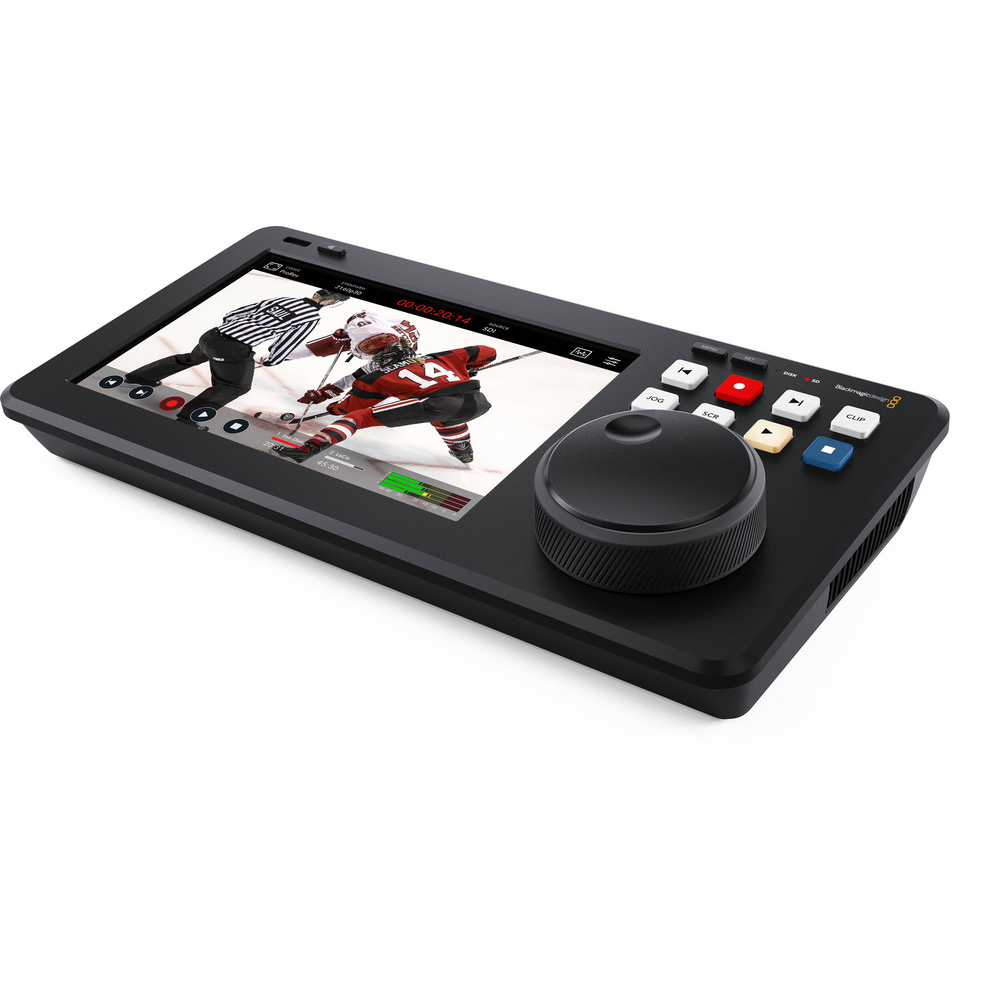

Blackmagic Design HyperDeck Shuttle 4K Pro (2TB): a video recorder.
Highlights include 7" touchscreen display, broadcast deck controls with search dial, includes 2TB M.2 card, records to SD and USB-C disk and DCI 4K video, HDR colour space.
Key specifications: weight 2.39 lb / 1.08 kg; dimensions 10.55 x 5.98 x 2.83" / 26.8 x 15.19 x 7.19 cm; sampling rate Audio 24-bit, 48 kHz Video 4:2:2 YUV; video codecs ProRes, DNx, H.265, H.264; audio format AAC 2-Channel PCM 2/4/8/16/32/64-Channel.
An external recorder captures higher-quality codecs than many cameras record internally. In the box: Blackmagic Design HyperDeck shuttle 4K Pro (2TB), M.2 PCIe NVMe Card (2TB) and 12 VDC Universal Power Supply.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| General | |
|---|---|
| Video Resolution | DCI 4K at 23.98, 24, 25, 30 UHD 4K at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 DCI 2K at 23.98, 24, 25, 29.97, 30 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i at 50, 59.94, 60 1080PsF at 23.98, 24, 25, 29.97, 30 720p at 50, 59.94, 60 625i at 50 525i at 59.94 |
| Sampling Rate | Audio 24-bit, 48 kHz Video 4:2:2 YUV |
| Video Codecs | ProRes, DNx, H.265, H.264 |
| Audio Format | AAC 2-Channel PCM 2/4/8/16/32/64-Channel |
| Display | |
| Panel Type | LCD |
| Display Size | 7" |
| Touchscreen | Yes |
| Inputs/Outputs | |
| USB I/O | 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Female Output |
| Video I/O | 1x HDMI Input 1x HDMI Output 1x HDMI Output ( Monitor ) 1x BNC Input 1x BNC Output ( Loop Output ) 2x BNC Output 1x BNC Output ( Monitor ) |
| Audio I/O | 1x 1/4" Headphone Input |
| Media/Memory Card Slot | Single Slot: SD (Unspecified Type) Single Slot: M.2 SSD |
| Other I/O | 1 x DB-9 RS-422 Input 1 x RJ45 10G Ethernet 1 x BNC Reference/Tri-Sync/Blackburst Input 1 x BNC Reference/Tri-Sync/Blackburst Output |
| Wireless | |
| Wireless | Yes |
| Power | |
| Power Source | DC Input |
| DC Input Power | 12 VDC |
| Power Consumption | 60 W (Maximum) |
| Physical | |
| Colour | Black |
| Operating Conditions | 32 to 72°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 140°F / -20 to 60°C up to 90% Humidity |
| Dimensions | 10.55 x 5.98 x 2.83" / 26.8 x 15.19 x 7.19 cm |
| Weight | 2.39 lb / 1.08 kg |
In the box
- Blackmagic Design HyperDeck Shuttle 4K Pro (2TB)
- M.2 PCIe NVMe Card (2TB)
- 12 VDC Universal Power Supply
