Description

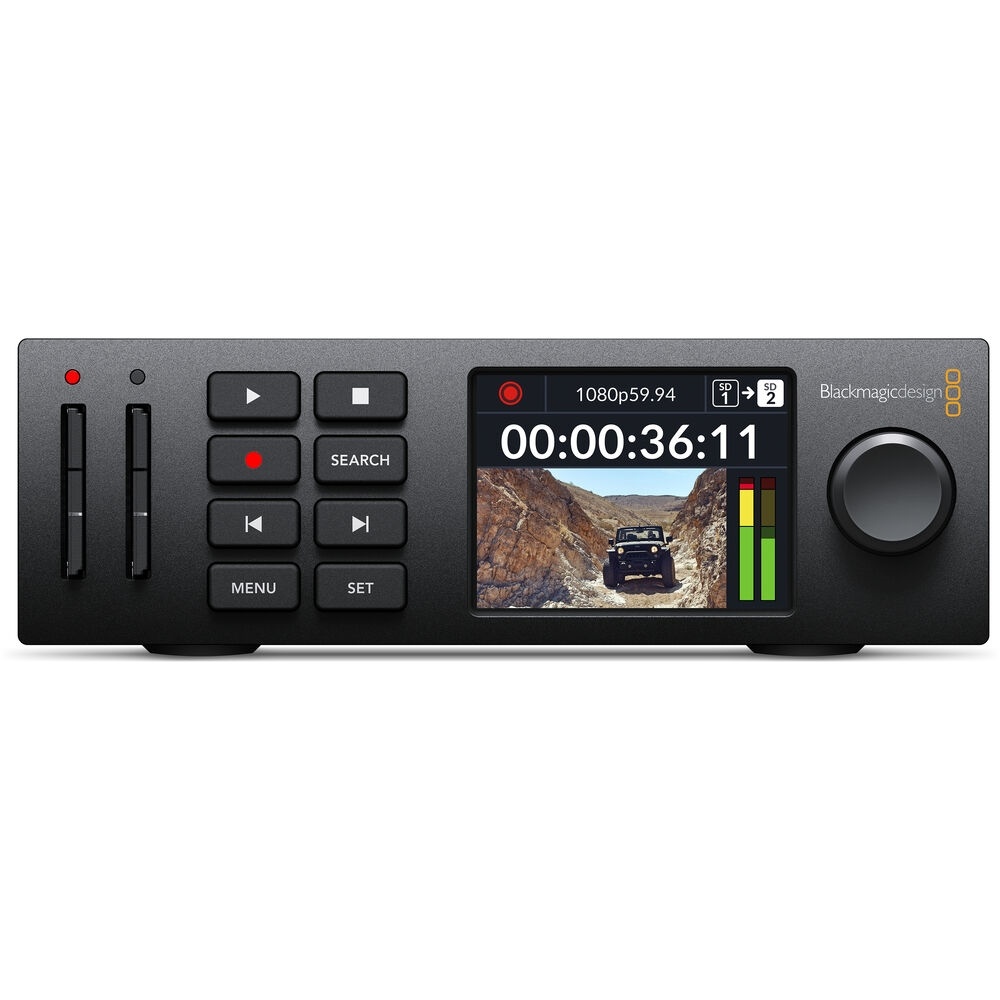

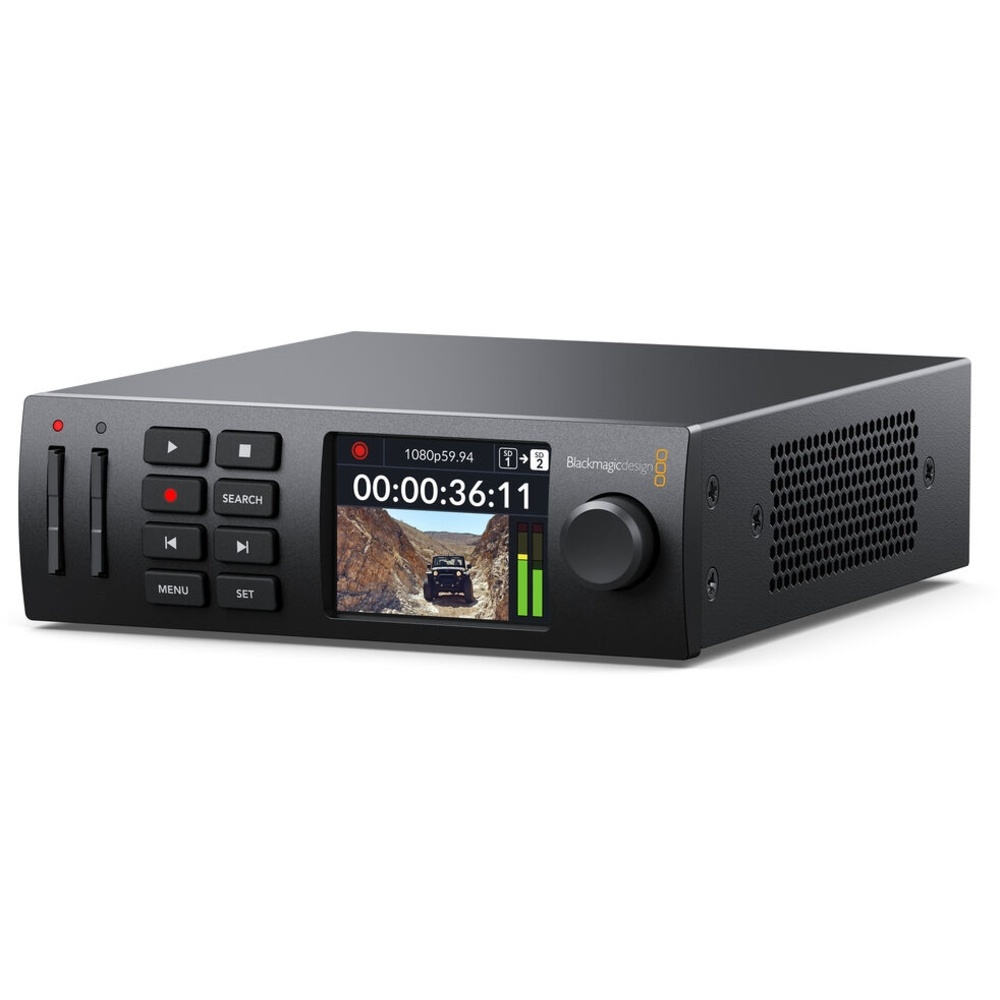

The Blackmagic Design HyperDeck Studio HD Mini is a compact video recorder and playback deck for SD, HD and up to 2K DCI work. It suits users who need a small deck for recording, playback or live output in a studio, on location or in a rack. Its main job is to capture and play back video through SDI, HDMI and USB-C while keeping sync and timecode available.
It has 1 x 3G-SDI input, 1 x 3G-SDI output, 1 x HDMI Type A output and 1 x USB-C connection for webcam use or external recording of SD, HD and 2K DCI. It also includes 2 SD card slots, timecode in and out, and reference in and out. Recording supports 4:2:2 YUV at 10-bit colour depth, with auto detection of SD and HD.
In practice, it can be used with cameras, switchers, monitors and edit systems that accept SDI or HDMI connections. It is also set up for remote operation over Ethernet and deck control over RS-422. The box includes the Blackmagic Design HyperDeck Studio HD Mini and a software CD.
Specifications
| Connectivity | |
|---|---|
| Video Input | 3G-SDI: 1 x BNC |
| Video Output | 3G-SDI: 1 x BNC HDMI: 1 x HDMI (Type A) USB: 1 x Type-C (Webcam or External Recording of SD, HD, 2K DCI) |
| Timecode | In: 1 x BNC Out: 1 x BNC |
| Reference | Tri-Sync or Black Burst Input Connector: 1 x BNC Output Connector: 1 x BNC |
| Audio Input | None (Embedded Audio Only, 16 Channels) |
| Audio Output | None (Embedded Audio Only, 16 Channels SDI, 8 Channels HDMI) |
| Device Control | 1 x RS-422 Deck Control Port on DB9 Female |
| Ethernet | 1 x RJ45 for Remote Operation |
| Media Interface | 2 x SD Slots Media Type: UHS I and UHS II Format: ExFAT or HFS+ |
| Standards | |
| Supported Resolutions | 2K 2048 x 1080p: 30/29.97/25/24/23.98 HD 1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i: 60/59.94/50 1280 x 720p: 60/59.94/50 SD NTSC PAL |
| SDI Compliance | SMPTE 259M//292M/296M/372M/424M/425M level A and B SMPTE 2084 SMPTE 2108‑1 |
| SDI Metadata Support | HD RP188 and closed captioning CEA‑708 HDR Metadata supported on SDI |
| Video Sampling | 4:2:2 YUV |
| Colour Depth | 10-Bit |
| Colour Space | REC 601 REC 709 REC 2020 |
| HDR Support | Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 |
| Multi Rate Support | Auto Detection of SD and HD |
| Audio Sampling | Television Standard 48 kHz, 24-Bit |
| Supported Codecs | ProRes HQ QuickTime 422 QuickTime LT QuickTime Proxy QuickTime for all formats up to 1080p60 DNxHD 220x 220x MXF 145 145 MXF 45 45 MXF for 720p and 1080p HD formats up to 60fps H.264 SDI 4:2:2 10‑bit High 4:2:0 8‑bit Medium 4:2:0 8‑bit Low 4:2:0 8‑bit for all progressive formats up to 1080p60 |
| System Requirements | |
| Operating System | macOS: 10.15(Catalina), 11.5 (Big Sur) or Later Windows: 10 64-Bit |
| General | |
| Rack Height | 1 RU |
| Power Supply | AC 100 to 240 VAC, 50/60 Hz DC 12 VDC; 1 x Locking 5.5mm Barrel |
| Operating Temperature | 41 to 122°F / 5 to 50°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Relative Humidity | 0 to 90% Non-Condensing |
| Dimensions | 6.96 x 5.51 x 1.74" / 17.68 x 14 x 4.42 cm |
| Weight | 1.8 lb / 0.82 kg |
In the box
- Blackmagic Design HyperDeck Studio HD Mini
- Software CD
