Description

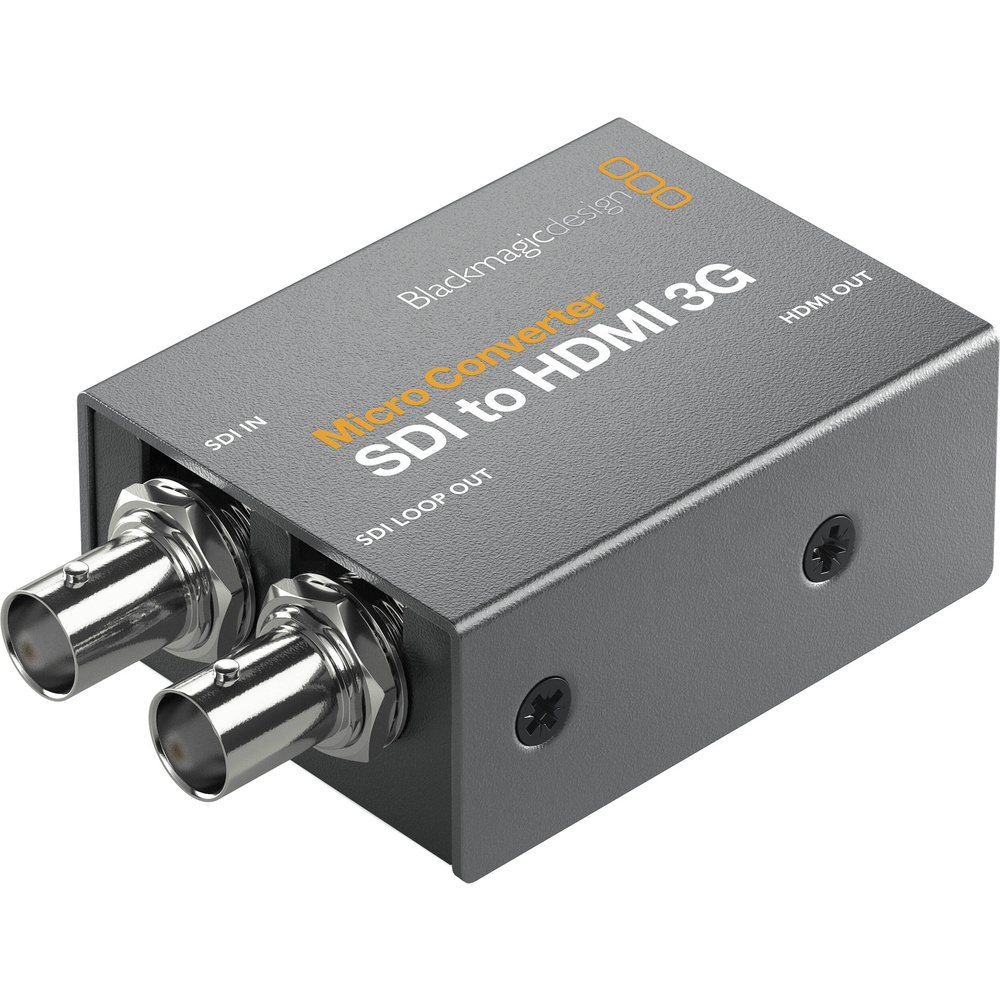

The Blackmagic Micro Converter SDI to HDMI 3G is a compact signal converter for turning SDI sources into HDMI feeds. It suits users who need to connect a camera, switcher or other SDI device to a monitor, projector or television. It also provides an SDI loop output, which helps when you need to pass the signal on to another device.
It accepts one 3G-SDI input and outputs HDMI Type A plus an SDI loop output. It supports embedded audio over HDMI and SDI, HDCP 2.2, and SMPTE 259M, 292M, 296M, 424M, 425M-A and 425M-B standards. It also includes 3D LUT support for calibration or loop output, USB-C power input, and a tally light.
In practice, it is used between an SDI source and an HDMI display, with the loop output available for daisy chaining or monitoring. It works with macOS 10.14.15 or later and Windows 10. The box includes the Blackmagic Micro Converter SDI to HDMI 3G and a power supply.
Specifications
| Inputs / Outputs | |
|---|---|
| Video Inputs | 1x BNC (3G-SDI) |
| Audio Inputs | No |
| Video Outputs | 1x BNC (3G-SDI) (Loop Output) 1x HDMI |
| Audio Outputs | No |
| Other I/O | 1x USB-C Input |
| Expansion Slots | No |
| Format Support | |
| Input Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 59.94 fps 576i / 625 lines 50 fps |
| Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps |
| Embedded Audio | HDMI/SDI |
| Standards | |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M-A/425M-B |
| HDCP Support | Yes, Version 2.2 |
| Hardware | |
| Tally Light | Yes |
| OS Compatibility | macOS 10.14.15 or Later Windows 10 |
| Power | |
| Power I/O | 1x USB-C (4.4 to 5.2 VDC ) Input |
| Power Consumption | 2.5 W |
| Environmental | |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% |
| General | |
| Dimensions | 3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm |
| Weight | 5.29 oz / 150 g |
In the box
- Blackmagic Micro Converter SDI to HDMI 3G
- Power supply
