Description

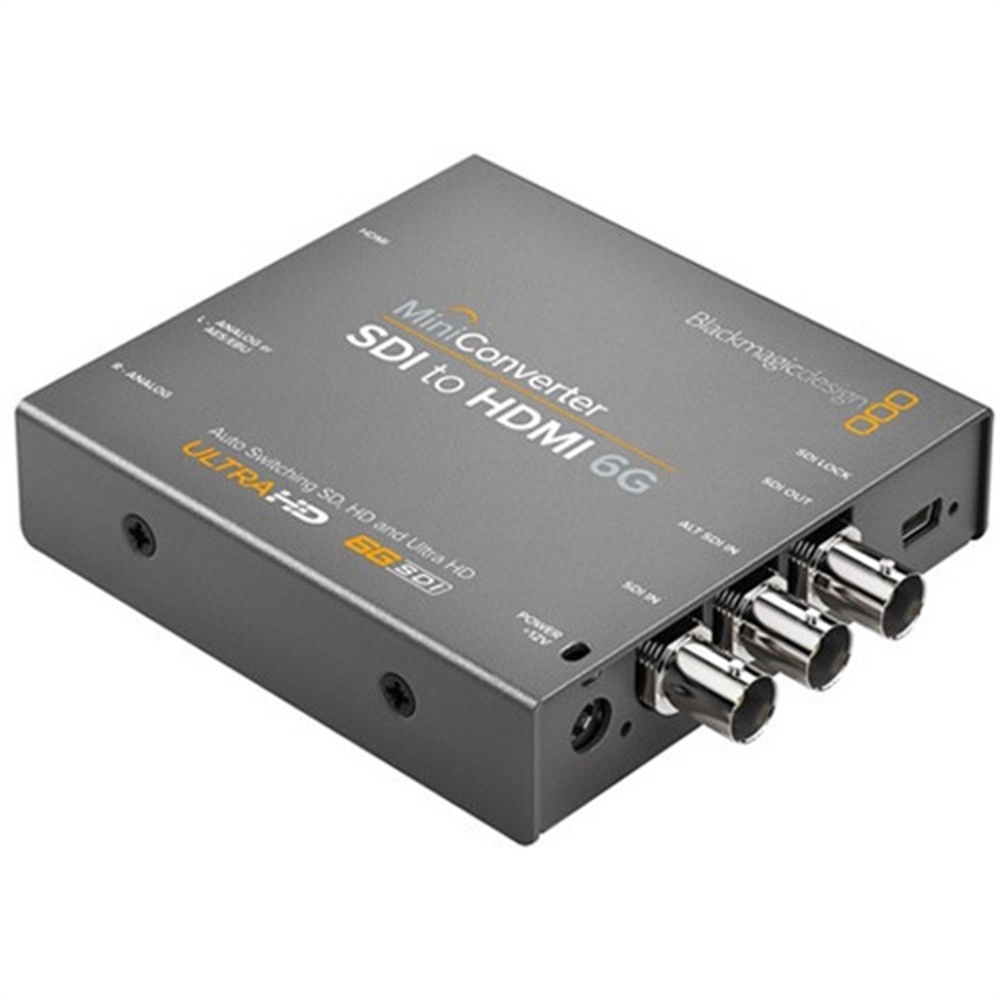

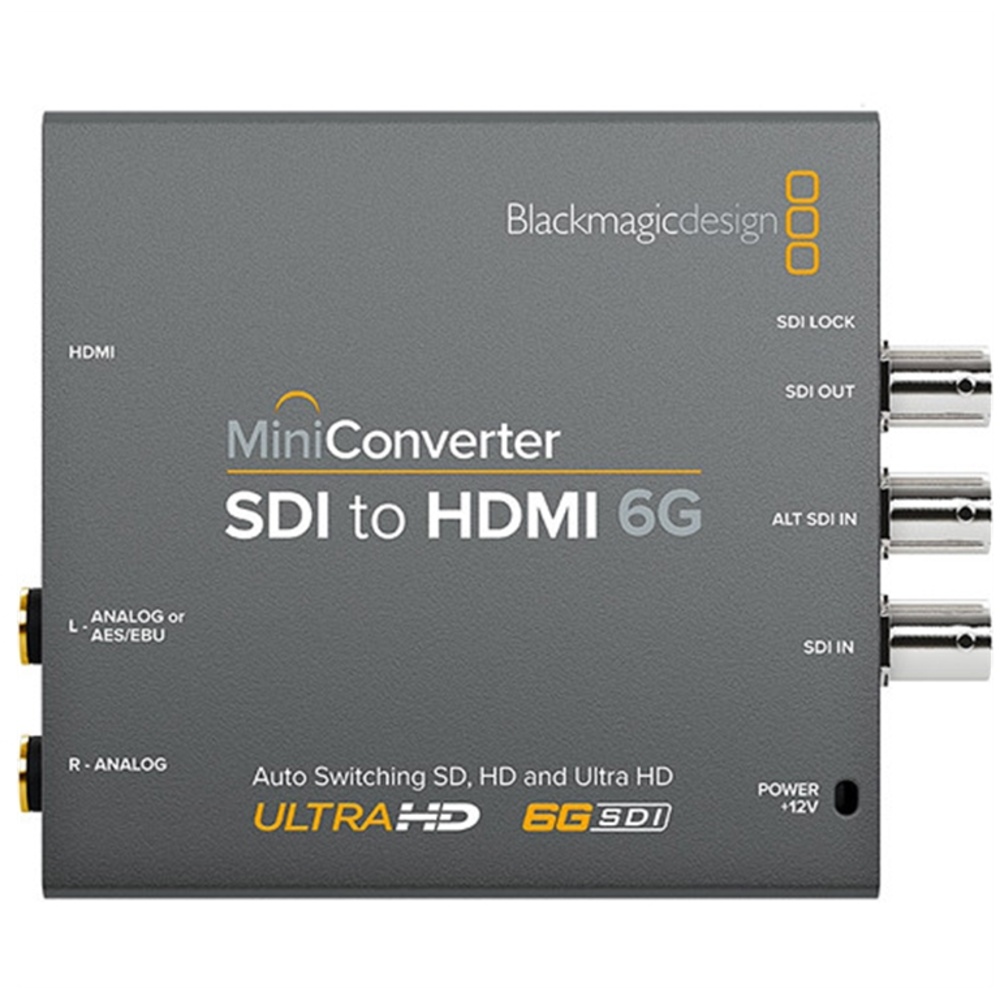

The Blackmagic Design Mini Converter - SDI to HDMI 6G is a signal converter.
Highlights include 2 x 4K SDI Input, 1 x HDMI type A and 1 x SDI output, supports SD, HD, UHD 4K & DCI 4K signals, automatic input signal detection and 24-Bit, 48 kHz Audio.
Key specifications: weight 256.85 g; dimensions 11.40 x 9.22 x 2.29 cm; video input 2 x 6G-SDI; video output 1 x HDMI type A 1 x 6G-SDI; Multi-Rate support Auto detection of SD, HD, or 4K signals.
In the box: Blackmagic Design mini converter - SDI to HDMI 6G and 12V Power Supply with International Socket Adapters. Manufacturer model number CONVMBSH.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Video Input | 2 x 6G-SDI |
|---|---|
| Video Output | 1 x HDMI type A 1 x 6G-SDI |
| Multi-Rate Support | Auto detection of SD, HD, or 4K signals |
| Reclocking | Yes |
| Audio Output | Analogue: 2 channels with 1 x 1/4" (6.3 mm) jack per channel AES/EBU: 4 channels with 1 x 1/4" jack (6.3 mm) |
| Format Support | DCI 4K 24p UHD 4K 3840x2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD: NTSC: 525i/59.94 PAL: 625i/50 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A or Level B, SMPTE ST-2081 |
| SDI Video Rates | SDI video connections are switchable between standard definition, high definition, Level A or Level B 3G-SDI and 6G-SDI. |
| SDI Video Sampling | 4:2:2 4:4:4 |
| SDI Colour Precision | 4:2:2 4:4:4 |
| SDI Colour Space | YUV RGB |
| SDI Audio Sampling | 24-bit, 48 kHz |
| SDI Auto Switching | Automatically detects SD, HD, or 6G-SDI |
| HDMI Format Support | UHD 4K 3840x2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD: NTSC: 525i/59.94 PAL: 625i/50 |
| HDMI Colour Space | YUV and RGB |
| HDMI Colour Precision | 4:2:2 4:4:4 |
| Format Conversion | HD down conversion |

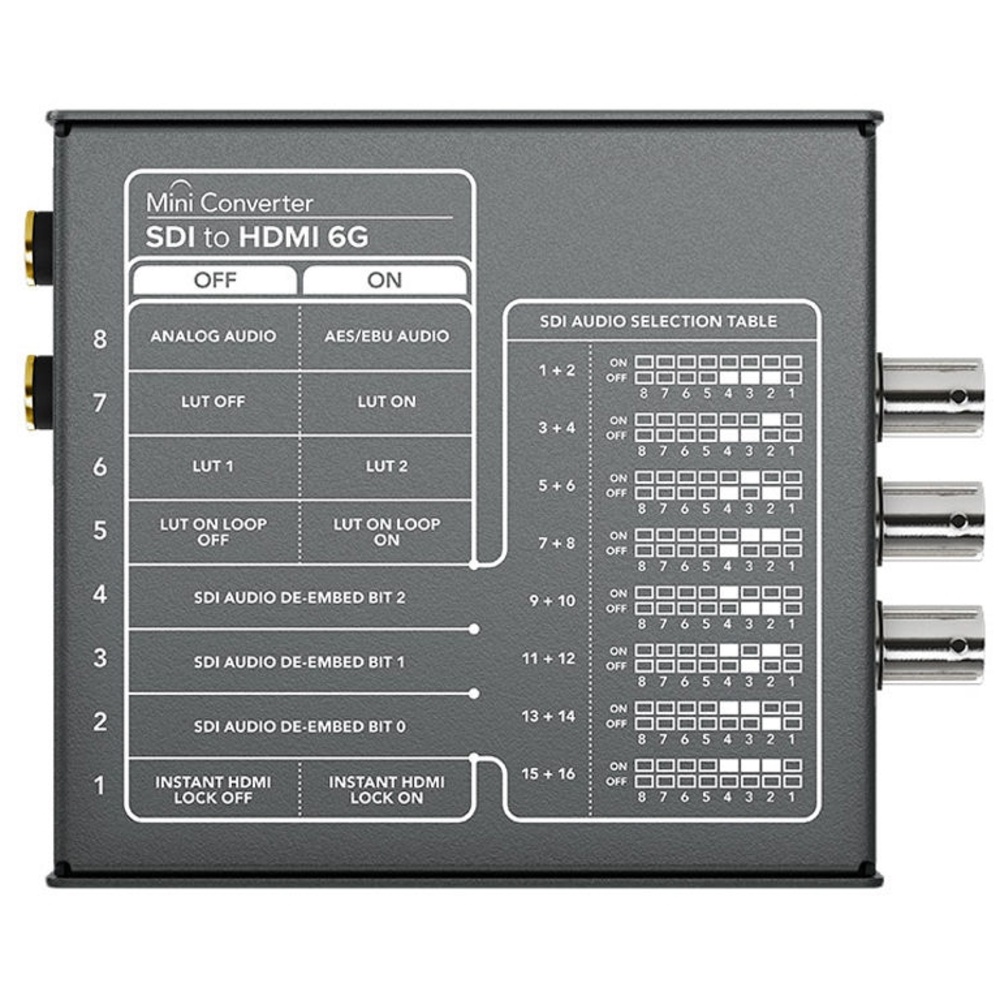

| Settings Control | Mini switches or USB software |
| Firmware Upgradeable | Via USB |
| Power Supply | 12 VDC |
| Power Consumption | 5.2 W |
| Operational Voltage Range | 12 to 31 VDC |
| Operating Temperature | 32 to 104°F / 0 to 40 °C |
| Storage Temperature | -4 to 113°F / -20 to 45 °C |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | 11.40 x 9.22 x 2.29 cm |
| Weight | 256.85 g |
In the box
- Blackmagic Design Mini Converter - SDI to HDMI 6G
- 12V Power Supply with International Socket Adapters
