Description

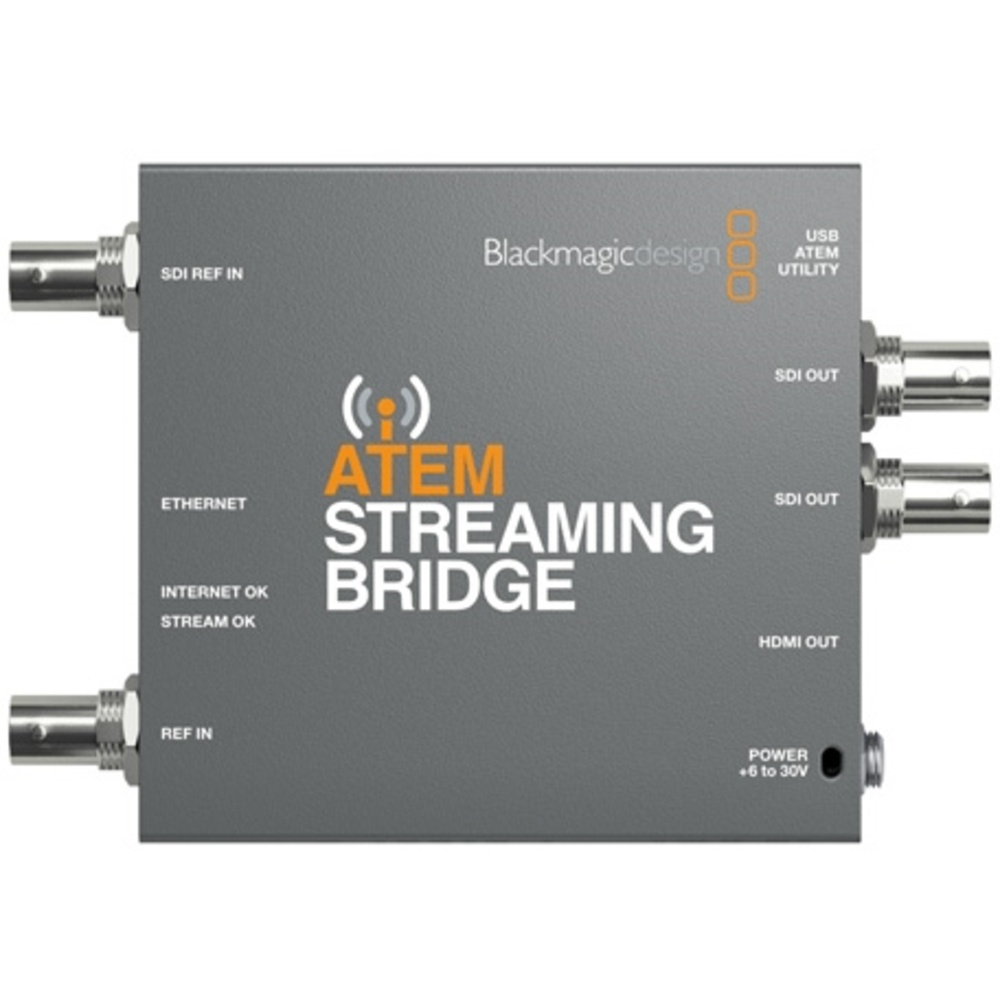

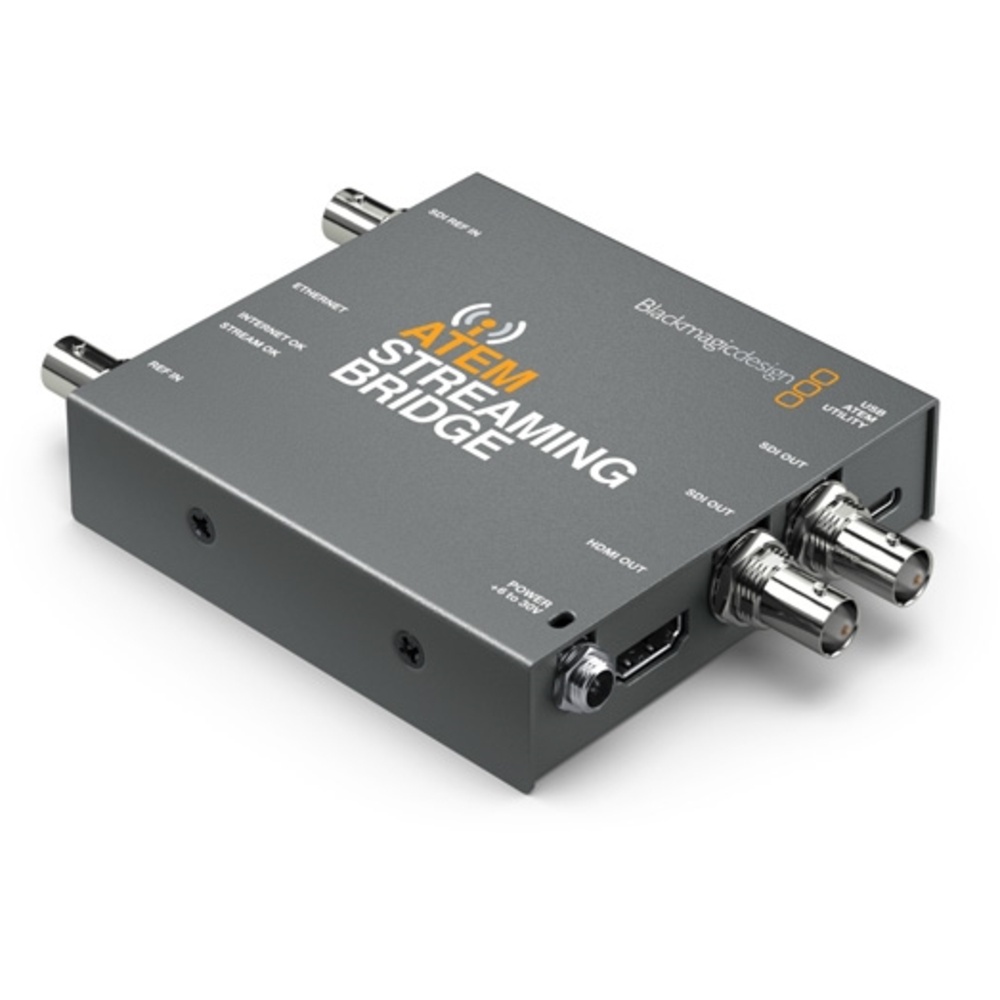

The Blackmagic ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers is a signal converter. Designed for ATEM Mini Pro Streaming Switchers.
Highlights include for any ATEM mini Pro streaming switcher, HDMI and SDI Outputs, up to 1080p60 resolution output, direct, network, and internet connection and IP addressable, software controllable.
Key specifications: weight 8.1 oz / 230 g; dimensions 5.28 x 3.63 x 0.9" / 13.41 x 9.22 x 2.29 cm; video outputs 2x BNC (3G-SDI) 1x HDMI (1.4); other I/O 1x RJ45 2x BNC Reference; video standard compliance SMPTE 259M/292M/296M/424M-B/425M-A/425M-B.
Manufacturer model number SWATEMMINISBPR.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Inputs / Outputs | |
|---|---|
| Audio Inputs | No |
| Video Outputs | 2x BNC (3G-SDI) 1x HDMI (1.4) |
| Audio Outputs | No |
| Other I/O | 1x RJ45 2x BNC Reference |
| Expansion Slots | No |
| Format Support | |
| Output Video Format | HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps |
| Standards | |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M-B/425M-A/425M-B |
| IP Streaming | |
| Video IP Decoding | H.264: 1920 x 1080 |
| Power | |
| Power I/O | 1x Barrel (6 to 30 VDC ) Input |
| Power Consumption | Device: 6 W |
| Environmental | |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% (Recommended) |
| General | |
| Certifications | COE, FCC, Kcc |
| Dimensions | 5.28 x 3.63 x 0.9" / 13.41 x 9.22 x 2.29 cm |
| Weight | 8.1 oz / 230 g |
In the box
- Blackmagic Design ATEM Streaming Bridge for ATEM Mini Pro Streaming Switchers
