Description

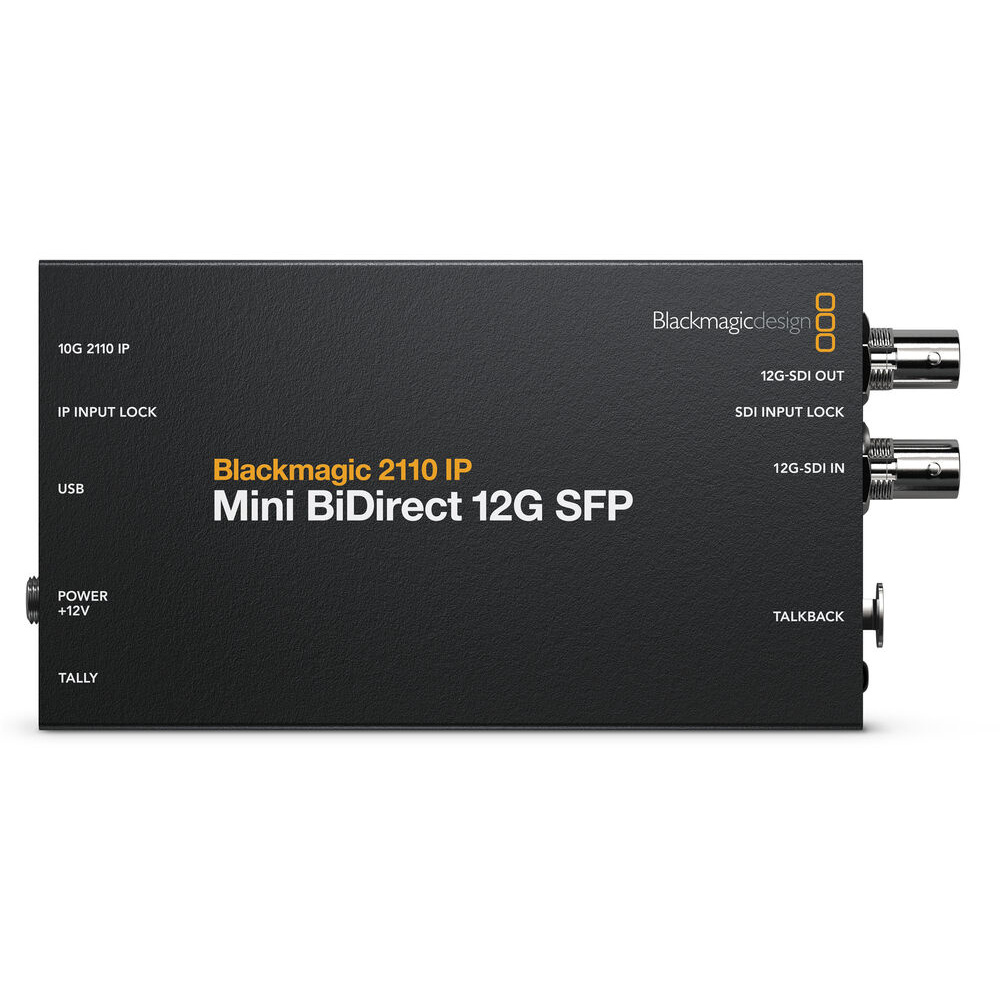

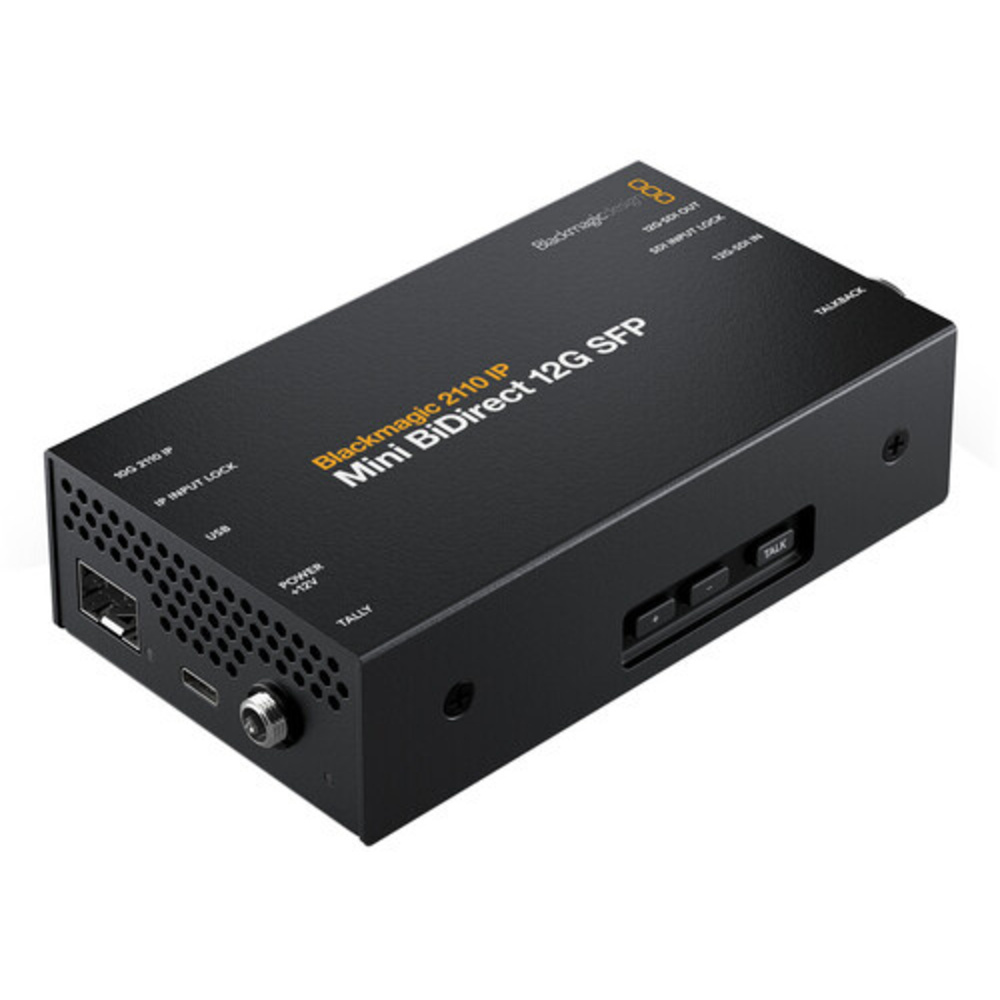

The Blackmagic 2110 IP Mini BiDirect 12G SFP Converter is a signal converter.
Highlights include 12G-SDI to SFP fibre convertor, video monitoring To/From studio Camera, supports UHD 4K video via SFP fibre, talkback control and Windows/macOS software utility.
Key specifications: dimensions 5.75 x 2.91 x 1.34" / 14.61 x 7.39 x 3.4 cm; OS compatibility macOS 13 or Later Windows 10 to 11; expansion slots 1x SFP Slot; embedded audio LAN (RJ45)/SDI; video standard compliance SMPTE: ST-2110.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Key Specs | |
|---|---|
| Video I/O | Input 1x BNC (12G-SDI) Female Output 1x BNC (12G-SDI) Female |
| Audio I/O | Input 1x XLR 5-Pin Analogue Female Output 1x XLR 5-Pin Analogue Female |
| Video Resolution | SDI Input/Output (4:2:2 YUV) 4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps 1920 x 1080PsF at 25/29.97/30 fps 1920 x 1080i at 25/29.97/30 fps 1280 x 720 at 50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps |
| Wireless | No |
| OS Compatibility | macOS 13 or Later Windows 10 to 11 |
| Other I/O | Input/Output 1x RJ45 (10 GbE) Input 1x USB-C (Firmware) |
| Expansion Slots | 1x SFP Slot |
| Embedded Audio | LAN (RJ45)/SDI |
| Standards | |
| Video Standard Compliance | SMPTE: ST-2110 |
| HDCP Support | No |
| HDR Support | Yes |
| Power | |
| Power I/O | 1x Barrel (12 to 16 VDC ) Input |
| PoE Support | PoE++ 802.3bt |
| Power Consumption | Device: 12 to 16 VDC (18 W) |
| General | |
| Operating Conditions | 41 to 104°F / 5 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C up to 90% Humidity |
| Dimensions | 5.75 x 2.91 x 1.34" / 14.61 x 7.39 x 3.4 cm |
In the box
- Blackmagic 2110 IP Mini BiDirect 12G SFP Convertor
