Description

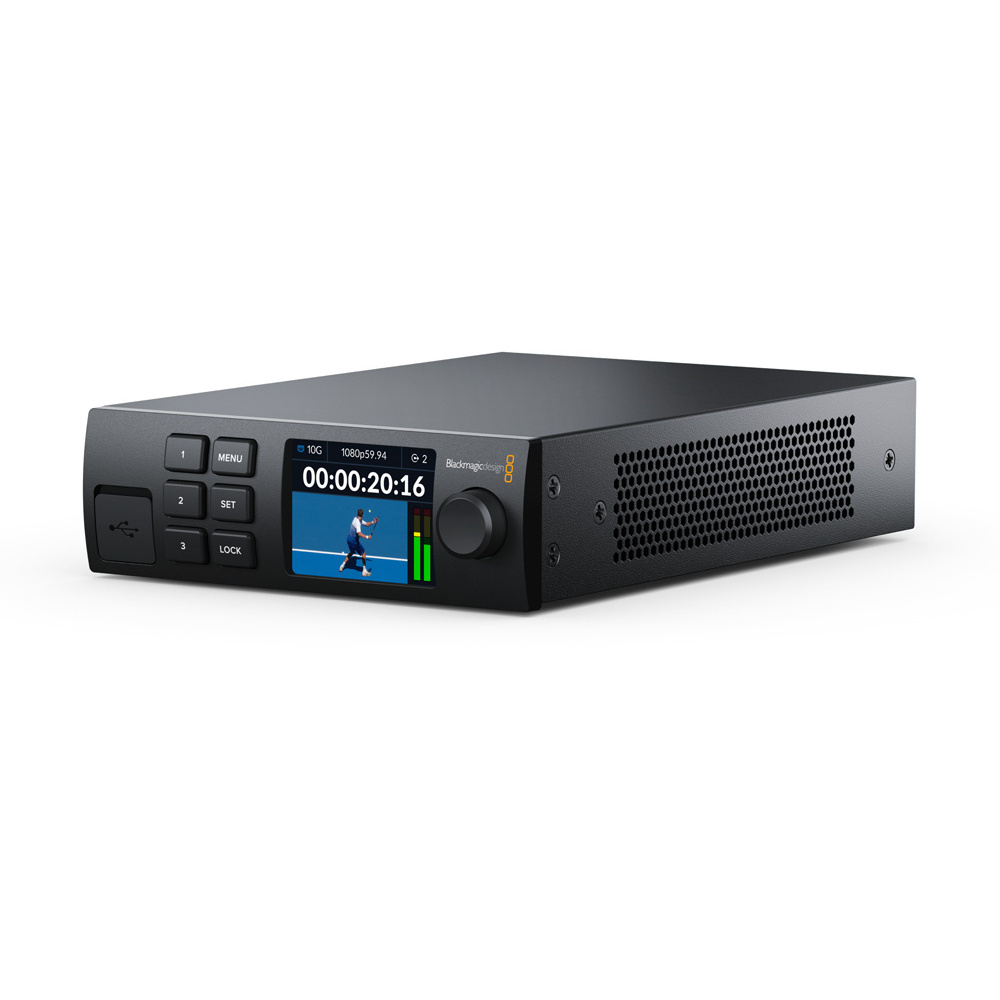

The Blackmagic 2110 IP Converter 3x3G is a signal converter.
Highlights include convert SDI equipment to 2110 IP video Systems, rack mount for installation into broadcast Systems, compact rack mountable Design, connect to any 3G‑SDI equipment and 10G ethernet for multiple SMPTE 2110 IP channels.
Key specifications: SDI inputs 3; SDI audio inputs 16 channels embedded audio.; reference output Tri-Sync or Black Burst; computer interface USB-C for updates, configuration and control.; SD video standards 525i59.94 NTSC, 625i50 PAL.
In the box: Blackmagic 2110 IP converter 3x3G and welcome wallet with QR code for software download. Manufacturer model number CONVNVIPA3/3G.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Connections | |
|---|---|
| SDI Inputs | 3 |
| SDI Loop Outputs | 3 |
| SDI Outputs | 3 |
| SDI Audio Inputs | 16 channels embedded audio. |
| SMPTE 2110 Input / Output | 10G Ethernet supports 3 x video input channels and 3 x video output channels each up to 1080p60 and up to 16 channels of embedded audio plus ancillary data. |
| 10G Ethernet Port | 1 x 10Gb/s PoE+ RJ‑45 connector supports 10/100/1000/10G BASE-T. |
| Reference Output | Tri-Sync or Black Burst |
| Computer Interface | USB-C for updates, configuration and control. |
| Video Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and level B, ITUR BT.656, ITU-R BT.601. |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning |
| Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| Colour Precision | 8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. |
| Color Space | REC 601, REC 709 |
| IP Video Compliance | |
| SMPTE 2110-20 (Uncompressed Video) | IGMP v2 |
| SMPTE 2110-21 (Traffic Shaping) | Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous |
| SMPTE 2110-30 (PCM) | Audio Conformance level: Level C |
| SMPTE 2110-40 (Ancillary Data) | Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
| Precision Time Protocol. | IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 |
| NMOS IS-04 Discovery and Registration | v1.3.2 Peer-to-peer via mDNS/DNS-SD |
| NMOS IS-05 Connection Management | v1.1.2 |
| NMOS BCP-002-01 | Natural Grouping |
| NMOS BCP-004-01 | Receiver capabilities |
| Control | |

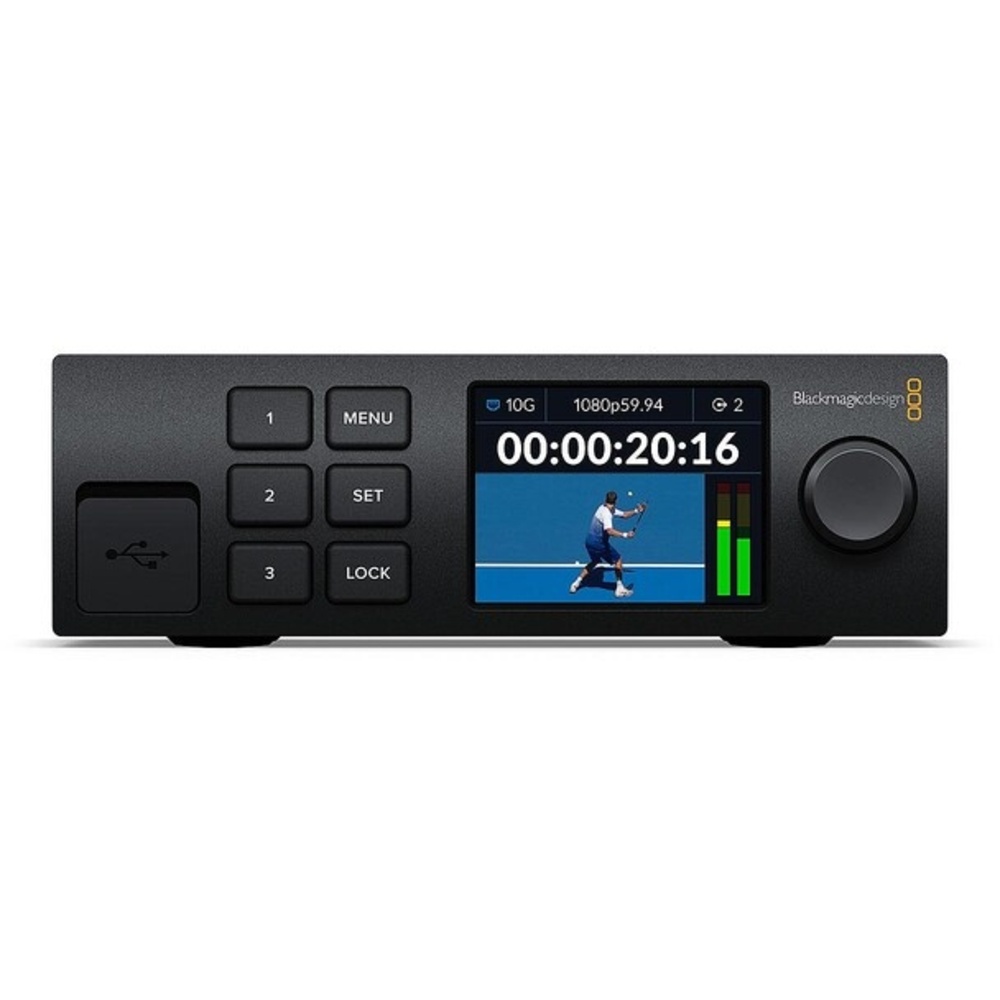

| Built in Control Panel | 6 buttons with spin knob control and 2.2 inch color display for device control and menu settings. |
| External Control | RJ-45 10Gb/s Ethernet and USB-C. |
| Display | Built in 2.2 inch LCD for video, video standard, audio and timecode monitoring plus menu setting |
| Power Supply | 1 x Internal 100 - 240V AC 50/60Hz. |
| Power Inputs | 1 x IEC C14 socket for AC power. 1 x RJ45 Ethernet connector for power from PoE power supplies. |
In the box
- Blackmagic 2110 IP Converter 3x3G
- Welcome wallet with QR code for software download
