Description

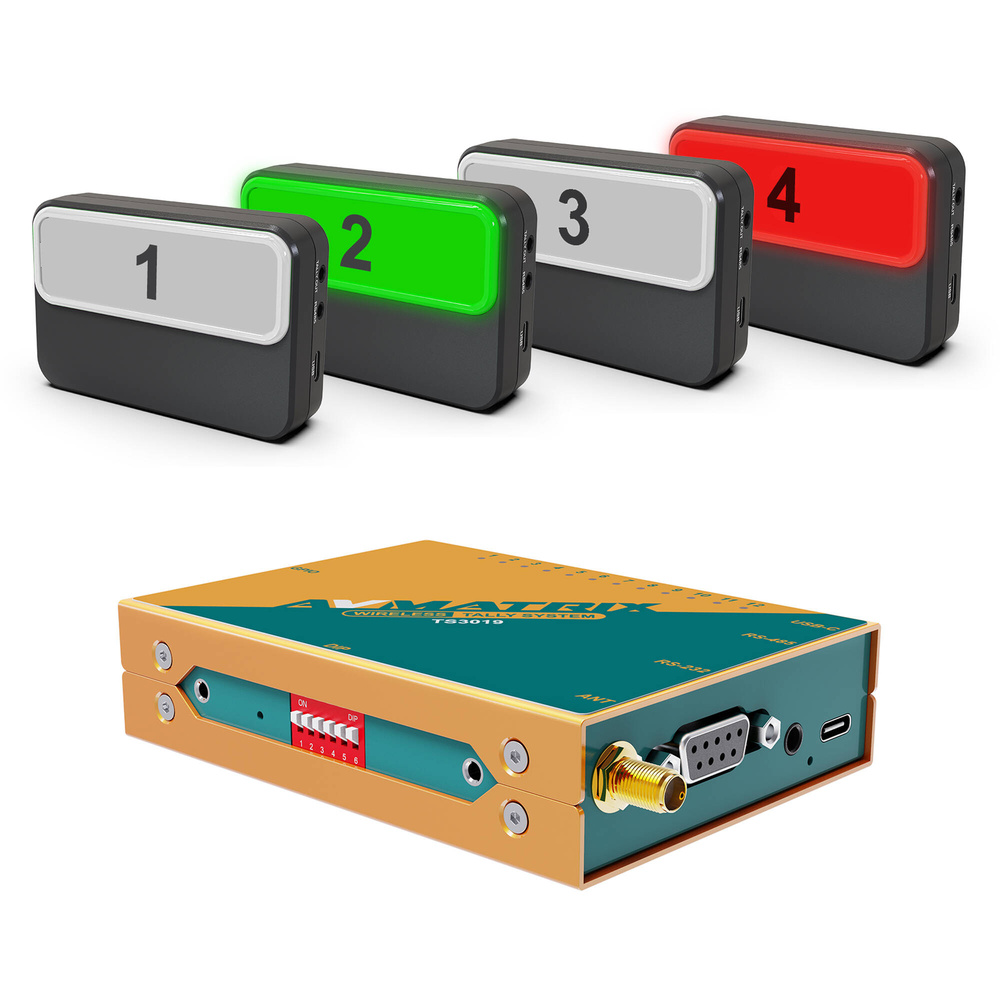

The AVMATRIX TS3019-4 is a wireless tally light system with one tally box and four tally lamps. It suits multi-camera studios, live production crews and switcher operators who need clear on-air indication for camera talent and camera operators.
It supports wireless transmission up to 200 m and offers GPIO, USB, RS-232 and RS-485 interfaces. The tally box has five USB Type-C female inputs, Wi-Fi, and bottom mounting with four 1/4-20 threads. Power can come from USB or a 18650 lithium-ion battery, with 5 VDC at 1 A input and 0.2 W to 2.5 W power consumption.
In use, the tally box connects to compatible switchers and vMix setups, then sends tally status to the four lamps. Each lamp has front and rear indicators for on-air status. The box, four lamps, power adapter, antenna, GPIO connector, USB Type-C cable and carrying case are included.
Specifications
| Inputs / Outputs | |
|---|---|
| USB | 5 x USB Type-C Female Input |
| Control I/O | 1 x DB-9, RS-232 Input (Tally Box) 1 x Barrel, RS-485 Input (Tally Box) 1 x GPIO Input (Tally Box) 1 x 1-Pin, Antenna Input 1 x Barrel, RS-485 Input (Per Tally Lamp) 1 x Barrel, Tally Output (Per Tally Lamp) |
| Wireless | |
| Wi-Fi | Yes |
| Power | |
| Power Source | USB (Included) , Battery |
| Battery Type | 1 x 18650 Lithium-Ion |
| DC Input Power | 5 VDC at 1 A |
| Power Consumption | 0.2 W 2.5 W |
| Environmental | |
| Operating Temperature | -20 to 60°C |
| Storage Temperature | -30 to 70°C |
| Physical | |
| Mounting | Bottom: 4 x 1/4"-20 Thread |
| Dimensions | 104 x 75.5 x 24.5 mm (Tally Box) 98.5 x 65 x 26.5 mm (Tally Lamp) |
| Weight | 327 g (Tally Box) 90 g (Tally Lamp) |
In the box
- AVMATRIX Wireless Multi-Camera Tally Light System (4 x Tally Lamps)
- Tally Box
- Tally Lamp
- Power Adapter
- Antenna
- GPIO Connector
- USB Type-C Cable
- Carrying Case
