Description

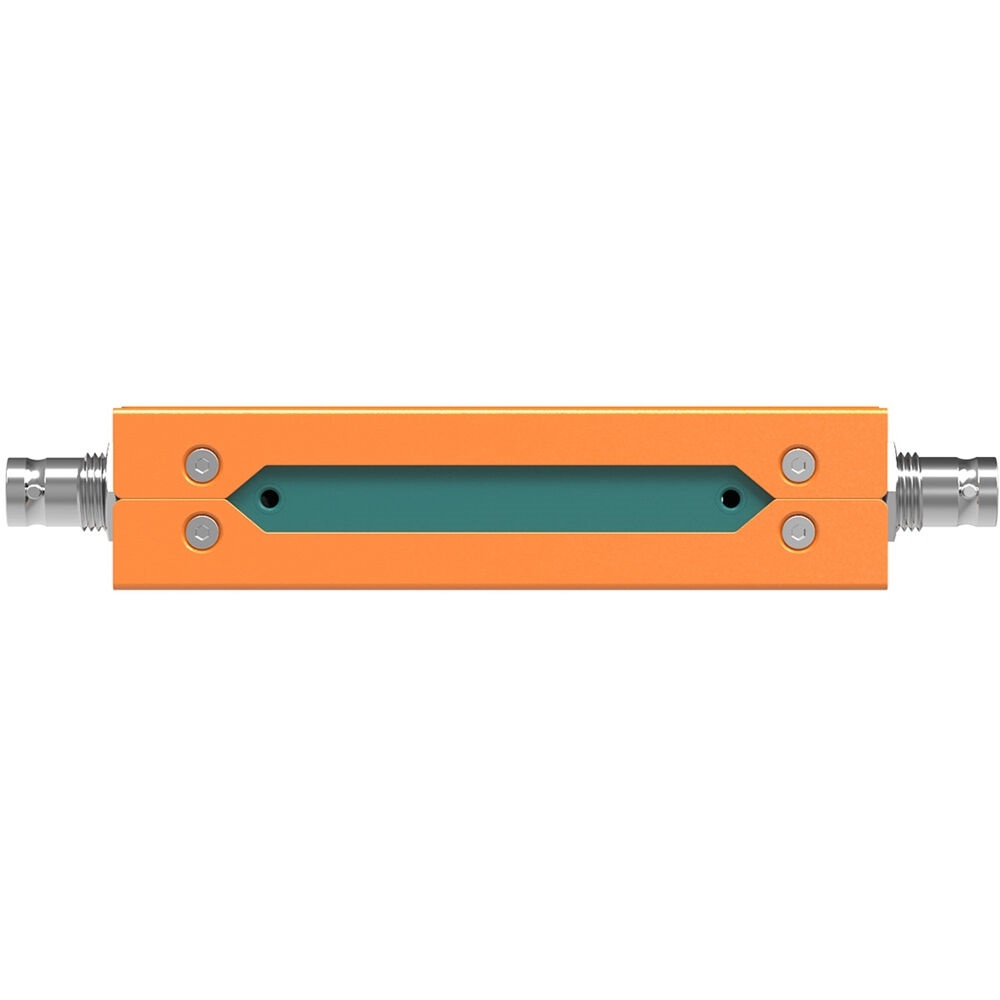

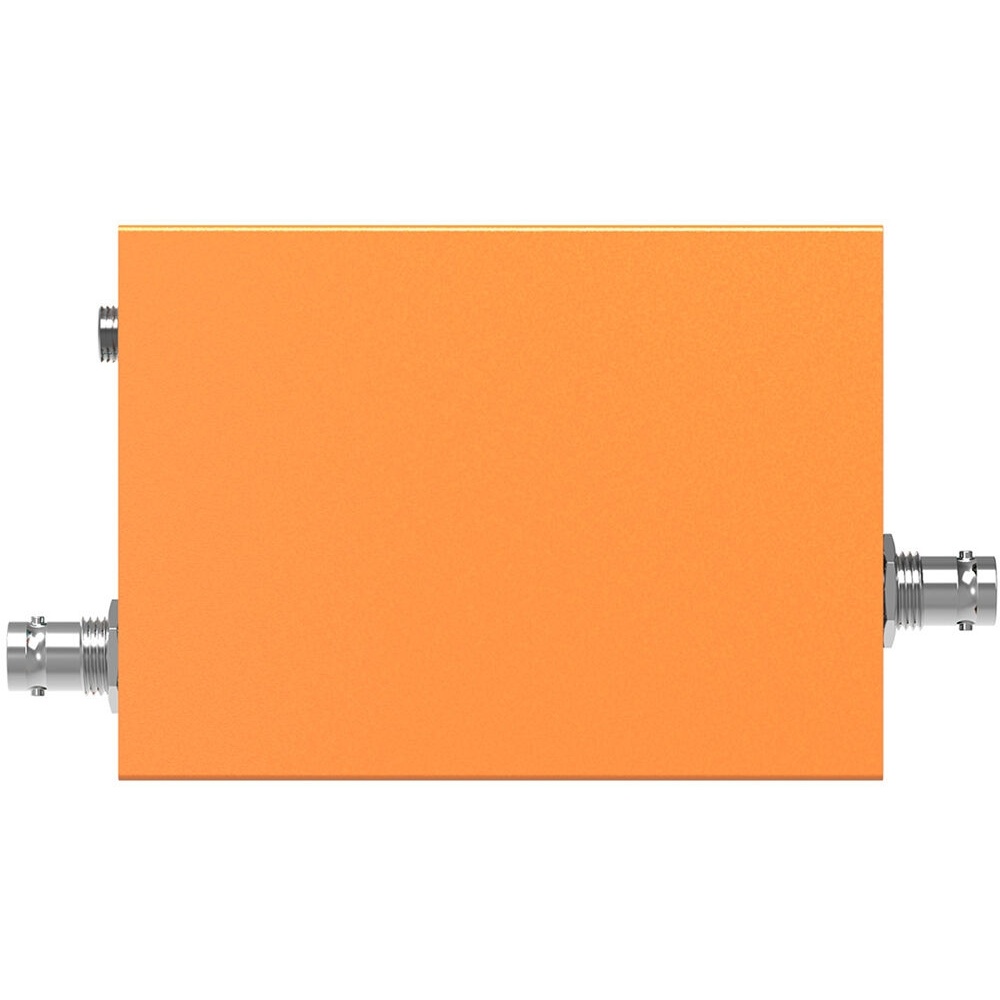

AV Matrix SE1117 H.264/H.265 SDI Streaming Encoder: a signal converter.
Highlights include 1x SDI input, 1x SDI loop out, 1x Analog audio input and dual-stream (main stream and sub stream). Supports H.265/ H.264 stream encoding protocol, up to 1080p60. RTSP, RTP, RTMPS, RTMP, HTTP, UDP, SRT, unicast and multicast.
Key specifications: weight Net weight: 310g, Gross weight: 690g; video input SDI ×1; analog audio in 3.5mm(line in)×1; network RJ-45×1(100/1000Mbps self-adaptive Ethernet); video coding H.265/ H.264.
In the box: AV Matrix SE1117 H.264/H.265 SDI Streaming Encoder and Power supply.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications

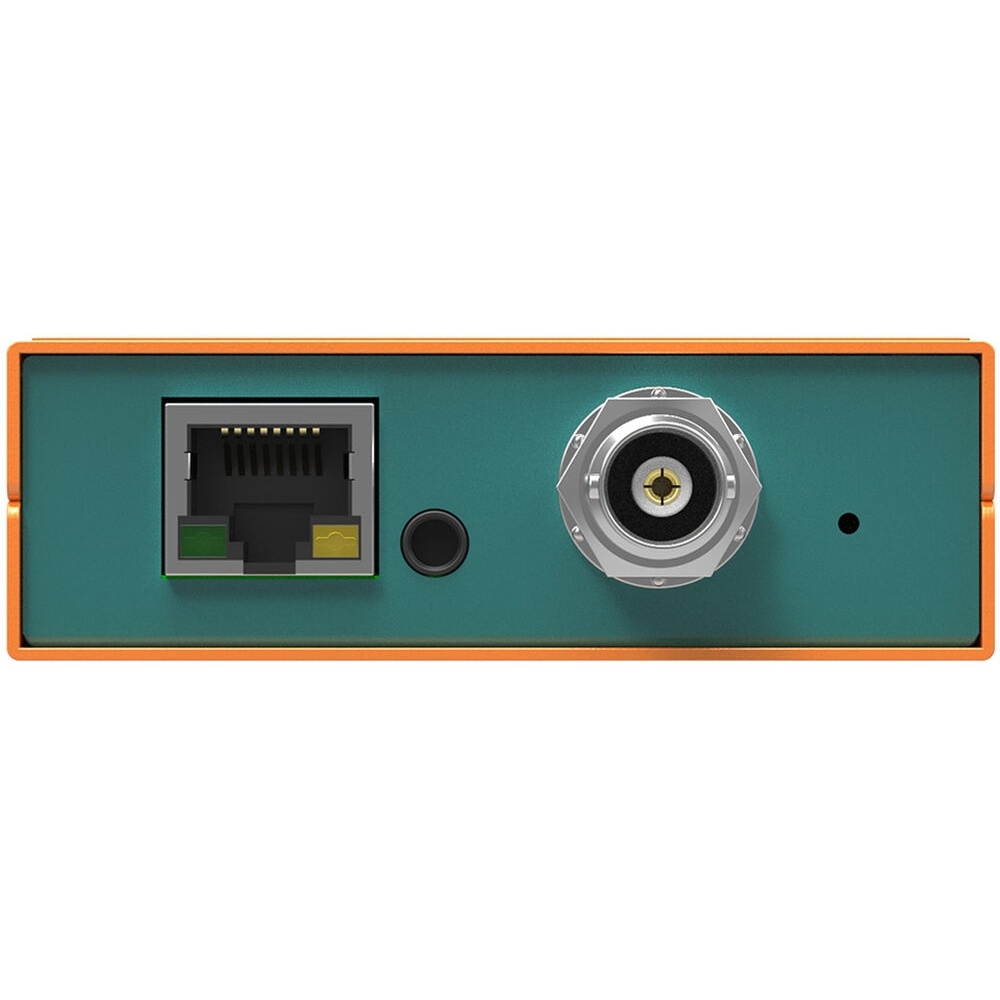

| Connections | |
|---|---|
| Video Input | SDI ×1 |
| Video Loop Out | SDI ×1 |
| Analog Audio In | 3.5mm(line in)×1 |
| Network | RJ-45×1(100/1000Mbps self-adaptive Ethernet) |
| Standards | |
| SDI In Format Support | 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976 1080i 50/59.94/60 720p 60/59.94/50/30/29.97/25/24/23.98 576i 50, 576p 50 480p 59.94/60 480i 59.94/60 |
| Video Coding | H.265/ H.264 |
| Video Bitrate | 16Kbps ~ 12MKbps |
| Audio Coding | ACC/ MP3/ MP2/ G711 |
| Audio Bitrate | 24Kbps ~ 320Kbps |
| Encoding Resolution | 1920×1080 1680×1056 1280×720 1024×576 960×540 850×480 720×576 720×540 720×480 720 ×404 720×400 704×576 640×480 640×360 |
| Encoding Frame Rate | 5-60fps |
| System | |
| Network Protocols | HTTP, RTSP, RTMP, RTP, UDP, Multicast, Unicast, SRT |
| Configuration Management | Web configuration, Remote upgrade |
| Physical | |
| Consumption | 5W |
| Temperature | Working temp: -0℃ , 40℃ Storage temp: -20℃ , 70℃ |
| Dimension (LWD) | 104×75.5×24.5mm |
| Weight | Net weight: 310g, Gross weight: 690g |
In the box
- AV Matrix SE1117 H.264/H.265 SDI Streaming Encoder
- Power Supply
