Description

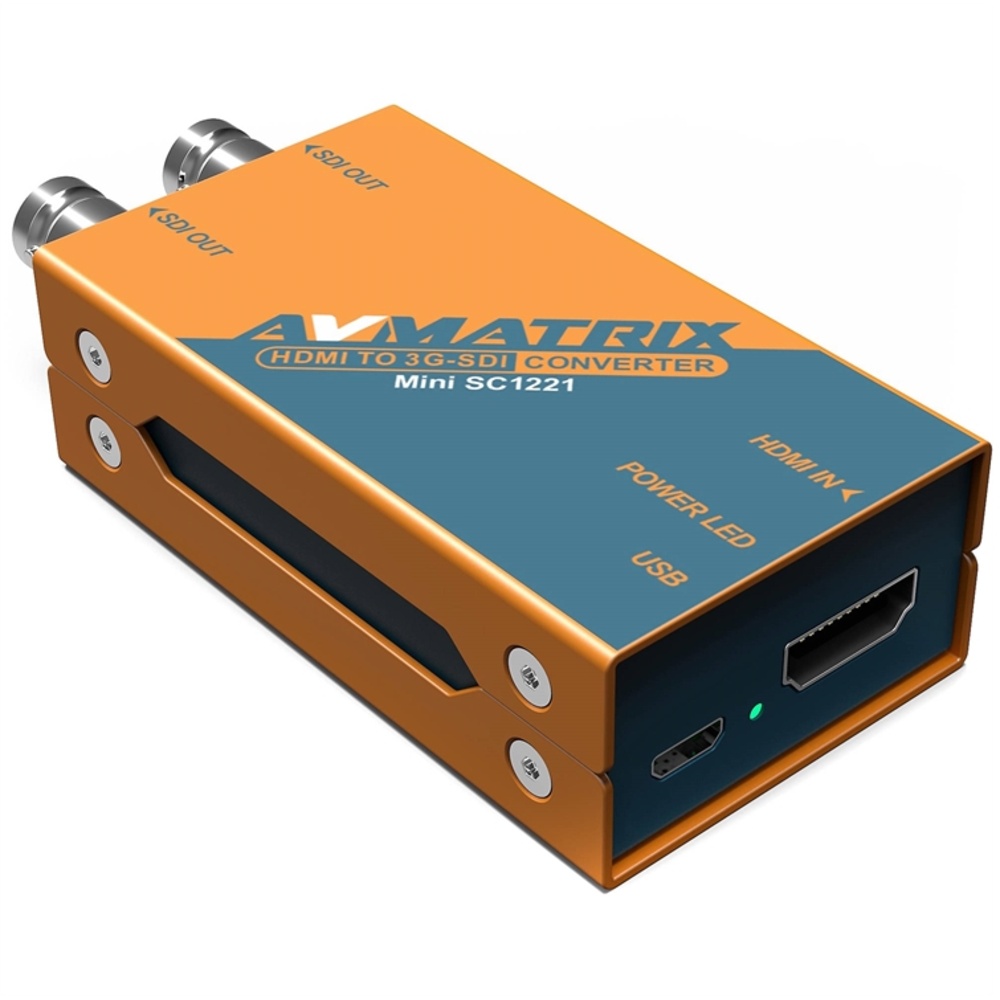

The AV Matrix Mini SC1221 HDMI to SDI (Dual) Pocket-Size Broadcast Converter is a signal converter.
Key specifications: input 1 x HDMI type-A; output 2 x 3G/HD/SD-SDI; SDI compliance SMPTE 292M/SMPTE 259M/SMPTE 424M; power port 1 x micro-USB; power consumption 2 W.
In the box: AV Matrix Mini SC1221 HDMI to Dual 3G-SDI Pocket-Size Broadcast Converter, mounting bracket, Power adapter and Micro-USB cable.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Input | 1 x HDMI type-A |
|---|---|
| Output | 2 x 3G/HD/SD-SDI |
| HDMI Format Support | 1080p at 50/59.94/60 fps 1080p at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 24/25/30/59.94/60 fps 576i at 50 fps 480i at 60 fps |
| HDMI Colour Space | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2 |
| SDI Format Support | 1080p at 50/59.94/60 fps 1080psf at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 24/25/30/50/59.94/60 fps 625i at 50 fps 525i at 59.94 fps |
| SDI Compliance | SMPTE 292M/SMPTE 259M/SMPTE 424M |
| SDI Colour Space | YUV 4:2:2 |
| Power Port | 1 x micro-USB |
| Power Consumption | 2 W |
| Voltage Range | 3.3 - 5 V |
| Operating Temperature | -20 to 60°C |
| Storage Temperature | -30 to 70°C |
| Relative Humidity | 0 to 90% non-condensing |
In the box
- AV Matrix Mini SC1221 HDMI to Dual 3G-SDI Pocket-Size Broadcast Converter
- Mounting Bracket
- Power Adapter
- Micro-USB Cable
