Description

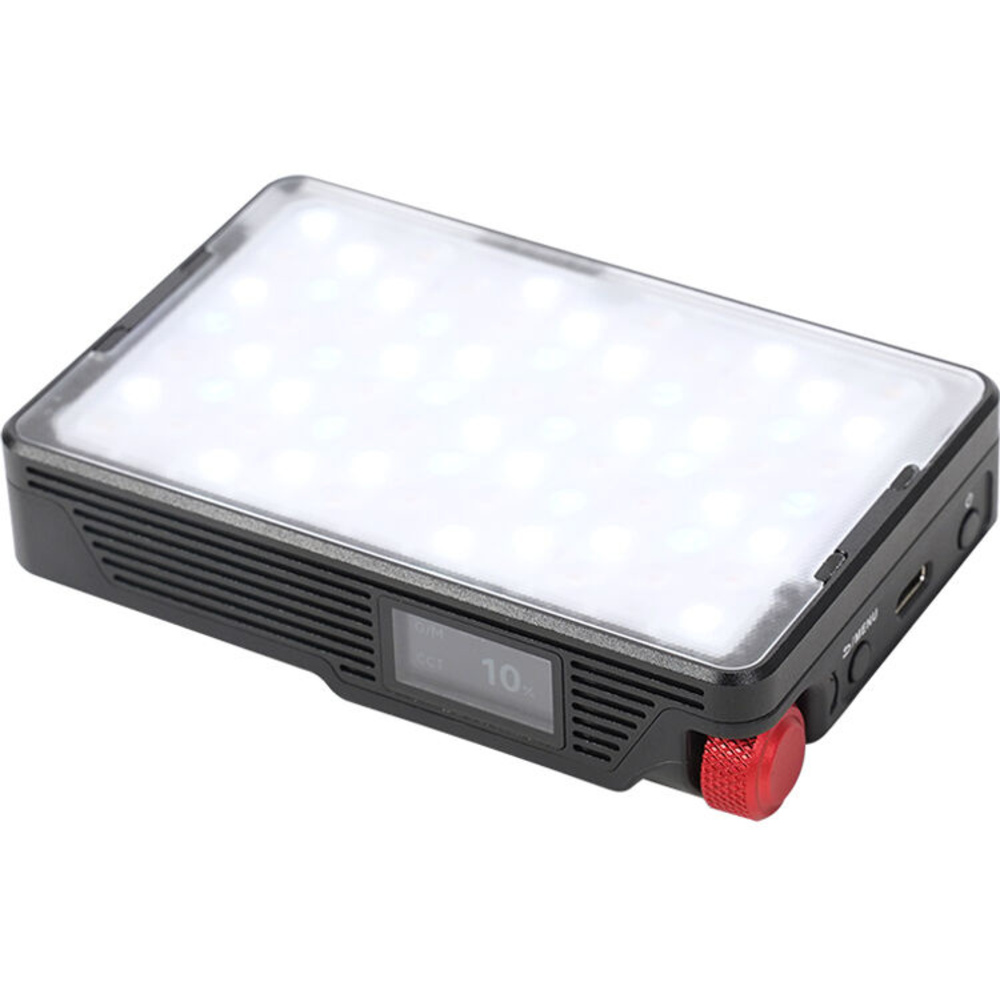

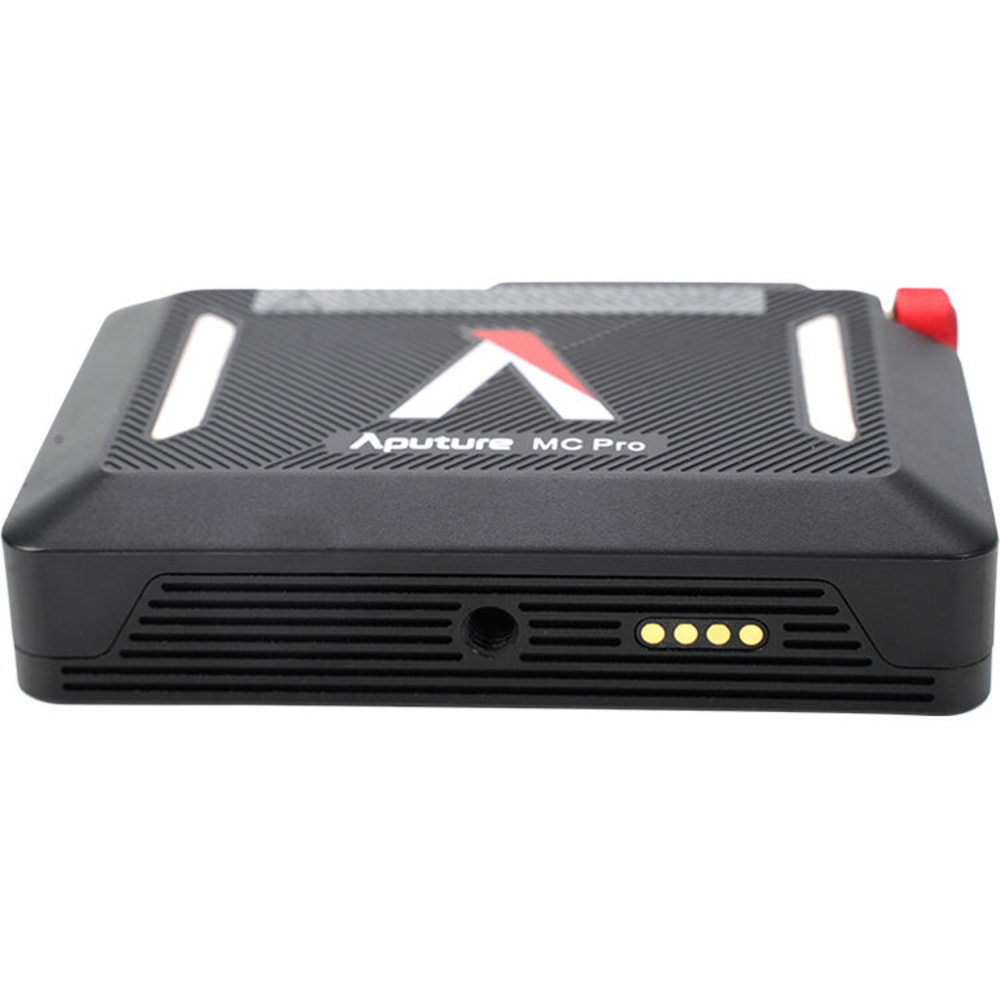

The Aputure MC Pro RGB LED Light Panel is a compact battery powered light for film, broadcast and video work. It suits creators who need a small fixture for camera use, accent lighting, or flexible colour control on set. Its 4.2 x 2.7 inch size makes it easy to place in tight spaces, while the built-in battery keeps it portable for location work.
It outputs 563 lumens and provides 396 lux at 1 m at 5600K. Colour temperature runs from 2000K to 10,000K, with RGB colour control and 0 to 100% built-in dimming. Colour accuracy is rated at CRI 96, TLCI 96, CQS 95, SSI 72 and 82, and TM-30 Rf 94. The beam angle is 45°, and cooling is passive.
In use, it can be controlled onboard, by DMX/RDM, CRMX or Bluetooth app control. The built-in lithium-ion polymer battery is 4200 mAh and charges over USB-C, with the included cable, case, flat diffuser, dome diffuser, 30° light control grid, cold shoe ball head and magnetic plate adapter supporting quick setup on camera rigs or small lighting stands.
Specifications
| Light Fixture | |
|---|---|
| Item Type | 1 x LED Light Panel |
| Included Filters | Diffusion |
| Included Storage Case | 1 x Case |
| Lumens | 563 |
| Photometrics | 3200K 33 fc / 365 Lux at 3.3' / 1 m* 135 fc / 1459 Lux at 1.6' / 0.5 m Standardised Measurement Supplied by the Manufacturer 5600K 36 fc / 396 Lux at 3.3' / 1 m 147 fc / 1585 Lux at 1.6' / 0.5 m *Standardised Measurement Supplied by the Manufacturer |
| Colour Temperature | 2000 to 10,000K |
| Colour Modes | RGB |
| Colour Accuracy Standard | CRI 96 TLCI 96 CQS 95 SSI 72 SSI 82 TM-30 Rf 94 |
| Cooling System | Passive |
| Dimming | Yes, Built-In Dimmer 0 to 100% |
| Beam Angle | 45° |
| Built-In Flash | No |
| Front Accessory Mount | None |
| Connectivity | |
| Wireless Remote Control Type | Bluetooth Wireless CRMX |
| Mobile App Compatible | Yes: Android & iOS App Name: Sidus Link Functionality: Adjust Settings, Remote Control *As of March, 2023: Cheque with manufacturer for the most up-to-date compatibility |
| Wireless Range | 262.5' / 80 m (Bluetooth) |
| Power & I/O | |
| Power Source | Battery (Built-In) |
| Inputs/Outputs | 1 x USB-C Power Input |
| Battery | 1 x Rechargeable Lithium-Ion Polymer, 3.7 to 4.2 VDC, 4200 mAh, 15.5 Wh (Built-In) |
| Battery Charging | Charging Cable (Included) |
| Included Adapter / Cable | 1 x USB-C to USB-A Cable |
| Power Consumption | 7 W |
| Mounting | |
| Fixture Mounting | 1 x 1/4"-20 Female Thread Magnetic |
| Environmental | |
| Water Resistance | Water Resistant (Light Fixture Only) |
| Environmental Protection | Advertised as Weather Resistant * Test Methodology Not Supplied |
| IP Rating | IP65 |
| General | |
| Dimensions | 10.8 x 7 x 2.5 cm |
| Weight | 247 g |
Product details
| Colour Temperature | 2000 - 10,000K |
|---|---|
| Battery | Lithium-Ion Included |
In the box
- Aputure MC Pro RGB LED Light Panel
- MC Pro Flat Diffuser
- MC Pro Dome Diffuser
- MC Pro Light Control Grid (30°)
- Cold Shoe Ball Head
- 1/4"-20 Screw to Magnetic Plate Adapter
- USB-C Charging Cable

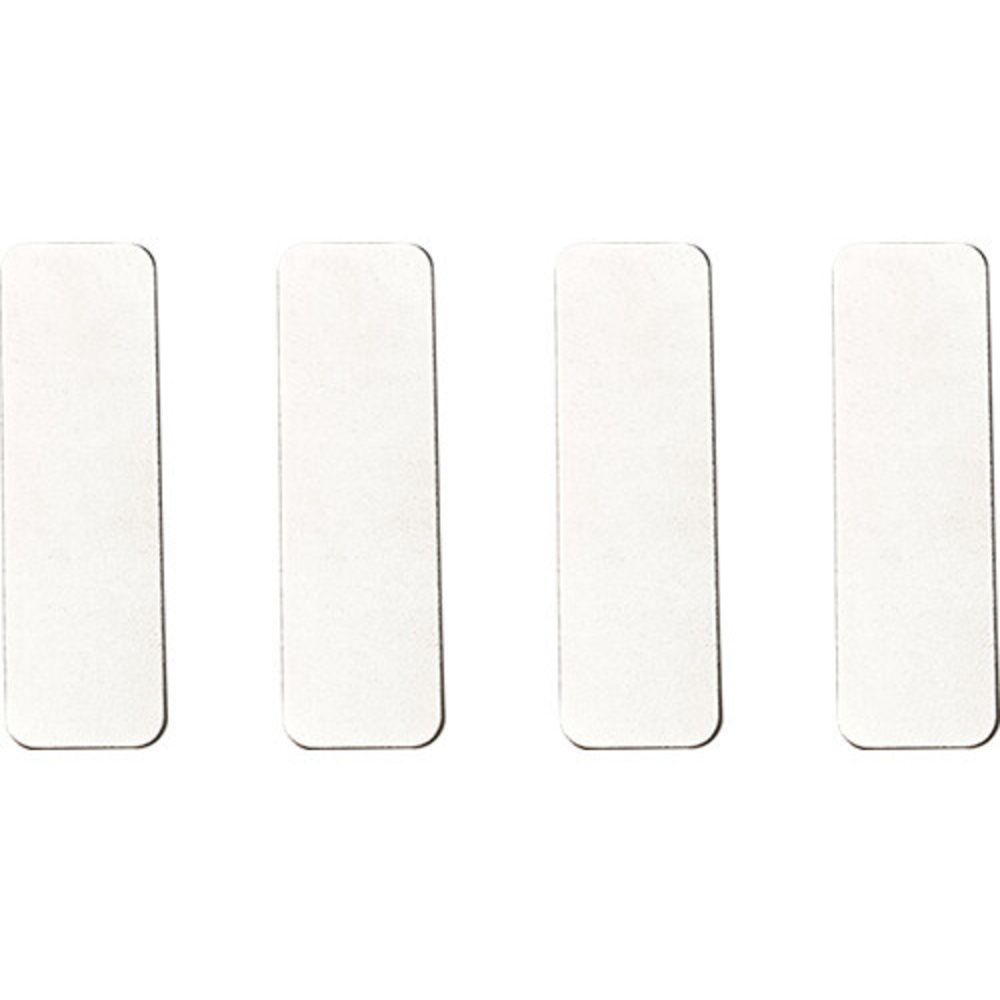

- Adhesive Magnetic Plate
- Carry Case
