Description

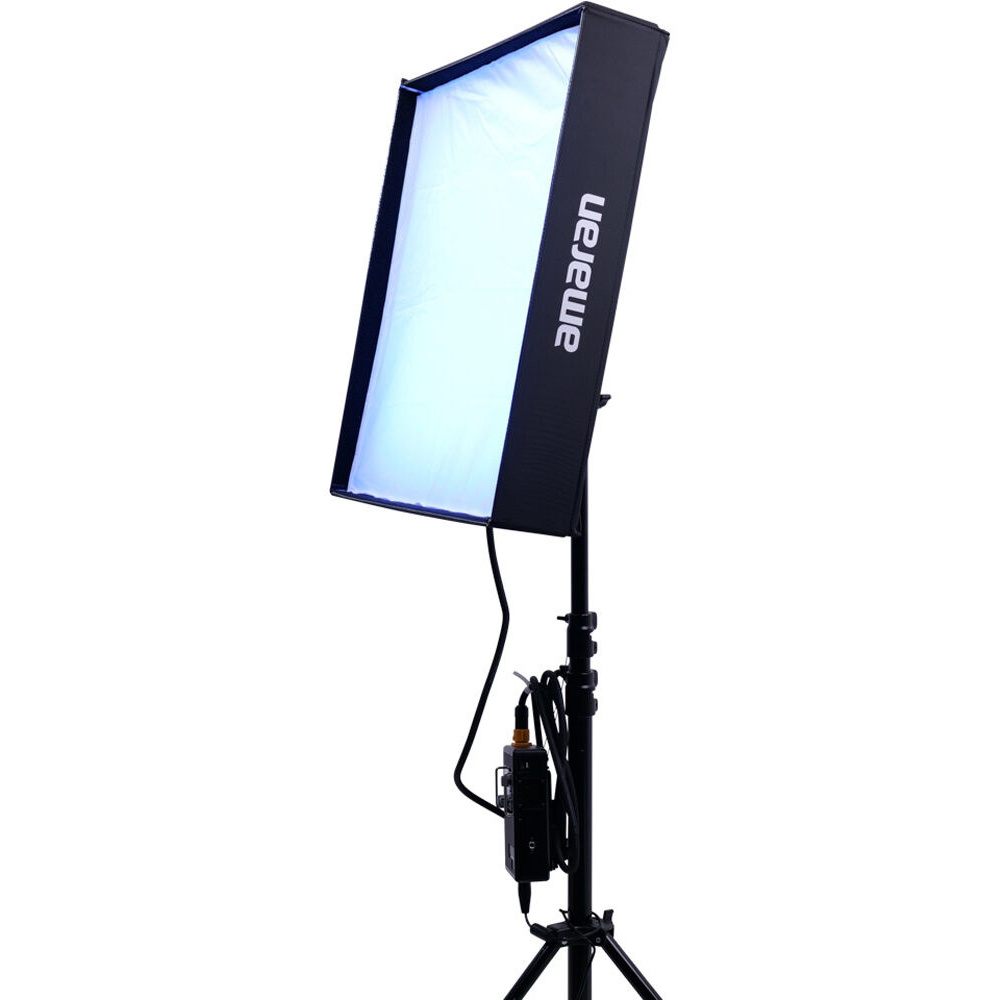

The amaran F22c RGBWW Flexible LED Mat (60 x 60cm) is an LED light from Aputure.
Highlights include colour temperature 2500-7500K, HSI full color control, green-magenta adjustment, 15-Built-In lighting FX, 46 gel presets and softbox frame with two diffusers & grid.
Key specifications: CRI ≥95; CCT 2500K ~ 7500K; TLCI ≥97; CQS ≥96; TM-30 RF (Average) 94.
Continuous LED light lets you see the effect as you set it, for video and stills alike. In the box: amaran F22c RGBWW 2x2 LED Flex Mat, amaran F22c Control Box, amaran F22c Head Cable Extension (3m), amaran F22 Support Bracket, amaran Flex Light Right Angle Baby Pin Adapter and amaran Flex Light Straight Baby Pin Adapter and 8 more items. Manufacturer model number AP30235A13.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| CCT | 2500K ~ 7500K |
|---|---|
| CRI | ≥95 |
| TLCI | ≥97 |
| CQS | ≥96 |
| TM-30 RF (Average) | 94 |
| TM-30 RG (Average) | 102 |
| SSI (Tungsten) | ≥83 |
| SSI (D56) | ≥74 |

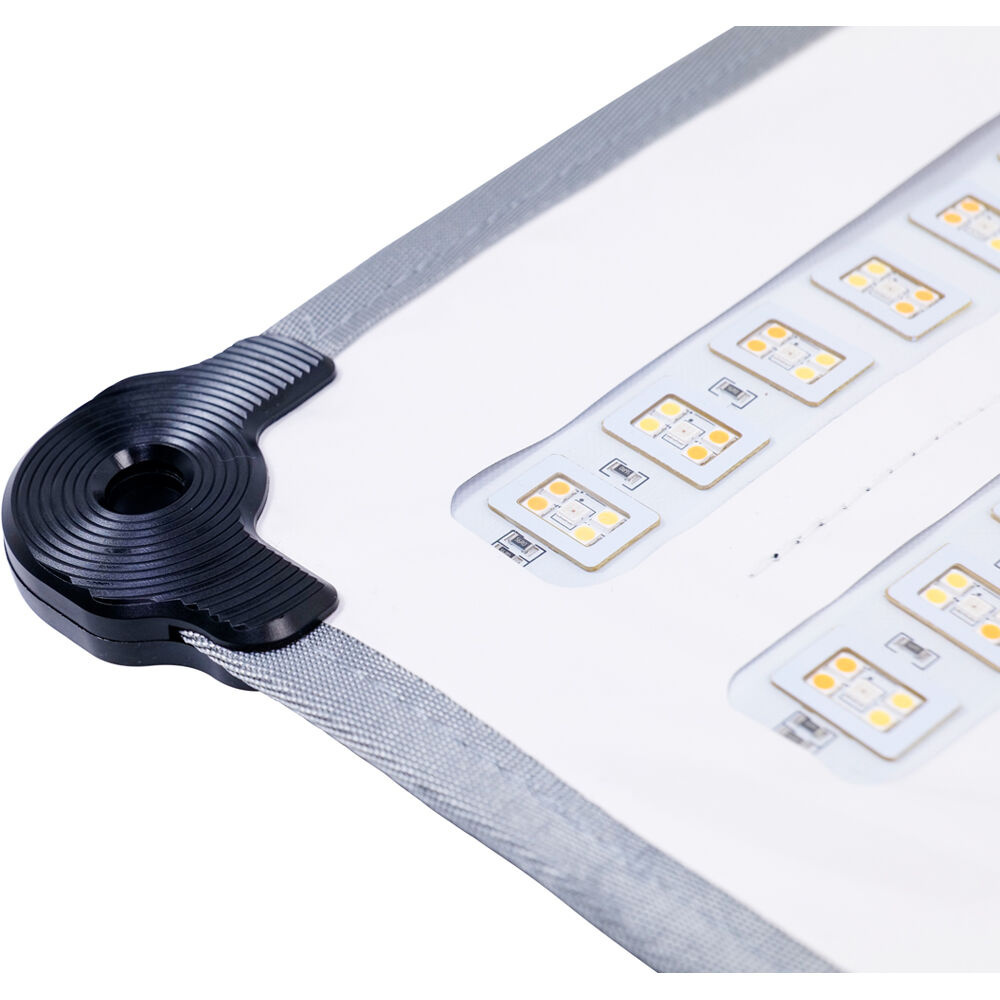

| Colour | Chipset Red, Green, Blue, Warm White, Cool White |
| Beam Angle (Half-Peak Angle) - Control Grid | 45° |
| Max Power Output | ≤200W |
| Max Power Consumption | ≤240W |
| Operating Current | 5A |
| Operating Voltage | AC Power Supply: 48V DC 3-Pin XLR DC: 48V/5A DC V-Mount Battery: Half Output: 12 ~ 16.8V (14.4V/10A) Full Output: 22V ~ 33.6V (26V/11A, 28.8V/10A) |

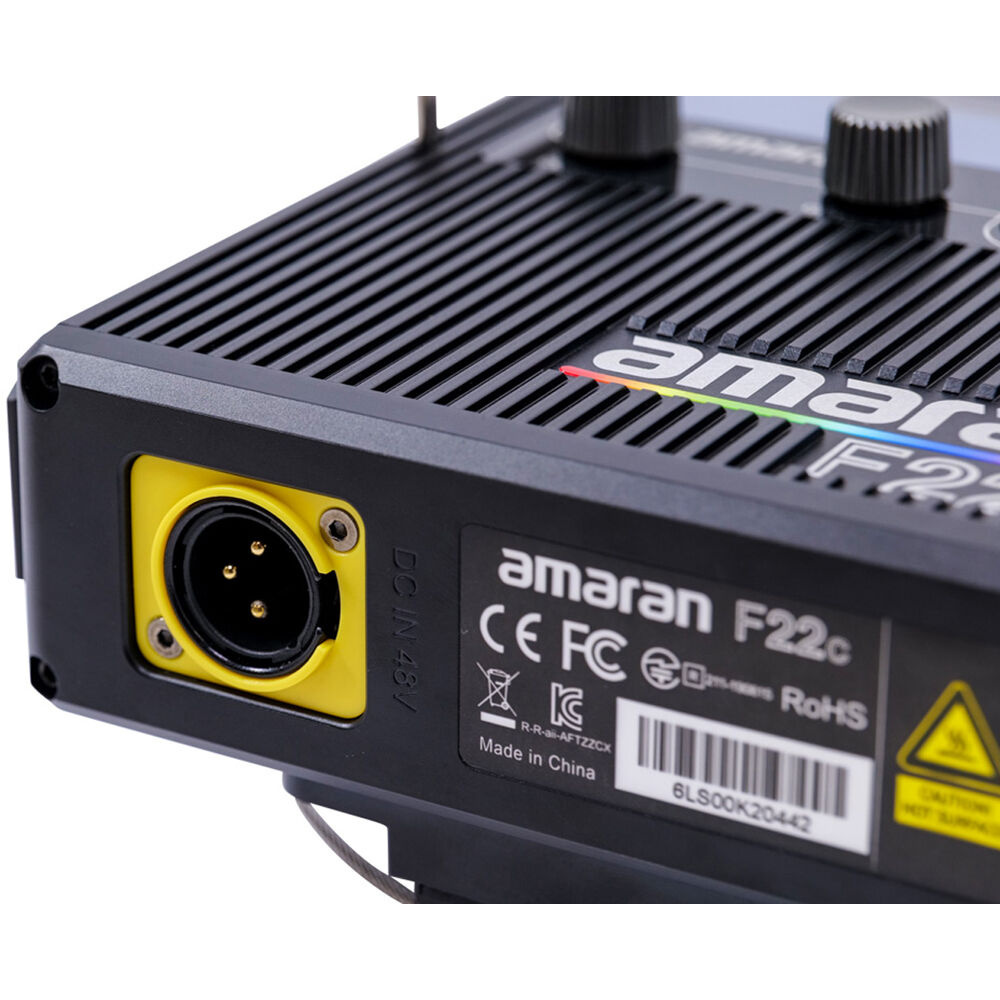

| DC Input | 48V 3-Pin XLR |
| AC Power Cable | IEC C13 AC Power Cable (4m) |
| Operating Temperature | -10°C ~ 40°C |

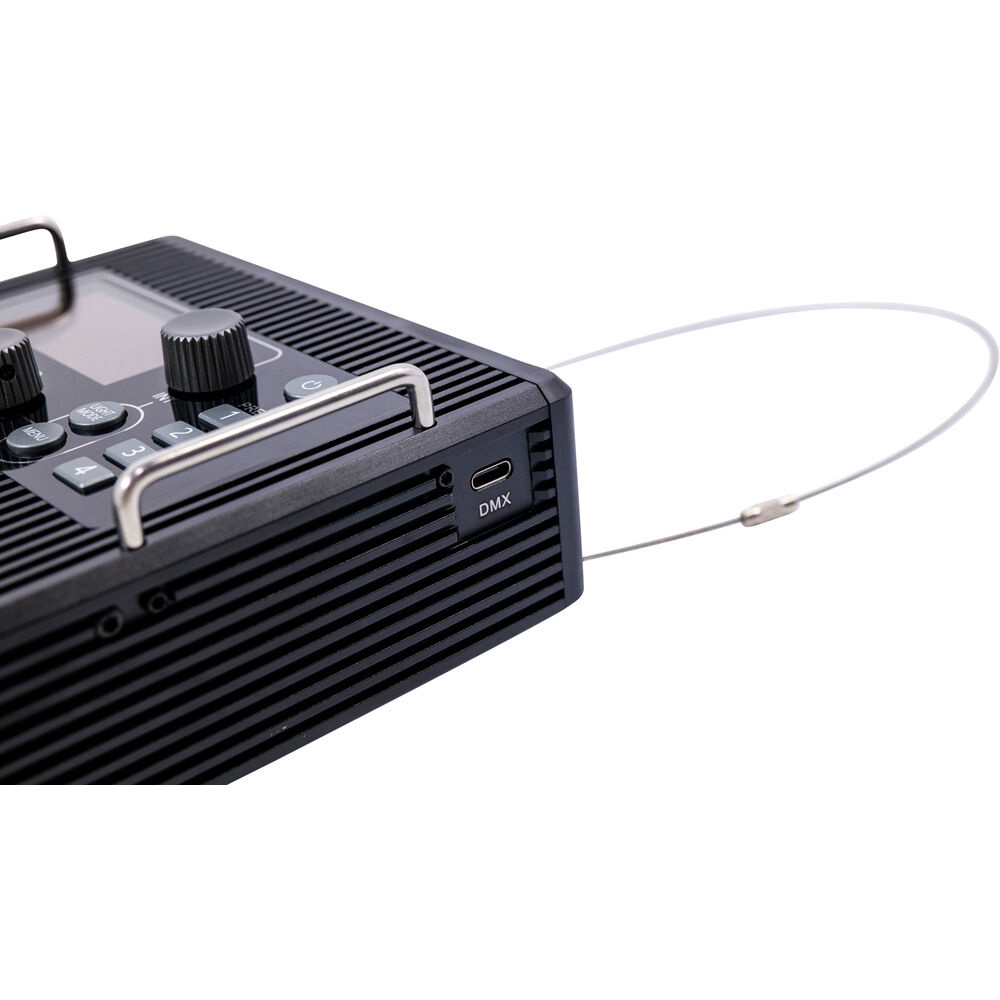

| Control Methods | On-board, Sidus Link App, DMX via USB-C to 5-Pin DMX512 In & Out Adapter Cable |
| Connectivity | Bluetooth 5.0 (Sidus Mesh) |
| Bluetooth Operating Range | ≥80m |
| Firmware Upgradeable | Sidus Link OTA |
| Display Type | OLED |
| Cooling Method | Lamp Head: Passive Cooling Control Box: Active Cooling |
| Mounting | Tilting Mounting Support Right Angle Baby Pin Adapter (16mm) Straight Baby Pin Adapter (16mm) |
| Estimated LED Lifetime (L70) | 50,000 Hours |
| Estimated Colour Shift Over Lifetime (CCT) | 2% over 6,000 Hours |
| Dimensions | Fixture: No Accessory: 60 x 60 x 0.5cm With Soft Box: 62.5 x 62.5 x 10.5cm Aperture: 52 x 51cm Control Box: 19 x 15 x 7cm Carrying Case: 66 x 35 x 10.5cm |
| Weight | Fixture: No Accessory: 0.88kg With Softbox: 2.83kg Control Grid:116g Control Box: 1.2kg Power Supply: 1.1kg Mounting Bracket: 0.66kg Total: 7.92kg |
Product details
| Colour Temperature | 2500 - 7500K |
|---|
In the box

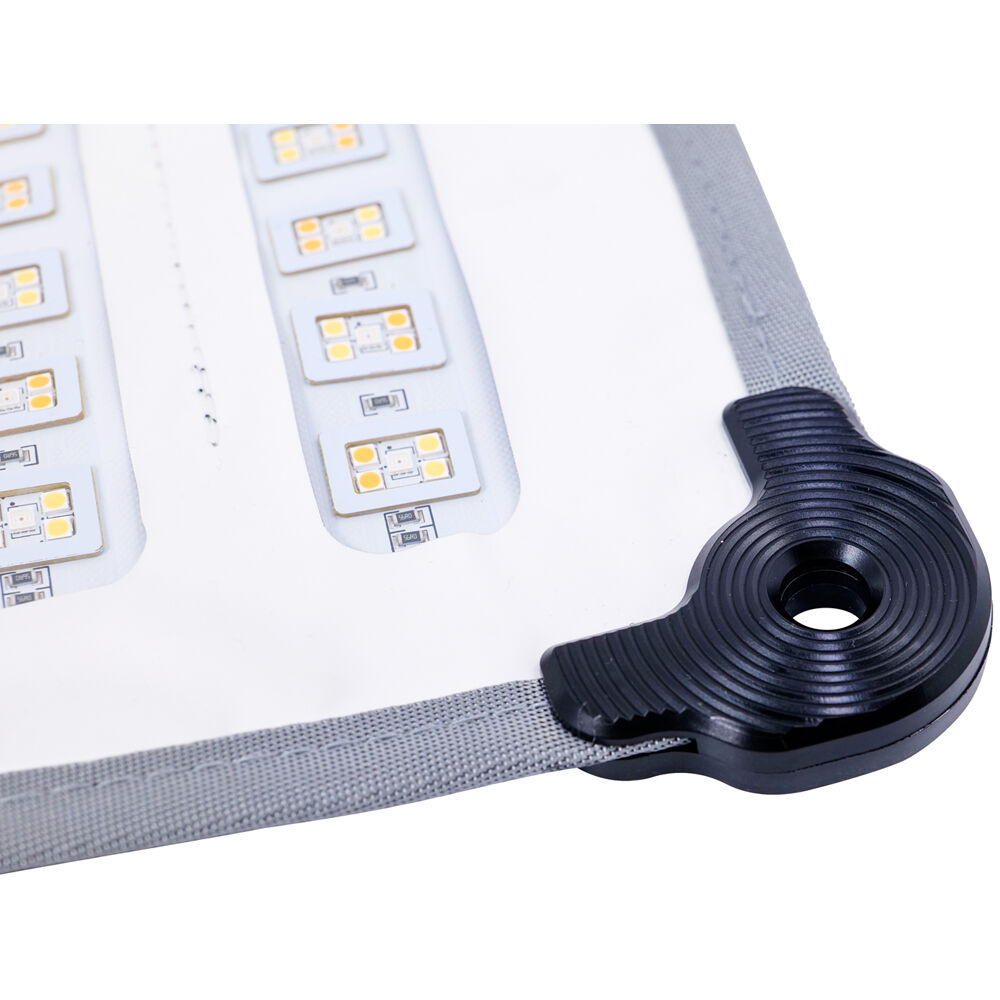

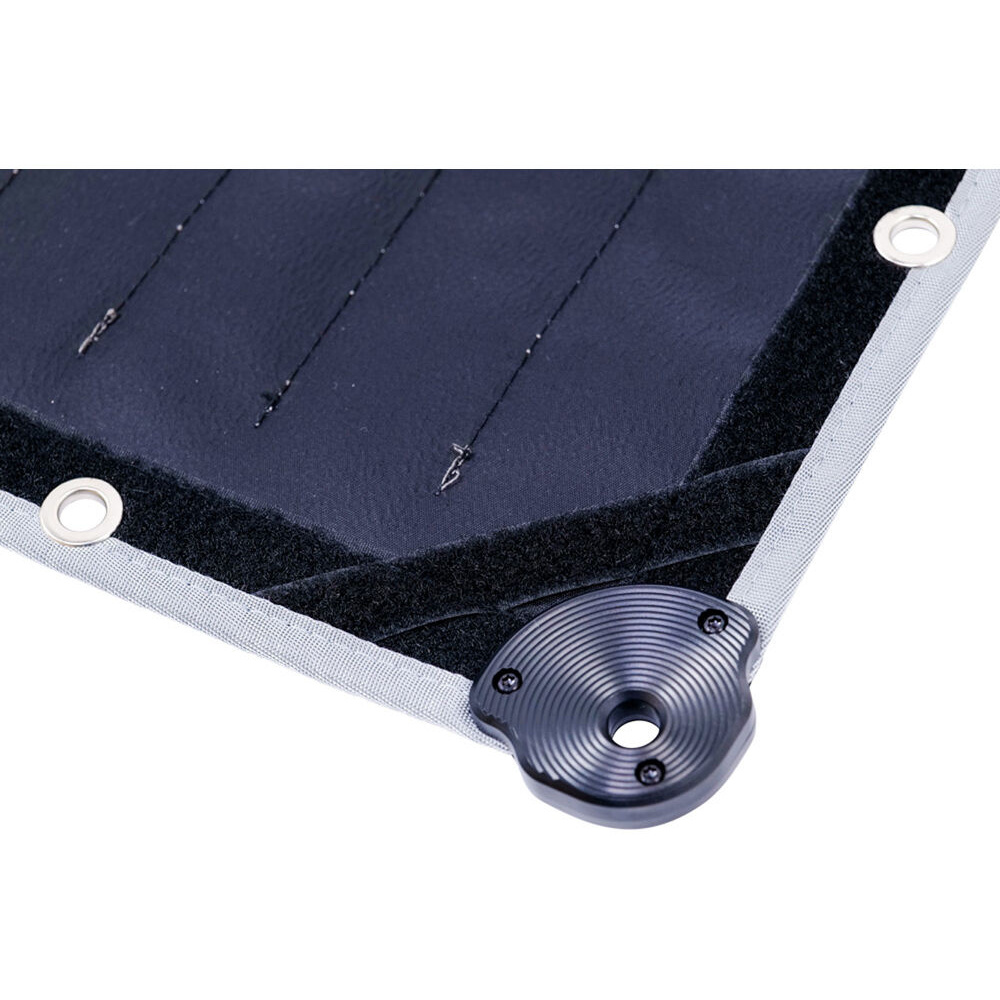

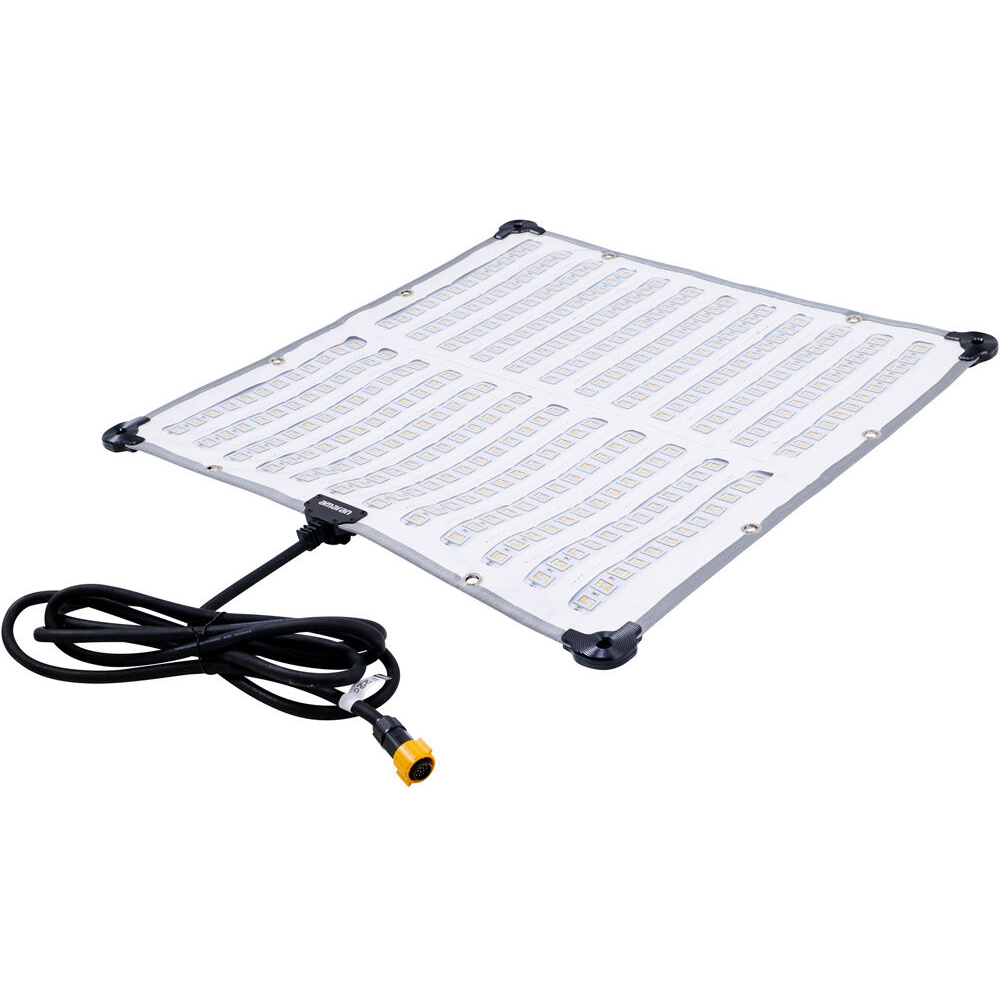

- amaran F22c RGBWW 2x2 LED Flex Mat

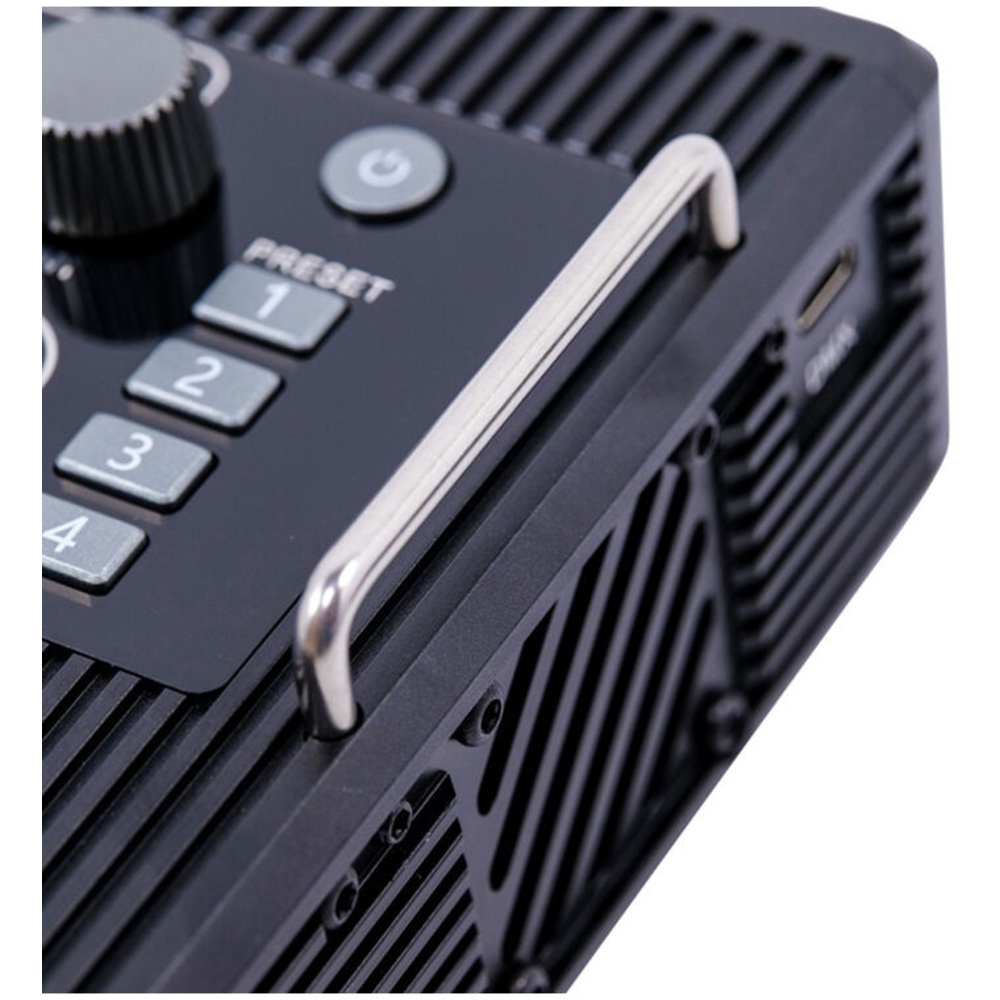

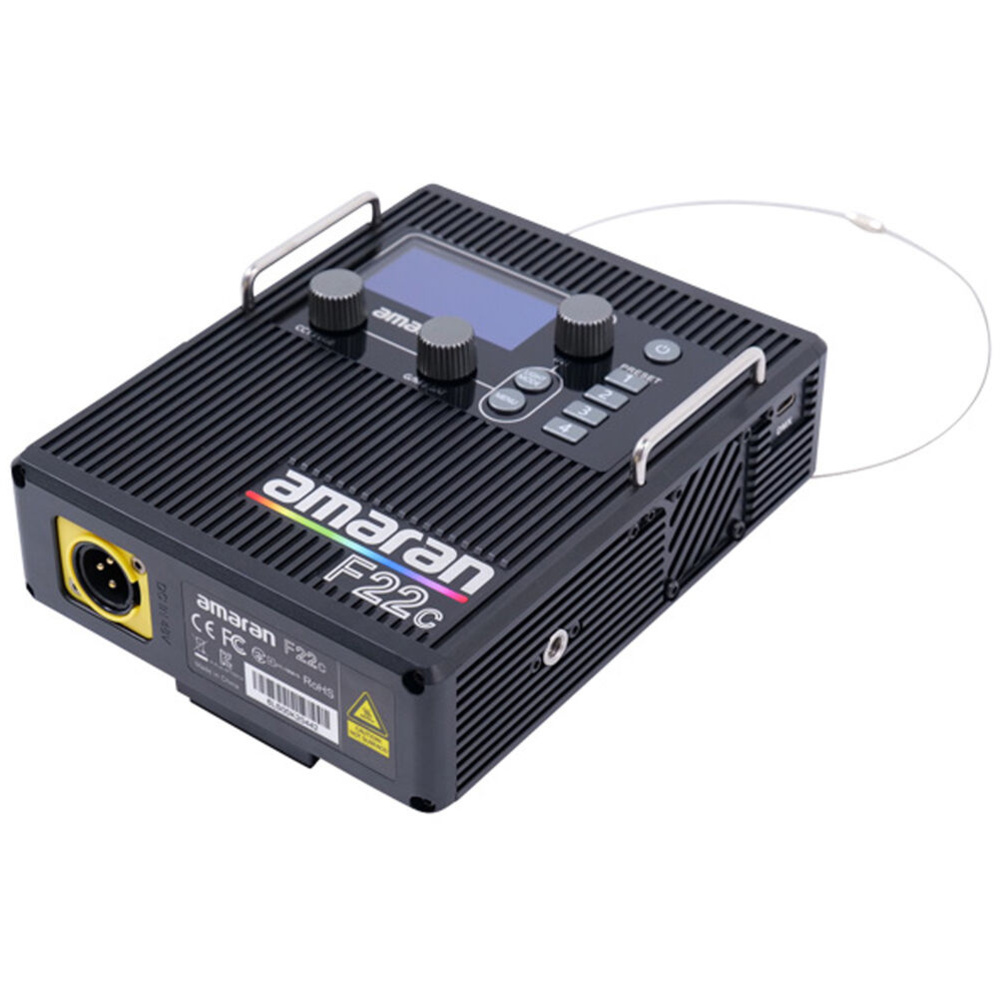

- amaran F22c Control Box
- amaran F22c Head Cable Extension (3m)
- amaran F22 Support Bracket

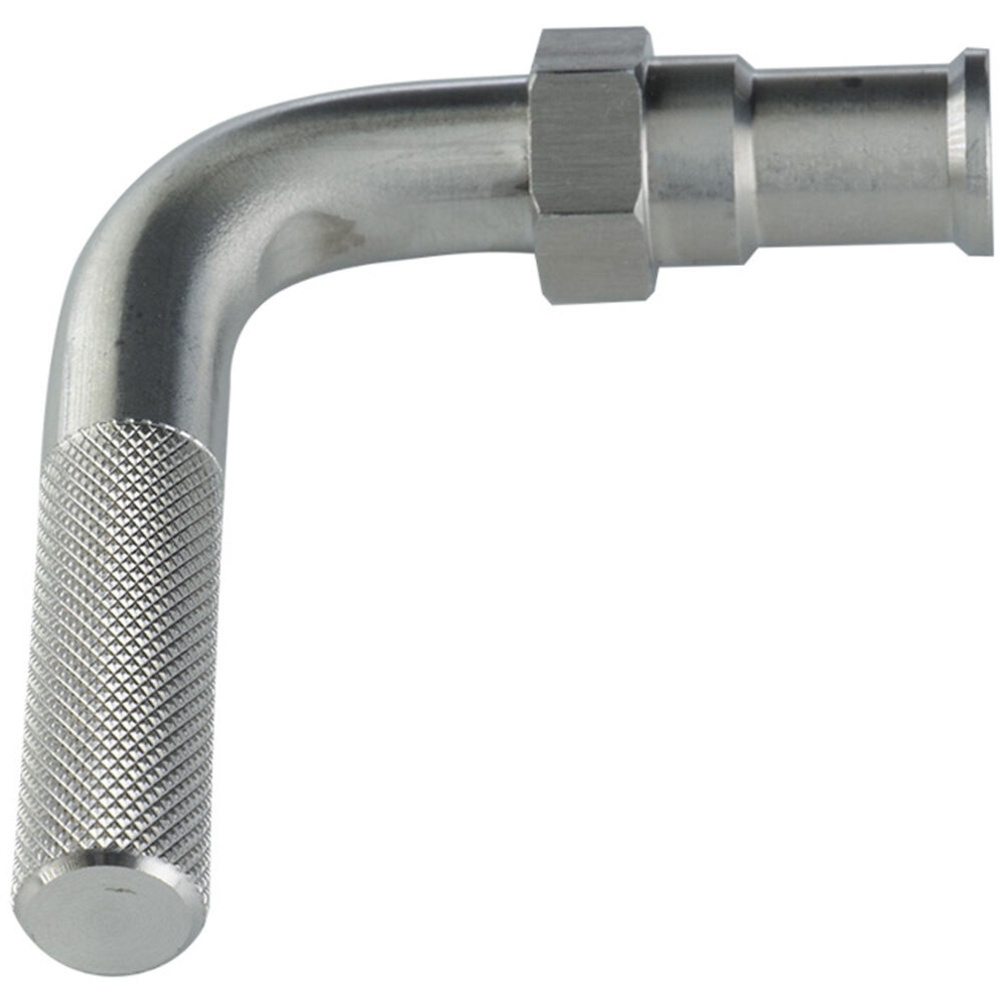

- amaran Flex Light Right Angle Baby Pin Adapter
- amaran Flex Light Straight Baby Pin Adapter

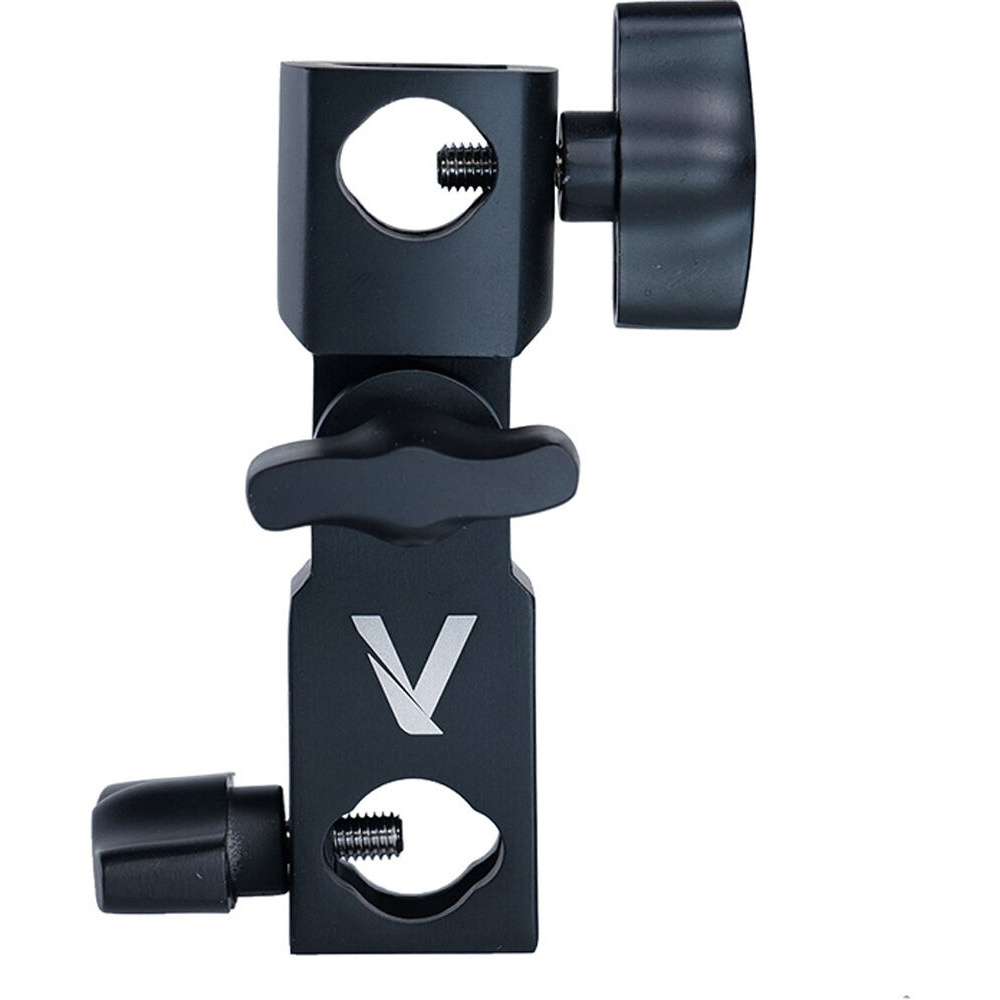

- Tilting Stand Mount
- amaran F22 Softbox Frame
- amaran F22 Diffusion Cloth 1 (1/2 Grid Cloth)
- amaran F22 Diffusion Cloth 2 (2.5 Stop)

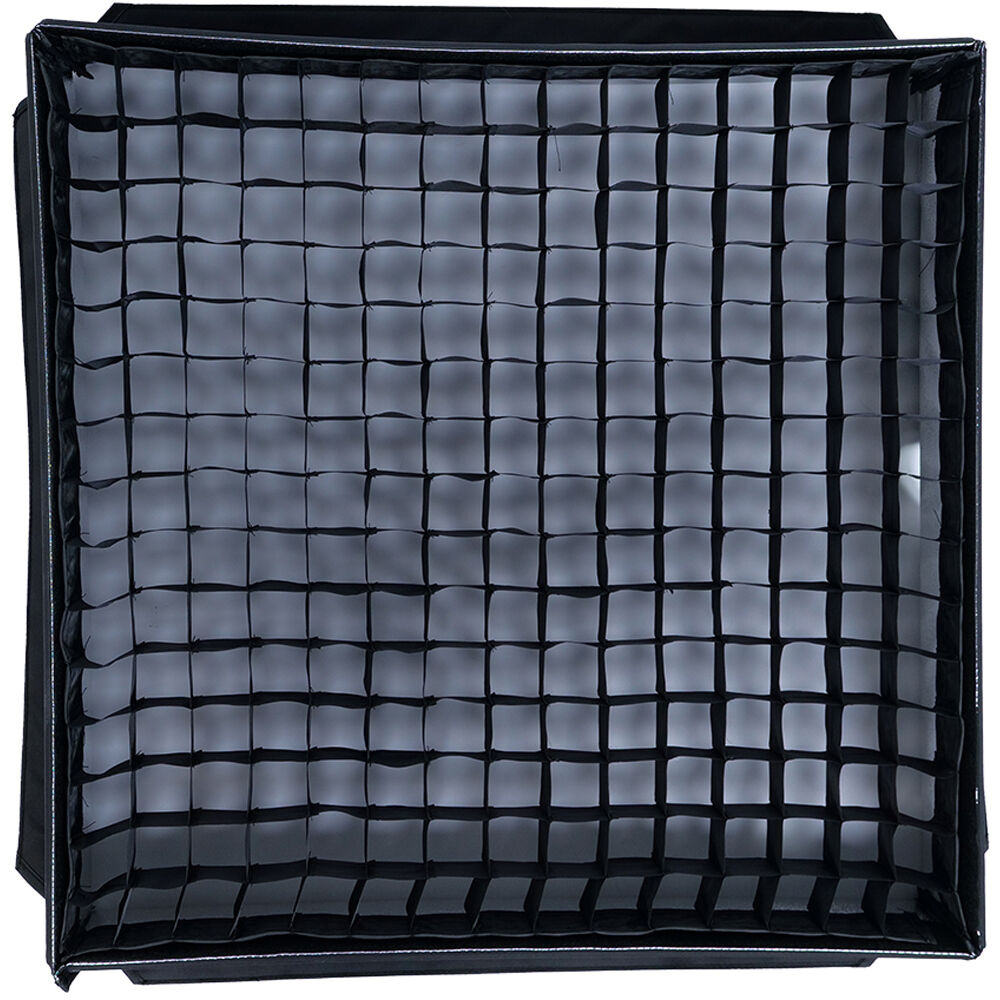

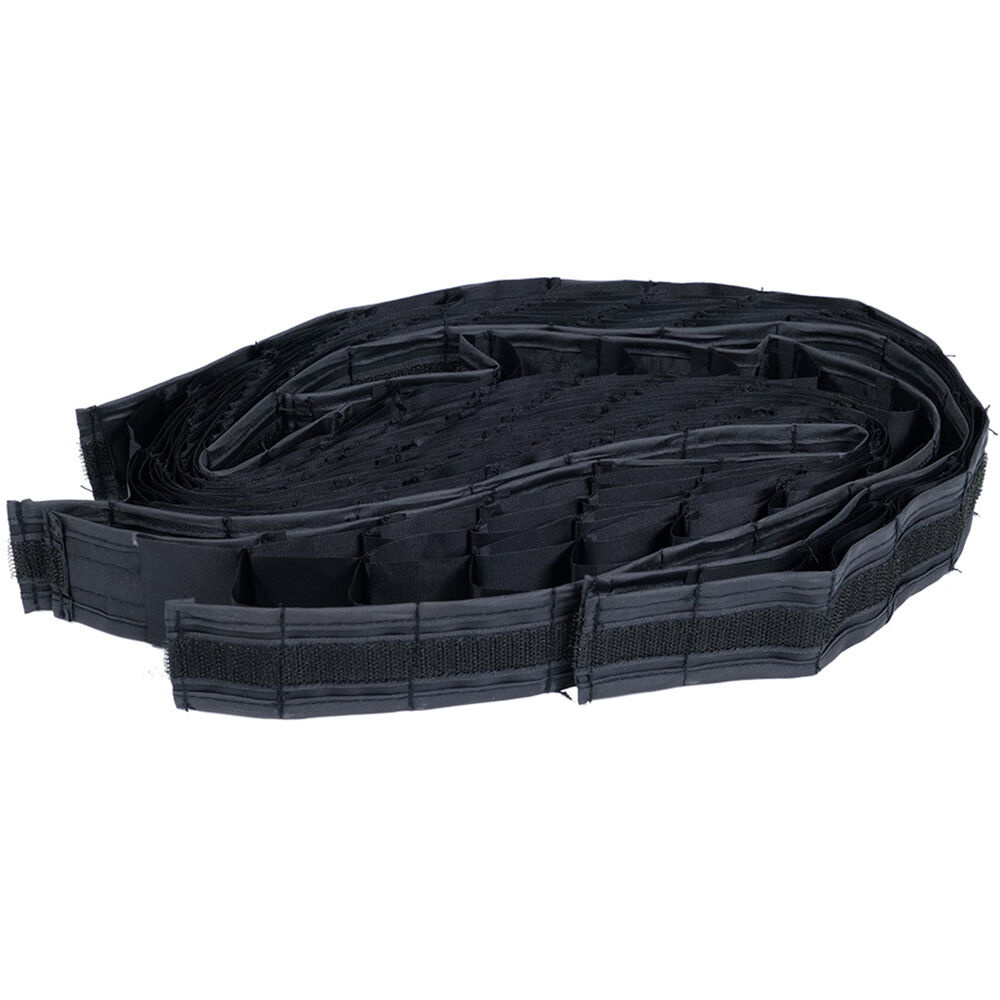

- amaran F22 Light Control Grid
- AC Power Supply
- AC Power Cable
- amaran Flex Light Carrying Case
